AC Fans
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
D2E097-BK80-02BLOWER |
4,191 | 200.03 |
|
Datasheet |
D2E097 | Bulk | Active | 230VAC | Rectangular/Rounded - 161mm L x 165mm H | 146.0mm | - | - | Ball | Blower, Centrifugal | Capacitor, Thermal Overload Protector (TOP) | - | 77.0W | 1750 RPM | 4 Wire Leads | IP20 | -13 ~ 86°F (-25 ~ 30°C) | CE | - |
|

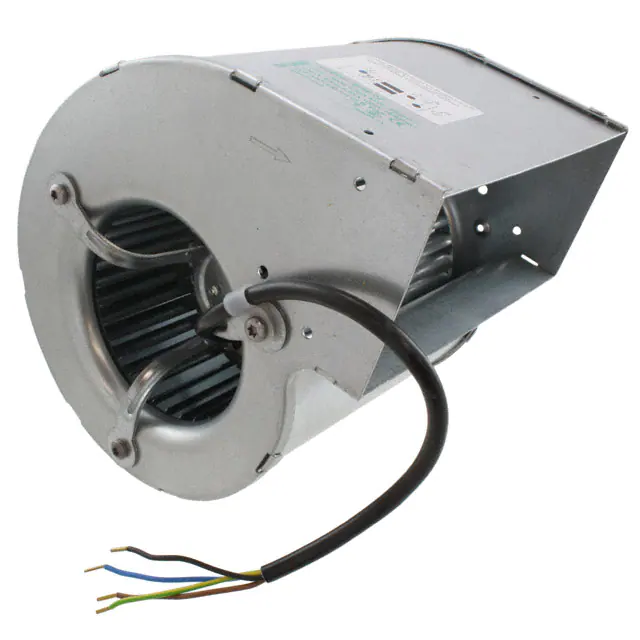

D2E097-BI56-02FAN BLWR CENT 162X180MM 230VAC |
1,020 | 260.44 |
|
Datasheet |
D2E097 | Bulk | Active | 230VAC | Rectangular/Rounded - 162mm L x 165mm H | 180.0mm | 241.3 CFM (6.76m³/min) | - | Ball | Blower, Centrifugal | Capacitor, Thermal Overload Protection (TOP) | 57.0dB(A) | 100W | 1850 RPM | 2 Wire Leads | IP20 | 35°C | CCC, CE, GOST | 3.3 lbs (1.5 kg) |
|

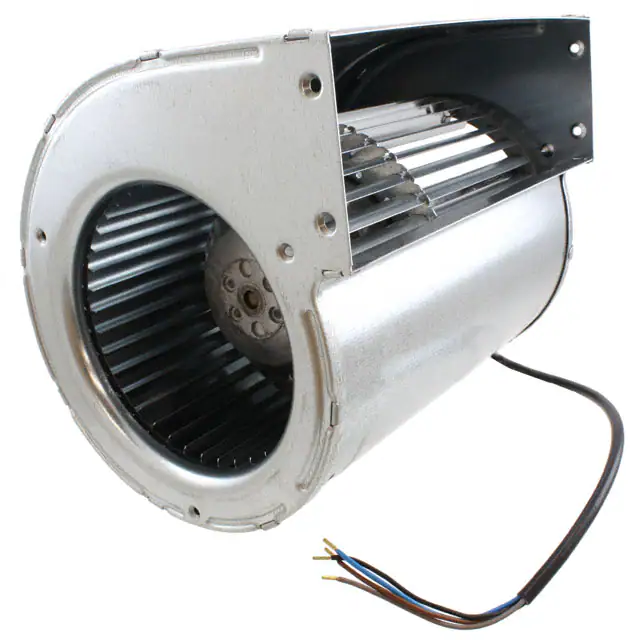

D2E133-AM47-94FAN BLWR CENT 171X215MM 230VAC |
2,008 | 369.64 |
|
Datasheet |
D2E133 | Bulk | Active | 230VAC | Rectangular/Rounded - 170.5mm L x 180mm H | 215.0mm | 353.0 CFM (9.88m³/min) | 0.401 in H2O (100.0 Pa) | Ball | Blower, Centrifugal | Capacitor, Thermal Overload Protection (TOP) | - | 200W | 1800 RPM | 4 Wire Leads | IP44 | -13 ~ 77°F (-25 ~ 25°C) | CE, UL | 7.8 lbs (3.5 kg) |
|

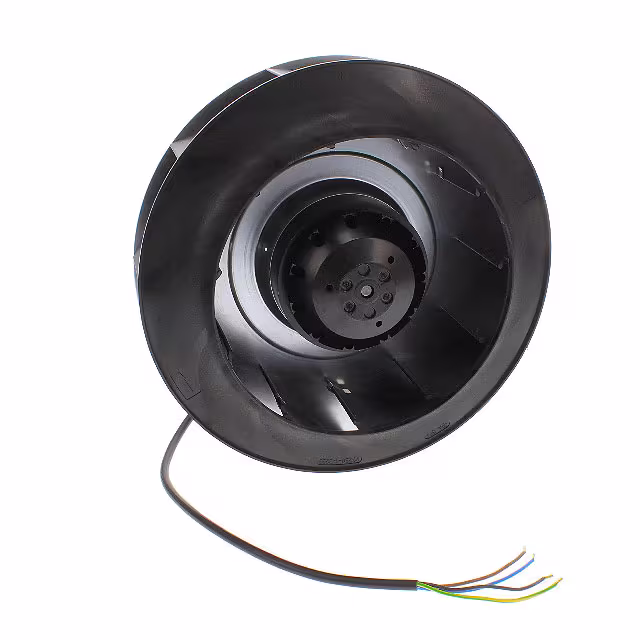

R2E250-AV65-01MOTORIZED IMPELLER |
3,443 | 323.53 |
|
Datasheet |
R2E250 | Bulk | Active | 230VAC | Round - 250mm Dia | 89.00mm | - | - | Ball | Motorized Impellers | Capacitor, Thermal Overload Protector (TOP) | - | 160W | 2750 RPM | 4 Wire Leads with Splice Terminals | IP44 | -13 ~ 113°F (-25 ~ 45°C) | CCC, EAC | - |
|
R3G190-RD45-03190 MM EC CENTRIFUGAL FAN |
565 | 460.27 |
|
Datasheet |
Green Tech RadiCal® R3G190RD | Bulk | Active | 230VAC | Round - 190mm Dia | 90.70mm | 573.9 CFM (16.07m³/min) | - | Ball | Motorized Impellers | Electronic Commutation (EC) | 72.0dB(A) | 169W | 4120 RPM | 2 Wire Leads | IP54 - Dust Protected, Water Resistant | -13 ~ 140°F (-25 ~ 60°C) | UL | 3 lbs (1.4 kg) |
|
W3G250-HH07-03FAN AXIAL 230V 280X80MM 1000CFM |
139 | 415.69 |
|
Datasheet |
W3G250 | Bulk | Active | 230VAC | Square - 280mm L x 280mm H | 80.00mm | 1000.0 CFM (28.00m³/min) | - | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | - | 83.0W | 2330 RPM | Terminal Block | IP54 - Dust Protected, Water Resistant | -13 ~ 140°F (-25 ~ 60°C) | CCC, CE, CSA | 4.6 lbs (2.1 kg) |
|
G4E180-AB09-15FAN BLWR CENT 261X125MM 115VAC |
1,904 | 392.78 |
|
Datasheet |
G4E180 | Box | Active | 115VAC | Rectangular - 261mm L x 281mm H (180mm Dia) | 125.0mm | 350.0 CFM (9.80m³/min) | - | Ball | Blower, Centrifugal | - | 65.0dB(A) | 146W | - | 2 Wire Leads | - | - | - | 8.2 lbs (3.7 kg) |
|

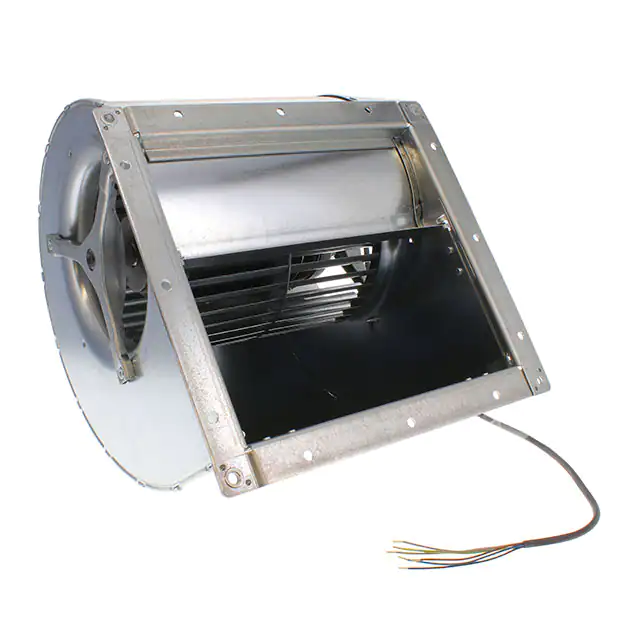

D4E180-CA02-36BLOWER |
4,023 | 617.51 |
|
Datasheet |
D4E180 | Bulk | Active | 230VAC | Rectangular/Rounded - 295mm L x 332mm H | 309.0mm | - | - | Ball | Blower, Centrifugal | Capacitor, Thermal Overload Protector (TOP) | - | 495W | 1300 RPM | 6 Wire Leads | IP44 | -13 ~ 95°F (-25 ~ 35°C) | CCC, CSA, UL | - |
|

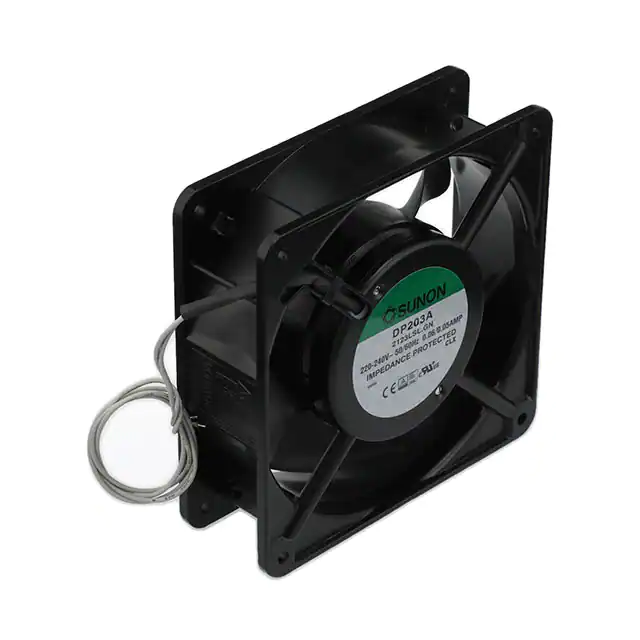

DP203A-2123LSL.GNFAN AXIAL 119X38.5MM 220/240VAC |
145 | 15.69 |
|
Datasheet |
DP | Bulk | Active | 220 ~ 240VAC | Square - 119mm L x 119mm H | 38.50mm | 63.0 CFM (1.76m³/min) | 0.070 in H2O (17.4 Pa) | Sleeve | Tubeaxial | - | 32.0dB(A) | 10.00W | 1800 RPM | 2 Wire Leads | - | - | CE, CUR, TUV, UL | 1.2 lbs (550 g) |
|
FAA1-12038NBLW31-AFAN AXIAL 119.5X38.5MM 115VAC |
153 | 15.49 |
|
Datasheet |
FAA1-12038 | Bulk | Active | 115VAC | Square - 119.5mm L x 119.5mm H | 38.50mm | 71.5 CFM (2.00m³/min) | 0.100 in H2O (24.9 Pa) | Ball | Tubeaxial | - | 37.9dB(A) | 8.70W | 2200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 1.2 lbs (544.3 g) |
|
OA92AP-22-1WBFAN AXIAL 92X26MM 230VAC WIRE |
1,135 | 21.85 |
|
Datasheet |
OA92 | Box | Active | 230VAC | Square - 92mm L x 92mm H | 26.00mm | 35.0 CFM (0.980m³/min) | 0.200 in H2O (49.8 Pa) | Ball | Tubeaxial | - | 30.0dB | 13.00W | 3000 RPM | 2 Wire Leads | - | -4 ~ 176°F (-20 ~ 80°C) | cURus, TUV | 0.644 lb (292.11 g) |
|
11925PB-B3L-EA-00FAN 119MM X 25MM 230VAC TERMINAL |
108 | 16.62 |
|
Datasheet |
11925PB | Bulk | Active | 230VAC | Square - 119mm L x 119mm H | 25.50mm | 70.6 CFM (1.98m³/min) | 0.160 in H2O (39.8 Pa) | Ball | Tubeaxial | - | 38.0dB | 11.00W | 2700 RPM | 2 Terminals | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
11938MB-B3K-EA-00FAN 119MM X 38MM 230VAC TERMINAL |
1,890 | 17.30 |
|
Datasheet |
11938MB | Bulk | Active | 230VAC | Square - 119mm L x 119mm H | 38.00mm | 67.0 CFM (1.88m³/min) | 0.090 in H2O (22.4 Pa) | Ball | Tubeaxial | - | 30.0dB | 7.50W | 1900 RPM | 2 Terminals | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
11938MB-A1L-EA-00FAN 119MM X 38MM 115VAC TERMINAL |
769 | 17.30 |
|
Datasheet |
11938MB | Bulk | Active | 115VAC | Square - 119mm L x 119mm H | 38.00mm | 88.2 CFM (2.47m³/min) | 0.200 in H2O (49.8 Pa) | Ball | Tubeaxial | - | 37.0dB | 10.00W | 2600 RPM | 2 Terminals | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
11938MB-B3J-EA-00FAN 119MM X 38MM 230VAC TERMINAL |
116 | 17.30 |
|
Datasheet |
11938MB | Bulk | Active | 230VAC | Square - 119mm L x 119mm H | 38.00mm | 49.4 CFM (1.38m³/min) | 0.590 in H2O (147.0 Pa) | Ball | Tubeaxial | - | 28.0dB | 6.00W | 1450 RPM | 2 Terminals | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
11938MB-B3L-EA-00FAN 119MM X 38MM 230VAC TERMINAL |
102 | 17.30 |
|
Datasheet |
11938MB | Bulk | Active | 230VAC | Square - 119mm L x 119mm H | 38.00mm | 88.2 CFM (2.47m³/min) | 0.210 in H2O (52.3 Pa) | Ball | Tubeaxial | - | 37.0dB | 11.00W | 2600 RPM | 2 Terminals | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
FAA1-12025NBMW31FAN AXIAL 120X25MM 115VAC WIRE |
2,390 | 23.05 |
|
Datasheet |
FAA1-12025 | Bulk | Active | 115VAC | Square - 120mm L x 120mm H | 25.00mm | 71.0 CFM (1.99m³/min) | 0.156 in H2O (38.8 Pa) | Ball | Tubeaxial | - | 44.1dB(A) | 20.70W | 2300 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.749 lb (339.74 g) |
|

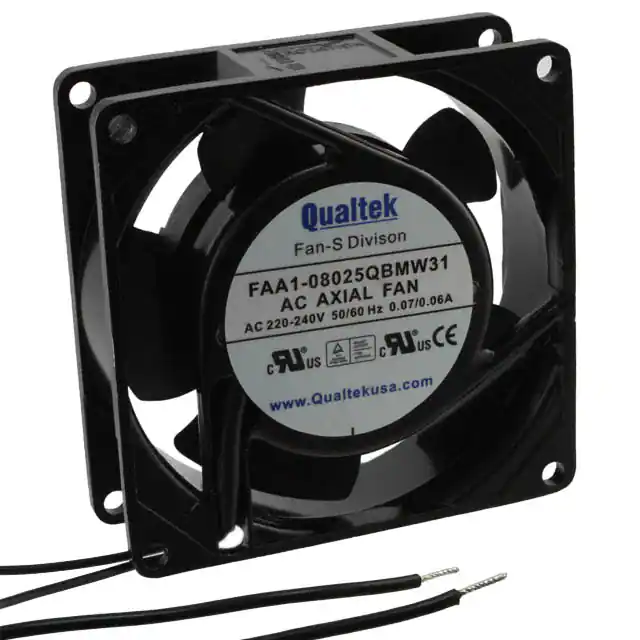

FAA1-08025QBMW31FAN AXIAL 80X25MM 230VAC WIRE |
232 | 18.51 |
|
Datasheet |
FAA1-08025 | Bulk | Active | 230VAC | Square - 80mm L x 80mm H | 25.00mm | 19.0 CFM (0.532m³/min) | 0.118 in H2O (29.4 Pa) | Ball | Tubeaxial | - | 24.0dB(A) | 11.00W | 2500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.463 lb (210.01 g) |
|
|
09225PB-A1J-EA-00FAN 92MM X 25MM 115VAC TERMINAL |
222 | 17.94 |
|
Datasheet |
09225PB | Bulk | Active | 115VAC | Square - 92.5mm L x 92.5mm H | 25.00mm | 20.0 CFM (0.560m³/min) | 0.080 in H2O (19.9 Pa) | Ball | Tubeaxial | - | 25.0dB | 6.00W | 1800 RPM | 2 Terminals | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
FAA1-12038QBKT31-AFAN AXIAL |
1,128 | 20.07 |
|
Datasheet |
FAA1-12038 | Bulk | Active | 230VAC | Square - 119.5mm L x 119.5mm H | 38.50mm | 107.0 CFM (3.00m³/min) | 0.250 in H2O (62.3 Pa) | Ball | Tubeaxial | - | 48.1dB(A) | 19.80W | 2600 RPM | 2 Terminals | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 1.2 lbs (544.3 g) |
