AC Fans
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

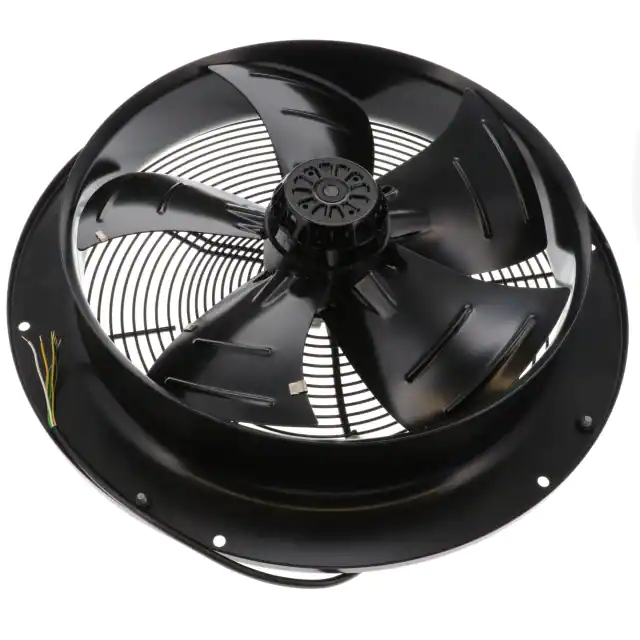

W4D400-CP12-30FAN AXIAL |
4,380 | 448.64 |
|
Datasheet |
W4D400 | Bulk | Active | 230/400VAC | Round - 528mm Dia | 131.0mm | 1528.5 CFM (42.80m³/min) | 0.482 in H2O (120.0 Pa) | Ball | Tubeaxial, 3 Phase | Dual Voltage | - | 185W | 1690 RPM | 7 Wire Leads with Splice Terminals | IP44 | -13 ~ 104°F (-25 ~ 40°C) | CCC, CE | - |
|

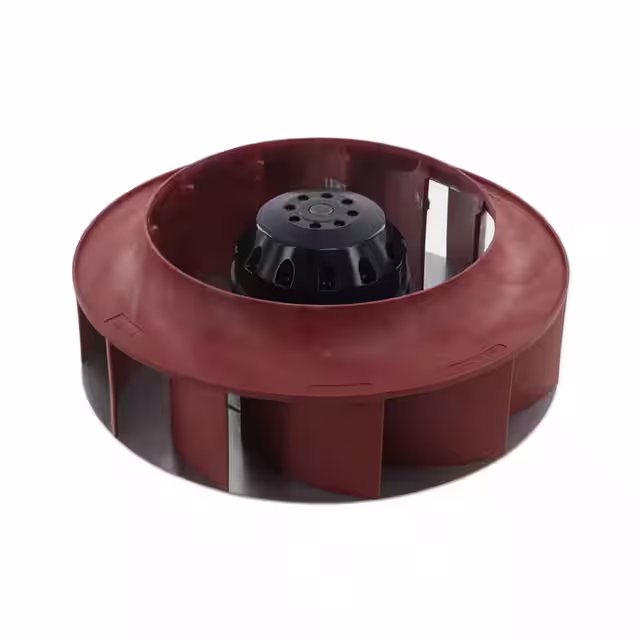

R2D250-AF10-12MOTORIZED IMPELLER |
1,001 | 424.01 |
|
Datasheet |
R2D250 | Bulk | Active | 400VAC | Round - 250mm Dia | 99.00mm | - | - | Ball | Motorized Impellers, 3 Phase | Thermal Overload Protector (TOP) | - | 160W | 2600 RPM | 6 Wire Leads with Splice Terminals | IP44 | 158°F (70°C) | CE | - |
|
R3G250-RE21-08250 MM EC CENTRIFUGAL FAN |
1,954 | 477.30 |
|
Datasheet |
Green Tech RadiCal® R3G250RE | Bulk | Active | 115VAC | Round - 255mm Dia | 99.00mm | 885.8 CFM (24.80m³/min) | - | Ball | Motorized Impellers | Electronic Commutation (EC) | 76.0dB(A) | 170W | 2510 RPM | 2 Wire Leads | IP54 - Dust Protected, Water Resistant | -13 ~ 140°F (-25 ~ 60°C) | CSA, UL, VDE | 3.9 lbs (1.8 kg) |
|
S4D450-AP03-10FAN AXIAL |
2,894 | 651.64 |
|
Datasheet |
S4D450 | Bulk | Active | 460VAC | Round - 522mm Dia | 200.5mm | - | 0.301 in H2O (75.0 Pa) | Ball | Tubeaxial, 3 Phase | - | - | 380W | 1460 RPM | Terminal Block | IP44 | -13 ~ 131°F (-25 ~ 55°C) | - | - |
|

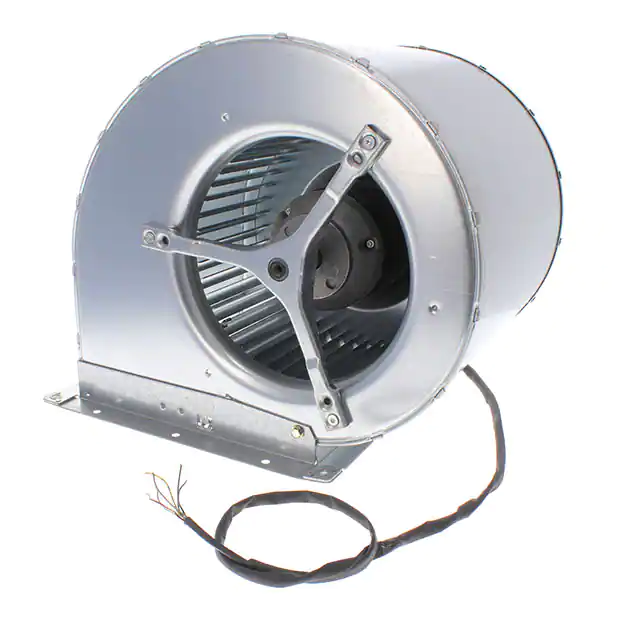

D4E225-CC01-30FAN BLWR CENT 370X341MM 230VAC |
4,701 | 1041.70 |
|
Datasheet |
D4E225 | Bulk | Active | 230VAC | Rectangular/Rounded - 370mm L x 327mm H | 341.0mm | 1156.6 CFM (32.38m³/min) | 0.401 in H2O (100.0 Pa) | Ball | Blower, Centrifugal | Capacitor, Thermal Overload Protection (TOP) | - | 650W | 1150 RPM | 6 Wire Leads | IP22 | -13 ~ 86°F (-25 ~ 30°C) | CCC, CE | - |
|
FAA1-12038NBKW31-AFAN AXIAL 119.5X38.5MM 115VAC |
3,862 | 15.73 |
|
Datasheet |
FAA1-12038-A | Bulk | Active | 115VAC | Square - 119.5mm L x 119.5mm H | 38.50mm | 107.0 CFM (3.00m³/min) | 0.250 in H2O (62.3 Pa) | Ball | Tubeaxial | - | 48.1dB(A) | 19.20W | 2600 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 1.2 lbs (544.3 g) |
|

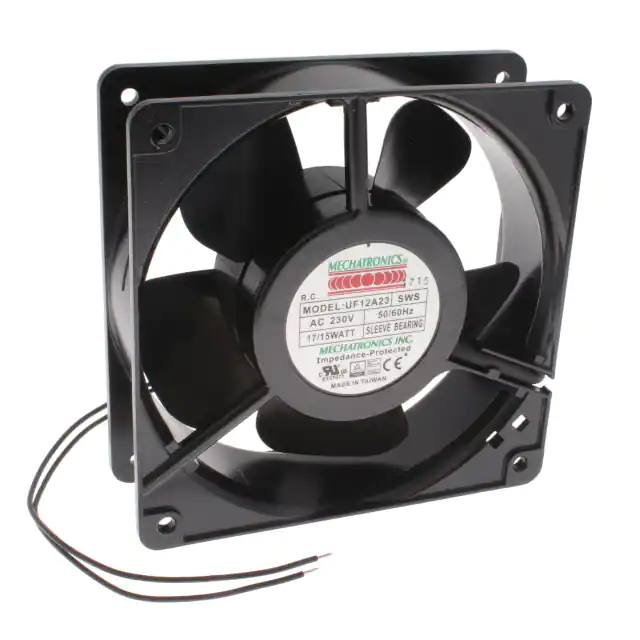

UF12A23-SWSRFAN AXIAL 120X38MM 230VAC WIRE |
3,603 | 15.52 |
|
Datasheet |
UF12A | Bulk | Active | 230VAC | Square - 120mm L x 120mm H | 38.00mm | 64.0 CFM (1.79m³/min) | 0.110 in H2O (27.4 Pa) | Sleeve | Tubeaxial | - | 37.0dB(A) | 8.00W | 2100 RPM | 2 Wire Leads | - | -40 ~ 158°F (-40 ~ 70°C) | CE, cUL, TUV, UL | 1.168 lbs (530 g) |
|

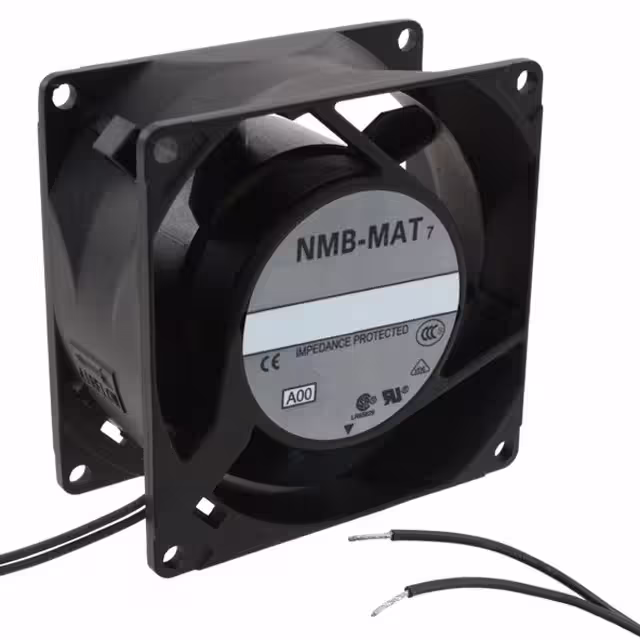

3115FS-23W-B20-A00FAN AXIAL 80X38MM 230VAC WIRE |
1,949 | 16.69 |
|
Datasheet |
FS | Bulk | Active | 230VAC | Square - 80mm L x 80mm H | 38.00mm | 28.0 CFM (0.784m³/min) | 0.130 in H2O (32.5 Pa) | Ball | Tubeaxial | - | 40.0dB | 7.50W | 2750 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, TUV, UL, VDE | 0.74 lb (335.66 g) |
|

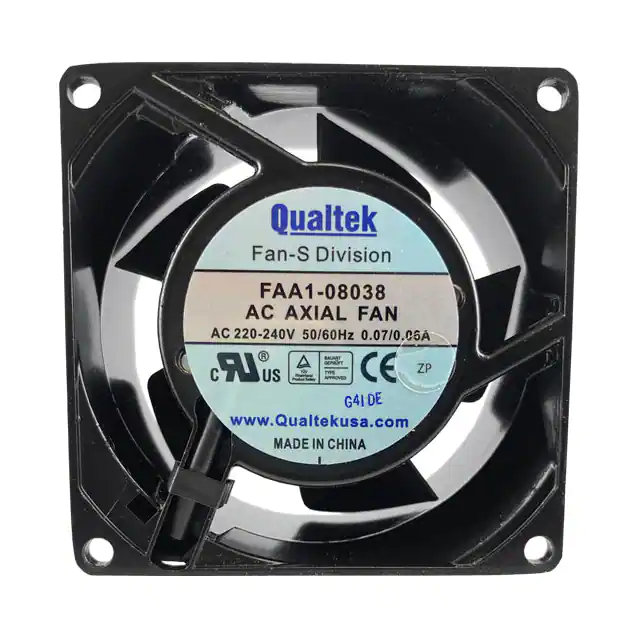

FAA1-08038NBHT31FAN AXIAL 80X38MM 115VAC TERM |
3,670 | 20.36 |
|
Datasheet |
FAA1-08038 | Bulk | Active | 115VAC | Square - 80mm L x 80mm H | 38.00mm | 29.6 CFM (0.829m³/min) | 0.166 in H2O (41.3 Pa) | Ball | Tubeaxial | - | 31.6dB(A) | 8.50W | 2800 RPM | 2 Terminals | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.706 lb (320.24 g) |
|
FAA1-08025QBMT31FAN AXIAL 80X25MM 230VAC TERM |
4,297 | 20.11 |
|
Datasheet |
FAA1-08025 | Bulk | Active | 230VAC | Square - 80mm L x 80mm H | 25.00mm | 19.0 CFM (0.532m³/min) | 0.118 in H2O (29.4 Pa) | Ball | Tubeaxial | - | 24.0dB(A) | 11.00W | 2500 RPM | 2 Terminals | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.463 lb (210.01 g) |
|
11938MB-A1J-AA-00FAN 119MM X 38MM 115VAC WIRE |
3,315 | 17.30 |
|
Datasheet |
11938MB | Bulk | Active | 115VAC | Square - 119mm L x 119mm H | 38.00mm | 49.4 CFM (1.38m³/min) | 0.070 in H2O (17.4 Pa) | Ball | Tubeaxial | - | 28.0dB | 5.50W | 1450 RPM | 2 Terminals | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
11938MB-B3M-EA-00FAN 119MM X 38MM 230VAC TERMINAL |
4,887 | 17.30 |
|
Datasheet |
11938MB | Bulk | Active | 230VAC | Square - 119mm L x 119mm H | 38.00mm | 95.0 CFM (2.66m³/min) | 0.260 in H2O (64.8 Pa) | Ball | Tubeaxial | - | 39.0dB | 13.00W | 2750 RPM | 2 Terminals | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
11938MB-B3N-AA-00FAN 119MM X 38MM 230VAC WIRE |
1,537 | 17.30 |
|
Datasheet |
11938MB | Bulk | Active | 230VAC | Square - 119mm L x 119mm H | 38.00mm | 102.0 CFM (2.86m³/min) | 0.280 in H2O (69.7 Pa) | Ball | Tubeaxial | - | 41.0dB | 14.00W | 2900 RPM | 2 Terminals | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|

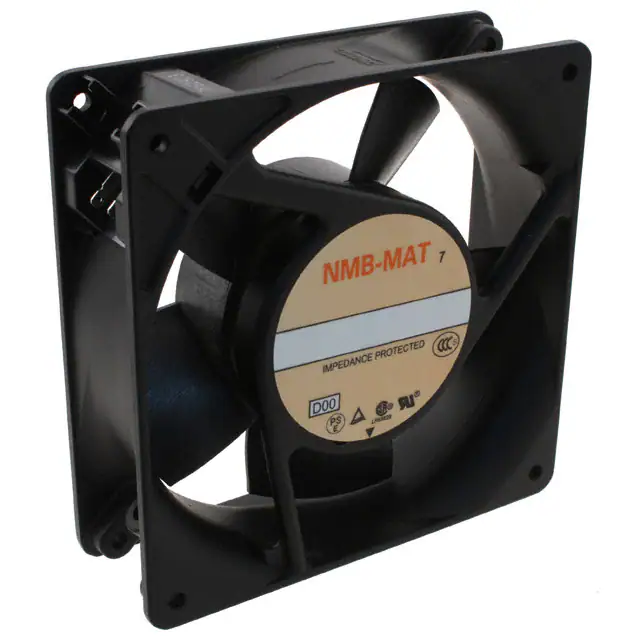

4715FS-23T-B40-D00FAN AXIAL 119X38MM 230VAC TERM |
2,894 | 17.98 |
|
Datasheet |
FS | Bulk | Active | 230VAC | Square - 119mm L x 119mm H | 38.00mm | 100.0 CFM (2.80m³/min) | 0.280 in H2O (69.7 Pa) | Ball | Tubeaxial | - | 42.0dB | 14.00W | 3300 RPM | 2 Terminals | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, TUV, UL | 1.2 lbs (544.3 g) |
|
|
08025MB-B3L-AA-00FAN 80MM X 25MM 230VAC WIRE |
2,803 | 17.82 |
|
Datasheet |
08025MB | Bulk | Active | 230VAC | Square - 80mm L x 80mm H | 25.30mm | 24.0 CFM (0.672m³/min) | 0.220 in H2O (54.8 Pa) | Ball | Tubeaxial | - | 31.0dB | 6.50W | 3000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
09225PB-A1K-EA-00FAN 92MM X 25MM 115VAC TERMINAL |
4,319 | 17.94 |
|
Datasheet |
09225PB | Bulk | Active | 115VAC | Square - 92.5mm L x 92.5mm H | 25.00mm | 28.0 CFM (0.784m³/min) | 0.160 in H2O (39.8 Pa) | Ball | Tubeaxial | - | 35.0dB | 6.00W | 2500 RPM | 2 Terminals | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
09225PB-B3L-AA-00FAN 92MM X 25MM 230VAC WIRE |
1,744 | 17.94 |
|
Datasheet |
09225PB | Bulk | Active | 230VAC | Square - 92.5mm L x 92.5mm H | 25.00mm | 34.5 CFM (0.966m³/min) | 0.240 in H2O (59.8 Pa) | Ball | Tubeaxial | - | 39.0dB | 10.00W | 3100 RPM | 2 Terminals | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
OA109AP-11/22-2WBFAN AC 120X38 110/220V |
1,898 | 0.00 |
|
Datasheet |
OA109 | Bulk | Active | 115 ~ 230VAC | Square - 120mm L x 120mm H | 38.50mm | - | - | Ball | Tubeaxial | Dual Voltage | - | - | - | 4 Wire Leads | - | -4 ~ 167°F (-20 ~ 75°C) | CE, cURus, TUV, UR | - |
|
FAA1-12038QBHT31-AFAN AXIAL 119.5X38.5MM 230VAC |
3,027 | 19.11 |
|
Datasheet |
FAA1-12038 | Bulk | Active | 230VAC | Square - 119.5mm L x 119.5mm H | 38.50mm | 97.0 CFM (2.72m³/min) | 0.350 in H2O (87.2 Pa) | Ball | Tubeaxial | - | 44.5dB(A) | 14.80W | 2900 RPM | 2 Terminals | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 1.2 lbs (544.3 g) |
|

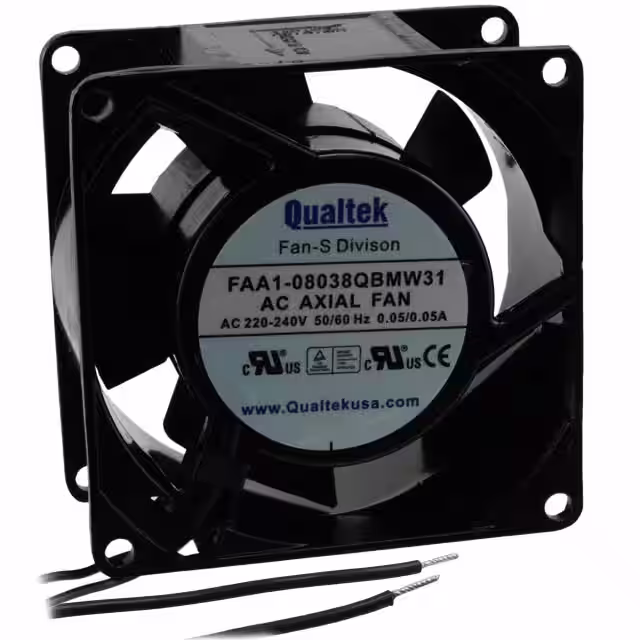

FAA1-08038QBMW31FAN AXIAL 80X38MM 230VAC WIRE |
2,625 | 19.41 |
|
Datasheet |
FAA1-08038 | Bulk | Active | 230VAC | Square - 80mm L x 80mm H | 38.00mm | 24.0 CFM (0.672m³/min) | 0.110 in H2O (27.4 Pa) | Ball | Tubeaxial | - | 26.2dB(A) | 5.00W | 2400 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.706 lb (320.24 g) |
