AC Fans
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
OA2543AP-22-1WB1868FAN 230AC 254X254X89MM IP68 WIRE |
4,163 | 154.15 |
|
Datasheet |
OA2543AP | Box | Active | 230VAC | Round - 254mm Dia | 89.00mm | 930.0 CFM (26.04m³/min) | 1.100 in H2O (274.0 Pa) | Ball | Tubeaxial | Capacitor, Thermal Overload Protector (TOP) | 67.0dB | 105W | 3300 RPM | 2 Wire Leads | IP68 - Dust Tight, Waterproof | -22 ~ 176°F (-30 ~ 80°C) | CE, cURus, TUV, UR | 5.2 lbs (2.4 kg) |
|
OA2543AP-22-1TB1869KAC FAN, IP69K, 254X254X89MM, 230 |
3,857 | 150.31 |
|
Datasheet |
OA2543AP-IP69K | Box | Active | 230VAC | Round - 254mm Dia | 89.00mm | 930.0 CFM (26.04m³/min) | 1.100 in H2O (274.0 Pa) | Ball | Tubeaxial | Capacitor, Thermal Overload Protector (TOP) | 67.0dB | 105W | 3300 RPM | 2 Terminals | IP69K - Dust Tight, Water Resistant, Waterproof | -22 ~ 176°F (-30 ~ 80°C) | CE, cURus, TUV, UR | 5.2 lbs (2.4 kg) |
|
OA254EC-22-1TBXCEC FAN 254X89MM 230VAC TERMINAL |
2,521 | 135.72 |
|
Datasheet |
OA254EC XC | Box | Active | 230VAC | Round - 254mm Dia | 89.00mm | 830.0 CFM (23.24m³/min) | 1.200 in H2O (298.9 Pa) | Ball | Tubeaxial | Electronic Commutation (EC) | 70.0dB | 72.0W | 2750 RPM | 2 Terminals | - | -4 ~ 158°F (-20 ~ 70°C) | CE, cURus, TUV, UR | 4.6 lbs (2.1 kg) |
|

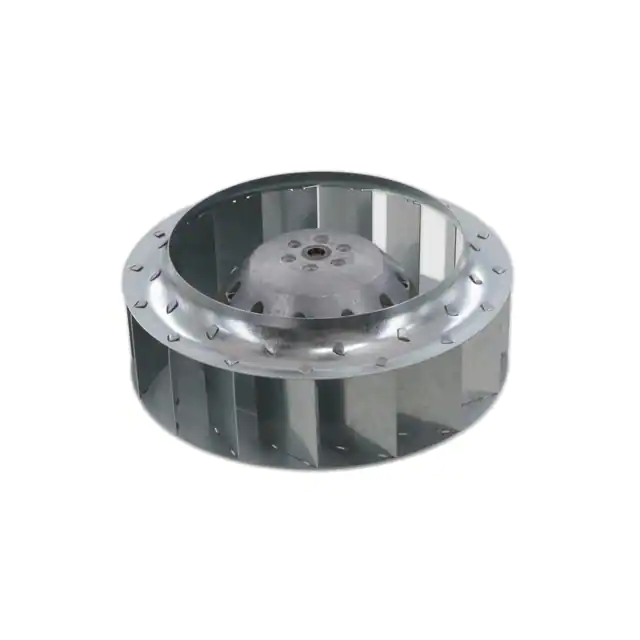

R2E175-AO77-14MOTORIZED IMPELLER |
4,790 | 184.35 |
|
Datasheet |
R2E175 | Bulk | Active | - | Round - 175mm Dia | - | - | - | Ball | Motorized Impellers | Capacitor, Thermal Overload Protector (TOP) | - | - | - | - | - | - | - | - |
|
R87TA3A07H115V AC FAN |
1,797 | 191.74 |
|
Datasheet |
R87T | Bulk | Active | 115VAC | Round - 150mm Dia | 55.00mm | 207.0 CFM (5.80m³/min) | - | Ball | Tubeaxial | - | 59.0dB(A) | 34.00W | 3050 RPM | - | - | - | CSA, UL | - |
|
|
R87T-A1A07HFAN AXIAL 150X55MM 100VAC WIRE |
1,634 | 191.74 |
|
Datasheet |
R87T | Bulk | Active | 100VAC | Round - 150mm Dia | 55.00mm | 207.0 CFM (5.80m³/min) | 0.353 in H2O (88.0 Pa) | Ball | Tubeaxial | - | 56.0dB | 40.00W | 3250 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, UL | 2.6 lbs (1.2 kg) |
|
|
R87TA6A07H230V AC FAN |
1,756 | 191.74 |
|
Datasheet |
R87T | Bulk | Active | 230VAC | Round - 150mm Dia | 55.00mm | 207.0 CFM (5.80m³/min) | 0.512 in H2O (127.5 Pa) | Ball | Tubeaxial | - | 59.0dB(A) | 34.00W | 3050 RPM | - | - | - | CSA, UL | - |
|
R2S133-AE17-43MOTORIZED IMPELLER |
2,876 | 196.72 |
|
Datasheet |
R2S133 | Bulk | Active | 230VAC | Round - 133.4mm Dia | 72.00mm | - | - | Ball | Motorized Impellers | Thermal Overload Protector (TOP) | - | 38.00W | 2950 RPM | 3 Wire Leads with Splice Terminals | IP44 | -4 ~ 149°F (-20 ~ 65°C) | CCC, CE, CSA, UL | - |
|

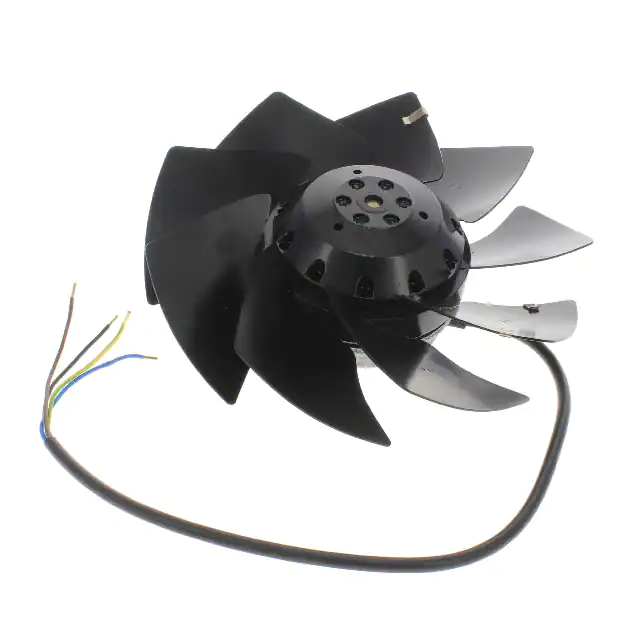

A2E200-AI38-01AC AXIAL FAN |
2,832 | 200.29 |
|
Datasheet |
A2E200 | Bulk | Active | 230VAC | Round - 197mm Dia | 64.00mm | 583.1 CFM (16.33m³/min) | 0.602 in H2O (150.0 Pa) | Ball | Tubeaxial | Capacitor, Thermal Overload Protector (TOP) | - | 78.0W | 2900 RPM | 4 Wire Leads with Splice Terminals | IP44 | -13 ~ 149°F (-25 ~ 65°C) | CCC, CE, EAC | - |
|
OA254EC-22-1WBXCIP68AEC FAN 254X89MM 230VAC IP68/ATEX |
3,079 | 138.83 |
|
Datasheet |
OA254EC XC | Box | Active | 230VAC | Round - 254mm Dia | 89.00mm | 830.0 CFM (23.24m³/min) | 1.200 in H2O (298.9 Pa) | Ball | Tubeaxial | Electronic Commutation (EC) | 70.0dB | 72.0W | 2750 RPM | 2 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | ATEX, CE, cURus, TUV, UR | 4.6 lbs (2.1 kg) |
|
UF300BNA23-H1C2AFAN AXIAL 398X98.3MM 230VAC WIRE |
4,865 | 189.92 |
|
Datasheet |
UF300BNA | Bulk | Active | 230VAC | Round - 398mm Dia | 98.30mm | 1615.0 CFM (45.22m³/min) | 1.100 in H2O (274.0 Pa) | Ball | Tubeaxial | Permanent Split Capacitor Motor | 78.0dB(A) | 200W | 2950 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CE, cUL, TUV, UL | 10 lbs (4.5 kg) |
|

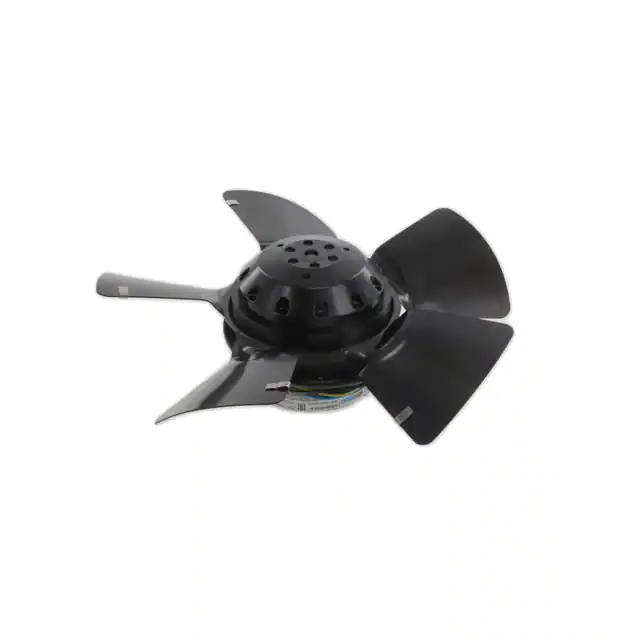

A2E250-AE65-01AC AXIAL FAN |
2,988 | 251.77 |
|
Datasheet |
A2E250 | Bulk | Active | 230VAC | Round - 250mm Dia | 84.50mm | 948.3 CFM (26.55m³/min) | 0.522 in H2O (130.0 Pa) | Ball | Tubeaxial | Capacitor, Thermal Overload Protector (TOP) | 72.0dB(A) | 165W | 2750 RPM | 4 Wire Leads with Splice Terminals | IP44 | -13 ~ 122°F (-25 ~ 50°C) | CCC, CE, EAC | - |
|

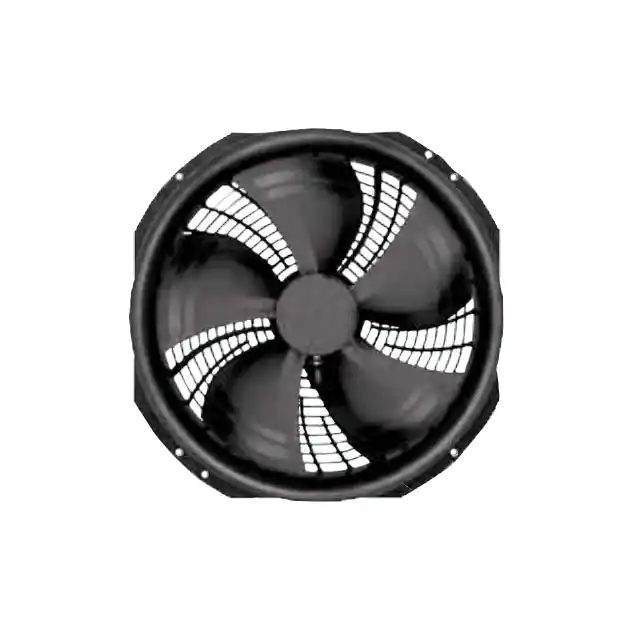

W1G300-BB19-01FAN AXIAL |
4,414 | 208.04 |
|
Datasheet |
W1G300 | Bulk | Active | 230VAC | Round - 397mm Dia | 92.00mm | - | 0.140 in H2O (34.9 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | - | 35.00W | 900 RPM | 3 Wire Leads with Splice Terminals | IP55 - Dust Protected, Water Resistant | -22 ~ 122°F (-30 ~ 50°C) | CCC, CE, CSA, EAC, UL, VDE | - |
|
FDA2-28080NBHK4FFAN AXIAL 280X80MM BALL 115VAC |
2,790 | 210.32 |
|
Datasheet |
HPLC, FDA2-28080 | Bulk | Active | 115VAC | Square - 320mm L x 320mm H | 80.00mm | 1150.0 CFM (32.20m³/min) | 0.807 in H2O (201.0 Pa) | Ball | Tubeaxial | - | 73.0dB(A) | 136W | 2900 RPM | Terminal Block | - | -4 ~ 158°F (-20 ~ 70°C) | CE, cURus, TUV | 6.7 lbs (3 kg) |
|
|
OA254EC-UR-1WBIP68AFAN 254X89MM 95-264VAC IP68/ATEX |
3,681 | 144.33 |
|
Datasheet |
OA254EC | Box | Active | 95 ~ 264VAC | Round - 254mm Dia | 89.00mm | 500.0 CFM (14.00m³/min) | 0.480 in H2O (119.6 Pa) | Ball | Tubeaxial | Electronic Commutation (EC) | 56.0dB | 22.00W | 1700 RPM | 2 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | ATEX, CE, cURus, TUV, UR | 4.6 lbs (2.1 kg) |
|

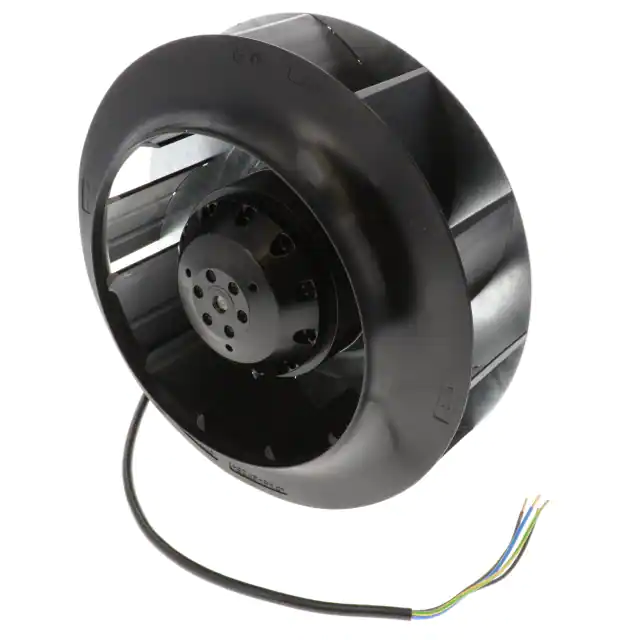

R2E225-AX52-05MOTORIZED IMPELLER |
2,532 | 256.68 |
|
Datasheet |
R2E225 | Bulk | Active | 230VAC | Round - 225mm Dia | 85.00mm | - | - | Ball | Motorized Impellers | Capacitor, Thermal Overload Protector (TOP) | - | 165W | 3000 RPM | 4 Wire Leads with Splice Terminals | IP44 | -13 ~ 104°F (-25 ~ 40°C) | CCC, EAC | - |
|
|
FDA2-28080QBHK4FFAN AXIAL 280X80MM BALL 230VAC |
2,778 | 210.32 |
|
Datasheet |
HPLC, FDA2-28080 | Bulk | Active | 230VAC | Square - 320mm L x 320mm H | 80.00mm | 1150.0 CFM (32.20m³/min) | 0.807 in H2O (201.0 Pa) | Ball | Tubeaxial | - | 73.0dB(A) | 138W | 2900 RPM | Terminal Block | - | -4 ~ 158°F (-20 ~ 70°C) | CE, cURus, TUV | 6.7 lbs (3 kg) |
|
A2E200-AH86-75AC AXIAL FAN |
4,163 | 224.80 |
|
Datasheet |
A2E200 | Bulk | Active | 115VAC | Round - 197mm Dia | 65.50mm | - | 0.363 in H2O (90.5 Pa) | Ball | Tubeaxial | Capacitor, Thermal Overload Protector (TOP) | - | 85.0W | 2700 RPM | 4 Wire Leads - QC Receptacles (2), Ring Terminal (1), Wire Lead (1) | IP44 | -13 ~ 158°F (-25 ~ 70°C) | CE, CSA, UL | - |
|

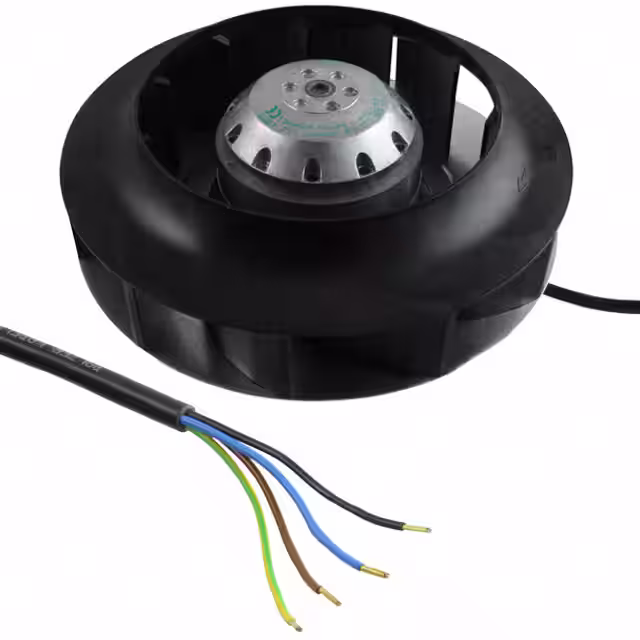

R4E225-AI01-10FAN IMP MTRZD 225X63MM 230VAC |
4,773 | 240.01 |
|
Datasheet |
R4E225 | Bulk | Active | 230VAC | Round - 225mm Dia | 63.00mm | 310.0 CFM (8.68m³/min) | - | Ball | Motorized Impellers | - | 62.0dB(A) | 45.00W | - | 2 Wire Leads | - | - | - | 3.5 lbs (1.6 kg) |
|
A2E170-AF23-02AC AXIAL FAN |
3,020 | 226.23 |
|
- |
A2E170 | Bulk | Active | 230VAC | Round - 170mm Dia | 65.00mm | - | - | Ball | Tubeaxial | Capacitor, Thermal Overload Protector (TOP) | - | 53.0W | 3150 RPM | 4 Wire Leads with Splice Terminals | IP44 | 140°F (60°C) | CE, EAC | - |
