AC Fans
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LPH12A99-BWHR-B1EC FAN AXIAL 120X120X38MM 100-24 |
2,536 | 26.25 |
|
Datasheet |
LPH12A99 | Bulk | Active | 100 ~ 240VAC | Square - 120mm L x 120mm H | 38.50mm | 123.9 CFM (3.47m³/min) | 0.363 in H2O (90.5 Pa) | Ball | Tubeaxial | Auto Restart, Electronic Commutation (EC), Speed Sensor (Tach) | 49.0dB(A) | 9.50W | 3500 RPM | 3 Wire Leads | - | - | - | 0.631 lb (286.20 g) |
|
109S006ULFAN 120X38MM 100VAC |
3,286 | 35.82 |
|
Datasheet |
San Ace 120 | Box | Active | 100VAC | Square - 119mm L x 119mm H | 38.00mm | 53.0 CFM (1.48m³/min) | 0.071 in H2O (17.6 Pa) | Ball | Tubeaxial | - | 28.0dB(A) | 7.00W | 1700 RPM | 2 Terminals | - | -22 ~ 140°F (-30 ~ 60°C) | CE, CSA, PSE, TUV, UL | 1.2 lbs (544.3 g) |
|

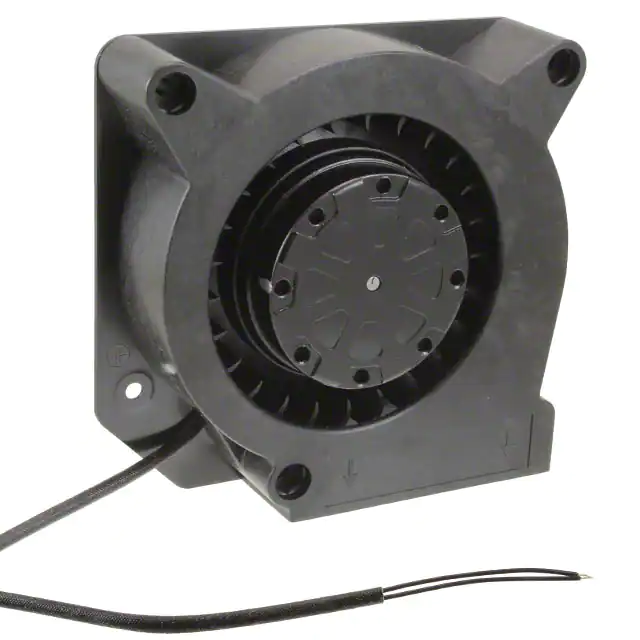

UF90DPB23-H1S2ABLOWER 120X37MM 230VAC |
3,473 | 41.16 |
|
Datasheet |
UF90DPB | Bulk | Active | 230VAC | Square - 120mm L x 120mm H | 37.20mm | 21.0 CFM (0.588m³/min) | 0.500 in H2O (124.5 Pa) | Ball | Blower, Centrifugal | Thermal Overload Protector (TOP) | 51.0dB(A) | 18.00W | 2700 RPM | 2 Wire Leads | - | -40 ~ 158°F (-40 ~ 70°C) | CE, cUL, TUV, UL | 1.4 lbs (635 g) |
|

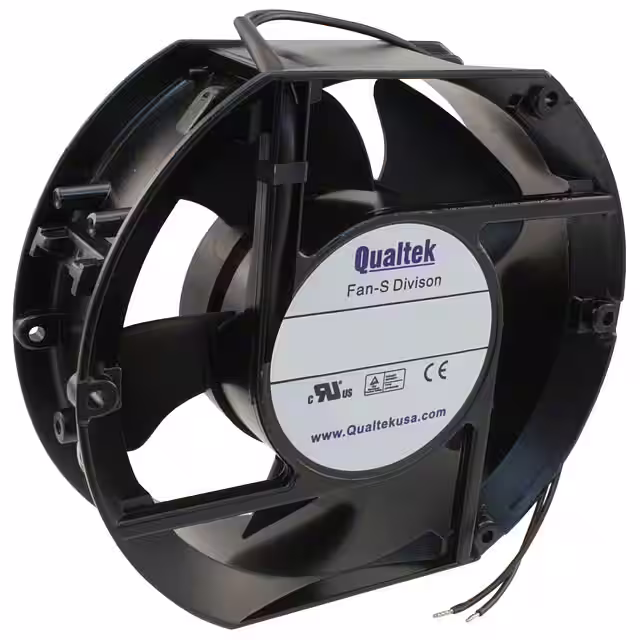

FKA1-17251QBHW31FAN AXIAL 172X50.8MM 230VAC WIRE |
3,772 | 42.25 |
|
Datasheet |
FKA1-17251 | Bulk | Active | 230VAC | Rectangular/Rounded - 172mm L x 150mm H | 50.80mm | 189.0 CFM (5.29m³/min) | 0.408 in H2O (101.6 Pa) | Ball | Tubeaxial | - | 57.7dB(A) | 50.6W | 2700 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 2.3 lbs (1 kg) |
|
4580NFAN AXIAL 119X38MM 230VAC TERM |
2,457 | 47.79 |
|
Datasheet |
4000N | Bulk | Active | 230VAC | Square - 119mm L x 119mm H | 38.00mm | 72.3 CFM (2.02m³/min) | - | Sintec | Tubeaxial | - | 41.0dB(A) | 18.00W | 2350 RPM | 2 Terminals | - | 14 ~ 131°F (-10 ~ 55°C) | CE, CSA, UL, VDE | 1.2 lbs (544.3 g) |
|
4850ZWFAN AXIAL 119X38MM 230VAC WIRE |
2,417 | 54.55 |
|
Datasheet |
4000Z | Bulk | Active | 230VAC | Square - 119mm L x 119mm H | 38.00mm | 58.9 CFM (1.65m³/min) | - | Sintec | Tubeaxial | - | 26.0dB(A) | 13.00W | 1700 RPM | 2 Wire Leads | - | 14 ~ 149°F (-10 ~ 65°C) | - | 1.2 lbs (544.3 g) |
|
UF15PE12-BWHRFAN AXIAL 172X51MM 115VAC WIRE |
3,112 | 31.01 |
|
Datasheet |
UF15PE | Bulk | Active | 115VAC | Rectangular/Rounded - 172mm L x 150mm H | 51.00mm | 226.0 CFM (6.33m³/min) | 0.790 in H2O (196.8 Pa) | Ball | Tubeaxial | - | 58.0dB(A) | - | 3400 RPM | 2 Wire Leads | - | -40 ~ 158°F (-40 ~ 70°C) | CE, TUV | 1.8 lbs (816.5 g) |
|
8880NFAN AXIAL 80X38MM 230VAC WIRE |
3,837 | 47.68 |
|
Datasheet |
8000N | Bulk | Active | 230VAC | Square - 80mm L x 80mm H | 38.00mm | 17.7 CFM (0.496m³/min) | - | Sintec | Tubeaxial | - | 18.0dB(A) | 9.00W | 1750 RPM | 2 Wire Leads | - | 14 ~ 176°F (-10 ~ 80°C) | CE, CSA, UL, VDE | 1.1 lbs (499.0 g) |
|
OA80AP-22-1TB1855FAN AXIAL 80X38MM 230VAC TERM |
1,784 | 32.04 |
|
Datasheet |
OA80 | Box | Active | 230VAC | Square - 80mm L x 80mm H | 38.00mm | 33.0 CFM (0.924m³/min) | 0.220 in H2O (54.8 Pa) | Ball | Tubeaxial | - | 35.0dB | 13.00W | 3200 RPM | 2 Terminals | IP55 - Dust Protected, Water Resistant | -22 ~ 176°F (-30 ~ 80°C) | cURus, TUV | 0.95 lb (430.91 g) |
|

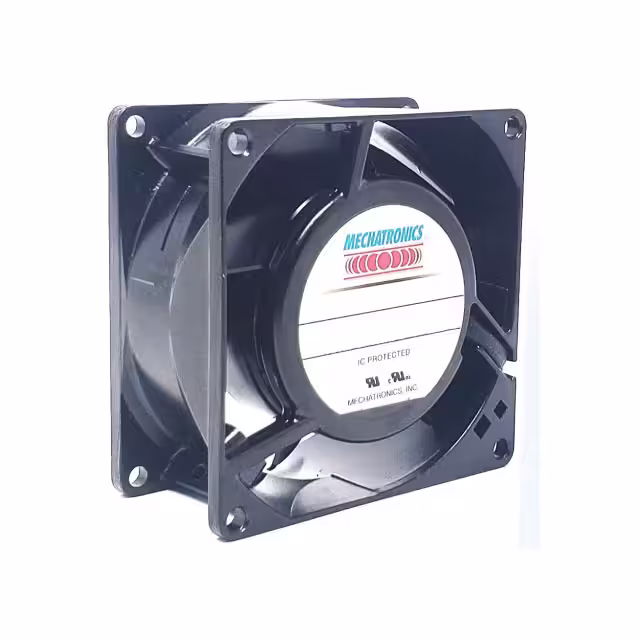

UF80AM23-BTHR-FAC FAN AXIAL 80X80X38MM 230V, HI |
2,399 | 29.34 |
|
Datasheet |
UF80AM | Bulk | Active | 230VAC | Square - 80mm L x 80mm H | 38.00mm | 34.0 CFM (0.952m³/min) | 0.260 in H2O (64.8 Pa) | Ball | Tubeaxial | - | 40.0dB(A) | 11.00W | 3250 RPM | 2 Terminals | - | -40 ~ 194°F (-40 ~ 90°C) | - | - |
|

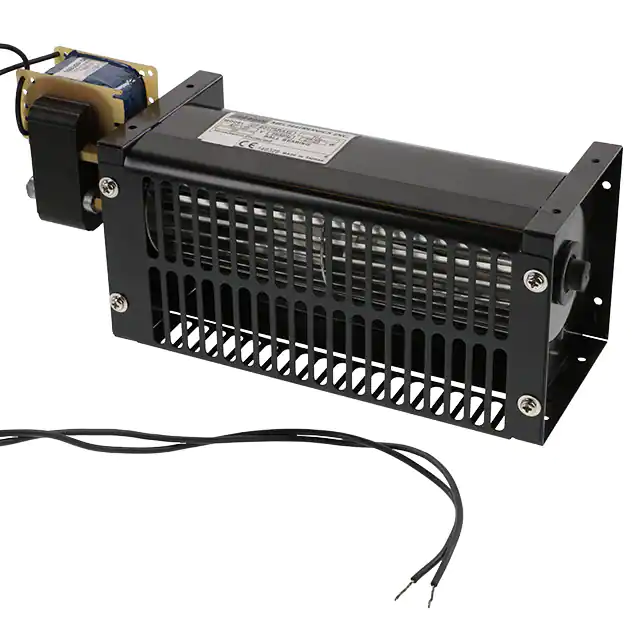

UF6017SBA12H-LFAN BLWR CF 120VAC 266X98X90MM |
4,146 | 49.89 |
|
Datasheet |
UF6017 | Bulk | Active | 120VAC | Rectangular - 266mm L x 90mm H | 98.00mm | 89.0 CFM (2.49m³/min) | 0.220 in H2O (54.8 Pa) | Ball | Blower, Cross Flow | - | 42.0dB(A) | 25.00W | 2000 RPM | 2 Wire Leads | - | -40 ~ 158°F (-40 ~ 70°C) | CE, TUV | 2.8 lbs (1.3 kg) |
|
|
109S487-30FAN 120X25MM 230VAC ALARM |
4,106 | 79.82 |
|
Datasheet |
San Ace 120 | Box | Active | 230VAC | Square - 119mm L x 119mm H | 25.00mm | 81.3 CFM (2.28m³/min) | 0.216 in H2O (53.9 Pa) | Ball | Tubeaxial | Alarm | 41.0dB(A) | 12.00W | 2900 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, PSE, TUV, UL | 0.86 lb (390.09 g) |
|
|
09225PB-A0L-EA-00FAN 92MM X 25MM 100VAC TERMINAL |
4,921 | 66.50 |
|
Datasheet |
09225PB | Bulk | Active | 100VAC | Square - 92.5mm L x 92.5mm H | 25.00mm | 34.5 CFM (0.966m³/min) | 0.240 in H2O (59.8 Pa) | Ball | Tubeaxial | - | 38.0dB | 10.00W | 3100 RPM | 2 Terminals | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
8880AFAN AXIAL 80X38MM 230VAC TERM |
4,068 | 53.36 |
|
- |
8000A | Bulk | Active | 230VAC | Square - 80mm L x 80mm H | 38.00mm | 17.1 CFM (0.479m³/min) | - | Sintec | Tubeaxial | - | 26.0dB(A) | 9.00W | 1750 RPM | 2 Terminals | - | 14 ~ 176°F (-10 ~ 80°C) | CE, CSA, UL, VDE | 1.1 lbs (499.0 g) |
|
109S091FAN 92X25MM 100VAC |
1,316 | 33.88 |
|
Datasheet |
San Ace 92 | Box | Active | 100VAC | Square - 92mm L x 92mm H | 25.00mm | 38.9 CFM (1.09m³/min) | 0.197 in H2O (49.0 Pa) | Ball | Tubeaxial | - | 38.0dB(A) | 7.00W | 3100 RPM | 2 Terminals | - | -22 ~ 140°F (-30 ~ 60°C) | CE, CSA, PSE, TUV, UL | 0.639 lb (289.85 g) |
|
|
109S082FAN 120X25MM 200VAC |
1,495 | 36.78 |
|
Datasheet |
San Ace 120 | Box | Active | 200VAC | Square - 119mm L x 119mm H | 25.00mm | 63.6 CFM (1.78m³/min) | 0.106 in H2O (26.4 Pa) | Ball | Tubeaxial | - | 35.0dB(A) | 8.50W | 2350 RPM | 2 Terminals | - | -22 ~ 140°F (-30 ~ 60°C) | CE, CSA, PSE, TUV, UL | 0.816 lb (370.13 g) |
|

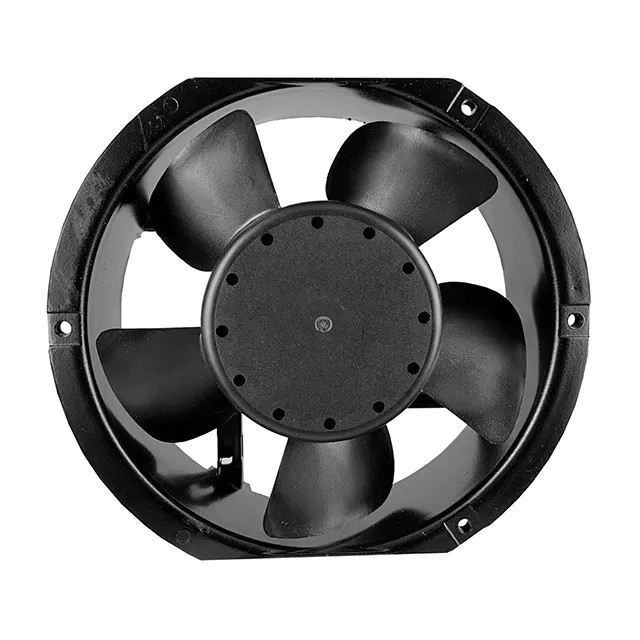

FMA1-17251WBHW32EC FAN, 172X150X51MM, 2-BALL BEA |
2,045 | 45.12 |
|
Datasheet |
FMA1-17251 | Bulk | Active | 100 ~ 240VAC | Rectangular/Rounded - 172mm L x 152mm H | 51.00mm | 228.4 CFM (6.39m³/min) | 0.600 in H2O (149.5 Pa) | Ball | Tubeaxial | Electronic Commutation (EC) | 55.4dB(A) | 22.50W | 3200 RPM | 2 Wire Leads | IP54 - Dust Protected, Water Resistant | -4 ~ 158°F (-20 ~ 70°C) | CE, cURus | - |
|
|
8556AFAN AXIAL 80X38MM 230VAC TERM |
3,445 | 62.80 |
|
Datasheet |
8000A | Bulk | Active | 230VAC | Square - 80mm L x 80mm H | 38.00mm | 28.3 CFM (0.792m³/min) | - | Ball | Tubeaxial | - | 37.0dB(A) | 12.00W | 2800 RPM | 2 Terminals | - | -40 ~ 194°F (-40 ~ 90°C) | CE, CSA, UL, VDE | 1.1 lbs (499.0 g) |
|
|
109S008ULFAN 120X38MM 200VAC |
3,327 | 37.35 |
|
Datasheet |
San Ace 120 | Box | Active | 200VAC | Square - 119mm L x 119mm H | 38.00mm | 95.4 CFM (2.67m³/min) | 0.264 in H2O (65.7 Pa) | Ball | Tubeaxial | - | 43.0dB(A) | 12.00W | 3100 RPM | 2 Terminals | - | -22 ~ 140°F (-30 ~ 60°C) | CE, CSA, PSE, TUV, UL | 1.2 lbs (544.3 g) |
|
|
LPH15P99-BWHR-PCEC FAN AXIAL 172 X 150 X 51MM W/ |
3,818 | 55.35 |
|
Datasheet |
LPH15P99 | Bulk | Active | 100 ~ 240VAC | Rectangular/Rounded - 172mm L x 152mm H | 51.50mm | 228.0 CFM (6.38m³/min) | 0.600 in H2O (149.5 Pa) | Ball | Tubeaxial | Auto Restart, Electronic Commutation (EC), Parylene Coating | 55.0dB(A) | 22.50W | 3200 RPM | 2 Wire Leads | IP55 - Dust Protected, Water Resistant | - | - | 1.6 lbs (725.7 g) |
