AC Fans
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
11938MB-B3N-EA-00FAN 119MM X 38MM 230VAC TERMINAL |
4,955 | 17.30 |
|
Datasheet |
11938MB | Bulk | Active | 230VAC | Square - 119mm L x 119mm H | 38.00mm | 102.0 CFM (2.86m³/min) | 0.280 in H2O (69.7 Pa) | Ball | Tubeaxial | - | 41.0dB | 14.00W | 2900 RPM | 2 Terminals | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
11938MB-A1J-EA-00FAN 119MM X 38MM 115VAC TERMINAL |
4,175 | 17.30 |
|
Datasheet |
11938MB | Bulk | Active | 115VAC | Square - 119mm L x 119mm H | 38.00mm | 49.4 CFM (1.38m³/min) | 0.070 in H2O (17.4 Pa) | Ball | Tubeaxial | - | 28.0dB | 5.50W | 1450 RPM | 2 Terminals | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
OA109AP-22-1TBFAN AXIAL 120X38MM 230VAC TERM |
1,012 | 19.56 |
|
Datasheet |
OA109 | Box | Active | 230VAC | Square - 120mm L x 120mm H | 38.50mm | 110.0 CFM (3.08m³/min) | 0.280 in H2O (69.7 Pa) | Ball | Tubeaxial | - | 42.0dB | 15.00W | 3000 RPM | 2 Terminals | - | -4 ~ 167°F (-20 ~ 75°C) | CE, cURus, TUV, UR | 1.2 lbs (544.3 g) |
|
SF23080A-2083HBL.GNFAN AXIAL 80X38MM 220/240VAC |
3,565 | 21.34 |
|
Datasheet |
SF | Bulk | Active | 240VAC | Square - 80mm L x 80mm H | 38.00mm | 31.0 CFM (0.868m³/min) | 0.190 in H2O (47.3 Pa) | Ball | Tubeaxial | - | 36.5dB(A) | 13.50W | 2850 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.75 lb (340.19 g) |
|
|
LPH12A99-BWER5-PC-EXEC FAN AXIAL 120X120X38 100-240V |
3,534 | 33.06 |
|
Datasheet |
LPH12A99-5 | Bulk | Active | 100 ~ 240VAC | Square - 120mm L x 120mm H | 38.00mm | 138.0 CFM (3.86m³/min) | 0.470 in H2O (117.1 Pa) | Ball | Tubeaxial | Auto Restart, Electronic Commutation (EC), Parylene Coating | 47.0dB(A) | 15.00W | 3500 RPM | 2 Wire Leads | IP54 - Dust Protected, Water Resistant | - | ATEX | 0.573 lb (260.00 g) |
|
UF15PC12-BTHRFAN AXIAL 172X150X51MM 115VAC |
1,635 | 45.14 |
|
Datasheet |
UF15PC | Bulk | Active | 115VAC | Rectangular/Rounded - 172mm L x 150mm H | 51.00mm | 226.0 CFM (6.33m³/min) | 0.790 in H2O (196.8 Pa) | Ball | Tubeaxial | Permanent Split Capacitor Motor, Thermal Overload Protector (TOP) | 58.0dB(A) | 31.00W | 3400 RPM | 2 Terminals | - | -40 ~ 158°F (-40 ~ 70°C) | CE, cUL, TUV, UL | 1.8 lbs (816.5 g) |
|

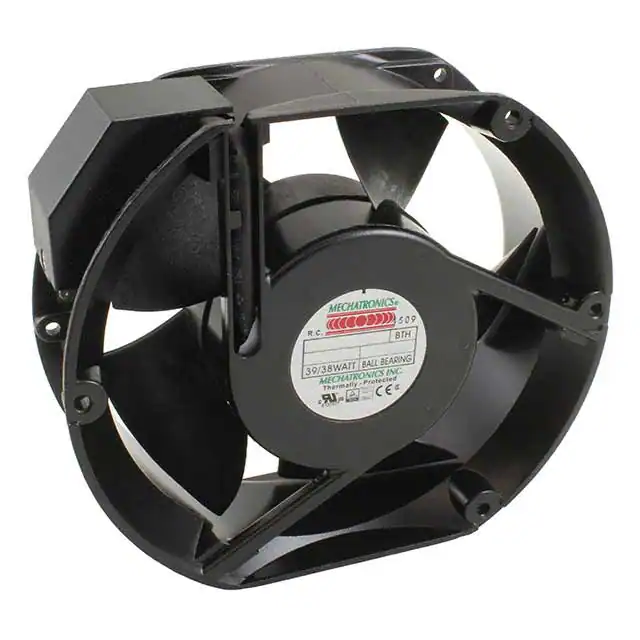

UF15KC12-BTHRFAN AXIAL 172X150X55MM 115VAC |
4,572 | 48.77 |
|
Datasheet |
UF15KC | Bulk | Active | 115VAC | Rectangular/Rounded - 172mm L x 150mm H | 55.00mm | 293.0 CFM (8.20m³/min) | 0.900 in H2O (224.2 Pa) | Ball | Tubeaxial | Permanent Split Capacitor Motor, Thermal Overload Protector (TOP) | 60.0dB(A) | 38.00W | 3400 RPM | 3 Terminals | - | -40 ~ 158°F (-40 ~ 70°C) | CE, cUL, TUV, UL | 2.3 lbs (1 kg) |
|
4606NFAN AXIAL 119X38MM 115VAC TERM |
4,954 | 56.18 |
|
Datasheet |
4000N | Bulk | Active | 115VAC | Square - 119mm L x 119mm H | 38.00mm | 106.0 CFM (2.97m³/min) | - | Ball | Tubeaxial | - | 51.0dB(A) | 18.00W | 3100 RPM | 2 Terminals | - | -40 ~ 194°F (-40 ~ 90°C) | CE, CSA, UL, VDE | 1.2 lbs (544.3 g) |
|

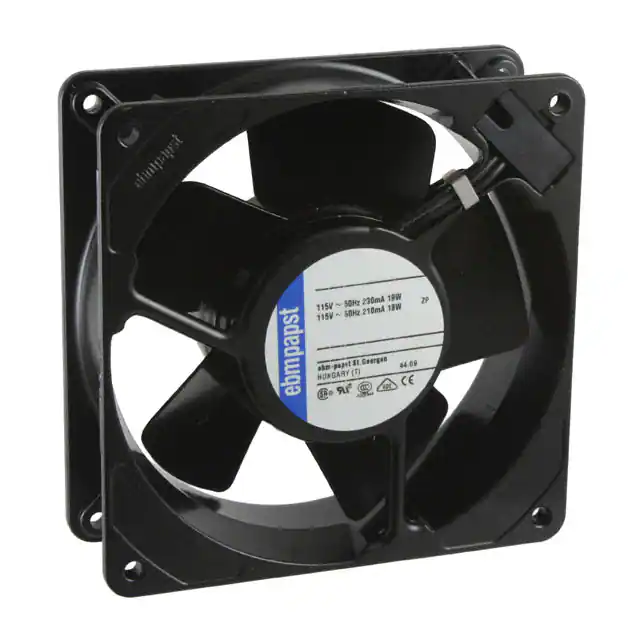

4600ZFAN AXIAL 119X38MM 115VAC TERM |
2,057 | 59.54 |
|
Datasheet |
4000Z | Bulk | Active | 115VAC | Square - 119mm L x 119mm H | 38.00mm | 106.0 CFM (2.97m³/min) | - | Sintec | Tubeaxial | - | 45.0dB(A) | 18.00W | 3100 RPM | 2 Terminals | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 1.2 lbs (544.3 g) |
|

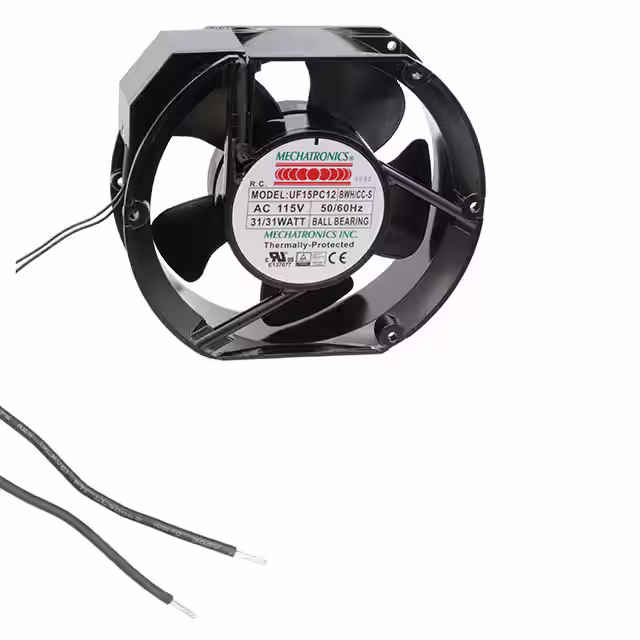

UF15PC12-BWHR/CC-SFAN AXIAL 172X51MM 115VAC WIRE |
2,425 | 52.92 |
|
Datasheet |
UF15PC | Bulk | Active | 115VAC | Rectangular/Rounded - 172mm L x 150mm H | 51.00mm | 226.0 CFM (6.33m³/min) | 0.790 in H2O (196.8 Pa) | Ball | Tubeaxial | Conformal Coating, Permanent Split Capacitor Motor, Thermal Overload Protector (TOP) | 58.0dB(A) | 31.00W | 3400 RPM | 2 Wire Leads | - | -40 ~ 158°F (-40 ~ 70°C) | CE, cUL, TUV, UL | 1.8 lbs (816.5 g) |
|
UF15AC23-BTHR-B1FAN AXIAL 172X150X38MM 230VAC TA |
4,952 | 57.33 |
|
Datasheet |
UF15AC | Bulk | Active | 230VAC | Rectangular/Rounded - 172mm L x 150mm H | 38.00mm | 212.0 CFM (5.94m³/min) | 0.750 in H2O (186.8 Pa) | Ball | Tubeaxial | Permanent Split Capacitor Motor, Speed Sensor (Tach), Thermal Overload Protector (TOP) | 58.0dB(A) | 26.00W | 3400 RPM | 3 Terminals | - | -40 ~ 158°F (-40 ~ 70°C) | CE, cUL, TUV, UL | 1.6 lbs (725.7 g) |
|
UF160DPB12-H1S2AFAN BLOWER 220X220MM 115VAC WIRE |
2,126 | 86.50 |
|
Datasheet |
UF160DPB | Bulk | Active | 115VAC | Square - 220mm L x 220mm H | 56.20mm | 126.0 CFM (3.53m³/min) | 1.800 in H2O (448.4 Pa) | Ball | Blower | Thermal Overload Protector (TOP) | 65.0dB(A) | 52.0W | 2900 RPM | 2 Wire Leads | - | - | - | 3.9 lbs (1.8 kg) |
|
5606SFAN AXIAL 135X38MM 115VAC TERM |
4,485 | 109.99 |
|
Datasheet |
5600 | Box | Active | 115VAC | Square - 135mm L x 135mm H | 38.00mm | 159.0 CFM (4.45m³/min) | - | Ball | Tubeaxial | - | 50.0dB(A) | 26.00W | 3100 RPM | 2 Terminals | - | -31 ~ 176°F (-35 ~ 80°C) | CE, CSA, UL, VDE | 1.8 lbs (816.5 g) |
|
UF25HC12-BTHRFAN AXIAL 254X107MM 115VAC |
2,568 | 105.18 |
|
Datasheet |
UF25HC | Bulk | Active | 115VAC | Round - 254mm Dia | 107.0mm | 850.0 CFM (23.80m³/min) | 0.680 in H2O (169.4 Pa) | Ball | Tubeaxial | Permanent Split Capacitor Motor, Thermal Overload Protector (TOP) | 65.0dB(A) | 125W | 2750 RPM | 2 Terminals | - | -40 ~ 158°F (-40 ~ 70°C) | CE, cUL, TUV, UL | 5.5 lbs (2.5 kg) |
|
W2S130-AA03-49FAN AXIAL 150X55MM 115/230VAC |
2,389 | 114.55 |
|
- |
W2S130 | Bulk | Active | 115/230VAC | Round - 150mm Dia | 55.00mm | 223.6 CFM (6.26m³/min) | 0.301 in H2O (75.0 Pa) | Ball | Tubeaxial | Dual Voltage, Thermal Overload Protector (TOP) | 53.0dB(A) | 38.00W | 3200 RPM | 6 Wire Leads | IP20 | -13 ~ 158°F (-25 ~ 70°C) | CSA, UL, VDE | 2.4 lbs (1.1 kg) |
|

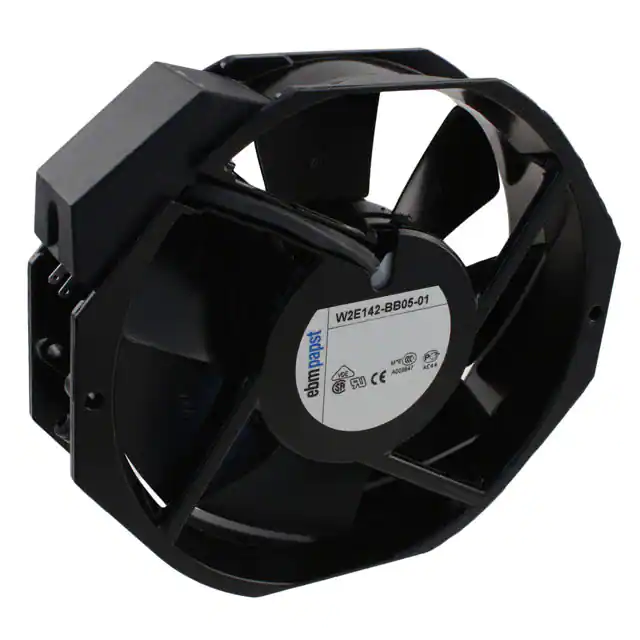

W2E142-BB05-01FAN AXIAL 172X38MM 115VAC TERM |
3,240 | 127.08 |
|
Datasheet |
W2E142 | Bulk | Active | 115VAC | Rectangular/Rounded - 172mm L x 150mm H | 38.00mm | 230.0 CFM (6.44m³/min) | - | Ball | Tubeaxial | - | 57.0dB(A) | 28.00W | 3350 RPM | 2 Terminals | - | -40 ~ 176°F (-40 ~ 80°C) | CCC, CE, CSA, GOST, UL, VDE | 1.8 lbs (816.5 g) |
|

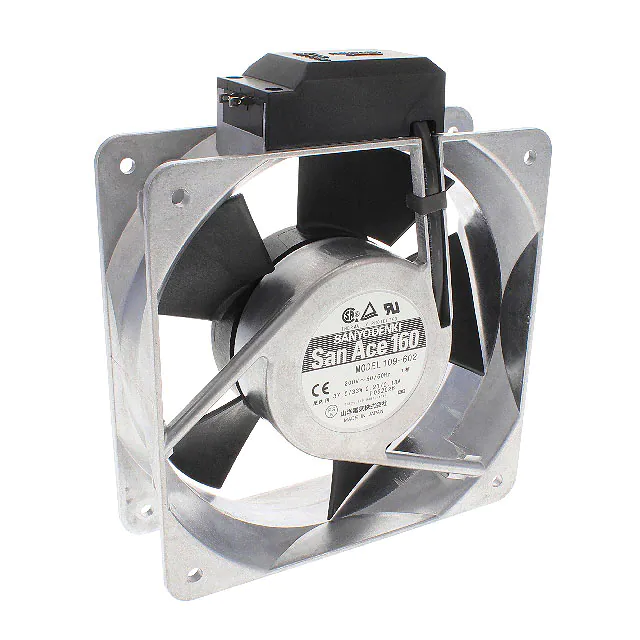

109-602FAN 160X51MM 200VAC |
4,036 | 87.09 |
|
Datasheet |
San Ace 160 | Box | Active | 200VAC | Square - 160mm L x 160mm H | 51.00mm | 300.4 CFM (8.41m³/min) | 0.669 in H2O (166.6 Pa) | Ball | Tubeaxial | - | 60.0dB(A) | 33.00W | 3350 RPM | 2 Terminals | - | -22 ~ 140°F (-30 ~ 60°C) | CE, CSA, PSE, TUV, UL | 2.4 lbs (1.1 kg) |
|
UF250BMB12-H2C2AFAN AXIAL 280X80MM 115VAC WIRE |
1,458 | 157.94 |
|
Datasheet |
UF250BMB-H1 | Bulk | Active | 115VAC | Square - 280mm L x 280mm H | 80.00mm | - | - | Ball | Tubeaxial | Permanent Split Capacitor Motor, Thermal Overload Protector (TOP) | - | - | - | 2 Terminals | - | -4 ~ 158°F (-20 ~ 70°C) | CE, cUL, TUV, UL | 6.2 lbs (2.8 kg) |
|

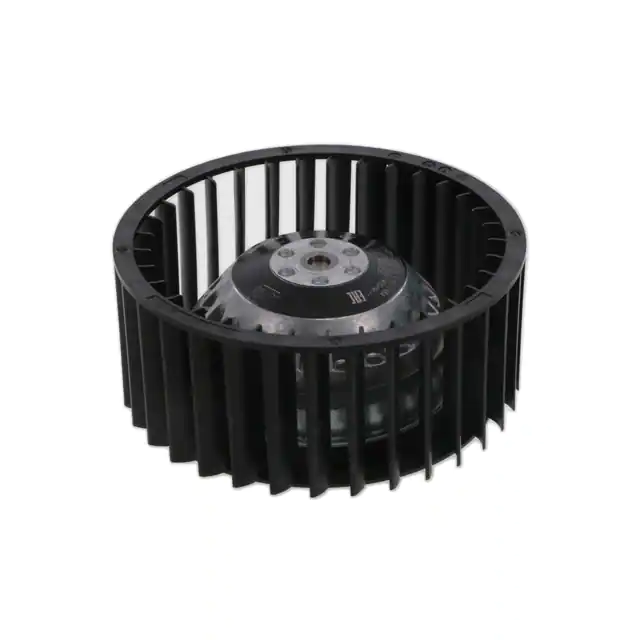

R2E140-AS77-05AC BACKWARD-CURVED MOTORIZED IMP |
2,181 | 175.62 |
|
Datasheet |
R2E140 | Bulk | Active | 230VAC | Round - 140mm Dia | 72.00mm | - | - | Ball | Motorized Impellers | Capacitor, Thermal Overload Protector (TOP) | - | 110W | 1400 RPM | 4 Wire Leads with Splice Terminals | IP44 | -13 ~ 86°F (-25 ~ 30°C) | CCC, CE | 2.4 lbs (1.1 kg) |
|
UF250BMB12-H1C2A-B1FAN AXIAL 280X80MM 115VAC TACH |
1,533 | 169.18 |
|
Datasheet |
UF250BMB-H1 | Bulk | Active | 115VAC | Square - 280mm L x 280mm H | 80.00mm | 1130.0 CFM (31.64m³/min) | 0.780 in H2O (194.3 Pa) | Ball | Tubeaxial | Permanent Split Capacitor Motor, Speed Sensor (Tach), Thermal Overload Protector (TOP) | 70.0dB(A) | 148W | 2700 RPM | 3 Terminals | - | -4 ~ 158°F (-20 ~ 70°C) | CE, cUL, TUV, UL | 6.1 lbs (2.8 kg) |
