DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
15025PA-24Q-AT-00FAN AXL 172.7X25.4MM 24VDC TERM |
3,607 | 60.62 |
|
Datasheet |
15025PA | Bulk | Active | 24VDC | Rectangular/Rounded - 172.7mm L x 150mm H | 25.40mm | - | - | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | - | - | - | 3 Terminals | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
15025PA-24L-AA-C0FAN AXL 172.7X25.4MM 24VDC TERM |
1,210 | 60.72 |
|
Datasheet |
15025PA | Bulk | Active | 24VDC | Rectangular/Rounded - 172.7mm L x 150mm H | 25.40mm | 201.0 CFM (5.63m³/min) | 0.410 in H2O (102.1 Pa) | Ball | Tubeaxial | Auto Restart | 59.0dB | 17.8 W | 3150 RPM | 2 Terminals | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
15025PA-24M-AT-00FAN AXL 172.7X25.4MM 24VDC TERM |
2,232 | 60.62 |
|
Datasheet |
15025PA | Bulk | Active | 24VDC | Rectangular/Rounded - 172.7mm L x 150mm H | 25.40mm | 214.9 CFM (6.02m³/min) | 0.470 in H2O (117.1 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 60.5dB | 21.4 W | 3350 RPM | 3 Terminals | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
15025PA-48Q-AA-00FAN AXL 172.7X25.4MM 48VDC TERM |
2,530 | 60.72 |
|
Datasheet |
15025PA | Bulk | Active | 48VDC | Rectangular/Rounded - 172.7mm L x 150mm H | 25.40mm | 290.0 CFM (8.12m³/min) | 0.890 in H2O (221.7 Pa) | Ball | Tubeaxial | Auto Restart | 65.4dB | 35.5 W | 4100 RPM | 2 Terminals | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
15025PA-48N-AT-00FAN AXL 172.7X25.4MM 48VDC TERM |
4,956 | 60.62 |
|
Datasheet |
15025PA | Bulk | Active | 48VDC | Rectangular/Rounded - 172.7mm L x 150mm H | 25.40mm | 226.0 CFM (6.33m³/min) | 0.510 in H2O (127.0 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 61.5dB | 24 W | 3500 RPM | 3 Terminals | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
15025PA-24L-AT-00FAN AXL 172.7X25.4MM 24VDC TERM |
4,188 | 60.62 |
|
Datasheet |
15025PA | Bulk | Active | 24VDC | Rectangular/Rounded - 172.7mm L x 150mm H | 25.40mm | 201.0 CFM (5.63m³/min) | 0.410 in H2O (102.1 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 59.0dB | 17.8 W | 3150 RPM | 3 Terminals | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
15025PA-48K-AT-00FAN AXIAL 172.7X25.4MM 48VDC |
1,072 | 0.00 |
|
- |
15025PA | Bulk | Active | 48VDC | Rectangular/Rounded - 172.7mm L x 150mm H | 25.40mm | 180.0 CFM (5.04m³/min) | 0.320 in H2O (79.7 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 55.5dB | 13.4 W | 2850 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
15025PA-48Q-AT-00FAN AXIAL 172.7X25.4MM 48VDC |
3,798 | 0.00 |
|
- |
15025PA | Bulk | Active | 48VDC | Rectangular/Rounded - 172.7mm L x 150mm H | 25.40mm | 270.0 CFM (7.56m³/min) | 0.740 in H2O (184.3 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 62.9dB | 27.8 W | 3750 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
PFE0384BX-000U-H9948VDC FAN 140X38MM PWM |
2,775 | 0.00 |
|
Datasheet |
PF | Box | Active | 48VDC | Square - 140mm L x 140mm H | 38.00mm | 282.5 CFM (7.91m³/min) | 1.880 in H2O (468.3 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control | 65.9dB(A) | 35.52 W | 6600 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
PFE0384BX-000U-G9948VDC FAN 140X38MM ALARM |
1,482 | 0.00 |
|
Datasheet |
PF | Box | Active | 48VDC | Square - 140mm L x 140mm H | 38.00mm | 282.5 CFM (7.91m³/min) | 1.880 in H2O (468.3 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 65.9dB(A) | 35.52 W | 6600 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
PFE0384BX-000U-F9948VDC FAN 140X38MM TACH |
2,085 | 0.00 |
|
Datasheet |
PF | Box | Active | 48VDC | Square - 140mm L x 140mm H | 38.00mm | 282.5 CFM (7.91m³/min) | 1.880 in H2O (468.3 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor | 65.9dB(A) | 35.52 W | 6600 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
19039821AFAN MOTOR IMP 101.6X55MM 24V TTL |
4,977 | 0.00 |
|
Datasheet |
Diplomat | - | Active | 24VDC | Round - 118mm Dia | 55.60mm | 98.0 CFM (2.74m³/min) | 1.560 in H2O (388.6 Pa) | Ball | Motorized Impellers | Auto Restart, Locked Rotor Protection, Speed Sensor (Tach) | 59.0dB(A) | 22.1 W | 5000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cUL, UL | 0.816 lb (370.13 g) |
|
|
PFE0384BX-000U-S9948VDC FAN 140X38MM TACH/PWM |
1,633 | 0.00 |
|
Datasheet |
PF | Box | Active | 48VDC | Square - 140mm L x 140mm H | 38.00mm | 282.5 CFM (7.91m³/min) | 1.880 in H2O (468.3 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 65.9dB(A) | 35.52 W | 6600 RPM | 4 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
AFB1512EHYVBFAN AXIAL 172X25.4MM 12VDC WIRE |
4,235 | 57.52 |
|
Datasheet |
AFB | Bulk | Active | 12VDC | Rectangular/Rounded - 172mm L x 150mm H | 25.40mm | 290.6 CFM (8.14m³/min) | 0.821 in H2O (204.5 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 61.5dB(A) | 36 W | 4300 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, VDE | 0.948 lb (430.01 g) |
|
|
PFE0384BX-000U-Q9948VDC FAN 140X38MM ALARM/PWM |
3,277 | 0.00 |
|
Datasheet |
PF | Box | Active | 48VDC | Square - 140mm L x 140mm H | 38.00mm | 282.5 CFM (7.91m³/min) | 1.880 in H2O (468.3 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor, PWM Control | 65.9dB(A) | 35.52 W | 6600 RPM | 4 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
17001195AFAN AXIAL BALL PQD24Z3E2X-E3 |
2,680 | 74.71 |
|
Datasheet |
Patriot | Bulk | Active | 24VDC | Round - 171.4mm Dia | 50.80mm | 305.0 CFM (8.54m³/min) | 1.370 in H2O (341.2 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 60.4dB(A) | 31.2 W | 4500 RPM | 4 Wire Leads | IP68 - Dust Tight, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | CE, cUL, UL | - |
|

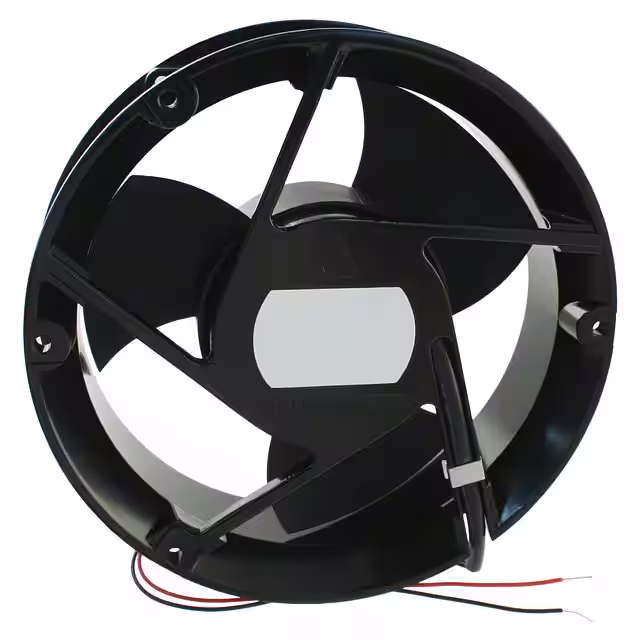

EFB1724HHGFAN AXIAL 172X50.8MM 24VDC WIRE |
2,570 | 60.47 |
|
Datasheet |
EFB | Bulk | Obsolete | 24VDC | Round - 172mm Dia | 50.80mm | 279.7 CFM (7.83m³/min) | 0.800 in H2O (199.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 55.0dB(A) | 18.48 W | 3700 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 1.9 lbs (861.8 g) |
|
|
4184NHDC TUBEAXIAL FAN |
3,809 | 0.00 |
|
- |
4100N | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 38.00mm | 133.7 CFM (3.74m³/min) | 0.723 in H2O (180.0 Pa) | Ball | Tubeaxial | Auto Restart | 56.0dB(A) | 11 W | 4400 RPM | 2 Wire Leads | - | -22 ~ 158°F (-30 ~ 70°C) | CCC, CSA, CE, EAC, VDE, UL | - |
|
|
9WS0912F402FAN AXIAL 92X25MM 12VDC WIRE |
2,336 | 47.52 |
|
Datasheet |
San Ace 92WS | Box | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 41.7 CFM (1.17m³/min) | 0.130 in H2O (32.4 Pa) | Ball | Tubeaxial | - | 30.0dB(A) | 1.56 W | 2450 RPM | 2 Wire Leads | IP54 - Dust Protected, Water Resistant | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.331 lb (150.14 g) |
|
|
9WS0912H402FAN AXIAL 92X25MM 12VDC WIRE |
3,252 | 47.52 |
|
Datasheet |
San Ace 92WS | Box | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 48.7 CFM (1.36m³/min) | 0.181 in H2O (45.1 Pa) | Ball | Tubeaxial | - | 33.0dB(A) | 2.04 W | 2850 RPM | 2 Wire Leads | IP54 - Dust Protected, Water Resistant | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.331 lb (150.14 g) |
