DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

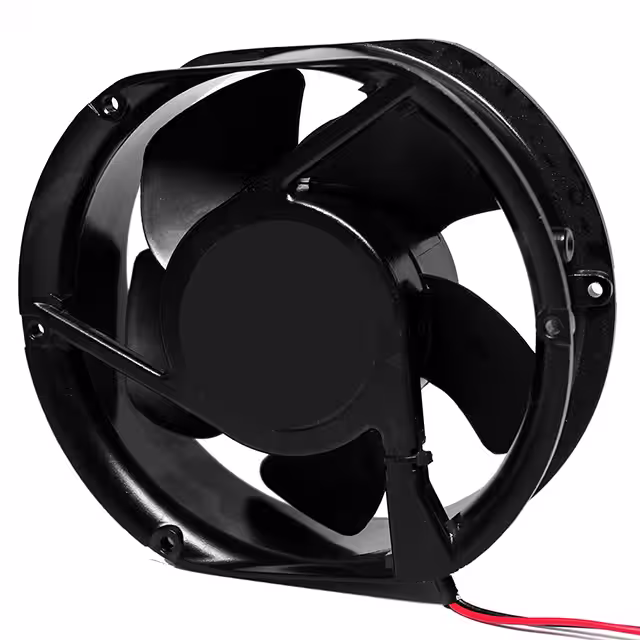

OD172SAP-12HBIP68FAN AXIAL 172X51MM 12VDC WIRE |
4,312 | 0.00 |
|
Datasheet |
OD172SAP | Box | Obsolete | 12VDC | Rectangular/Rounded - 172mm L x 150mm H | 51.00mm | 230.0 CFM (6.44m³/min) | 0.750 in H2O (186.8 Pa) | Ball | Tubeaxial | Auto Restart | 51.0dB | 23 W | 3200 RPM | 2 Wire Leads | IP68 - Dust Tight, Waterproof | 5 ~ 149°F (-15 ~ 65°C) | cURus, TUV | 1.8 lbs (816.5 g) |
|
4114NXHHUFAN AXIAL 119X38MM 24VDC WIRE |
1,895 | 0.00 |
|
Datasheet |
4100NU | Bulk | Obsolete | 24VDC | Square - 119mm L x 119mm H | 38.00mm | 153.0 CFM (4.28m³/min) | - | Ball | Tubeaxial | - | 60.0dB(A) | 13.6 W | 4900 RPM | 2 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 131°F (-20 ~ 55°C) | UL | 0.882 lb (400.07 g) |
|
109E4712L402FAN AXIAL 172X25.4MM 12VDC WIRE |
3,541 | 53.81 |
|
Datasheet |
San Ace 172 | Box | Active | 12VDC | Rectangular/Rounded - 172mm L x 147mm H | 25.40mm | 162.0 CFM (4.54m³/min) | 0.293 in H2O (73.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 48.0dB(A) | 12 W | 2500 RPM | 2 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 1.1 lbs (500.0 g) |
|
|
109E4724H402FAN AXIAL 172X25.4MM 24VDC WIRE |
3,018 | 53.81 |
|
Datasheet |
San Ace 172 | Box | Active | 24VDC | Rectangular/Rounded - 172mm L x 147mm H | 25.40mm | 226.0 CFM (6.33m³/min) | 0.542 in H2O (135.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 57.0dB(A) | 24 W | 3400 RPM | 2 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 1.1 lbs (500.0 g) |
|
|
109E4712L401FAN AXIAL 172X25.4MM 12VDC WIRE |
3,467 | 54.06 |
|
Datasheet |
San Ace 172 | Box | Active | 12VDC | Rectangular/Rounded - 172mm L x 147mm H | 25.40mm | 162.0 CFM (4.54m³/min) | 0.293 in H2O (73.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 48.0dB(A) | 12 W | 2500 RPM | 3 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 1.1 lbs (500.0 g) |
|

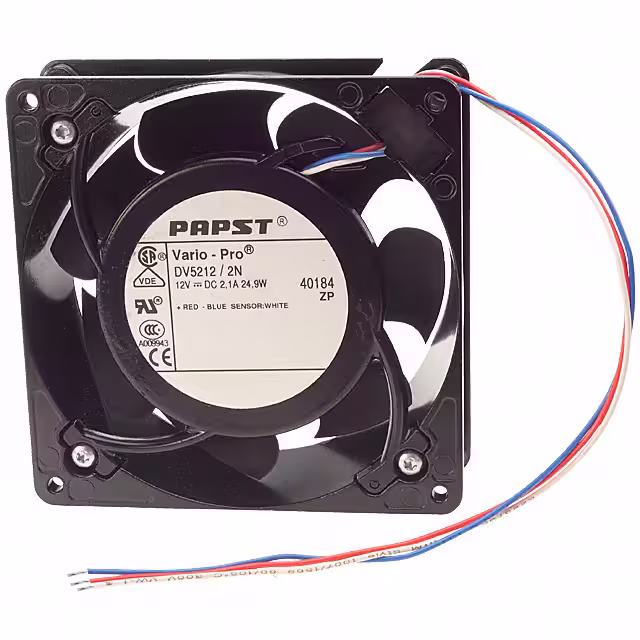

DV5212/2N-40184FAN AXIAL 127X38MM 12VDC WIRE |
3,280 | 0.00 |
|
Datasheet |
DV5200 | Bulk | Obsolete | 12VDC | Square - 127mm L x 127mm H | 38.00mm | 158.9 CFM (4.45m³/min) | - | Ball | Tubeaxial | Speed Sensor (Tach) | - | 9 W | - | 3 Wire Leads | - | - | CE, CSA, UL, VDE | - |
|
|
8218J/2H3FAN AXIAL 80X38MM 48VDC WIRE |
1,002 | 98.80 |
|
Datasheet |
8200J, S-Force | Bulk | Active | 48VDC | Square - 80mm L x 80mm H | 38.00mm | 112.0 CFM (3.14m³/min) | - | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 66.0dB(A) | 25 W | 12000 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | - | - |
|
|
109E4724P4H01FAN AXIAL 172X25.4MM 24VDC WIRE |
2,169 | 67.57 |
|
Datasheet |
San Ace 172 | Box | Active | 24VDC | Rectangular/Rounded - 172mm L x 147mm H | 25.40mm | 226.0 CFM (6.33m³/min) | 0.542 in H2O (135.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 57.0dB(A) | 24 W | 3400 RPM | 4 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 1.1 lbs (500.0 g) |
|
OD172SAP-12LBIP68FAN AXIAL 172X51MM 12VDC WIRE |
2,841 | 75.24 |
|
Datasheet |
OD172SAP | Box | Active | 12VDC | Rectangular/Rounded - 172mm L x 150mm H | 51.00mm | 125.0 CFM (3.50m³/min) | 0.350 in H2O (87.2 Pa) | Ball | Tubeaxial | Auto Restart | 32.0dB | 5.5 W | 1600 RPM | 2 Wire Leads | IP68 - Dust Tight, Waterproof | 5 ~ 149°F (-15 ~ 65°C) | cURus, TUV | 1.8 lb (800.0 g) |
|
|
OD172SAP-12MBIP68FAN AXIAL 172X51MM 12VDC WIRE |
2,699 | 83.47 |
|
Datasheet |
OD172SAP | Box | Active | 12VDC | Rectangular/Rounded - 172mm L x 150mm H | 51.00mm | 180.0 CFM (5.04m³/min) | 0.510 in H2O (127.0 Pa) | Ball | Tubeaxial | Auto Restart | 42.0dB | 13.2 W | 2500 RPM | 2 Wire Leads | IP68 - Dust Tight, Waterproof | 5 ~ 149°F (-15 ~ 65°C) | cURus, TUV | 1.8 lb (800.0 g) |
|
|
OD172SAP-24HHBIP68FAN AXIAL 172X51MM 24VDC WIRE |
3,971 | 75.24 |
|
Datasheet |
OD172SAP | Box | Active | 24VDC | Rectangular/Rounded - 172mm L x 150mm H | 51.00mm | 300.0 CFM (8.40m³/min) | 0.980 in H2O (244.0 Pa) | Ball | Tubeaxial | Auto Restart | 57.0dB | 50.4 W | 3900 RPM | 2 Wire Leads | IP68 - Dust Tight, Waterproof | 5 ~ 149°F (-15 ~ 65°C) | cURus, TUV | 1.8 lb (800.0 g) |
|
|
OD172SAP-24LBIP68FAN AXIAL 172X51MM 24VDC WIRE |
2,759 | 75.24 |
|
Datasheet |
OD172SAP | Box | Active | 24VDC | Rectangular/Rounded - 172mm L x 150mm H | 51.00mm | 125.0 CFM (3.50m³/min) | 0.350 in H2O (87.2 Pa) | Ball | Tubeaxial | Auto Restart | 32.0dB | 5 W | 1600 RPM | 2 Wire Leads | IP68 - Dust Tight, Waterproof | 5 ~ 149°F (-15 ~ 65°C) | cURus, TUV | 1.8 lb (800.0 g) |
|
|
OD172SAP-24MBIP68FAN AXIAL 172X51MM 24VDC WIRE |
4,883 | 75.24 |
|
Datasheet |
OD172SAP | Box | Active | 24VDC | Rectangular/Rounded - 172mm L x 150mm H | 51.00mm | 180.0 CFM (5.04m³/min) | 0.510 in H2O (127.0 Pa) | Ball | Tubeaxial | Auto Restart | 42.0dB | 13 W | 2500 RPM | 2 Wire Leads | IP68 - Dust Tight, Waterproof | 5 ~ 149°F (-15 ~ 65°C) | cURus, TUV | 1.8 lb (800.0 g) |
|
|
OD172SAP-48HHBIP68FAN AXIAL 172X51MM 48VDC WIRE |
3,137 | 76.79 |
|
Datasheet |
OD172SAP | Box | Active | 48VDC | Rectangular/Rounded - 172mm L x 150mm H | 51.00mm | 300.0 CFM (8.40m³/min) | 0.950 in H2O (237.0 Pa) | Ball | Tubeaxial | Auto Restart | 57.0dB | 49.4 W | 3900 RPM | 2 Wire Leads | IP68 - Dust Tight, Waterproof | 5 ~ 149°F (-15 ~ 65°C) | cURus, TUV | 1.8 lb (800.0 g) |
|
|
OD172SAP-48LBIP68FAN AXIAL 172X51MM 48VDC WIRE |
4,038 | 76.79 |
|
Datasheet |
OD172SAP | Box | Active | 48VDC | Rectangular/Rounded - 172mm L x 150mm H | 51.00mm | 125.0 CFM (3.50m³/min) | 0.350 in H2O (87.2 Pa) | Ball | Tubeaxial | Auto Restart | 32.0dB | 5.8 W | 1600 RPM | 2 Wire Leads | IP68 - Dust Tight, Waterproof | 5 ~ 149°F (-15 ~ 65°C) | cURus, TUV | 1.8 lb (800.0 g) |
|
|
OD172SAP-48MBIP68FAN AXIAL 172X51MM 48VDC WIRE |
1,781 | 76.79 |
|
Datasheet |
OD172SAP | Box | Active | 48VDC | Rectangular/Rounded - 172mm L x 150mm H | 51.00mm | 180.0 CFM (5.04m³/min) | 0.510 in H2O (127.0 Pa) | Ball | Tubeaxial | Auto Restart | 42.0dB | 14.5 W | 2500 RPM | 2 Wire Leads | IP68 - Dust Tight, Waterproof | 5 ~ 149°F (-15 ~ 65°C) | cURus, TUV | 1.8 lb (800.0 g) |
|
|
9WL0912J4002FAN AXIAL 92X25.2MM 12VDC WIRE |
3,789 | 90.15 |
|
Datasheet |
San Ace 92W | Box | Active | 12VDC | Square - 92mm L x 92mm H | 25.20mm | 77.7 CFM (2.18m³/min) | 0.420 in H2O (104.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 44.0dB(A) | 5.04 W | 5000 RPM | 2 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.375 lb (170.1 g) |
|
|
3214J/2H3DC TUBEAXIAL FAN |
4,604 | 0.00 |
|
- |
3200J | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 38.00mm | 140.2 CFM (3.93m³/min) | 2.589 in H2O (645.0 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 69.0dB(A) | 30 W | 11000 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CCC, CSA, CE, EAC, VDE, UL | - |
|
|
DV5218/2NP-40182FAN AXIAL 127X38MM 48VDC WIRE |
2,654 | 0.00 |
|
Datasheet |
DV5200 | Bulk | Obsolete | 48VDC | Square - 127mm L x 127mm H | 38.00mm | 158.9 CFM (4.45m³/min) | - | Ball | Tubeaxial | Speed Sensor (Tach) | - | 21 W | - | 3 Wire Leads | - | - | CE, CSA, UL, VDE | - |
|
|
W2G107-AV37-85DC TUBEAXIAL FANS |
2,458 | 0.00 |
|
- |
W2G107 | Bulk | Active | - | Square - 119mm L x 119mm H | 38.00mm | - | - | Ball | Tubeaxial | - | - | - | - | 2 Wire Leads | - | - | CSA, VDE, UL | - |
