DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CFM-6025BF-235-274FAN AXIAL 60X25.4MM 24VDC WIRE |
245 | 7.25 |
|
Datasheet |
CFM-60BF | Box | Active | 24VDC | Square - 60mm L x 60mm H | 25.40mm | 16.8 CFM (0.470m³/min) | 0.110 in H2O (27.4 Pa) | Ball | Tubeaxial | Auto Restart | 27.5dB(A) | 1.44 W | 3500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
ASB0312MA-DR00FAN AXIAL 30X10MM 12VDC WIRE |
1,880 | 7.59 |
|
Datasheet |
ASB | Box | Active | 12VDC | Square - 30mm L x 30mm H | 10.00mm | 3.7 CFM (0.104m³/min) | 0.167 in H2O (41.6 Pa) | Sleeve | Tubeaxial | Locked Rotor Sensor | 23.0dB(A) | 720 mW | 9000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | - |
|
4508HQ/MF40201V1-1D02A-G99FAN AXIAL 40X20MM VAPO 12VDC |
248 | 9.00 |
|
Datasheet |
MagLev® MF | Box | Active | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 8.2 CFM (0.230m³/min) | 0.220 in H2O (54.8 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 27.4dB(A) | 700 mW | 7000 RPM | - | - | -4 ~ 185°F (-20 ~ 85°C) | cURus, TUV | 0.064 lb (29.03 g) |
|
CFM-8025B-135-364FAN AXIAL 80X25MM 12VDC WIRE |
250 | 8.67 |
|
Datasheet |
CFM-80B | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 43.3 CFM (1.21m³/min) | 0.170 in H2O (42.3 Pa) | Ball | Tubeaxial | Auto Restart | 36.4dB(A) | 3.96 W | 3500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
CFM-A225C-220-350-20FAN AXIAL 120X25.4MM 24VDC WIRE |
153 | 8.71 |
|
Datasheet |
CFM-120C | Box | Active | 24VDC | Square - 120mm L x 120mm H | 25.40mm | 69.7 CFM (1.95m³/min) | 0.100 in H2O (24.9 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 37.8dB(A) | 4.08 W | 2000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
CFM-3510BF-170-222FAN AXIAL 35X10.3MM 12VDC WIRE |
133 | 8.83 |
|
Datasheet |
CFM-35BF | Box | Active | 12VDC | Square - 35mm L x 35mm H | 10.30mm | 4.6 CFM (0.129m³/min) | 0.100 in H2O (24.9 Pa) | Ball | Tubeaxial | Auto Restart | 22.3dB(A) | 1.08 W | 7000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|

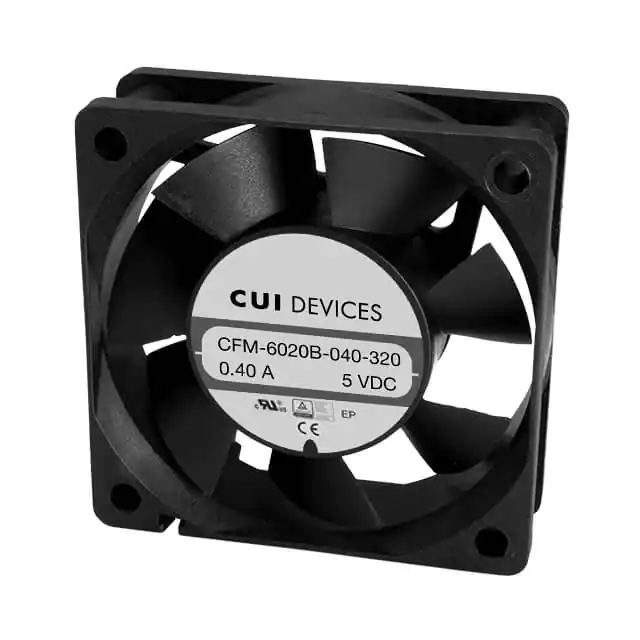

CFM-6020B-040-320FAN AXIAL 60X20MM BALL 5VDC WIRE |
145 | 8.91 |
|
Datasheet |
CFM-60B | Box | Active | 5VDC | Square - 60mm L x 60mm H | 20.00mm | 15.2 CFM (0.426m³/min) | 0.120 in H2O (29.9 Pa) | Ball | Tubeaxial | Auto Restart | 32.0dB(A) | 2.05 W | 4000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
CFM-6025V-238-220-20FAN AXIAL 60X25MM 24VDC WIRE |
962 | 8.96 |
|
Datasheet |
CFM-60V | Tray | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 19.3 CFM (0.540m³/min) | 0.150 in H2O (37.4 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 22.0dB(A) | 920 mW | 3800 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.099 lb (44.91 g) |
|
|
AUB0812HHDXHNFAN AXIAL 80X20MM 12VDC WIRE |
854 | 8.30 |
|
Datasheet |
AUB | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 20.00mm | 51.5 CFM (1.44m³/min) | 0.291 in H2O (72.5 Pa) | Superflo | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 55.5dB(A) | 3.6 W | 4500 RPM | 4 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | - |
|
|
CFM-6025V-252-312-20FAN AXIAL 60X25MM 24VDC WIRE |
216 | 9.31 |
|
Datasheet |
CFM-60V | Tray | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 27.0 CFM (0.756m³/min) | 0.310 in H2O (77.2 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 31.2dB(A) | 2.21 W | 5200 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.099 lb (44.91 g) |
|

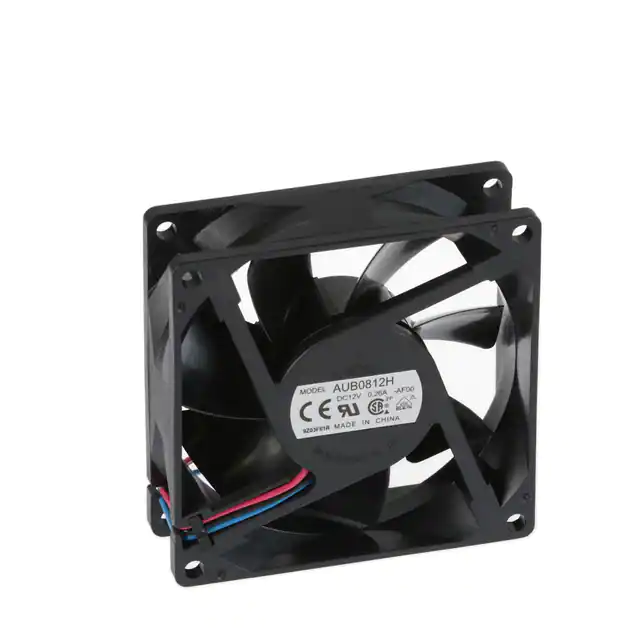

AUB0812H-AF00FAN AXIAL 80X25.4MM 12VDC |
710 | 8.34 |
|
Datasheet |
AUB | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 25.40mm | 38.8 CFM (1.09m³/min) | 0.177 in H2O (44.1 Pa) | Superflo | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 34.0dB(A) | 2.16 W | 3000 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.195 lb (88.45 g) |
|
|
BFB0312LA-CR00FAN BLOWER 30X10MM 12VDC WIRE |
688 | 11.41 |
|
Datasheet |
BFB | Bulk | Active | 12VDC | Square - 30mm L x 30mm H | 10.00mm | 1.1 CFM (0.031m³/min) | 0.144 in H2O (35.9 Pa) | Ball | Blower | Locked Rotor Sensor | 24.0dB(A) | 480 mW | 5500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.023 lb (10.43 g) |
|
CFM-A225B-220-350-20FAN AXIAL 120X25.4MM 24VDC WIRE |
472 | 11.86 |
|
Datasheet |
CFM-120B | Box | Active | 24VDC | Square - 120mm L x 120mm H | 25.40mm | 69.7 CFM (1.95m³/min) | 0.100 in H2O (24.9 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 37.8dB(A) | 4.08 W | 2000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
CFM-9225V-139-416-20FAN AXIAL 92X25MM 12VDC WIRE |
1,777 | 13.40 |
|
Datasheet |
CFM-92V | Tray | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 65.0 CFM (1.82m³/min) | 0.250 in H2O (62.3 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 41.6dB(A) | 3.18 W | 3900 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.234 lb (106.14 g) |
|
CFM-9225B-125-317FAN AXIAL 92.2X32MM 12VDC WIRE |
198 | 9.08 |
|
Datasheet |
CFM-92B | Box | Active | 12VDC | Square - 92.0mm L x 92.0mm H | 25.00mm | 41.7 CFM (1.17m³/min) | 0.110 in H2O (27.4 Pa) | Ball | Tubeaxial | Auto Restart | 31.7dB(A) | 1.8 W | 2500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
06020SA-24M-EA-00FAN AXIAL 60X20MM 24VDC WIRE |
727 | 11.94 |
|
Datasheet |
06020SA | Box | Active | 24VDC | Square - 60mm L x 60mm H | 20.00mm | 18.4 CFM (0.515m³/min) | 0.160 in H2O (39.8 Pa) | Ball | Tubeaxial | - | 28.5dB | 1.44 W | 4000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | 0.123 lb (55.79 g) |
|
|
CFM-A225C-018-327-20FAN AXIAL 120X25.4MM 5VDC WIRE |
108 | 9.10 |
|
Datasheet |
CFM-120C | Box | Active | 5VDC | Square - 120mm L x 120mm H | 25.40mm | 62.9 CFM (1.76m³/min) | 0.090 in H2O (22.4 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 28.8dB(A) | 2.25 W | 1800 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|

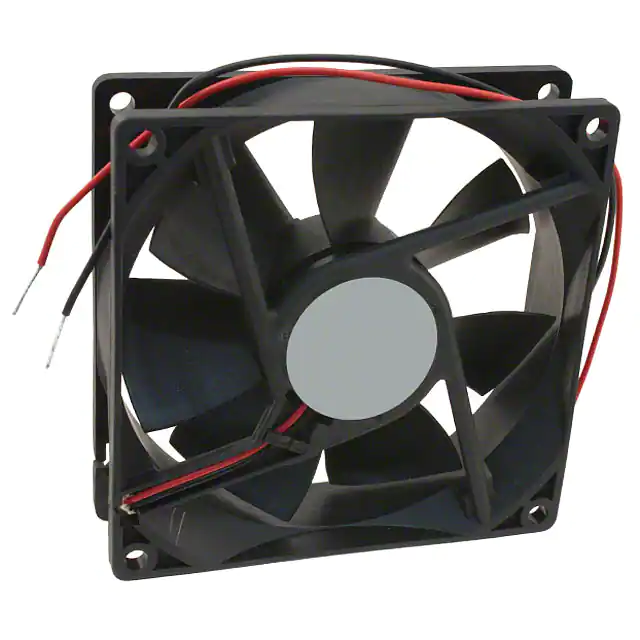

AFB0912MFAN AXIAL 92X25.4MM 12VDC WIRE |
367 | 14.32 |
|
Datasheet |
AFB | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 25.40mm | 43.8 CFM (1.23m³/min) | 0.130 in H2O (32.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 30.0dB(A) | 1.32 W | 2450 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.218 lb (98.88 g) |
|

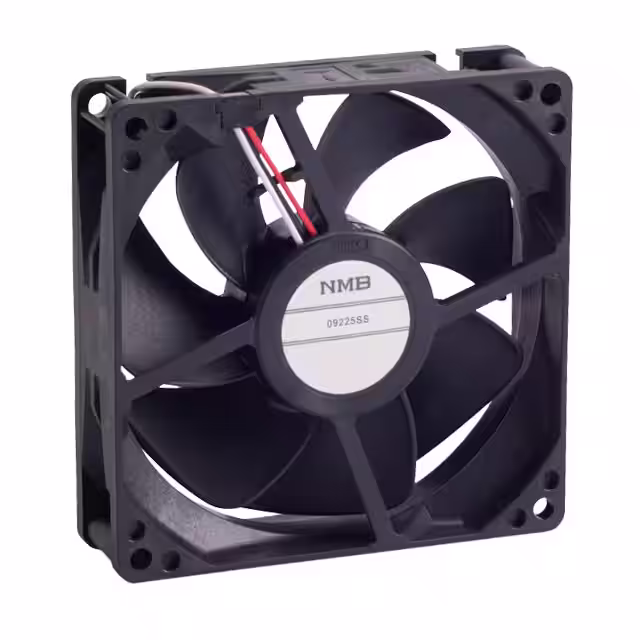

09225SS-24Q-AT-D0FAN AXIAL 92X25MM 24VDC WIRE |
159 | 9.15 |
|
Datasheet |
09225SS | Box | Active | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 65.0 CFM (1.82m³/min) | 0.290 in H2O (72.2 Pa) | Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 40.0dB | 3.36 W | 3900 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|

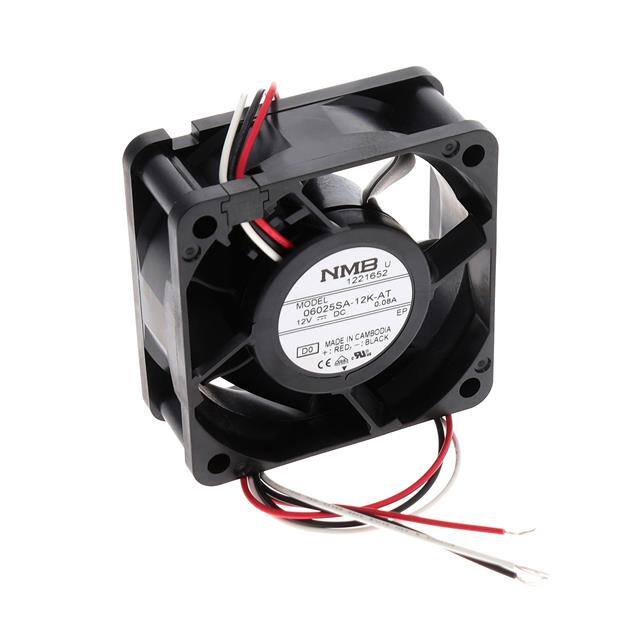

06025SA-12K-AT-D0FAN AXIAL 60X25MM 12VDC WIRE |
426 | 9.17 |
|
Datasheet |
06025SA | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 14.5 CFM (0.406m³/min) | 0.100 in H2O (24.9 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 21.0dB | 720 mW | 3000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
