DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

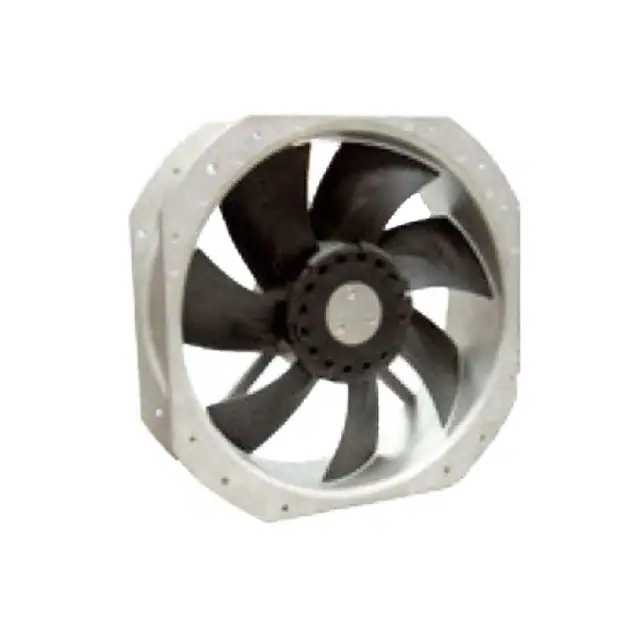

OD280-12MBFAN AXIAL 280X89MM 12VDC WIRE |
4,981 | 275.65 |
|
Datasheet |
OD280 | Box | Active | 12VDC | Square - 280mm L x 280mm H | 89.00mm | 1060.0 CFM (29.68m³/min) | 0.650 in H2O (161.9 Pa) | Ball | Tubeaxial | - | 56.0dB | 90 W | 2200 RPM | 2 Wire Leads | - | 5 ~ 149°F (-15 ~ 65°C) | cURus, TUV | - |
|
|
OD280-24HBFAN AXIAL 280X89MM 24VDC WIRE |
2,600 | 275.65 |
|
Datasheet |
OD280 | Box | Active | 24VDC | Square - 280mm L x 280mm H | 89.00mm | 1200.0 CFM (33.60m³/min) | 0.900 in H2O (224.2 Pa) | Ball | Tubeaxial | - | 72.0dB | 104 W | 2550 RPM | 2 Wire Leads | - | 5 ~ 149°F (-15 ~ 65°C) | cURus, TUV | - |
|
|
OD280-24MBFAN AXIAL 280X89MM 24VDC WIRE |
1,057 | 275.65 |
|
Datasheet |
OD280 | Box | Active | 24VDC | Square - 280mm L x 280mm H | 89.00mm | 1060.0 CFM (29.68m³/min) | 0.650 in H2O (161.9 Pa) | Ball | Tubeaxial | - | 56.0dB | 60 W | 2200 RPM | 2 Wire Leads | - | 5 ~ 149°F (-15 ~ 65°C) | cURus, TUV | - |
|
|
OD280-12MTBDC FAN 12V 280X89MM |
4,485 | 0.00 |
|
Datasheet |
OD280 | Bulk | Active | 12VDC | Square - 280mm L x 280mm H | 89.00mm | 1050.0 CFM (29.40m³/min) | 0.650 in H2O (161.9 Pa) | Ball | Tubeaxial | - | 56.0dB(A) | 90 W | 2150 RPM | 2 Terminals | - | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | - |
|
|
OD280-24MTBDC FAN 24V 280X89MM |
2,256 | 0.00 |
|
Datasheet |
OD280 | Bulk | Active | 24VDC | Square - 280mm L x 280mm H | 89.00mm | 1050.0 CFM (29.40m³/min) | 0.650 in H2O (161.9 Pa) | Ball | Tubeaxial | - | 56.0dB(A) | 60 W | 2150 RPM | 2 Terminals | - | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | - |
|
|
OD280-24LTBDC FAN 24V 280X89MM |
4,825 | 0.00 |
|
Datasheet |
OD280 | Bulk | Active | 24VDC | Square - 280mm L x 280mm H | 89.00mm | 865.0 CFM (24.22m³/min) | 0.550 in H2O (137.0 Pa) | Ball | Tubeaxial | - | 48.0dB(A) | 27 W | 1800 RPM | 2 Terminals | - | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | - |
|
|
OD280-24LBDC FAN 24V 280X89MM |
4,359 | 0.00 |
|
Datasheet |
OD280 | Bulk | Active | 24VDC | Square - 280mm L x 280mm H | 89.00mm | 865.0 CFM (24.22m³/min) | 0.550 in H2O (137.0 Pa) | Ball | Tubeaxial | - | 48.0dB(A) | 27 W | 1800 RPM | 2 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | - |
|
|
OD280-12LBDC FAN 12V 280X89MM |
2,319 | 0.00 |
|
Datasheet |
OD280 | Bulk | Active | 12VDC | Square - 280mm L x 280mm H | 89.00mm | 865.0 CFM (24.22m³/min) | 0.550 in H2O (137.0 Pa) | Ball | Tubeaxial | - | 48.0dB(A) | 50 W | 1800 RPM | 2 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | - |
|
|
OD280-12LTBDC FAN 12V 280X89MM |
1,520 | 0.00 |
|
Datasheet |
OD280 | Bulk | Active | 12VDC | Square - 280mm L x 280mm H | 89.00mm | 865.0 CFM (24.22m³/min) | 0.550 in H2O (137.0 Pa) | Ball | Tubeaxial | - | 48.0dB(A) | 50 W | 1800 RPM | 2 Terminals | - | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | - |
|
|
OD280-24HTBDC FAN 24V 280X89MM |
3,643 | 0.00 |
|
Datasheet |
OD280 | Bulk | Active | 24VDC | Square - 280mm L x 280mm H | 89.00mm | 1180.0 CFM (33.04m³/min) | 0.900 in H2O (224.2 Pa) | Ball | Tubeaxial | - | 72.0dB(A) | 105 W | 2400 RPM | 2 Terminals | - | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | - |
|
|
OD280AN-24HBThermal Products |
4,654 | 0.00 |
|
- |
OD280 | Bulk | Active | 24VDC | Square - 280mm L x 280mm H | 89.00mm | 1180.0 CFM (33.04m³/min) | 0.900 in H2O (224.2 Pa) | Ball | Tubeaxial | Auto Restart | 72.0dB(A) | 105 W | 2400 RPM | 2 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | - |
|
K1G220-AA67-02ENERGY-SAVING CENTRIFIGUAL MODUL |
3,342 | 0.00 |
|
- |
K1G220 | Bulk | Active | 48VDC | Square - 270mm L x 270mm H | 92.00mm | 605.0 CFM (16.94m³/min) | - | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 71.0dB(A) | 94 W | 3100 RPM | 4 Wire Leads | IP42 | -13 ~ 140°F (-25 ~ 60°C) | CSA, EAC, UL | - |
|
|
K1G220-AA89-02ENERGY-SAVING CENTRIFIGUAL MODUL |
1,750 | 0.00 |
|
- |
K1G220 | Bulk | Active | 24VDC | Square - 270mm L x 270mm H | 92.00mm | - | - | Ball | Motorized Impellers | PWM Control, Speed Sensor (Tach) | - | 68 W | 2800 RPM | 4 Wire Leads | IP42 | -13 ~ 140°F (-25 ~ 60°C) | CSA, EAC, UL | - |
|

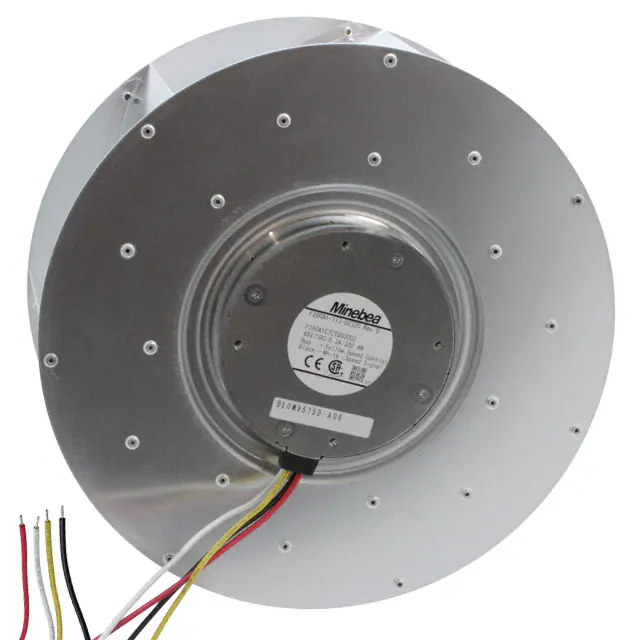

F280A2-113-D0720FAN IMP MTRZD 280X128.7MM 48VDC |
1,722 | 285.08 |
|
Datasheet |
F280 | Bulk | Active | 48VDC | Round - 280mm Dia | 128.7mm | 1071.0 CFM (30.00m³/min) | 1.668 in H2O (415.5 Pa) | Ball | Motorized Impellers | PWM Control, Speed Sensor (Tach) | 75.0dB(A) | 134.4 W | 2000 RPM | 4 Wire Leads | - | -22 ~ 158°F (-30 ~ 70°C) | - | 4.6 lbs (2.1 kg) |
|
|
F280A4-113-D0510FAN IMP MTRZD 280X128.7MM 24VDC |
2,363 | 285.08 |
|
Datasheet |
F280 | Bulk | Active | 24VDC | Round - 280mm Dia | 128.7mm | 940.0 CFM (26.32m³/min) | 1.206 in H2O (300.4 Pa) | Ball | Motorized Impellers | PWM Control, Speed Sensor (Tach) | 70.0dB | 93.6 W | 1700 RPM | 4 Wire Leads | - | -22 ~ 158°F (-30 ~ 70°C) | - | 4.6 lbs (2.1 kg) |
|
|
OD280AN-48HBFAN AXIAL 280X89MM 48VDC WIRE |
1,649 | 271.73 |
|
Datasheet |
OD280 | Box | Active | 48VDC | Square - 280mm L x 280mm H | 89.00mm | 1200.0 CFM (33.60m³/min) | 0.900 in H2O (224.2 Pa) | Ball | Tubeaxial | - | 72.0dB | 104 W | 2550 RPM | 2 Wire Leads | - | 5 ~ 149°F (-15 ~ 65°C) | cURus, TUV | - |
|
|
OD280-48MBFAN AXIAL 280X89MM 48VDC WIRE |
4,155 | 285.32 |
|
Datasheet |
OD280 | Box | Active | 48VDC | Square - 280mm L x 280mm H | 89.00mm | 1060.0 CFM (29.68m³/min) | 0.650 in H2O (161.9 Pa) | Ball | Tubeaxial | - | 56.0dB | 60 W | 2200 RPM | 2 Wire Leads | - | 5 ~ 149°F (-15 ~ 65°C) | cURus, TUV | - |
|
|
OD280-48LTBDC FAN 48V 280X89MM |
2,829 | 0.00 |
|
Datasheet |
OD280 | Bulk | Active | 48VDC | Square - 280mm L x 280mm H | 89.00mm | 870.0 CFM (24.36m³/min) | 0.550 in H2O (137.0 Pa) | Ball | Tubeaxial | - | 48.0dB(A) | 27 W | 1800 RPM | 2 Terminals | - | 5 ~ 149°F (-15 ~ 65°C) | cURus, TUV | - |
|
|
OD280-48HTBDC FAN 48V 280X89MM |
4,683 | 0.00 |
|
Datasheet |
OD280 | Bulk | Active | 48VDC | Square - 280mm L x 280mm H | 89.00mm | 1180.0 CFM (33.04m³/min) | 0.900 in H2O (224.2 Pa) | Ball | Tubeaxial | - | 72.0dB(A) | 106 W | 2400 RPM | 2 Terminals | - | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | - |
|
|
OD280-48MTBDC FAN 48V 280X89MM |
1,925 | 0.00 |
|
Datasheet |
OD280 | Bulk | Active | 48VDC | Square - 280mm L x 280mm H | 89.00mm | 1050.0 CFM (29.40m³/min) | 0.650 in H2O (161.9 Pa) | Ball | Tubeaxial | - | 56.0dB(A) | 60 W | 2150 RPM | 2 Terminals | - | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | - |
