DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
5920PL-05W-B70-D00FAN AXIAL 172X50.8MM 24VDC WIRE |
3,083 | 0.00 |
|
Datasheet |
5920PL | Bulk | Obsolete | 24VDC | Rectangular/Rounded - 172mm L x 150mm H | 50.80mm | 300.0 CFM (8.40m³/min) | 0.909 in H2O (226.5 Pa) | Ball | Tubeaxial | - | 63.2dB | 25.9 W | 4000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 1.8 lbs (816.5 g) |
|
|
5920PL-07W-B10-D00FAN AXIAL 172X50.8MM 48VDC WIRE |
1,980 | 0.00 |
|
Datasheet |
5920PL | Bulk | Obsolete | 48VDC | Rectangular/Rounded - 172mm L x 150mm H | 50.80mm | 180.0 CFM (5.04m³/min) | 0.371 in H2O (92.5 Pa) | Ball | Tubeaxial | - | 50.0dB | 8.64 W | 2550 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 1.8 lbs (816.5 g) |
|
5920PL-07W-B20-D00FAN AXIAL 172X50.8MM 48VDC WIRE |
3,649 | 0.00 |
|
Datasheet |
5920PL | Bulk | Obsolete | 48VDC | Rectangular/Rounded - 172mm L x 150mm H | 50.80mm | 200.0 CFM (5.60m³/min) | 0.371 in H2O (92.5 Pa) | Ball | Tubeaxial | - | 53.0dB | 11 W | 2850 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 1.8 lbs (816.5 g) |
|
|
5920PL-07W-B30-D00FAN AXIAL 172X50.8MM 48VDC WIRE |
3,308 | 0.00 |
|
Datasheet |
5920PL | Bulk | Obsolete | 48VDC | Rectangular/Rounded - 172mm L x 150mm H | 50.80mm | 225.0 CFM (6.30m³/min) | 0.562 in H2O (140.0 Pa) | Ball | Tubeaxial | - | 55.0dB | 13 W | 3150 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 1.8 lbs (816.5 g) |
|
|
5920PL-07W-B40-D00FAN AXIAL 172X50.8MM 48VDC WIRE |
4,593 | 0.00 |
|
Datasheet |
5920PL | Bulk | Obsolete | 48VDC | Rectangular/Rounded - 172mm L x 150mm H | 50.80mm | 240.0 CFM (6.72m³/min) | 0.622 in H2O (155.0 Pa) | Ball | Tubeaxial | - | 58.0dB | 15.8 W | 3350 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 1.8 lbs (816.5 g) |
|
|
5920PL-07W-B70-D00FAN AXIAL 172X50.8MM 48VDC WIRE |
4,042 | 0.00 |
|
Datasheet |
5920PL | Bulk | Obsolete | 48VDC | Rectangular/Rounded - 172mm L x 150mm H | 50.80mm | 300.0 CFM (8.40m³/min) | 0.909 in H2O (226.5 Pa) | Ball | Tubeaxial | - | 63.2dB | 24.5 W | 4000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 1.8 lbs (816.5 g) |
|
|
6820PL-04W-B10-D00FAN AXIAL 172X50.8MM 12VDC WIRE |
1,433 | 0.00 |
|
Datasheet |
6820PL | Bulk | Obsolete | 12VDC | Round - 172mm Dia | 50.80mm | 180.0 CFM (5.04m³/min) | 0.371 in H2O (92.5 Pa) | Ball | Tubeaxial | - | 50.0dB | 9.6 W | 2550 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 1.8 lbs (816.5 g) |
|
|
6820PL-04W-B20-D00FAN AXIAL 172X50.8MM 12VDC WIRE |
2,038 | 0.00 |
|
Datasheet |
6820PL | Bulk | Obsolete | 12VDC | Round - 172mm Dia | 50.80mm | 200.0 CFM (5.60m³/min) | 0.472 in H2O (117.6 Pa) | Ball | Tubeaxial | - | 53.0dB | 12 W | 2850 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 1.8 lbs (816.5 g) |
|
|
6820PL-04W-B30-D00FAN AXIAL 172X50.8MM 12VDC WIRE |
4,892 | 0.00 |
|
Datasheet |
6820PL | Bulk | Obsolete | 12VDC | Round - 172mm Dia | 50.80mm | 225.0 CFM (6.30m³/min) | 0.562 in H2O (140.0 Pa) | Ball | Tubeaxial | - | 55.0dB | 13.8 W | 3150 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 1.8 lbs (816.5 g) |
|
|
6820PL-05W-B10-D00FAN AXIAL 172X50.8MM 24VDC WIRE |
1,345 | 0.00 |
|
Datasheet |
6820PL | Bulk | Obsolete | 24VDC | Round - 172mm Dia | 50.80mm | 180.0 CFM (5.04m³/min) | 0.371 in H2O (92.5 Pa) | Ball | Tubeaxial | - | 50.0dB | 8.64 W | 2550 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 1.8 lbs (816.5 g) |
|
|
6820PL-05W-B20-D00FAN AXIAL 172X50.8MM 24VDC WIRE |
3,052 | 0.00 |
|
Datasheet |
6820PL | Bulk | Obsolete | 24VDC | Round - 172mm Dia | 50.80mm | 200.0 CFM (5.60m³/min) | 0.472 in H2O (117.6 Pa) | Ball | Tubeaxial | - | 53.0dB | 11 W | 2850 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 1.8 lbs (816.5 g) |
|
|
6820PL-05W-B30-D00FAN AXIAL 172X50.8MM 24VDC WIRE |
2,225 | 0.00 |
|
Datasheet |
6820PL | Bulk | Obsolete | 24VDC | Round - 172mm Dia | 50.80mm | 225.0 CFM (6.30m³/min) | 0.562 in H2O (140.0 Pa) | Ball | Tubeaxial | - | 55.0dB | 13.2 W | 3150 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 1.8 lbs (816.5 g) |
|
|
6820PL-07W-B10-D00FAN AXIAL 172X50.8MM 48VDC WIRE |
4,971 | 0.00 |
|
Datasheet |
6820PL | Bulk | Obsolete | 48VDC | Round - 172mm Dia | 50.80mm | 180.0 CFM (5.04m³/min) | 0.371 in H2O (92.5 Pa) | Ball | Tubeaxial | - | 50.0dB | 8.64 W | 2550 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 1.8 lbs (816.5 g) |
|
|
6820PL-07W-B20-D00FAN AXIAL 172X50.8MM 48VDC WIRE |
1,177 | 0.00 |
|
Datasheet |
6820PL | Bulk | Obsolete | 48VDC | Round - 172mm Dia | 50.80mm | 200.0 CFM (5.60m³/min) | 0.472 in H2O (117.6 Pa) | Ball | Tubeaxial | - | 53.0dB | 11 W | 2850 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 1.8 lbs (816.5 g) |
|
|
6820PL-07W-B30-D00FAN AXIAL 172X50.8MM 48VDC WIRE |
1,975 | 0.00 |
|
Datasheet |
6820PL | Bulk | Obsolete | 48VDC | Round - 172mm Dia | 50.80mm | 225.0 CFM (6.30m³/min) | 0.562 in H2O (140.0 Pa) | Ball | Tubeaxial | - | 55.0dB | 13 W | 3150 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 1.8 lbs (816.5 g) |
|
|
BG0702-B04-300-0FAN BLOWER 75.7X25MM 12VDC WIRE |
1,346 | 0.00 |
|
Datasheet |
BG | Bulk | Obsolete | 12VDC | Square/Rounded - 75.7mm L x 75.7mm H | 25.00mm | 7.8 CFM (0.218m³/min) | 0.377 in H2O (94.0 Pa) | Ball | Blower | - | 39.0dB | 1.92 W | 3000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL | 0.198 lb (89.81 g) |
|
|
BG0702-B04-500-0FAN BLOWER 75.7X25MM 12VDC WIRE |
3,802 | 0.00 |
|
Datasheet |
BG | Bulk | Obsolete | 12VDC | Square/Rounded - 75.7mm L x 75.7mm H | 25.00mm | 9.5 CFM (0.266m³/min) | 0.614 in H2O (153.0 Pa) | Ball | Blower | - | 43.0dB | 3 W | 3600 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL | 0.198 lb (89.81 g) |
|
|
BG0702-B05-300-0FAN BLOWER 75.7X25MM 24VDC WIRE |
1,975 | 0.00 |
|
Datasheet |
BG | Bulk | Obsolete | 24VDC | Square/Rounded - 75.7mm L x 75.7mm H | 25.00mm | 7.8 CFM (0.218m³/min) | 0.377 in H2O (94.0 Pa) | Ball | Blower | - | 39.0dB | 2.4 W | 3000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL | 0.198 lb (89.81 g) |
|
|
BG0702-B05-400-0FAN BLOWER 75.7X25MM 24VDC WIRE |
1,470 | 0.00 |
|
Datasheet |
BG | Bulk | Obsolete | 24VDC | Square/Rounded - 75.7mm L x 75.7mm H | 25.00mm | 8.5 CFM (0.238m³/min) | 0.497 in H2O (124.0 Pa) | Ball | Blower | - | 41.0dB | 2.64 W | 3300 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL | 0.198 lb (89.81 g) |
|

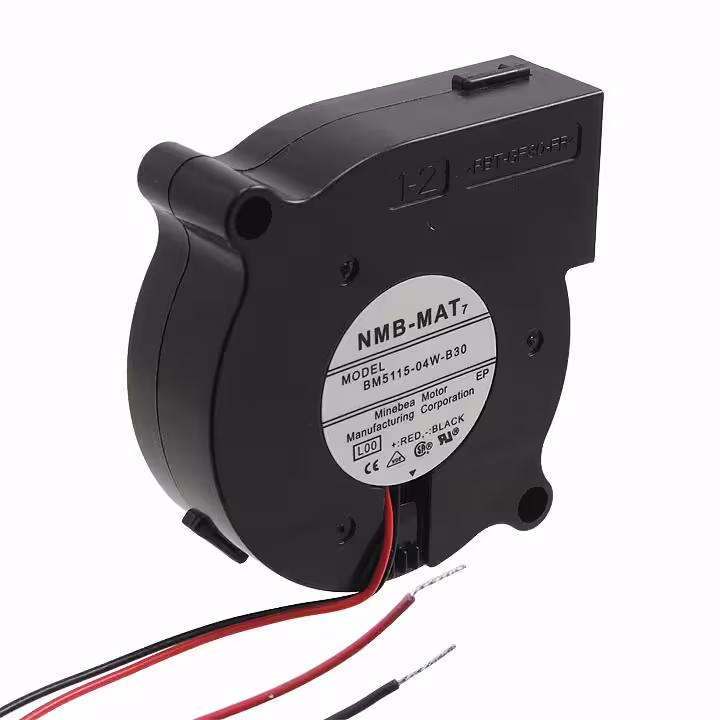

BM5115-04W-B30-L00FAN BLOWER 51X15MM 12VDC WIRE |
4,423 | 0.00 |
|
Datasheet |
BM | Bulk | Obsolete | 12VDC | Square/Rounded - 51mm L x 51mm H | 15.00mm | 2.1 CFM (0.059m³/min) | 0.241 in H2O (60.0 Pa) | Ball | Blower | - | 26.0dB | 720 mW | 3500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.055 lb (24.95 g) |
