DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2410ML-05W-B49-E00FAN AXIAL 60X25MM 24VDC WIRE |
4,497 | 0.00 |
|
Datasheet |
2410ML | Box | Obsolete | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 21.5 CFM (0.602m³/min) | 0.208 in H2O (51.8 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor | 33.5dB | 2.16 W | 4550 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.144 lb (65.32 g) |
|
|
2410ML-05W-B49-E50FAN AXIAL 60X25MM 24VDC WIRE |
3,757 | 9.47 |
|
Datasheet |
2410ML | Box | Obsolete | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 21.5 CFM (0.602m³/min) | 0.208 in H2O (51.8 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 33.5dB | 2.16 W | 4550 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.144 lb (65.32 g) |
|
|
2410ML-05W-B59-B00FAN AXIAL 60X25MM 24VDC WIRE |
4,292 | 9.47 |
|
Datasheet |
2410ML | Box | Obsolete | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 23.3 CFM (0.652m³/min) | 0.250 in H2O (62.3 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor | 35.0dB | 2.4 W | 4900 RPM | 3 Wire Leads | - | 14 ~ 122°F (-10 ~ 50°C) | CE, CSA, UL, VDE | 0.144 lb (65.32 g) |
|
|
2410ML-05W-B59-B50FAN AXIAL 60X25MM 24VDC WIRE |
1,192 | 0.00 |
|
Datasheet |
2410ML | Box | Obsolete | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 23.3 CFM (0.652m³/min) | 0.250 in H2O (62.3 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 35.0dB | 2.4 W | 4900 RPM | 3 Wire Leads | - | 14 ~ 122°F (-10 ~ 50°C) | CE, CSA, UL, VDE | 0.144 lb (65.32 g) |
|
|
2410ML-05W-B59-E00FAN AXIAL 60X25MM 24VDC WIRE |
4,085 | 9.47 |
|
Datasheet |
2410ML | Box | Obsolete | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 23.3 CFM (0.652m³/min) | 0.250 in H2O (62.3 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor | 35.0dB | 2.4 W | 4900 RPM | 3 Wire Leads | - | 14 ~ 122°F (-10 ~ 50°C) | CE, CSA, UL, VDE | 0.144 lb (65.32 g) |
|
|
2410ML-05W-B59-E50FAN AXIAL 60X25MM 24VDC WIRE |
3,850 | 9.47 |
|
Datasheet |
2410ML | Box | Obsolete | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 23.3 CFM (0.652m³/min) | 0.250 in H2O (62.3 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 35.0dB | 2.4 W | 4900 RPM | 3 Wire Leads | - | 14 ~ 122°F (-10 ~ 50°C) | CE, CSA, UL, VDE | 0.144 lb (65.32 g) |
|
|
2410ML-05W-B69-B50FAN AXIAL 60X25MM 24VDC WIRE |
1,996 | 9.47 |
|
Datasheet |
2410ML | Box | Obsolete | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 25.0 CFM (0.700m³/min) | 0.293 in H2O (73.0 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 36.0dB | 3.12 W | 5300 RPM | 3 Wire Leads | - | 14 ~ 122°F (-10 ~ 50°C) | CE, CSA, UL, VDE | 0.144 lb (65.32 g) |
|
2810KL-04W-B10-P00FAN AXIAL 70X25MM 12VDC WIRE |
1,430 | 0.00 |
|
Datasheet |
2810KL | Box | Active | 12VDC | Square - 70mm L x 70mm H | 25.00mm | 19.0 CFM (0.532m³/min) | 0.072 in H2O (17.9 Pa) | Ball | Tubeaxial | - | 21.5dB | 1.08 W | 2400 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.159 lb (72.12 g) |
|
|
2810KL-04W-B39-P00FAN AXIAL 70X25MM 12VDC WIRE |
4,162 | 0.00 |
|
Datasheet |
2810KL | Box | Active | 12VDC | Square - 70mm L x 70mm H | 25.00mm | 25.0 CFM (0.700m³/min) | 0.114 in H2O (28.4 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 28.0dB | 1.8 W | 3150 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.159 lb (72.12 g) |
|
|
2810KL-04W-B39-P50FAN AXIAL 70X25MM 12VDC WIRE |
3,519 | 0.00 |
|
Datasheet |
2810KL | Box | Active | 12VDC | Square - 70mm L x 70mm H | 25.00mm | 25.0 CFM (0.700m³/min) | 0.114 in H2O (28.4 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 28.0dB | 1.8 W | 3150 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.159 lb (72.12 g) |
|
|
2810KL-04W-B50-P00FAN AXIAL 70X25MM 12VDC WIRE |
4,112 | 0.00 |
|
Datasheet |
2810KL | Box | Active | 12VDC | Square - 70mm L x 70mm H | 25.00mm | 31.0 CFM (0.868m³/min) | 0.165 in H2O (41.1 Pa) | Ball | Tubeaxial | - | 33.5dB | 2.16 W | 3800 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.159 lb (72.12 g) |
|
|
2810KL-04W-B70-P00FAN AXIAL 70X25MM 12VDC WIRE |
1,002 | 0.00 |
|
Datasheet |
2810KL | Box | Active | 12VDC | Square - 70mm L x 70mm H | 25.00mm | 40.6 CFM (1.14m³/min) | 0.288 in H2O (71.7 Pa) | Ball | Tubeaxial | - | 43.0dB | 4.2 W | 5000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.159 lb (72.12 g) |
|
|
2810KL-04W-B79-P00FAN AXIAL 70X25MM 12VDC WIRE |
3,674 | 0.00 |
|
Datasheet |
2810KL | Box | Active | 12VDC | Square - 70mm L x 70mm H | 25.00mm | 40.6 CFM (1.14m³/min) | 0.288 in H2O (71.7 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 43.0dB | 4.2 W | 5000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.159 lb (72.12 g) |
|
|
3106KL-04W-B39-B50FAN AXIAL 80X15MM 12VDC WIRE |
2,365 | 0.00 |
|
Datasheet |
3106KL | Box | Obsolete | 12VDC | Square - 80mm L x 80mm H | 15.00mm | 23.3 CFM (0.652m³/min) | 0.064 in H2O (16.0 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 26.0dB | 1.32 W | 2200 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | - | 0.111 lb (50.35 g) |
|
|
3106KL-04W-B49-B00FAN AXIAL 80X15MM 12VDC WIRE |
3,805 | 0.00 |
|
Datasheet |
3106KL | Box | Obsolete | 12VDC | Square - 80mm L x 80mm H | 15.00mm | 28.2 CFM (0.790m³/min) | 0.090 in H2O (22.4 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 30.0dB | 2.04 W | 2600 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | - | 0.111 lb (50.35 g) |
|
|
3106KL-04W-B49-B50FAN AXIAL 80X15MM 12VDC WIRE |
2,930 | 0.00 |
|
Datasheet |
3106KL | Box | Obsolete | 12VDC | Square - 80mm L x 80mm H | 15.00mm | 28.2 CFM (0.790m³/min) | 0.090 in H2O (22.4 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 30.0dB | 2.04 W | 2600 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | - | 0.111 lb (50.35 g) |
|
3106KL-04W-B59-B50FAN AXIAL 80X15MM 12VDC WIRE |
2,235 | 0.00 |
|
Datasheet |
3106KL | Box | Obsolete | 12VDC | Square - 80mm L x 80mm H | 15.00mm | 32.8 CFM (0.918m³/min) | 0.120 in H2O (29.9 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 34.0dB | 2.76 W | 3000 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | - | 0.111 lb (50.35 g) |
|
|
3106KL-05W-B39-B00FAN AXIAL 80X15MM 24VDC WIRE |
1,384 | 0.00 |
|
Datasheet |
3106KL | Box | Obsolete | 24VDC | Square - 80mm L x 80mm H | 15.00mm | 23.3 CFM (0.652m³/min) | 0.064 in H2O (16.0 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 26.0dB | 1.68 W | 2200 RPM | 3 Wire Leads | - | 14 ~ 122°F (-10 ~ 50°C) | - | 0.111 lb (50.35 g) |
|
|
3106KL-05W-B39-B50FAN AXIAL 80X15MM 24VDC WIRE |
3,218 | 0.00 |
|
Datasheet |
3106KL | Box | Obsolete | 24VDC | Square - 80mm L x 80mm H | 15.00mm | 23.3 CFM (0.652m³/min) | 0.064 in H2O (16.0 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 26.0dB | 1.68 W | 2200 RPM | 3 Wire Leads | - | 14 ~ 122°F (-10 ~ 50°C) | - | 0.111 lb (50.35 g) |
|
|

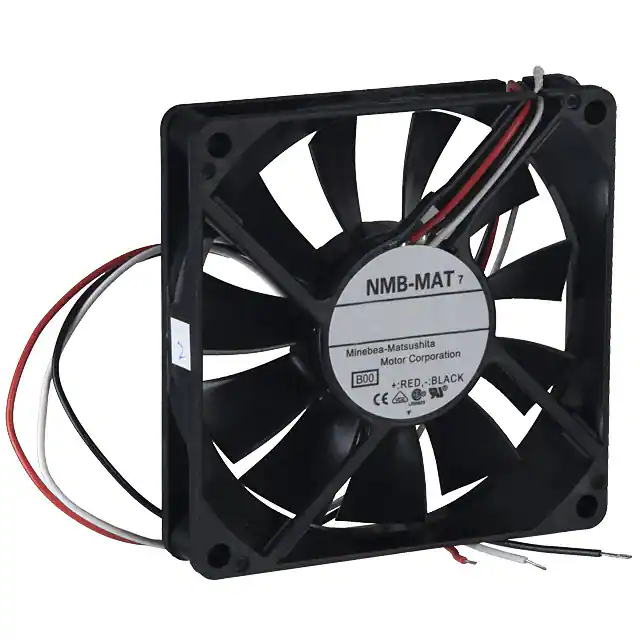

3106KL-05W-B59-B50FAN AXIAL 80X15MM 24VDC WIRE |
2,940 | 0.00 |
|
Datasheet |
3106KL | Box | Obsolete | 24VDC | Square - 80mm L x 80mm H | 15.00mm | 32.8 CFM (0.918m³/min) | 0.120 in H2O (29.9 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 34.0dB | 2.88 W | 3000 RPM | 3 Wire Leads | - | 14 ~ 122°F (-10 ~ 50°C) | - | 0.111 lb (50.35 g) |
