DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BM6025-04W-B59-L50FAN BLOWER 60X15MM 12VDC WIRE |
3,615 | 0.00 |
|
Datasheet |
BM | Box | Obsolete | 12VDC | Square/Rounded - 60mm L x 60mm H | 15.00mm | 6.0 CFM (0.168m³/min) | 0.489 in H2O (121.9 Pa) | Ball | Blower | Speed Sensor (Tach) | 31.0dB | 3.84 W | 3500 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, UL, VDE | 0.077 lb (34.93 g) |
|
GB0545AFV1-8.B1824.GNFAN BLOWER 45X9.3MM 5VDC WIRE |
2,773 | 0.00 |
|
Datasheet |
MagLev® GB | Bulk | Obsolete | 5VDC | Square - 45mm L x 45mm H | 9.30mm | 2.2 CFM (0.061m³/min) | 0.260 in H2O (64.8 Pa) | Vapo-Bearing™ | Blower | - | 29.0dB(A) | 350 mW | 5500 RPM | 2 Wire Leads | - | 14 ~ 194°F (-10 ~ 90°C) | CE, CUR, TUV, UL | 0.048 lb (21.77 g) |
|
|
GB0535AEV1-8.B2445.GNFAN BLOWER 34.8X7.3MM 5VDC WIRE |
2,020 | 0.00 |
|
Datasheet |
MagLev® GB | Bulk | Obsolete | 5VDC | Square - 34.8mm L x 34.8mm H | 7.30mm | 1.0 CFM (0.028m³/min) | 0.320 in H2O (79.7 Pa) | Vapo-Bearing™ | Blower | - | 31.0dB(A) | 600 mW | 8500 RPM | 2 Wire Leads | - | 14 ~ 194°F (-10 ~ 90°C) | CE, CUR, TUV, UL | 0.024 lb (10.89 g) |
|
F412RS-12LBFAN AXIAL 41X12.2MM 12VDC WIRE |
4,785 | 0.00 |
|
Datasheet |
F412R | Bulk | Obsolete | 12VDC | Square - 41mm L x 41mm H | 12.20mm | 4.2 CFM (0.118m³/min) | 0.060 in H2O (14.9 Pa) | 1 Ball/1 Sleeve | Tubeaxial | - | 18.0dB(A) | 480 mW | 4200 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | - | 0.044 lb (19.96 g) |
|
|
1608KL-05W-B50-L0AFAN AXIAL 40X20MM 24VDC WIRE |
4,862 | 0.00 |
|
Datasheet |
1608KL | Bulk | Obsolete | 24VDC | Square - 40mm L x 40mm H | 20.00mm | 9.5 CFM (0.266m³/min) | 0.278 in H2O (69.2 Pa) | Ball | Tubeaxial | - | 33.0dB | 1.92 W | 8500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.055 lb (24.95 g) |
|
|
FBA12G24H1BSFAN AXIAL 120X38MM 24VDC WIRE |
4,955 | 0.00 |
|
Datasheet |
FBA | - | Obsolete | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 103.8 CFM (2.91m³/min) | 0.268 in H2O (66.7 Pa) | Hydro-wave (HWB) | Tubeaxial | Locked Rotor Sensor | 41.5dB | 4.8 W | 2500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, UL | 0.595 lb (269.89 g) |
|

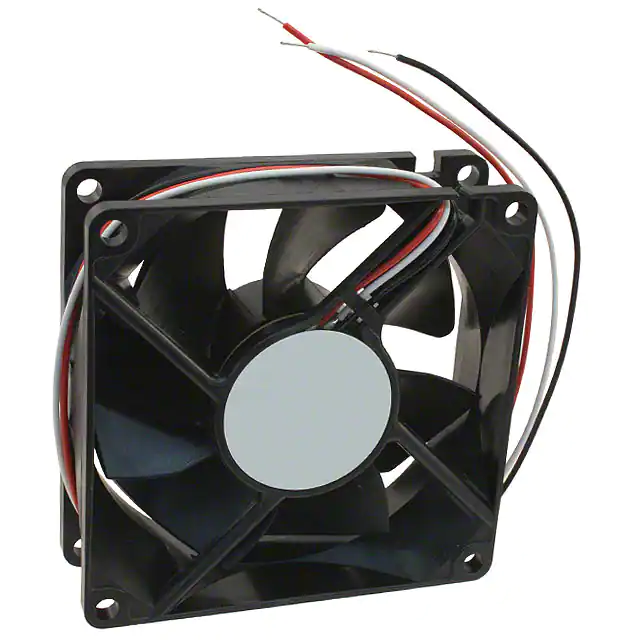

3110KL-04W-B79FAN AXIAL 80X25MM 12VDC WIRE |
1,192 | 0.00 |
|
Datasheet |
3110KL | Bulk | Obsolete | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 45.9 CFM (1.29m³/min) | 0.258 in H2O (64.4 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 40.0dB | 3.86 W | 4000 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.209 lb (94.8 g) |
|
ME80251V1-000U-A99FAN AXIAL 80X25MM 12VDC WIRE |
2,097 | 0.00 |
|
Datasheet |
MagLev® ME | Bulk | Obsolete | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 41.0 CFM (1.15m³/min) | 0.180 in H2O (44.8 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 33.0dB(A) | 1.7 W | 3200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.171 lb (77.56 g) |
|
|
ME80251V2-000U-A99FAN AXIAL 80X25MM 12VDC WIRE |
1,906 | 0.00 |
|
Datasheet |
MagLev® ME | Bulk | Obsolete | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 37.0 CFM (1.04m³/min) | 0.150 in H2O (37.4 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 30.0dB(A) | 1.4 W | 2900 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.171 lb (77.56 g) |
|
EE80251S1-000U-A99FAN AXIAL 80X25MM 12VDC WIRE |
2,243 | 0.00 |
|
Datasheet |
EE | Bulk | Obsolete | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 41.0 CFM (1.15m³/min) | 0.180 in H2O (44.8 Pa) | Sleeve | Tubeaxial | Auto Restart | 33.0dB(A) | 1.7 W | 3200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CUR, TUV, UL | 0.165 lb (74.84 g) |
|
|
EE80251S2-000U-999FAN AXIAL 80X25MM 12VDC WIRE |
4,495 | 0.00 |
|
Datasheet |
EE | Bulk | Obsolete | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 37.0 CFM (1.04m³/min) | 0.150 in H2O (37.4 Pa) | Sleeve | Tubeaxial | - | 30.0dB(A) | 1.4 W | 2900 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CUR, TUV, UL | 0.165 lb (74.84 g) |
|
|
EE80251S3-000U-999FAN AXIAL 80X25MM 12VDC WIRE |
2,745 | 0.00 |
|
Datasheet |
EE | Bulk | Obsolete | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 33.0 CFM (0.924m³/min) | 0.110 in H2O (27.4 Pa) | Sleeve | Tubeaxial | - | 28.0dB(A) | 1.1 W | 2600 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CUR, TUV, UL | 0.165 lb (74.84 g) |
|
ME92251V1-000U-A99FAN AXIAL 92X25MM 12VDC WIRE |
3,244 | 0.00 |
|
Datasheet |
MagLev® ME | Bulk | Obsolete | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 51.5 CFM (1.44m³/min) | 0.150 in H2O (37.4 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 34.0dB(A) | 2 W | 3000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.212 lb (96.16 g) |
|
EE92251S1-000U-A99FAN AXIAL 92X25MM 12VDC WIRE |
2,983 | 0.00 |
|
Datasheet |
EE | Bulk | Obsolete | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 51.5 CFM (1.44m³/min) | 0.150 in H2O (37.4 Pa) | Sleeve | Tubeaxial | Auto Restart | 34.0dB(A) | 2 W | 3000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CUR, TUV, UL | 0.207 lb (93.89 g) |
|
|
EE92251S2-000U-999FAN AXIAL 92X25MM 12VDC WIRE |
4,183 | 0.00 |
|
Datasheet |
EE | Bulk | Obsolete | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 45.0 CFM (1.26m³/min) | 0.130 in H2O (32.4 Pa) | Sleeve | Tubeaxial | - | 32.0dB(A) | 1.6 W | 2700 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.207 lb (93.89 g) |
|
|
EE92251S3-000U-999FAN AXIAL 92X25MM 12VDC WIRE |
2,966 | 0.00 |
|
Datasheet |
EE | Bulk | Obsolete | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 39.5 CFM (1.11m³/min) | 0.100 in H2O (24.9 Pa) | Sleeve | Tubeaxial | - | 28.0dB(A) | 1.3 W | 2400 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.207 lb (93.89 g) |
|
MEC0254V1-000U-A99FAN AXIAL 120X25MM 48VDC WIRE |
1,284 | 0.00 |
|
Datasheet |
MagLev® MEC | Bulk | Obsolete | 48VDC | Square - 120mm L x 120mm H | 25.00mm | 108.2 CFM (3.03m³/min) | 0.280 in H2O (69.7 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 44.5dB(A) | 5.7 W | 3100 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.357 lb (161.93 g) |
|

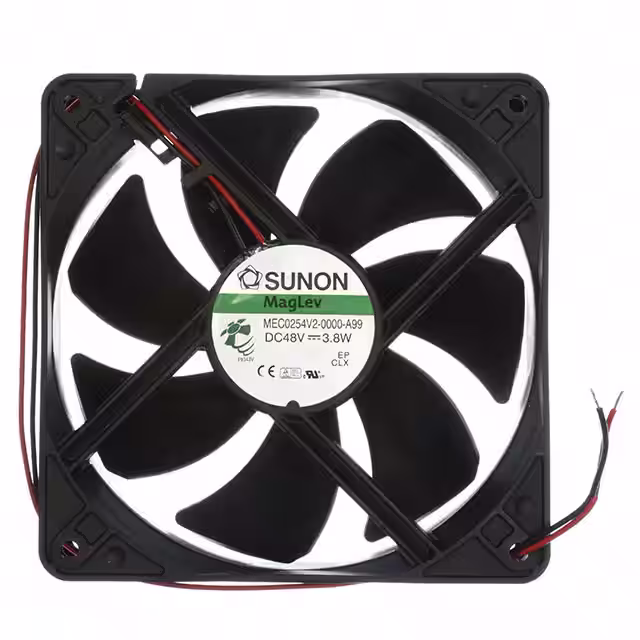

MEC0254V2-000U-A99FAN AXIAL 120X25MM 48VDC WIRE |
4,523 | 0.00 |
|
Datasheet |
MagLev® MEC | Bulk | Obsolete | 48VDC | Square - 120mm L x 120mm H | 25.00mm | 93.0 CFM (2.60m³/min) | 0.220 in H2O (54.8 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 40.5dB(A) | 3.8 W | 2700 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.357 lb (161.93 g) |
|
|
MEC0254V3-000U-A99FAN AXIAL 120X25MM 48VDC WIRE |
1,765 | 0.00 |
|
Datasheet |
MagLev® MEC | Bulk | Obsolete | 48VDC | Square - 120mm L x 120mm H | 25.00mm | 75.0 CFM (2.10m³/min) | 0.160 in H2O (39.8 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 34.0dB(A) | 2.6 W | 2200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.357 lb (161.93 g) |
|
MEC0384V1-000U-A99FAN AXIAL 120X38MM 48VDC WIRE |
2,253 | 0.00 |
|
Datasheet |
MagLev® MEC | Bulk | Obsolete | 48VDC | Square - 120mm L x 120mm H | 38.00mm | 138.0 CFM (3.86m³/min) | 0.360 in H2O (89.7 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 48.0dB(A) | 9.7 W | 3100 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.481 lb (218.18 g) |
