DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
OD8015-12HB02AFAN AXIAL 80X15MM 12VDC WIRE |
212 | 14.38 |
|
Datasheet |
OD8015 | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 15.00mm | - | - | Ball | Tubeaxial | Locked Rotor Sensor | - | - | - | 3 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | cURus, TUV | - |
|

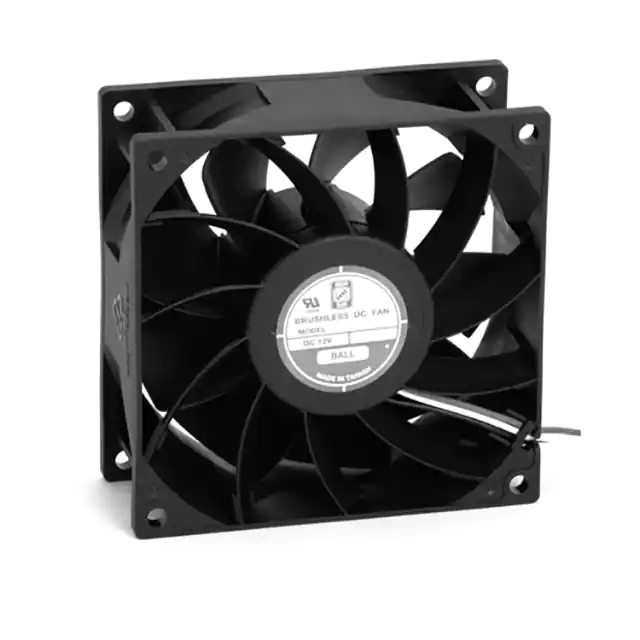

OD8015-24HB01AFAN AXIAL 80X15MM 24VDC WIRE |
136 | 15.09 |
|
Datasheet |
OD8015 | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 15.00mm | 31.0 CFM (0.868m³/min) | 0.110 in H2O (27.4 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 34.2dB(A) | 2.4 W | 3050 RPM | 3 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | - |
|
E1225M05B-FSRFAN AXIAL 120X25MM 5VDC WIRE |
196 | 14.97 |
|
Datasheet |
E1225 | Bulk | Active | 5VDC | Square - 120mm L x 120mm H | 25.00mm | 67.0 CFM (1.88m³/min) | 0.180 in H2O (44.8 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 36.0dB(A) | - | 2200 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.434 lb (196.86 g) |
|
AFB0412HB-F00FAN AXIAL 40X15MM 12VDC WIRE |
6,856 | 14.58 |
|
Datasheet |
AFB | Box | Active | 12VDC | Square - 40mm L x 40mm H | 15.00mm | 9.5 CFM (0.266m³/min) | 0.272 in H2O (67.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 28.5dB(A) | 1.2 W | 7000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.057 lb (25.85 g) |
|
AFB02512HA-CF00FAN AXIAL 25X10MM 12VDC WIRE |
417 | 13.19 |
|
Datasheet |
AFB | Box | Active | 12VDC | Square - 25mm L x 25mm H | 10.00mm | 1.8 CFM (0.050m³/min) | 0.176 in H2O (43.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 23.5dB(A) | 720 mW | 10000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | - |
|

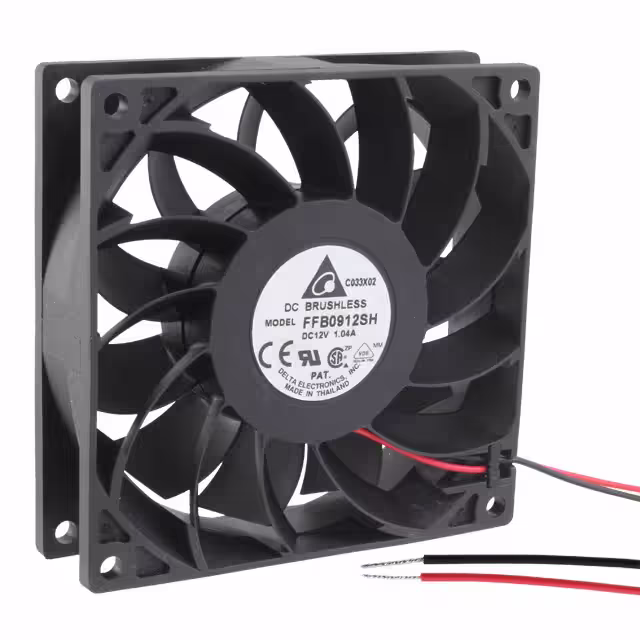

FFB0912SHFAN AXIAL 92X25.4MM 12VDC WIRE |
2,832 | 18.13 |
|
Datasheet |
FFB | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 25.40mm | 90.0 CFM (2.52m³/min) | 0.396 in H2O (98.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 50.0dB(A) | 8.28 W | 4100 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.286 lb (129.73 g) |
|
G4020M24B-RSR-EMFAN AXIAL 40X20MM 24VDC WIRE |
175 | 14.78 |
|
Datasheet |
G4020 | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 20.00mm | 9.0 CFM (0.252m³/min) | 0.150 in H2O (37.3 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 26.0dB(A) | - | 6000 RPM | 2 Wire Leads | IP57 - Dust Protected, Waterproof | - | CE, cUL, TUV, UL | 0.062 lb (28.12 g) |
|

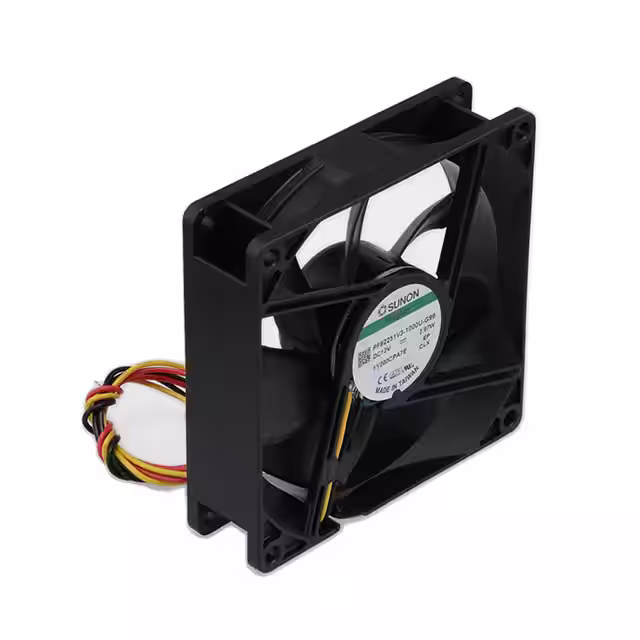

PF92251V3-1000U-G99FAN AXIAL 92X25MM 12VDC WIRE |
231 | 12.10 |
|
Datasheet |
MagLev® PF | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 65.0 CFM (1.82m³/min) | 0.250 in H2O (62.3 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 41.6dB(A) | 2.76 W | 3900 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.234 lb (106.14 g) |
|

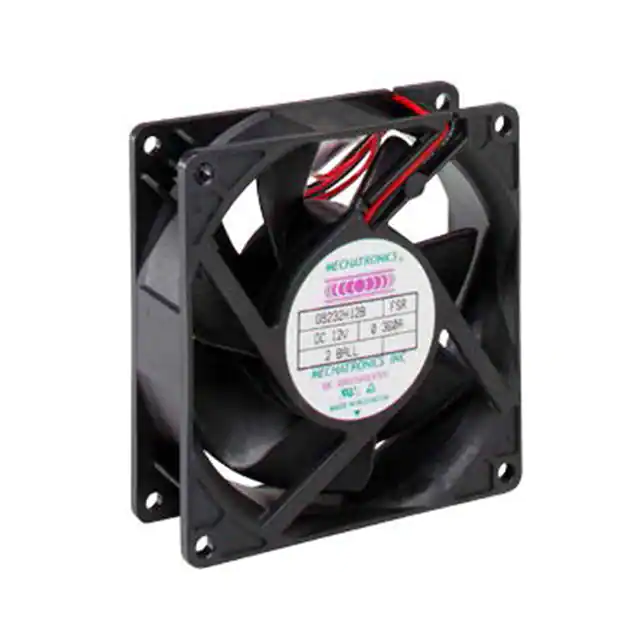

G9232M12B-FSRFAN AXIAL 92X32MM 12VDC WIRE |
122 | 14.88 |
|
Datasheet |
G9232 | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 32.00mm | 48.0 CFM (1.34m³/min) | 0.180 in H2O (44.8 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 32.0dB(A) | - | 2800 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.335 lb (151.95 g) |
|
109P0424D601FAN AXIAL 40X20MM 24VDC WIRE |
315 | 14.53 |
|
Datasheet |
San Ace 40 | Box | Active | 24VDC | Square - 40mm L x 40mm H | 20.00mm | 10.9 CFM (0.305m³/min) | 0.498 in H2O (124.0 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 42.0dB(A) | 3.12 W | 11000 RPM | 3 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.101 lb (45.81 g) |
|
109P0424F6D01FAN AXIAL 40X20MM 24VDC WIRE |
115 | 14.53 |
|
Datasheet |
San Ace 40 | Box | Active | 24VDC | Square - 40mm L x 40mm H | 20.00mm | 6.5 CFM (0.182m³/min) | 0.181 in H2O (45.1 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 28.0dB(A) | 1.44 W | 6500 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.101 lb (45.81 g) |
|
109R0812H4011FAN AXIAL 80X25MM 12VDC WIRE |
121 | 14.36 |
|
Datasheet |
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 36.4 CFM (1.02m³/min) | 0.142 in H2O (35.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 29.0dB(A) | 1.56 W | 2900 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.243 lb (110.22 g) |
|
109R0812M402FAN AXIAL 80X25MM 12VDC WIRE |
120 | 14.04 |
|
Datasheet |
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 29.3 CFM (0.820m³/min) | 0.090 in H2O (22.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 23.0dB(A) | 1.08 W | 2350 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.243 lb (110.22 g) |
|
109R0605H4021FAN AXIAL 60X25MM BALL 5VDC WIRE |
186 | 14.04 |
|
Datasheet |
San Ace 60 | Box | Active | 5VDC | Square - 60mm L x 60mm H | 25.00mm | 18.7 CFM (0.524m³/min) | 0.161 in H2O (40.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 28.0dB(A) | 1.7 W | 3800 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.199 lb (90.26 g) |
|
PF80251V1-1000U-F99FAN AXIAL 80X25MM 12VDC WIRE |
232 | 13.12 |
|
Datasheet |
MagLev® PF | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 60.0 CFM (1.68m³/min) | 0.410 in H2O (102.1 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Locked Rotor Sensor | 44.7dB(A) | 3.72 W | 4800 RPM | 3 Wire Leads | - | - | CE, CUR, TUV, UL | 0.201 lb (91.17 g) |
|
CFM-A238V-226-440FAN AXIAL 120X38MM 24VDC WIRE |
493 | 16.35 |
|
Datasheet |
CFM-120V | Tray | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 116.0 CFM (3.25m³/min) | 0.260 in H2O (64.8 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart | 44.0dB(A) | 6.18 W | 2600 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.481 lb (218.18 g) |
|
MA2506L12C-RSRFAN AXIAL 25X6.1MM 12VDC WIRE |
130 | 15.25 |
|
Datasheet |
MA2506 | Bulk | Active | 12VDC | Square - 25mm L x 25mm H | 6.10mm | 1.2 CFM (0.034m³/min) | 0.050 in H2O (12.4 Pa) | 1 Ball/1 Sleeve | Tubeaxial | Thermal Overload Protector (TOP) | 11.0dB(A) | - | 6500 RPM | 2 Wire Leads | - | - | cUL, TUV, UL | 0.018 lb (8.16 g) |
|
MR6025X12B1+6-RSRFAN AXIAL 60X25.5MM 12VDC WIRE |
362 | 16.54 |
|
Datasheet |
MR6025 | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 25.50mm | 39.2 CFM (1.10m³/min) | 0.730 in H2O (181.8 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 51.0dB(A) | - | 8000 RPM | 4 Wire Leads | - | - | - | - |
|
OD8032-24LBFAN AXIAL 80.5X32MM 24VDC WIRE |
341 | 16.47 |
|
Datasheet |
OD8032 | Bulk | Active | 24VDC | Square - 80.5mm L x 80.5mm H | 32.00mm | 40.0 CFM (1.12m³/min) | 0.200 in H2O (49.8 Pa) | Ball | Tubeaxial | - | 31.0dB | - | 3000 RPM | 2 Wire Leads | - | -4 ~ 176°F (-20 ~ 80°C) | cURus, TUV | - |
|

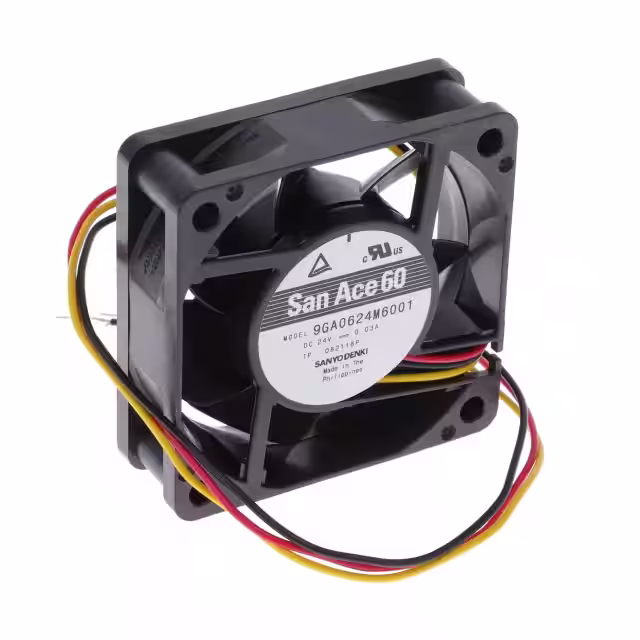

9GA0624M6001FAN AXIAL 60X20MM 24VDC WIRE |
273 | 18.62 |
|
Datasheet |
San Ace 60 | Box | Active | 24VDC | Square - 60mm L x 60mm H | 20.00mm | 12.0 CFM (0.336m³/min) | 0.080 in H2O (20.0 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 18.0dB(A) | 720 mW | 2700 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, TUV, UL | 0.154 lb (69.85 g) |
