DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
109W1424H101-UFAN AXIAL 140X38MM 24VDC WIRE |
3,225 | 0.00 |
|
Datasheet |
San Ace 140W | Box | Obsolete | 24VDC | Square - 140mm L x 140mm H | 38.00mm | 159.0 CFM (4.45m³/min) | 0.394 in H2O (98.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 46.0dB(A) | 8.88 W | 2600 RPM | 3 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 1.4 lbs (650.0 g) |
|
|
109W1448M101-UFAN AXIAL 140X38MM 48VDC WIRE |
3,805 | 0.00 |
|
Datasheet |
San Ace 140W | Box | Obsolete | 48VDC | Square - 140mm L x 140mm H | 38.00mm | 117.0 CFM (3.28m³/min) | 0.209 in H2O (52.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.0dB(A) | 4.32 W | 1900 RPM | 3 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 1.4 lbs (650.0 g) |
|
|
9G1212B401FAN AXIAL 119X25MM 12VDC WIRE |
4,353 | 0.00 |
|
Datasheet |
San Ace 120 | Box | Active | 12VDC | Square - 119mm L x 119mm H | 25.00mm | 31.0 CFM (0.868m³/min) | 0.039 in H2O (9.7 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 18.0dB(A) | 720 mW | 1000 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | - | 0.529 lb (240.00 g) |
|
|
9LB1424B501FAN AXIAL 140X51MM 24VDC WIRE |
1,349 | 0.00 |
|
Datasheet |
San Ace 140L | Box | Active | 24VDC | Square - 140mm L x 140mm H | 51.00mm | 251.0 CFM (7.03m³/min) | 0.750 in H2O (186.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 55.0dB(A) | 23.3 W | 3700 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 1.3 lbs (610.0 g) |
|
|
9LB1448M501FAN AXIAL 140X51MM 48VDC WIRE |
4,685 | 0.00 |
|
Datasheet |
San Ace 140L | Box | Obsolete | 48VDC | Square - 140mm L x 140mm H | 51.00mm | 138.0 CFM (3.86m³/min) | 0.250 in H2O (62.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 39.0dB(A) | 5.76 W | 2050 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 1.3 lbs (610.0 g) |
|
|
9WB1412M501FAN AXIAL 140X51MM 12VDC WIRE |
2,382 | 0.00 |
|
Datasheet |
San Ace 140W | Box | Active | 12VDC | Square - 140mm L x 140mm H | 51.00mm | 138.0 CFM (3.86m³/min) | 0.250 in H2O (62.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 39.0dB(A) | 5.52 W | 2050 RPM | 3 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 1.543 lb (700.0 g) |
|
|
9WB1448S501FAN AXIAL 140X51MM 48VDC WIRE |
4,854 | 0.00 |
|
Datasheet |
San Ace 140W | Box | Obsolete | 48VDC | Square - 140mm L x 140mm H | 51.00mm | 286.2 CFM (8.01m³/min) | 0.960 in H2O (239.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 57.0dB(A) | 34.08 W | 4200 RPM | 3 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 1.543 lb (700.0 g) |
|
|
9WS1212M101FAN AXIAL 119X38MM 12VDC WIRE |
4,125 | 0.00 |
|
Datasheet |
San Ace 120WS | Box | Obsolete | 12VDC | Square - 119mm L x 119mm H | 38.00mm | 77.7 CFM (2.18m³/min) | 0.169 in H2O (42.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 32.0dB(A) | 2.76 W | 1950 RPM | 3 Wire Leads | IP54 - Dust Protected, Water Resistant | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.573 lb (260.00 g) |
|
|
9WS1212M1011FAN AXIAL 119X38MM 12VDC WIRE |
1,064 | 0.00 |
|
Datasheet |
San Ace 120WS | Box | Obsolete | 12VDC | Square - 119mm L x 119mm H | 38.00mm | 77.7 CFM (2.18m³/min) | 0.169 in H2O (42.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 32.0dB(A) | 2.76 W | 1950 RPM | 3 Wire Leads | IP54 - Dust Protected, Water Resistant | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.573 lb (260.00 g) |
|
|
9WS1224H1011FAN AXIAL 119X38MM 24VDC WIRE |
3,943 | 0.00 |
|
Datasheet |
San Ace 120WS | Box | Obsolete | 24VDC | Square - 119mm L x 119mm H | 38.00mm | 102.4 CFM (2.87m³/min) | 0.272 in H2O (67.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 39.0dB(A) | 5.52 W | 2600 RPM | 3 Wire Leads | IP54 - Dust Protected, Water Resistant | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.573 lb (260.00 g) |
|
|
9WS1224M101FAN AXIAL 119X38MM 24VDC WIRE |
3,525 | 0.00 |
|
Datasheet |
San Ace 120WS | Box | Obsolete | 24VDC | Square - 119mm L x 119mm H | 38.00mm | 77.7 CFM (2.18m³/min) | 0.169 in H2O (42.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 32.0dB(A) | 3.12 W | 1950 RPM | 3 Wire Leads | IP54 - Dust Protected, Water Resistant | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.573 lb (260.00 g) |
|
|
9WS1224M1011FAN AXIAL 119X38MM 24VDC WIRE |
4,795 | 0.00 |
|
Datasheet |
San Ace 120WS | Box | Obsolete | 24VDC | Square - 119mm L x 119mm H | 38.00mm | 77.7 CFM (2.18m³/min) | 0.169 in H2O (42.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 32.0dB(A) | 3.12 W | 1950 RPM | 3 Wire Leads | IP54 - Dust Protected, Water Resistant | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.573 lb (260.00 g) |
|
|
9WS1248H101FAN AXIAL 119X38MM 48VDC WIRE |
4,400 | 0.00 |
|
Datasheet |
San Ace 120WS | Box | Obsolete | 48VDC | Square - 119mm L x 119mm H | 38.00mm | 102.4 CFM (2.87m³/min) | 0.272 in H2O (67.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 39.0dB(A) | 6.24 W | 2600 RPM | 3 Wire Leads | IP54 - Dust Protected, Water Resistant | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.573 lb (260.00 g) |
|
|
9WS1248H1011FAN AXIAL 119X38MM 48VDC WIRE |
2,615 | 0.00 |
|
Datasheet |
San Ace 120WS | Box | Obsolete | 48VDC | Square - 119mm L x 119mm H | 38.00mm | 102.4 CFM (2.87m³/min) | 0.272 in H2O (67.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 39.0dB(A) | 6.24 W | 2600 RPM | 3 Wire Leads | IP54 - Dust Protected, Water Resistant | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.573 lb (260.00 g) |
|
|
9WS1248M101FAN AXIAL 119X38MM 48VDC WIRE |
2,878 | 0.00 |
|
Datasheet |
San Ace 120WS | Box | Obsolete | 48VDC | Square - 119mm L x 119mm H | 38.00mm | 77.7 CFM (2.18m³/min) | 0.169 in H2O (42.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 32.0dB(A) | 3.36 W | 1950 RPM | 3 Wire Leads | IP54 - Dust Protected, Water Resistant | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.573 lb (260.00 g) |
|
|
9WS1248M1011FAN AXIAL 119X38MM 48VDC WIRE |
1,545 | 0.00 |
|
Datasheet |
San Ace 120WS | Box | Obsolete | 48VDC | Square - 119mm L x 119mm H | 38.00mm | 77.7 CFM (2.18m³/min) | 0.169 in H2O (42.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 32.0dB(A) | 3.36 W | 1950 RPM | 3 Wire Leads | IP54 - Dust Protected, Water Resistant | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.573 lb (260.00 g) |
|
|
9GV5748P5H01FAN AXIAL 172X51MM 48VDC WIRE |
2,093 | 0.00 |
|
Datasheet |
San Ace 172 | Box | Active | 48VDC | Rectangular/Rounded - 172mm L x 150mm H | 51.00mm | 400.0 CFM (11.20m³/min) | 2.770 in H2O (690.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 74.0dB(A) | 96 W | 6300 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 1.8 lb (800.0 g) |
|
|
9WE5748P5K01FAN AXIAL 172X51MM 48VDC WIRE |
4,828 | 0.00 |
|
Datasheet |
San Ace 172W | Box | Obsolete | 48VDC | Rectangular/Rounded - 172mm L x 150mm H | 51.00mm | 300.0 CFM (8.40m³/min) | 0.976 in H2O (243.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 60.0dB(A) | 33.6 W | 4100 RPM | 4 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 1.9 lbs (861.8 g) |
|

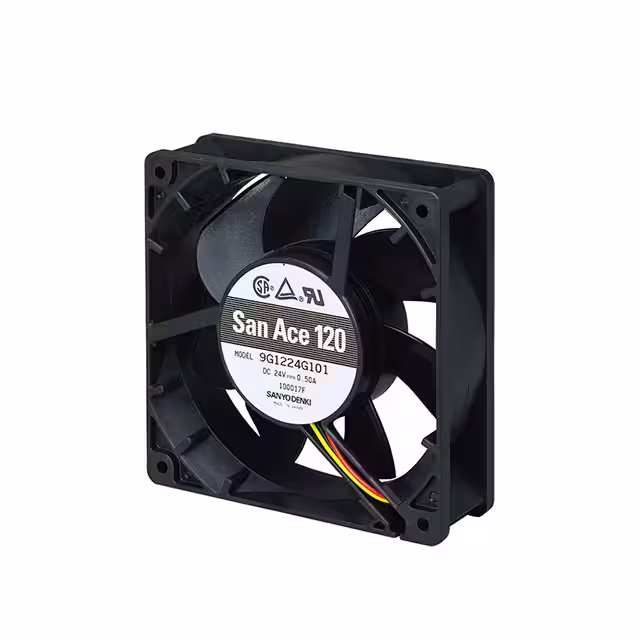

9G1212P1G04FAN AXIAL 120X38MM 12VDC WIRE |
4,863 | 0.00 |
|
Datasheet |
San Ace 120 | Box | Obsolete | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 137.0 CFM (3.84m³/min) | 0.542 in H2O (135.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 49.0dB(A) | 11.76 W | 3600 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.728 lb (330.22 g) |
|
|
9G1212P1G081FAN AXIAL 120X38MM 12VDC WIRE |
4,831 | 0.00 |
|
Datasheet |
San Ace 120 | Box | Obsolete | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 137.0 CFM (3.84m³/min) | 0.542 in H2O (135.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 49.0dB(A) | 11.76 W | 3600 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.728 lb (330.22 g) |
