DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

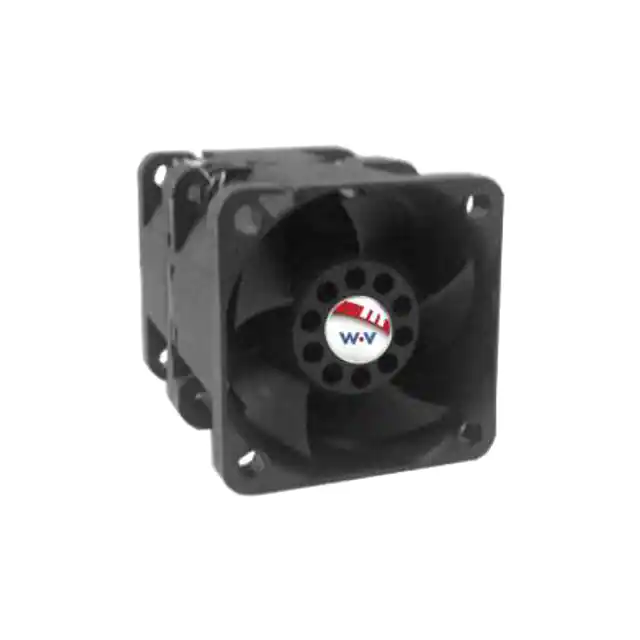

DC0405612U2B-2T0FAN AXIAL 40X56MM 12VDC WIRE |
111 | 33.90 |
|
Datasheet |
- | Box | Active | 12VDC | Square - 40mm L x 40mm H | 56.00mm | 37.2 CFM (1.04m³/min) | 3.870 in H2O (963.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 69.0dB(A) | 20.64 W | 21000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
9WP0912F401FAN AXIAL 92X25MM 12VDC WIRE |
114 | 27.08 |
|
Datasheet |
San Ace 92W | Box | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 43.8 CFM (1.23m³/min) | 0.129 in H2O (32.1 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 30.0dB(A) | 1.68 W | 2650 RPM | 3 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UR | 0.265 lb (120.2 g) |
|
8414N/2GFAN AXIAL 80X25.4MM 24VDC WIRE |
176 | 28.90 |
|
Datasheet |
8400N | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 25.40mm | 40.6 CFM (1.14m³/min) | - | Sintec | Tubeaxial | Speed Sensor (Tach) | 32.0dB(A) | 2.2 W | 3100 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | - | 0.21 lb (95.25 g) |
|
8412NMEFAN AXIAL 80X25.4MM 12VDC WIRE |
600 | 30.97 |
|
Datasheet |
8400N | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 25.40mm | 34.1 CFM (0.955m³/min) | - | Ball | Tubeaxial | - | 27.0dB(A) | 1 W | 2600 RPM | 2 Wire Leads | - | -4 ~ 167°F (-20 ~ 75°C) | CE, CSA, UL, VDE | 0.21 lb (95.25 g) |
_Series.jpg)
|
3412NGHHFAN AXIAL 92X25.4MM 12VDC WIRE |
971 | 32.15 |
|
Datasheet |
3400N | Box | Active | 12VDC | Square - 92mm L x 92mm H | 25.40mm | 60.0 CFM (1.68m³/min) | - | Sintec | Tubeaxial | - | 39.0dB(A) | 3.2 W | 3250 RPM | 2 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, UL, VDE | 0.22 lb (99.79 g) |
|
CFM-A238BF-270-651FAN AXIAL 120X38MM 24VDC WIRE |
131 | 38.13 |
|
Datasheet |
CFM-120 BF | Box | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 230.3 CFM (6.45m³/min) | 1.650 in H2O (411.0 Pa) | Ball | Tubeaxial | Auto Restart | 65.1dB(A) | 60.96 W | 7000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
9RA1212E40011FAN AXIAL 120X25MM 12VDC WIRE |
163 | 27.76 |
|
Datasheet |
San Ace 120 | Box | Active | 12VDC | Square - 120mm L x 120mm H | 25.00mm | 116.5 CFM (3.26m³/min) | 0.386 in H2O (96.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 45.0dB(A) | 4.92 W | 4000 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|
9GV0812P1H03FAN AXIAL 80X38MM 12VDC WIRE |
117 | 24.05 |
|
Datasheet |
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 38.00mm | 131.0 CFM (3.67m³/min) | 1.770 in H2O (440.9 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 63.0dB(A) | 36 W | 9700 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.485 lb (220.00 g) |
|
|
8412NMLEFAN AXIAL 80X25.4MM 12VDC WIRE |
188 | 30.97 |
|
Datasheet |
8400N | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 25.40mm | 26.5 CFM (0.742m³/min) | - | Ball | Tubeaxial | - | 21.0dB(A) | 600 mW | 2050 RPM | 2 Wire Leads | - | -4 ~ 185°F (-20 ~ 85°C) | CE, CSA, UL, VDE | 0.209 lb (94.8 g) |
|
9CRA0412P5J03FAN AXIAL DUAL 40X56MM 12VDC |
129 | 26.59 |
|
Datasheet |
San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 56.00mm | 31.8 CFM (0.890m³/min) | 2.290 in H2O (570.4 Pa) | Ball | Tubeaxial (Dual) | Counter-Rotating, PWM Control, Speed Sensor (Tach) | 62.0dB(A) | 16.8 W | 15800 Front, 12200 Rear | 4 Wire Leads per Fan | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.199 lb (90.26 g) |
|
612NMEFAN AXIAL 60X25.4MM 12VDC WIRE |
214 | 31.52 |
|
Datasheet |
600N | Box | Active | 12VDC | Square - 60mm L x 60mm H | 25.40mm | 20.6 CFM (0.577m³/min) | - | Ball | Tubeaxial | - | 28.0dB(A) | 800 mW | 4100 RPM | 2 Wire Leads | - | -4 ~ 167°F (-20 ~ 75°C) | CE, CSA, UL, VDE | 0.146 lb (66.22 g) |
|
|
612NMLEFAN AXIAL 60X25.4MM 12VDC WIRE |
147 | 31.52 |
|
Datasheet |
600N | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 25.40mm | 14.7 CFM (0.412m³/min) | - | Ball | Tubeaxial | - | 19.0dB(A) | 400 mW | 3000 RPM | 2 Wire Leads | - | -4 ~ 185°F (-20 ~ 85°C) | CE, CSA, UL, VDE | 0.146 lb (66.22 g) |
|
9G1212E1D01FAN AXIAL 119X38MM 12VDC WIRE |
116 | 23.60 |
|
Datasheet |
San Ace 120 | Box | Active | 12VDC | Square - 119mm L x 119mm H | 38.00mm | 118.0 CFM (3.30m³/min) | 0.401 in H2O (100.0 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 46.0dB(A) | 7.32 W | 3100 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.728 lb (330.22 g) |
|
|
9G1224G1011FAN AXIAL 119X38MM 24VDC WIRE |
111 | 23.60 |
|
Datasheet |
San Ace 120 | Box | Active | 24VDC | Square - 119mm L x 119mm H | 38.00mm | 137.0 CFM (3.84m³/min) | 0.542 in H2O (135.0 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 49.0dB(A) | 12 W | 3600 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.728 lb (330.22 g) |
|
|
3412NLEFAN AXIAL 92X25.4MM 12VDC WIRE |
166 | 32.24 |
|
Datasheet |
3400N | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 25.40mm | 35.9 CFM (1.01m³/min) | - | Ball | Tubeaxial | - | 23.0dB(A) | 800 mW | 1950 RPM | 2 Wire Leads | - | -4 ~ 185°F (-20 ~ 85°C) | CSA, UL, VDE | 0.22 lb (99.79 g) |
|

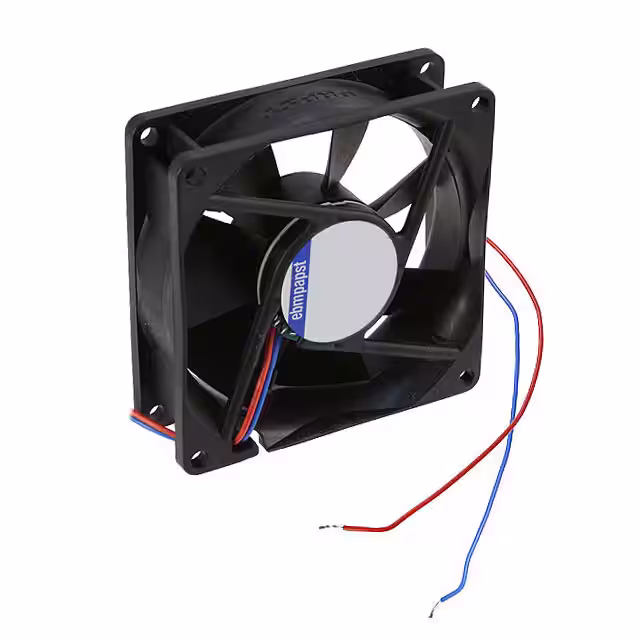

8412NGMIFAN AXIAL 80X25.4MM 12VDC WIRE |
633 | 48.32 |
|
Datasheet |
8400N | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 25.40mm | 21.0 CFM (0.588m³/min) | - | Sintec | Tubeaxial | - | 13.0dB(A) | 1.4 W | - | 2 Wire Leads | - | - | CSA, UL, VDE | 0.31 lb (140.61 g) |
|

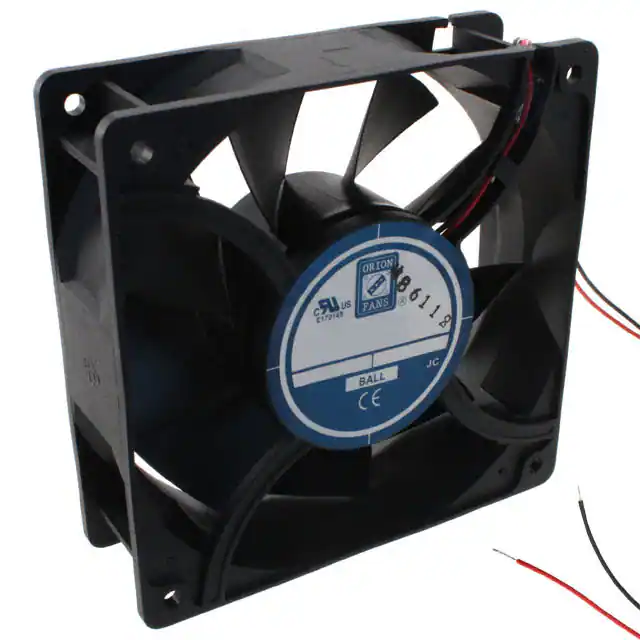

OD1238-12LBXCFAN AXIAL 120X38.5MM 12VDC WIRE |
192 | 30.35 |
|
Datasheet |
OD1238 XC | Box | Active | 12VDC | Square - 120mm L x 120mm H | 38.50mm | 150.0 CFM (4.20m³/min) | 0.380 in H2O (94.6 Pa) | Ball | Tubeaxial | Auto Restart | 52.0dB | 10 W | 3200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | - |
|
422JMFAN AXIAL 40X28MM 12VDC WIRE |
767 | 32.97 |
|
Datasheet |
420J | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 14.1 CFM (0.395m³/min) | - | Ball | Tubeaxial | - | 42.0dB(A) | 2.5 W | 11100 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, UL, VDE | 0.099 lb (44.91 g) |
|
|
424JMFAN AXIAL 40X28MM 24VDC WIRE |
449 | 32.97 |
|
Datasheet |
420J | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 28.00mm | 14.1 CFM (0.395m³/min) | - | Ball | Tubeaxial | - | 42.0dB(A) | 2.7 W | 11100 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, UL, VDE | 0.99 lb (449.06 g) |
|
|
422JHFAN AXIAL 40X28MM 12VDC WIRE |
120 | 33.30 |
|
Datasheet |
420J | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 22.4 CFM (0.627m³/min) | - | Ball | Tubeaxial | - | 54.0dB(A) | 6.8 W | 17200 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, UL, VDE | 0.099 lb (44.91 g) |
