DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CFM-9225V-142-437-20FAN AXIAL 92X25MM 12VDC WIRE |
1,996 | 13.40 |
|
Datasheet |
CFM-92V | Tray | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 70.0 CFM (1.96m³/min) | 0.300 in H2O (74.7 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 43.7dB(A) | 3.87 W | 4200 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.234 lb (106.14 g) |
|
CFM-8025V-142-415-20FAN AXIAL 80X25MM 12VDC WIRE |
129 | 12.89 |
|
Datasheet |
CFM-80V | Tray | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 53.0 CFM (1.48m³/min) | 0.300 in H2O (74.7 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 41.5dB(A) | 2.76 W | 4200 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.201 lb (91.17 g) |
|
4517HQ/PF40201B1-1Q01A-A99DC FAN 40X20MM BALL 14CFM |
264 | 17.06 |
|
Datasheet |
* | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
CFM-7025B-250-443-20FAN AXIAL 70X25.2MM 24VDC WIRE |
198 | 13.44 |
|
Datasheet |
CFM-70B | Box | Active | 24VDC | Square - 70mm L x 70mm H | 25.20mm | 43.0 CFM (1.20m³/min) | 0.340 in H2O (84.7 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 41.9dB(A) | 5.52 W | 5000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
(8020BF)(8038BF).jpg)
|
CFM-8020BF-125-273-22FAN AXIAL 80X20MM 12VDC WIRE |
185 | 13.97 |
|
Datasheet |
CFM-80BF | Box | Active | 12VDC | Square - 80mm L x 80mm H | 20.00mm | 24.5 CFM (0.685m³/min) | 0.070 in H2O (17.4 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 27.4dB(A) | 960 mW | 2500 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
109P0405H702FAN AXIAL 40X15MM BALL 5VDC WIRE |
235 | 12.90 |
|
Datasheet |
San Ace 40 | Box | Active | 5VDC | Square - 40mm L x 40mm H | 15.00mm | 6.4 CFM (0.179m³/min) | 0.303 in H2O (75.5 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 28.0dB(A) | 1.4 W | 7700 RPM | 2 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.071 lb (32.21 g) |
|

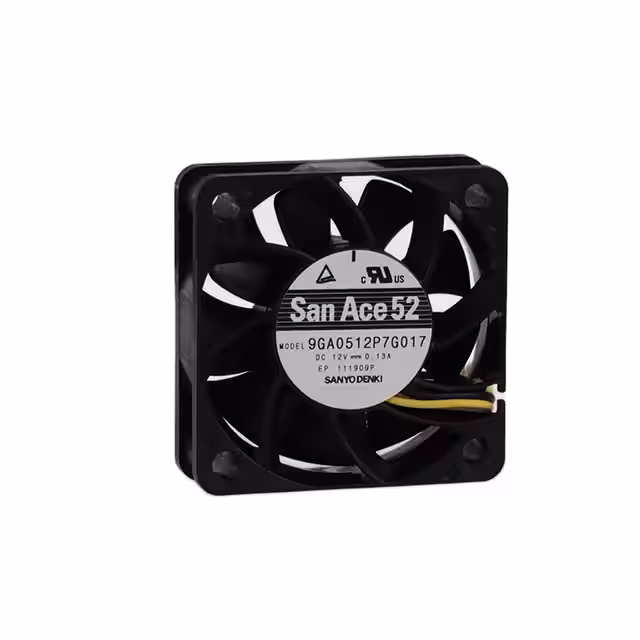

9GA0512P7G017FAN AXL 52X15MM 12VDC RECT CONN |
231 | 16.48 |
|
Datasheet |
San Ace 52 | Box | Active | 12VDC | Square - 52mm L x 52mm H | 15.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 38.0dB(A) | - | 7800 RPM | 4 Position Rectangular Connector | - | -4 ~ 158°F (-20 ~ 70°C) | - | 0.089 lb (40.37 g) |
|
109P0612B702FAN AXIAL 60X15MM 12VDC WIRE |
138 | 13.07 |
|
Datasheet |
San Ace 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 15.00mm | 7.4 CFM (0.207m³/min) | 0.047 in H2O (11.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 21.0dB(A) | 600 mW | 2200 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.133 lb (60.33 g) |
|
CFM-A238S-126-435FAN AXIAL 120X37.5MM 12VDC WIRE |
196 | 13.83 |
|
Datasheet |
CFM-120S | Box | Active | 12VDC | Square - 120mm L x 120mm H | 37.50mm | 100.7 CFM (2.82m³/min) | 0.240 in H2O (59.8 Pa) | Sleeve | Tubeaxial | Auto Restart | 43.5dB(A) | 5.76 W | 2600 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
E9225X24B1-FSR-TTLFAN AXIAL 92X25MM 24VDC WIRE |
196 | 13.49 |
|
Datasheet |
E9225 | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 60.0 CFM (1.68m³/min) | 0.320 in H2O (79.7 Pa) | Ball | Tubeaxial | Speed Sensor (Tach), Thermal Overload Protector (TOP) | 43.0dB(A) | - | 4000 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 0.245 lb (111.13 g) |
|
109P0405H701FAN AXIAL 40X15MM BALL 5VDC WIRE |
224 | 13.23 |
|
Datasheet |
San Ace 40 | Box | Active | 5VDC | Square - 40mm L x 40mm H | 15.00mm | 6.4 CFM (0.179m³/min) | 0.303 in H2O (75.5 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 28.0dB(A) | 1.4 W | 7700 RPM | 3 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.071 lb (32.21 g) |
|

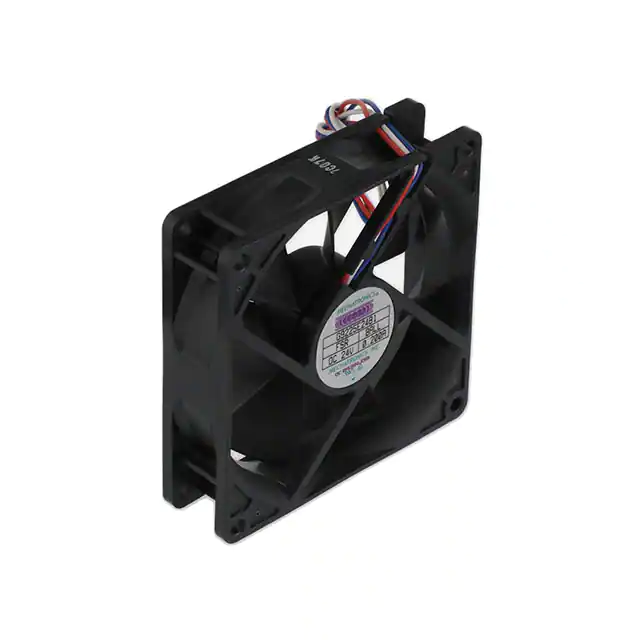

G9225E24B1-FSRFAN AXIAL 92X25MM 24VDC WIRE |
106 | 12.84 |
|
Datasheet |
G9225 | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 58.0 CFM (1.62m³/min) | 0.210 in H2O (52.3 Pa) | Ball | Tubeaxial | Speed Sensor (Tach), Thermal Overload Protector (TOP) | 39.0dB(A) | - | 3200 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 0.218 lb (98.88 g) |
|
CFM-4028BG-1130-475-20FAN AXIAL 40X28MM 12VDC WIRE |
112 | 14.10 |
|
Datasheet |
CFM-40BG | Box | Active | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 15.9 CFM (0.445m³/min) | 1.030 in H2O (256.6 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 47.5dB(A) | 4.68 W | 13000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
9GA0412P3H011FAN AXIAL 40X28MM 12VDC WIRE |
196 | 17.80 |
|
Datasheet |
San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 19.1 CFM (0.535m³/min) | 1.393 in H2O (347.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 50.0dB(A) | 3.36 W | 14500 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.117 lb (53.07 g) |
|
MA3010H12C-RSRFAN AXIAL 30X10MM 12VDC WIRE |
233 | 20.25 |
|
Datasheet |
MA3010 | Bulk | Active | 12VDC | Square - 30mm L x 30mm H | 10.00mm | 4.2 CFM (0.118m³/min) | 0.150 in H2O (37.3 Pa) | 1 Ball/1 Sleeve | Tubeaxial | Thermal Overload Protector (TOP) | 28.0dB(A) | - | 9000 RPM | 2 Wire Leads | - | - | cUL, TUV, UL | 0.018 lb (8.16 g) |
|
FAD1-12038EBHW12FAN AXIAL 120X38.5MM 48VDC WIRE |
488 | 14.14 |
|
Datasheet |
FAD1-12038 | Bulk | Active | 48VDC | Square - 120mm L x 120mm H | 38.50mm | 105.5 CFM (2.95m³/min) | 0.265 in H2O (66.0 Pa) | Ball | Tubeaxial | - | 46.7dB(A) | 8.64 W | 2800 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.518 lb (234.96 g) |
|
CFM-3828BF-190-406FAN AXIAL 38X28MM 12VDC WIRE |
122 | 14.31 |
|
Datasheet |
CFM-38BF | Box | Active | 12VDC | Square - 38mm L x 38mm H | 28.00mm | 8.4 CFM (0.235m³/min) | 0.470 in H2O (117.1 Pa) | Ball | Tubeaxial | Auto Restart | 40.6dB(A) | 1.68 W | 9000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
CFM-A238V-126-440FAN AXIAL 120X38MM 12VDC WIRE |
163 | 15.02 |
|
Datasheet |
CFM-120V | Tray | Active | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 116.0 CFM (3.25m³/min) | 0.260 in H2O (64.8 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart | 44.0dB(A) | 5.81 W | 2600 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.481 lb (218.18 g) |
|
|
CFM-4028BG-1100-418-20FAN AXIAL 40X28MM 12VDC WIRE |
261 | 18.00 |
|
Datasheet |
CFM-40BG | Box | Active | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 12.2 CFM (0.342m³/min) | 0.610 in H2O (151.9 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 41.8dB(A) | 3.6 W | 10000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|

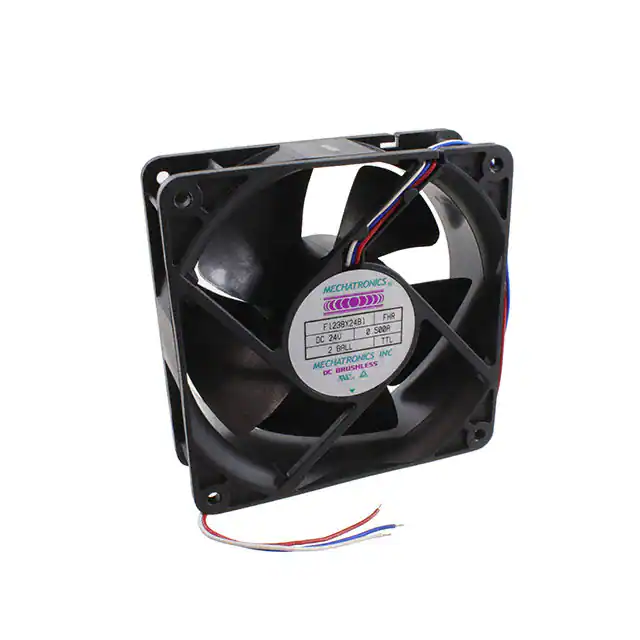

F1238X24B1-FHR-TTLFAN AXIAL 119X38MM 24VDC WIRE |
286 | 18.80 |
|
Datasheet |
F1238-H | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 38.00mm | 130.0 CFM (3.64m³/min) | 0.370 in H2O (92.2 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 47.0dB(A) | - | 3600 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 0.59 lb (267.62 g) |
