DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DC0801512M2B-2T0FAN AXIAL 80X15MM 12VDC WIRE |
598 | 7.48 |
|
Datasheet |
- | Box | Active | 12VDC | Square - 80mm L x 80mm H | 15.00mm | 31.5 CFM (0.882m³/min) | 0.100 in H2O (24.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 32.0dB(A) | 1.44 W | 3100 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.121 lb (54.88 g) |
|

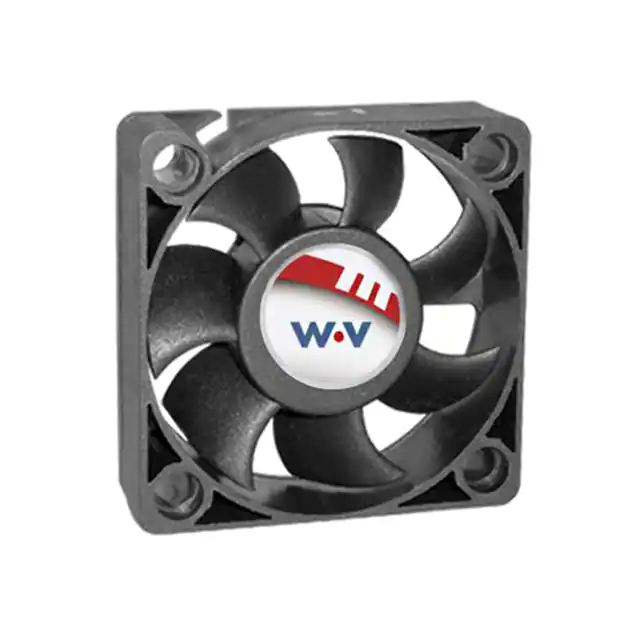

DC0501512M2B-2T0FAN AXIAL 50X15MM 12VDC WIRE |
593 | 6.98 |
|
Datasheet |
- | Box | Active | 12VDC | Square - 50mm L x 50mm H | 15.00mm | 13.2 CFM (0.370m³/min) | 0.160 in H2O (39.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 30.0dB(A) | 1.08 W | 4800 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.084 lb (38.1 g) |
|
AFB0512VHD-R00FAN AXIAL 50X20MM 12VDC WIRE |
220 | 7.66 |
|
Datasheet |
AFB | Bulk | Active | 12VDC | Square - 50mm L x 50mm H | 20.00mm | 20.3 CFM (0.568m³/min) | 0.303 in H2O (75.5 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 40.5dB(A) | 1.92 W | 7000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.085 lb (38.56 g) |
|
|
CFM-5020B-245-306-22DC AXIAL FAN, 50 MM SQUARE, 20 M |
200 | 0.00 |
|
Datasheet |
CFM-50B | Box | Active | 24VDC | Square - 50mm L x 50mm H | 19.80mm | 13.6 CFM (0.381m³/min) | 0.140 in H2O (34.9 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 30.6dB(A) | 0.96 W | 4500 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
DC0402012M2B-2T0FAN AXIAL 40X20MM 12VDC WIRE |
714 | 8.68 |
|
Datasheet |
- | Box | Active | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 11.7 CFM (0.328m³/min) | 0.550 in H2O (137.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 40.0dB(A) | 1.32 W | 10000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.045 lb (20.41 g) |
|
DC0502012M2B-2T0FAN AXIAL 50X20MM 12VDC WIRE |
593 | 7.28 |
|
Datasheet |
- | Box | Active | 12VDC | Square - 50mm L x 50mm H | 20.00mm | 17.6 CFM (0.493m³/min) | 0.250 in H2O (62.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 36.0dB(A) | 2.52 W | 6400 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.089 lb (40.37 g) |
|
DC0401012M2B-2T0FAN AXIAL 40X10MM 12VDC WIRE |
595 | 6.41 |
|
Datasheet |
- | Box | Active | 12VDC | Square - 40mm L x 40mm H | 10.00mm | 4.8 CFM (0.134m³/min) | 0.060 in H2O (14.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 21.0dB(A) | 360 mW | 4000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.045 lb (20.41 g) |
|
|
BFB0524HH-R00FAN BLOWER 51.3X15MM 24VDC WIRE |
222 | 10.70 |
|
Datasheet |
BFB | Bulk | Active | 24VDC | Square/Rounded - 51.3mm L x 51mm H | 15.00mm | 4.6 CFM (0.129m³/min) | 0.866 in H2O (215.7 Pa) | Ball | Blower | Locked Rotor Sensor | 45.0dB(A) | 2.64 W | 6500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.062 lb (28.12 g) |
|
DC0802012M2B-2T0FAN AXIAL 80X20MM 12VDC WIRE |
598 | 7.62 |
|
Datasheet |
- | Box | Active | 12VDC | Square - 80mm L x 80mm H | 20.00mm | 36.7 CFM (1.03m³/min) | 0.150 in H2O (37.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 34.0dB(A) | 2.16 W | 3100 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.171 lb (77.56 g) |
|

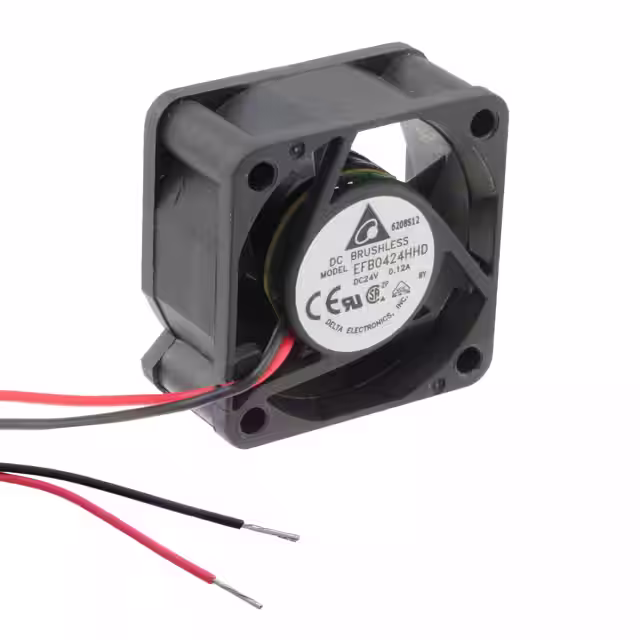

EFB0424HHDFAN AXIAL 40X20MM 24VDC WIRE |
332 | 8.10 |
|
Datasheet |
EFB | Box | Active | 24VDC | Square - 40mm L x 40mm H | 20.00mm | 9.4 CFM (0.263m³/min) | 0.354 in H2O (88.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 30.5dB(A) | 1.68 W | 8200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.073 lb (33.11 g) |
|
|
CFM-4015B-265-256DC AXIAL FAN, 40 MM SQUARE, 15 M |
477 | 0.00 |
|
Datasheet |
CFM-40B | Box | Active | 24VDC | Square - 40mm L x 40mm H | 15.10mm | 7.3 CFM (0.204m³/min) | 0.220 in H2O (55.0 Pa) | Ball | Tubeaxial | Auto Restart | 25.6dB(A) | 0.96 W | 6500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-4015B-245-176DC AXIAL FAN, 40 MM SQUARE, 15 M |
472 | 0.00 |
|
Datasheet |
CFM-40B | Box | Active | 24VDC | Square - 40mm L x 40mm H | 15.10mm | 5.0 CFM (0.140m³/min) | 0.100 in H2O (24.9 Pa) | Ball | Tubeaxial | Auto Restart | 17.6dB(A) | 0.72 W | 4500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CBM-4020B-130-216-22DC BLOWER, 40 MM SQUARE, 20 MM, |
186 | 0.00 |
|
Datasheet |
CBM-40B | Box | Active | 12VDC | Square/Rounded - 40.5mm L x 40.5mm H | 20.00mm | 1.3 CFM (0.036m³/min) | 0.050 in H2O (12.4 Pa) | Ball | Blower | Auto Restart, PWM Control, Speed Sensor (Tach) | 21.6dB(A) | 0.24 W | 3000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-4020BF-1110-381-22DC AXIAL FAN, 40 MM SQUARE, 20 M |
167 | 0.00 |
|
Datasheet |
CFM-40BF | Box | Active | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 13.8 CFM (0.386m³/min) | 0.550 in H2O (137.0 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 38.1dB(A) | 2.52 W | 11000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
DC0601512M2B-2T0FAN AXIAL 60X15MM 12VDC WIRE |
586 | 7.15 |
|
Datasheet |
- | Box | Active | 12VDC | Square - 60mm L x 60mm H | 15.00mm | 21.7 CFM (0.608m³/min) | 0.160 in H2O (39.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 32.0dB(A) | 1.2 W | 4000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.098 lb (44.45 g) |
|
|
AFB0424SHB-F00FAN AXIAL 40X15MM 24VDC WIRE |
394 | 8.35 |
|
Datasheet |
AFB | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 15.00mm | 14.8 CFM (0.414m³/min) | 0.601 in H2O (149.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 41.5dB(A) | 2.88 W | 11000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.057 lb (25.85 g) |
|
|
CFM-6025BG-235-253DC AXIAL FAN, 60 MM SQUARE, 25 M |
176 | 0.00 |
|
Datasheet |
CFM-60BG | Box | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 14.7 CFM (0.412m³/min) | 0.150 in H2O (37.4 Pa) | Ball | Tubeaxial | Auto Restart | 25.3dB(A) | 0.96 W | 3500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-6025BG-150-349DC AXIAL FAN, 60 MM SQUARE, 25 M |
175 | 0.00 |
|
Datasheet |
CFM-60BG | Box | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 21.3 CFM (0.596m³/min) | 0.300 in H2O (74.7 Pa) | Ball | Tubeaxial | Auto Restart | 34.9dB(A) | 1.32 W | 5000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
AFB0924HD-R00FAN AXIAL 92X20MM 24VDC WIRE |
170 | 9.69 |
|
Datasheet |
AFB | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 20.00mm | 54.6 CFM (1.53m³/min) | 0.138 in H2O (34.3 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 35.0dB(A) | 2.4 W | 2700 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.203 lb (92.08 g) |
|
AFB0512HHBFAN AXIAL 50X15MM 12VDC WIRE |
200 | 8.19 |
|
Datasheet |
AFB | Box | Active | 12VDC | Square - 50mm L x 50mm H | 15.00mm | 16.2 CFM (0.454m³/min) | 0.315 in H2O (78.5 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 36.0dB(A) | 1.56 W | 6400 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.071 lb (32.21 g) |
