DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DC0301005U2B-BT0FAN 30X10MM 5VDC PWM/TACH |
513 | 0.00 |
|
Datasheet |
- | Bulk | Active | 5VDC | Square - 30mm L x 30mm H | 10.50mm | 5.7 CFM (0.157m³/min) | 0.240 in H2O (59.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 31.0dB(A) | 850 mW | 11000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
BFB0524HH-F00FAN BLOWER 51.3X15MM 24VDC WIRE |
177 | 12.00 |
|
Datasheet |
BFB | Bulk | Active | 24VDC | Square/Rounded - 51.3mm L x 51mm H | 15.00mm | 4.6 CFM (0.129m³/min) | 0.866 in H2O (215.7 Pa) | Ball | Blower | Speed Sensor (Tach) | 45.0dB(A) | 2.64 W | 6500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.062 lb (28.12 g) |
|
|
CBM-9330B-240-507-20DC BLOWER, 92.3 X 92.6 X 30 MM, |
192 | 0.00 |
|
Datasheet |
CBM-93B | Box | Active | 24VDC | Rectangular/Rounded - 92.5mm L x 92.3mm H | 29.50mm | 21.7 CFM (0.608m³/min) | 1.140 in H2O (284.0 Pa) | Ball | Blower | Auto Restart, Speed Sensor (Tach) | 47.5dB(A) | 7.2 W | 3500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
DC0351005W2B-BT0FAN 35X10MM 5VDC PWM/TACH |
567 | 0.00 |
|
Datasheet |
- | Bulk | Active | 5VDC | Square - 35mm L x 35mm H | 10.00mm | 6.3 CFM (0.176m³/min) | 0.220 in H2O (54.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 28.0dB(A) | 540 mW | 9000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|

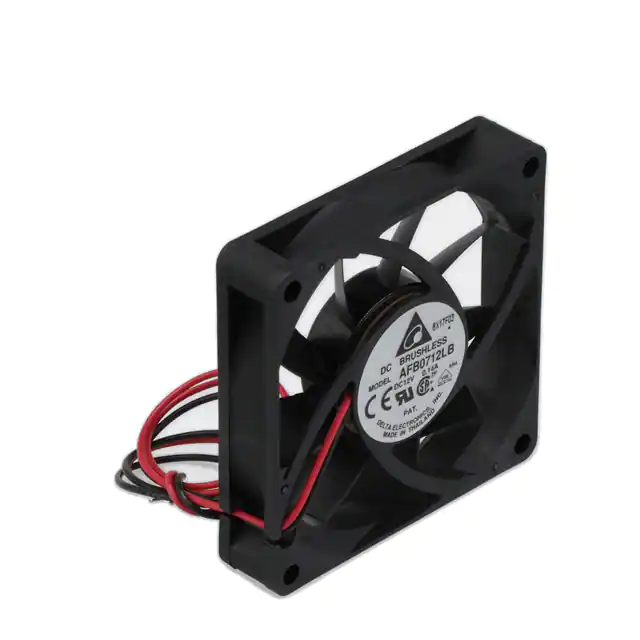

AFB0712LBFAN AXIAL 70X15MM 12VDC WIRE |
178 | 13.38 |
|
Datasheet |
AFB | Box | Active | 12VDC | Square - 70mm L x 70mm H | 15.00mm | 23.4 CFM (0.655m³/min) | 0.089 in H2O (22.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 26.5dB(A) | 960 mW | 2800 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.104 lb (47.17 g) |
|
DC0922512V2B-BT0FAN AXIAL 92X25MM 12VDC WIRE |
152 | 9.98 |
|
Datasheet |
- | Box | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 81.0 CFM (2.27m³/min) | 0.400 in H2O (99.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 49.0dB(A) | 4.92 W | 4500 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.188 lb (85.28 g) |
|
|
CBM-9330B-120-346-22DC BLOWER, 92.3 X 92.6 X 30 MM, |
249 | 0.00 |
|
Datasheet |
CBM-93B | Box | Active | 12VDC | Rectangular/Rounded - 92.5mm L x 92.3mm H | 29.50mm | 12.0 CFM (0.336m³/min) | 0.290 in H2O (72.2 Pa) | Ball | Blower | Auto Restart, PWM Control, Speed Sensor (Tach) | 34.6dB(A) | 1.44 W | 2000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CBM-9330B-220-346-22DC BLOWER, 92.3 X 92.6 X 30 MM, |
227 | 0.00 |
|
Datasheet |
CBM-93B | Box | Active | 24VDC | Rectangular/Rounded - 92.5mm L x 92.3mm H | 29.50mm | 12.0 CFM (0.336m³/min) | 0.290 in H2O (72.2 Pa) | Ball | Blower | Auto Restart, PWM Control, Speed Sensor (Tach) | 34.6dB(A) | 1.68 W | 2000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
9GV3612P3G11FAN 12VDC 36X28MM TACH/PWM CONN |
140 | 0.00 |
|
- |
San Ace 36 | Box | Active | 12VDC | Square - 36mm L x 36mm H | 28.00mm | - | - | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 52.0dB(A) | - | 14000 RPM | 4 Position Rectangular Connector | - | 14 ~ 140°F (-10 ~ 60°C) | - | - |
|
|
DC0402024M2B-2T0FAN 40X20MM 24VDC |
714 | 0.00 |
|
Datasheet |
- | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 20.00mm | 11.7 CFM (0.328m³/min) | 0.550 in H2O (137.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 40.0dB(A) | 2.64 W | 10000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
9A0812S401FAN AXIAL 80X25MM 12VDC WIRE |
125 | 11.28 |
|
Datasheet |
San Cooler 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 42.4 CFM (1.19m³/min) | 0.193 in H2O (48.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 34.0dB(A) | 2.16 W | 3400 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.199 lb (90.26 g) |
|
|
EFB0424VHD-CP0AXIAL 40X20 24VDC PWM |
325 | 0.00 |
|
Datasheet |
EFB | Box | Active | 24VDC | Square - 40mm L x 40mm H | 20.00mm | 9.4 CFM (0.263m³/min) | 0.368 in H2O (91.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 37.3dB(A) | 1.44 W | 9000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|

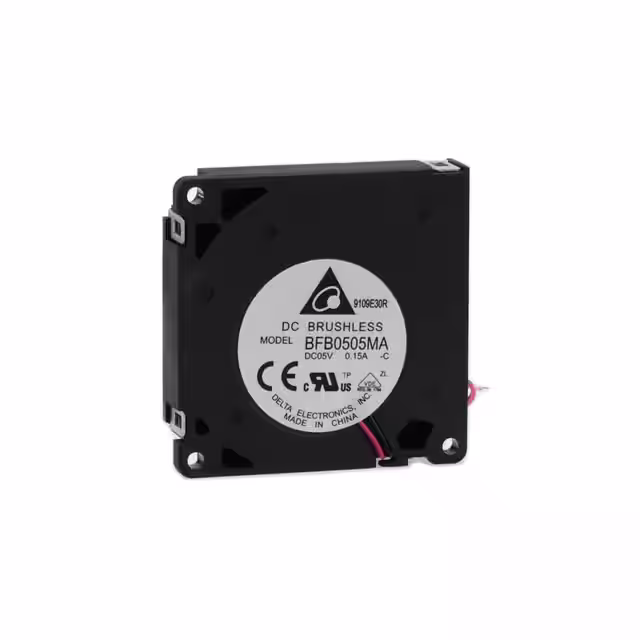

BFB0505MA-CFAN BLOWER 50X10.3MM 5VDC WIRE |
284 | 8.71 |
|
Datasheet |
BFB | Box | Active | 5VDC | Square - 50mm L x 50mm H | 10.30mm | 2.9 CFM (0.081m³/min) | 0.383 in H2O (95.4 Pa) | Ball | Blower | Locked Rotor Protection | 28.0dB(A) | 500 mW | 4300 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, VDE | 0.05 lb (22.68 g) |
|
DC0382812M2B-2T0FAN AXIAL 38X28MM 12VDC WIRE |
556 | 9.15 |
|
Datasheet |
- | Box | Active | 12VDC | Square - 38mm L x 38mm H | 28.00mm | 12.5 CFM (0.350m³/min) | 0.630 in H2O (156.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 44.0dB(A) | 1.8 W | 10000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.067 lb (30.39 g) |
|
|
07530GA-12M-AL-00FAN BLOWER 75.7X30MM 12VDC WIRE |
873 | 0.00 |
|
Datasheet |
07530GA | Bulk | Active | 12VDC | Square/Rounded - 75.7mm L x 75.7mm H | 30.00mm | 10.5 CFM (0.294m³/min) | 0.440 in H2O (109.6 Pa) | Ball | Blower | Auto Restart, Locked Rotor Sensor | 38.5dB | 3.48 W | 3000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
DC0922524V2B-BT0FAN 92X25MM 24VDC PWM/TACH |
500 | 0.00 |
|
Datasheet |
- | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 81.0 CFM (2.27m³/min) | 0.400 in H2O (99.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 49.0dB(A) | 9.84 W | 4500 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
CFM-9225BG-140-438DC AXIAL FAN, 92 MM SQUARE, 25 M |
193 | 0.00 |
|
Datasheet |
CFM-92BG | Box | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 70.5 CFM (1.97m³/min) | 0.370 in H2O (92.2 Pa) | Ball | Tubeaxial | Auto Restart | 43.8dB(A) | 4.32 W | 4000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
AFB0924VH-AFAN AXIAL 92X25.4MM 24VDC WIRE |
141 | 14.28 |
|
Datasheet |
AFB | Box | Active | 24VDC | Square - 92mm L x 92mm H | 25.40mm | 81.5 CFM (2.28m³/min) | 0.345 in H2O (85.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 46.0dB(A) | 6 W | 3800 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.267 lb (121.11 g) |
|

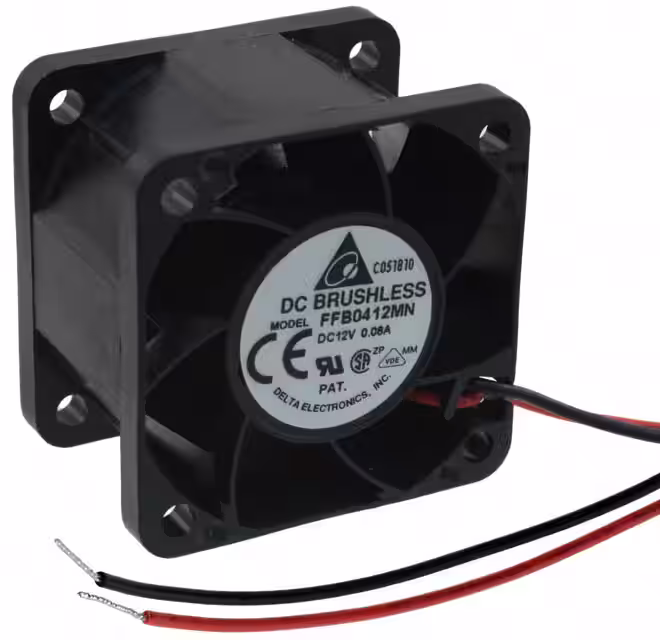

FFB0412MNFAN AXIAL 40X28MM 12VDC WIRE |
270 | 9.56 |
|
Datasheet |
FFB | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 8.1 CFM (0.227m³/min) | 0.148 in H2O (37.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 30.0dB(A) | 600 mW | 5000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.071 lb (32.21 g) |
|
DC0382012U2B-BT0FAN AXIAL 38X20MM 12VDC WIRE |
627 | 10.48 |
|
Datasheet |
- | Box | Active | 12VDC | Square - 38mm L x 38mm H | 20.00mm | 9.7 CFM (0.272m³/min) | 0.580 in H2O (144.5 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 43.0dB(A) | 3.6 W | 10000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.067 lb (30.39 g) |
