DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AUB0912H-CFAN AXIAL 92X25.4MM 12VDC |
626 | 6.18 |
|
Datasheet |
AUB | Bulk | Obsolete | 12VDC | Square - 92mm L x 92mm H | 25.40mm | 56.7 CFM (1.59m³/min) | 0.177 in H2O (44.1 Pa) | Superflo | Tubeaxial | Locked Rotor Protection | 37.0dB(A) | 3 W | 2800 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.231 lb (104.78 g) |
|
|
NYW06025012BS-6(A269)60X25 12V 5200RPM AUTO RES FLG, |
200 | 0.00 |
|
- |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
FN-SX04-42FAN AXL 40X10MM 12VDC RECT CONN |
186 | 6.33 |
|
- |
Silent 4 | Retail Package | Active | 12VDC | Square - 40mm L x 40mm H | 10.00mm | 4.5 CFM (0.126m³/min) | 0.059 in H2O (14.7 Pa) | Hydrodynamic | Tubeaxial | Fan Mounts Included, Speed Sensor (Tach) | 18.9dB(A) | - | 4200 RPM | 3 Position Rectangular Connector | - | - | CE | - |
|
ME80202V3-000U-A99FAN AXIAL 80X20MM 24VDC WIRE |
407 | 7.16 |
|
Datasheet |
MagLev® ME | Bulk | Obsolete | 24VDC | Square - 80mm L x 80mm H | 20.00mm | 29.0 CFM (0.812m³/min) | 0.120 in H2O (29.9 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 30.0dB(A) | 1.01 W | 2600 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.146 lb (66.22 g) |
|
|
YW08015012BS-5(Q)80X15MM 12V 3900RPM, 3 WIRES |
166 | 6.62 |
|
Datasheet |
YW | Box | Active | 12VDC | Square - 80mm L x 80mm H | 15.00mm | 43.6 CFM (1.22m³/min) | 0.169 in H2O (42.1 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 38.5dB(A) | 3 W | 3900 RPM | 3 Wire Leads | - | - | - | - |
|
EE92251B1-000U-A99FAN AXIAL 92X25MM 12VDC WIRE |
2,689 | 7.12 |
|
Datasheet |
EE | Bulk | Obsolete | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 51.5 CFM (1.44m³/min) | 0.150 in H2O (37.4 Pa) | Ball | Tubeaxial | Auto Restart | 34.0dB(A) | 2 W | 3000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.207 lb (93.89 g) |
|
ME80151V1-000U-A99FAN AXIAL 80X15MM 12VDC WIRE |
4,781 | 6.90 |
|
Datasheet |
MagLev® ME | Bulk | Obsolete | 12VDC | Square - 80mm L x 80mm H | 15.00mm | 37.0 CFM (1.04m³/min) | 0.140 in H2O (34.9 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 34.7dB(A) | 1.96 W | 3000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.15 lb (68.04 g) |
|
|
NYW02510012BL-6FAN AXIAL 25X10MM 12VDC WIRE |
1,127 | 8.78 |
|
Datasheet |
NYW | Box | Active | 12VDC | Square - 25mm L x 25mm H | 10.00mm | 2.0 CFM (0.056m³/min) | 0.146 in H2O (36.4 Pa) | Ball | Tubeaxial | Auto Restart | 18.0dB(A) | 480 mW | 7000 RPM | 2 Wire Leads | - | - | - | - |
|
|
YW05020012BLFAN AXIAL 50X20MM 12VDC WIRE |
143 | 7.07 |
|
- |
YW | Box | Active | 12VDC | Square - 50mm L x 50mm H | 20.00mm | 10.0 CFM (0.280m³/min) | 0.098 in H2O (24.5 Pa) | Ball | Tubeaxial | - | 23.5dB(A) | 720 mW | 3900 RPM | 2 Wire Leads | - | - | - | - |
|
|
AUB0612HH-AF00FAN AXIAL 60X25.4MM 12VDC |
129 | 7.12 |
|
Datasheet |
AUB | Bulk | Obsolete | 12VDC | Square - 60mm L x 60mm H | 25.40mm | 25.4 CFM (0.711m³/min) | 0.281 in H2O (70.0 Pa) | Superflo | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 40.0dB(A) | 2.4 W | 5000 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.133 lb (60.33 g) |
|
|
AUB0612VH-AF00FAN AXIAL 60X25.4MM 12VDC WIRE |
1,613 | 7.12 |
|
Datasheet |
AUB | Bulk | Obsolete | 12VDC | Square - 60mm L x 60mm H | 25.40mm | 33.1 CFM (0.927m³/min) | 0.352 in H2O (87.7 Pa) | Sleeve | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 42.5dB(A) | 2.4 W | 5500 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, cURus, VDE | 0.133 lb (60.33 g) |
|
|
AUB0812HB-AR00FAN AXIAL 80X15MM 12VDC WIRE |
1,008 | 7.71 |
|
- |
AUB | Box | Obsolete | 12VDC | Square - 80mm L x 80mm H | 15.00mm | 36.4 CFM (1.02m³/min) | 0.138 in H2O (34.3 Pa) | Superflo | Tubeaxial | Locked Rotor Sensor | 35.0dB(A) | 1.8 W | 3100 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UR, VDE | - |
|
ASB0312LA-CF00FAN AXIAL 30X10MM 12VDC WIRE |
2,953 | 7.86 |
|
Datasheet |
ASB | Box | Obsolete | 12VDC | Square - 30mm L x 30mm H | 10.00mm | 3.2 CFM (0.090m³/min) | 0.131 in H2O (32.6 Pa) | Sleeve | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 21.0dB(A) | 600 mW | 8000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, VDE | 0.017 lb (7.71 g) |
|

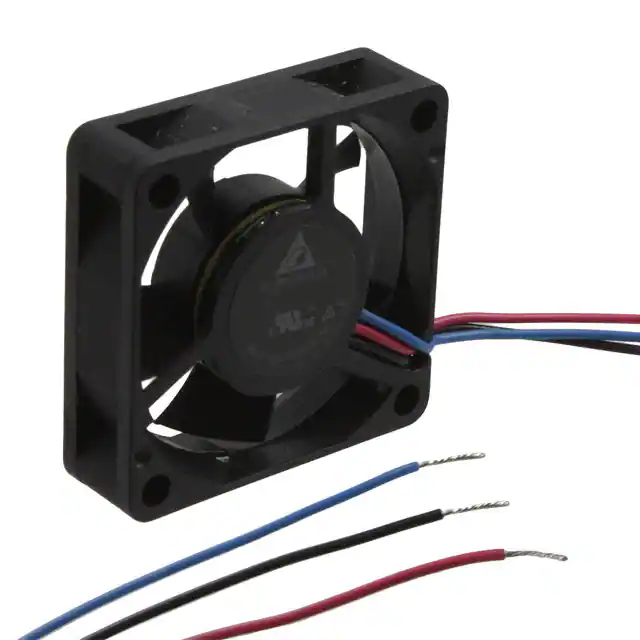

ASB0305MA-CA8ZFAN AXIAL 30X10MM 5VDC WIRE |
711 | 7.86 |
|
Datasheet |
ASB | Box | Obsolete | 5VDC | Square - 30mm L x 30mm H | 10.00mm | 3.4 CFM (0.095m³/min) | 0.170 in H2O (42.3 Pa) | Sleeve | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 23.0dB(A) | 550 mW | 9000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UR, VDE | 0.017 lb (7.71 g) |
|
ASB0412LA-AFAN AXIAL 40X10MM 12VDC WIRE |
3,004 | 7.54 |
|
Datasheet |
ASB | Bulk | Obsolete | 12VDC | Square - 40mm L x 40mm H | 10.00mm | 4.4 CFM (0.123m³/min) | 0.068 in H2O (17.0 Pa) | Sleeve | Tubeaxial | Locked Rotor Protection | 15.0dB(A) | 360 mW | 4000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.03 lb (13.61 g) |
|
2406KL-05W-B50-L00FAN AXIAL 60X15MM 24VDC WIRE |
2,685 | 11.68 |
|
Datasheet |
06015KA | Box | Obsolete | 24VDC | Square - 60mm L x 60mm H | 15.00mm | 18.3 CFM (0.512m³/min) | 0.205 in H2O (51.2 Pa) | Ball | Tubeaxial | - | 34.0dB | 2.4 W | 4600 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.099 lb (44.91 g) |
|
2410ML-04W-B40-B00FAN AXIAL 60X25MM 12VDC WIRE |
1,642 | 11.81 |
|
Datasheet |
2410ML | Bulk | Obsolete | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 21.5 CFM (0.602m³/min) | 0.208 in H2O (51.8 Pa) | Ball | Tubeaxial | Auto Restart | 33.5dB | 2.04 W | 4550 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.144 lb (65.32 g) |
|
|
2410ML-04W-B10-B00FAN AXIAL 60X25MM 12VDC WIRE |
327 | 11.81 |
|
Datasheet |
2410ML | Bulk | Obsolete | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 13.7 CFM (0.384m³/min) | 0.083 in H2O (20.6 Pa) | Ball | Tubeaxial | Auto Restart | 23.0dB | 900 mW | 2950 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.144 lb (65.32 g) |
|
AUB0912VH-CITFAN AXIAL 92X25.4MM 12VDC |
3,584 | 8.14 |
|
Datasheet |
AUB | Box | Obsolete | 12VDC | Square - 92mm L x 92mm H | 25.40mm | 72.0 CFM (2.02m³/min) | 0.287 in H2O (71.5 Pa) | Superflo | Tubeaxial | Locked Rotor Protection | 45.0dB(A) | 4.8 W | 3600 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.231 lb (104.78 g) |
|
ASB03512MA-AF00FAN AXIAL 35X10MM 12VDC WIRE |
802 | 8.34 |
|
Datasheet |
ASB | Box | Obsolete | 12VDC | Square - 35mm L x 35mm H | 10.00mm | 4.5 CFM (0.126m³/min) | 0.079 in H2O (19.6 Pa) | Sleeve | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 18.5dB(A) | 600 mW | 5800 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.022 lb (9.98 g) |
