DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AD0312HB-G50(T)DC,30X10,12V,HI,BALL |
520 | 0.00 |
|
Datasheet |
AD | Bulk | Active | 12VDC | Square - 30mm L x 30mm H | 10.00mm | 4.0 CFM (0.112m³/min) | 0.200 in H2O (49.8 Pa) | Ball | Tubeaxial | - | 35.1dB(A) | 1.2 W | 10500 RPM | 2 Wire Leads | - | - | CE, cUR, TUV, UR | - |
|
|
AD3505HB-G50(T4)DC,35X10,5V,HI,BALL |
400 | 0.00 |
|
Datasheet |
- | Bulk | Active | 5VDC | Square - 25.5mm L x 25.5mm H | 10.00mm | - | - | Ball | - | - | - | - | - | - | - | - | - | - |
|
|
AD3512HB-G50(T)DC,35X10,12V,HI,BALL |
127 | 0.00 |
|
Datasheet |
AD | Bulk | Active | 12VDC | Square - 35mm L x 35mm H | 10.00mm | 7.2 CFM (0.202m³/min) | 0.200 in H2O (49.8 Pa) | Ball | Tubeaxial | - | 36.0dB(A) | 1.32 W | 9500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cUL, TUV, UL | - |
|
|
AD0212LX-K50(TX)DC,25X6,12V,LOW,HYPRO |
763 | 0.00 |
|
Datasheet |
AD2506 | Bulk | Active | 12VDC | Square - 25mm L x 25mm H | 6.50mm | 1.8 CFM (0.050m³/min) | 0.110 in H2O (27.4 Pa) | Hypro | Tubeaxial | - | 21.5dB(A) | 0.96 W | 9000 RPM | 2 Wire Leads | - | - | CE, cURus, UR | - |
|
|
AD0405LX-K90(XT1)DC,40X6,5V,LOW,HYPRO |
449 | 0.00 |
|
Datasheet |
AD4006 | Bulk | Active | 5VDC | Square - 40mm L x 40mm H | 6.80mm | 3.8 CFM (0.106m³/min) | 0.045 in H2O (11.2 Pa) | Hypro | Tubeaxial | - | 19.5dB(A) | 0.3 W | 4500 RPM | 2 Wire Leads | - | - | CE, cURus, TUV, UR | - |
|
|
AD4505HX-K90(XT1)DC,45X6,5V,HI,HYPRO |
178 | 0.00 |
|
Datasheet |
AD4506 | Bulk | Active | 5VDC | Square - 45mm L x 45mm H | 6.80mm | 7.6 CFM (0.213m³/min) | 0.105 in H2O (26.1 Pa) | Hypro | Tubeaxial | - | 37.0dB(A) | 0.7 W | 6000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE | - |
|

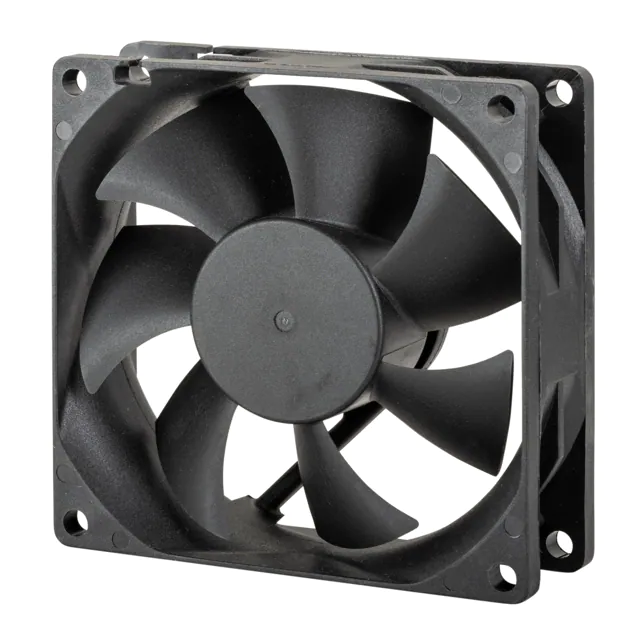

D8025H24BPLB1-7FAN AXIAL 80X25MM 24VDC WIRE |
150 | 10.59 |
|
Datasheet |
Intelligent Motion | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 39.3 CFM (1.12m³/min) | 0.140 in H2O (34.9 Pa) | Ball | Tubeaxial | Auto Restart, Constant Speed, Inrush Protection, Locked Rotor Protection, Polarity Protection | 32.1dB(A) | 1.4 W | 3000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cUL, UL | - |
|
|
FD6025B24W9-87D-3SP1DC Fan 60x60x25mm 24VDC |
1,201 | 0.00 |
|
Datasheet |
51 | Tape & Box (TB) | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 29.7 CFM (0.832m³/min) | 0.341 in H2O (85.0 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control | 38.3dB(A) | 6 W | 6500 RPM | 3 Wire Leads | IP68 - Dust Tight, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | CE, cUL, UL | 0.133 lb (60.33 g) |
|
|
FD8038B24W9-11-2RYDC FAN 80X80X38MM 24V |
1,916 | 0.00 |
|
Datasheet |
- | Tape & Box (TB) | Active | 24VDC | Square - 80mm L x 80mm H | 38.00mm | 83.6 CFM (2.34m³/min) | 0.894 in H2O (222.6 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection | 53.4dB(A) | 11.28 W | 5700 RPM | 2 Wire Leads | IP55 - Dust Protected, Water Resistant | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|
4412MLFAN AXIAL 119X38MM 12VDC WIRE |
4,500 | 53.61 |
|
Datasheet |
- | Bulk | Obsolete | 12VDC | Square - 119mm L x 119mm H | 38.00mm | 99.0 CFM (2.77m³/min) | - | Ball | Tubeaxial | - | 40.0dB(A) | 3 W | 3000 RPM | 2 Wire Leads | - | -4 ~ 176°F (-20 ~ 80°C) | - | - |
|
|
87R637-101-BL480XBrushless DC Rocking Piston Comp |
100 | 0.00 |
|
Datasheet |
- | Bulk | Active | 24VDC | Rectangular - 242.32mm L x 179.83mm H | 127.0mm | 5.1 CFM (0.143m³/min) | - | Ball | Air Pump | - | 65.0dB(A) | 511 W | 1725 RPM | Terminal Block | - | 41 ~ 104°F (5 ~ 40°C) | - | - |
|

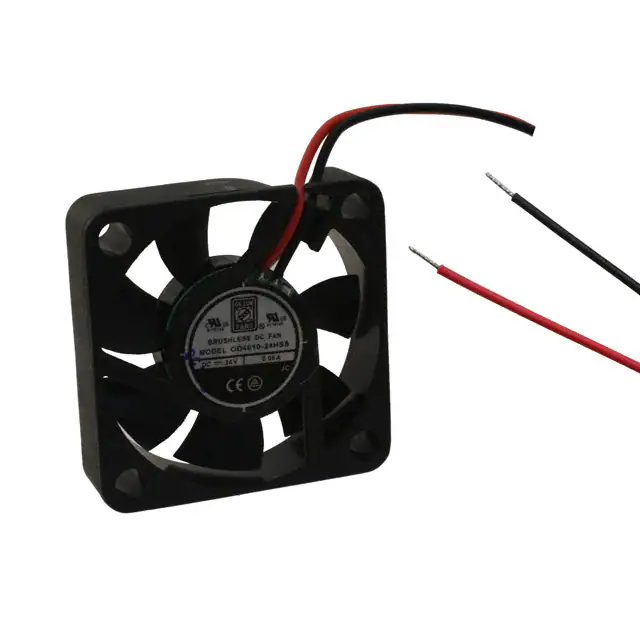

OD4010-24HSSFAN AXIAL 40X10.5MM 24VDC WIRE |
3,148 | 7.44 |
|
Datasheet |
OD4010 | Box | Active | 24VDC | Square - 40mm L x 40mm H | 10.50mm | 7.0 CFM (0.196m³/min) | 0.200 in H2O (49.8 Pa) | Sealed Sleeve | Tubeaxial | Auto Restart | 25.0dB(A) | 1.45 W | 4800 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV, UR | 0.441 lb (200.00 g) |
|
|
09225SA-24L-AA-D0FAN AXIAL 92X25MM 24VDC WIRE |
2,631 | 12.37 |
|
Datasheet |
09225SA | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 39.9 CFM (1.12m³/min) | 0.120 in H2O (29.9 Pa) | Ball | Tubeaxial | Auto Restart | 25.0dB | 1.2 W | 2400 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
CFM-6025BF-175-439FAN AXIAL 60X25.4MM 12VDC WIRE |
3,609 | 15.75 |
|
Datasheet |
CFM-60BF | Box | Active | 12VDC | Square - 60mm L x 60mm H | 25.40mm | 35.9 CFM (1.01m³/min) | 0.500 in H2O (124.5 Pa) | Ball | Tubeaxial | Auto Restart | 44.0dB(A) | 6.48 W | 7500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
06020SA-12N-AA-00FAN AXIAL 60X20MM 12VDC WIRE |
4,771 | 9.13 |
|
Datasheet |
06020SA | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 20.00mm | 20.5 CFM (0.574m³/min) | 0.210 in H2O (52.3 Pa) | Ball | Tubeaxial | - | 30.5dB | 1.08 W | 4400 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | 0.123 lb (55.79 g) |
|
OD6015-05HBFAN AXIAL 60X15MM BALL 5VDC WIRE |
3,359 | 12.36 |
|
Datasheet |
OD6015 | Box | Active | 5VDC | Square - 60mm L x 60mm H | 15.00mm | 16.0 CFM (0.448m³/min) | 0.150 in H2O (37.3 Pa) | Ball | Tubeaxial | Auto Restart | 33.0dB | 1.1 W | 4500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | 0.081 lb (36.74 g) |
|
OD4020-24LBFAN AXIAL 40X20MM 24VDC WIRE |
1,027 | 12.36 |
|
Datasheet |
OD4020 | Box | Active | 24VDC | Square - 40mm L x 40mm H | 20.00mm | 6.5 CFM (0.182m³/min) | 0.140 in H2O (34.9 Pa) | Ball | Tubeaxial | Auto Restart | 24.1dB(A) | 1.2 W | 5150 RPM | 2 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV | - |
|

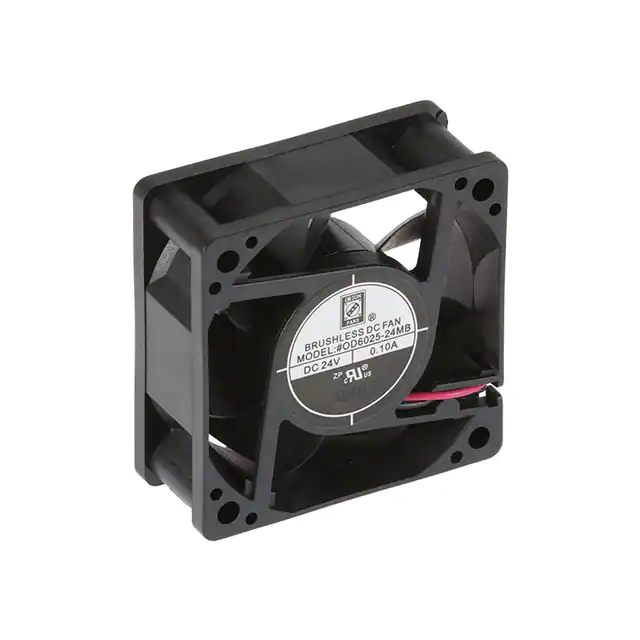

OD6025-24MBFAN AXIAL 60X25MM 24VDC WIRE |
3,470 | 12.36 |
|
Datasheet |
OD6025 | Box | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 17.0 CFM (0.476m³/min) | 0.160 in H2O (39.8 Pa) | Ball | Tubeaxial | Auto Restart | 25.0dB(A) | 2.2 W | 3150 RPM | 2 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | 0.141 lb (63.96 g) |
|

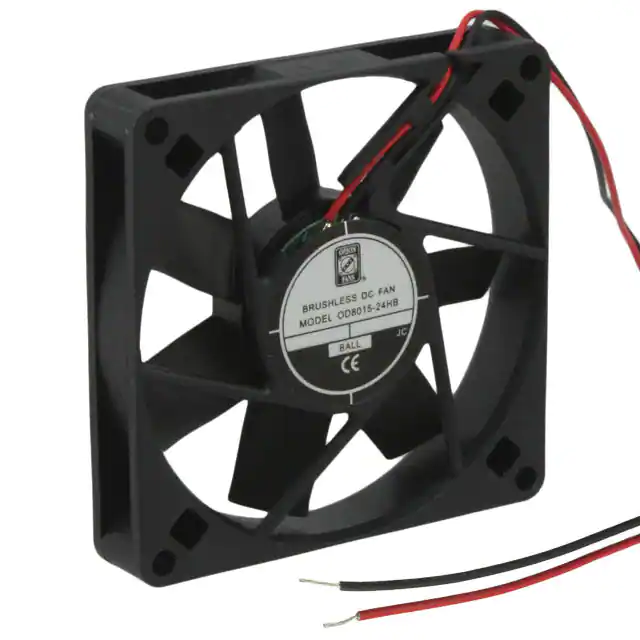

OD8015-24HBFAN AXIAL 80X15MM 24VDC WIRE |
3,701 | 12.36 |
|
Datasheet |
OD8015 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 15.00mm | 30.0 CFM (0.840m³/min) | 0.110 in H2O (27.4 Pa) | Ball | Tubeaxial | - | 33.0dB | - | 3200 RPM | 2 Wire Leads | - | -4 ~ 176°F (-20 ~ 80°C) | cURus, TUV | - |
|
OD6025-12MBFAN AXIAL 60X25MM 12VDC WIRE |
1,180 | 12.36 |
|
Datasheet |
OD6025 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 17.0 CFM (0.476m³/min) | 0.160 in H2O (39.8 Pa) | Ball | Tubeaxial | Auto Restart | 25.0dB(A) | 1.5 W | 3150 RPM | 2 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | 0.141 lb (63.96 g) |
