DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

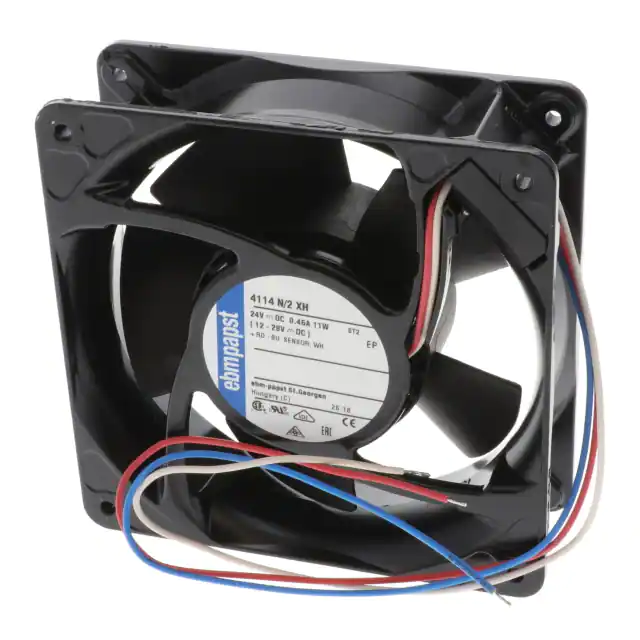

4114N/2XHFAN AXIAL 119X38MM 24VDC WIRE |
4,457 | 75.54 |
|
Datasheet |
4100N | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 38.00mm | 139.5 CFM (3.91m³/min) | - | Ball | Tubeaxial | Speed Sensor (Tach) | 60.0dB(A) | 11 W | 4400 RPM | 3 Wire Leads | - | -22 ~ 131°F (-30 ~ 55°C) | - | - |
|
612J/2HFAN AXIAL 60X32MM 12VDC WIRE |
2,398 | 81.23 |
|
Datasheet |
600J | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 32.00mm | 41.2 CFM (1.15m³/min) | 0.363 in H2O (90.5 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 53.0dB(A) | 7.7 W | 11700 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | - | 0.22 lb (99.79 g) |
|
9GV1412P1S001FAN AXIAL 140X38MM 12VDC WIRE |
4,249 | 81.34 |
|
Datasheet |
San Ace 140 | Box | Active | 12VDC | Square - 140mm L x 140mm H | 38.00mm | 272.0 CFM (7.62m³/min) | 1.930 in H2O (480.8 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 67.0dB(A) | 37.2 W | 6650 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 1.4 lbs (635.0 g) |
|
W2G107-AD03-01FAN AXIAL 119X38MM 24VDC WIRE |
3,073 | 95.39 |
|
Datasheet |
W2G107 | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 38.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection | 70.0dB(A) | 3.3 W | 2800 RPM | 2 Wire Leads | IP22 | -13 ~ 162°F (-25 ~ 72°C) | EAC, UL | - |
|
|
9LG0912S4001FAN AXIAL 92X25MM 12VDC WIRE |
3,661 | 63.04 |
|
Datasheet |
San Ace 92L | Box | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 59.7 CFM (1.67m³/min) | 0.250 in H2O (62.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 37.0dB(A) | 2.64 W | 3850 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | - |
|

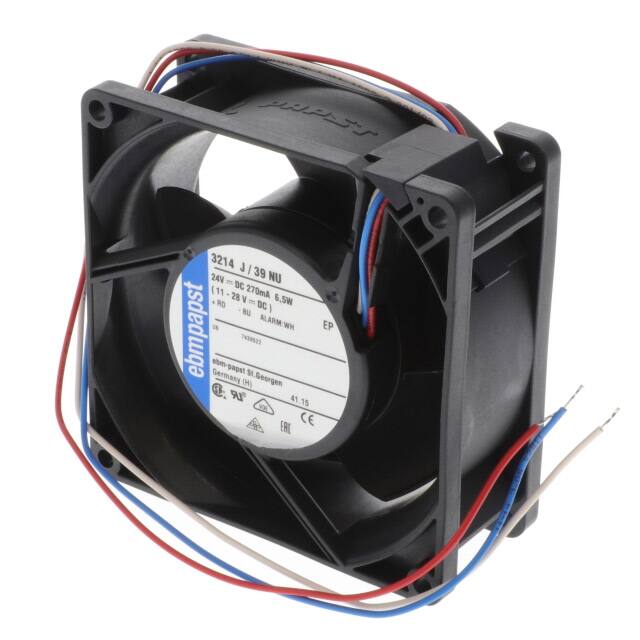

3214J/39NUFAN AXIAL 92X38MM 24VDC WIRE |
4,027 | 87.68 |
|
Datasheet |
3200J, S-Force | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 38.00mm | 76.5 CFM (2.14m³/min) | - | Ball | Tubeaxial | Alarm Sensor | 51.0dB(A) | 6.5 W | 6000 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | - | - |
|
109E5712M501FAN AXIAL 172X51MM 12VDC WIRE |
2,766 | 98.99 |
|
Datasheet |
San Ace 172 | Box | Active | 12VDC | Rectangular/Rounded - 172mm L x 150mm H | 51.00mm | 148.0 CFM (4.14m³/min) | 0.271 in H2O (67.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 41.0dB(A) | 5.76 W | 2000 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 1.7 lbs (760.0 g) |
|
W2G115-AE31-13FAN AXIAL 127X38MM 24VDC TERM |
2,009 | 91.74 |
|
Datasheet |
W2G115 | Bulk | Active | 24VDC | Square - 127mm L x 127mm H | 38.00mm | 130.0 CFM (3.64m³/min) | - | Ball | Tubeaxial | - | 48.0dB(A) | 5.7 W | - | 2 Terminals | - | - | - | 1.6 lbs (725.7 g) |
|
DV5218/2NFAN AXIAL 127X38MM 48VDC WIRE |
1,681 | 118.70 |
|
Datasheet |
DV5200 | Bulk | Active | 48VDC | Square - 127mm L x 127mm H | 38.00mm | 159.0 CFM (4.45m³/min) | - | Ball | Tubeaxial | Speed Sensor (Tach) | 69.0dB(A) | 18.5 W | 5000 RPM | 3 Wire Leads | IP54 - Dust Protected, Water Resistant | -4 ~ 149°F (-20 ~ 65°C) | - | - |
|

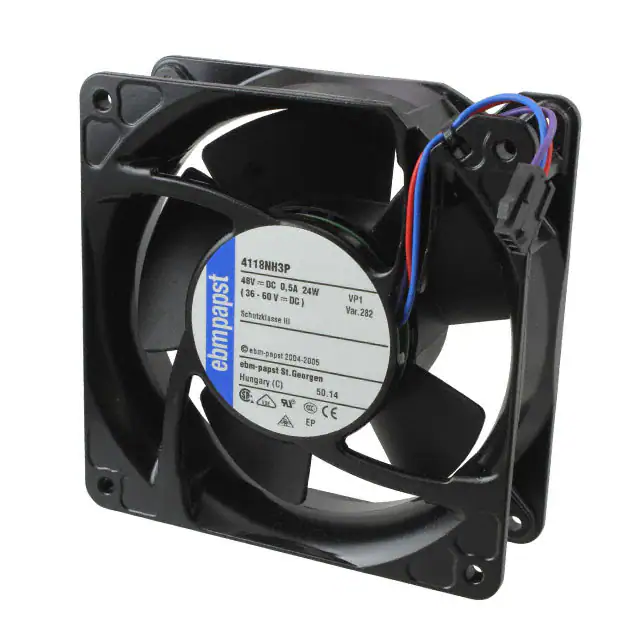

4118NH3P-282FAN AXL 119X38MM 48VDC RECT CONN |
1,640 | 109.25 |
|
Datasheet |
4100N | Bulk | Active | 48VDC | Square - 119mm L x 119mm H | 38.00mm | 182.4 CFM (5.11m³/min) | - | Ball | Tubeaxial | PWM Control | 64.0dB(A) | 24 W | 6000 RPM | 3 Position Rectangular Connector | - | -4 ~ 149°F (-20 ~ 65°C) | CE, CSA, UL, VDE | 0.26 lb (117.93 g) |
|

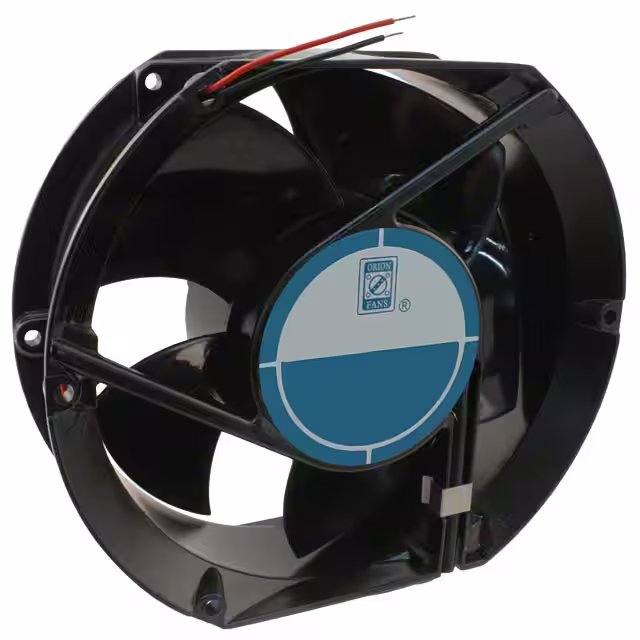

OD172SAP-12HBFAN AXIAL 172X50.8MM 12VDC WIRE |
2,467 | 83.94 |
|
Datasheet |
OD172S | Box | Active | 12VDC | Rectangular/Rounded - 172mm L x 150mm H | 50.80mm | 230.0 CFM (6.44m³/min) | 0.750 in H2O (186.8 Pa) | Ball | Tubeaxial | Auto Restart | 52.0dB | - | 3200 RPM | 2 Wire Leads | - | -4 ~ 167°F (-20 ~ 75°C) | cURus, TUV | - |
|
9WL0912P1F001FAN AXIAL 92X38MM 12VDC WIRE |
1,541 | 96.42 |
|
Datasheet |
San Ace 92W | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 38.00mm | 102.4 CFM (2.87m³/min) | 1.050 in H2O (261.5 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 55.0dB(A) | 11.4 W | 7000 RPM | 4 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 0.661 lb (299.82 g) |
|
OD172SAP-12MBXCIP69KFAN AXIAL 172X51.6MM 12VDC WIRE |
2,268 | 18.00 |
|
Datasheet |
OD172SAP XC | Bulk | Active | 12VDC | Rectangular/Rounded - 172mm L x 152mm H | 51.60mm | 263.0 CFM (7.36m³/min) | 0.820 in H2O (204.3 Pa) | Ball | Tubeaxial | Auto Restart | 57.0dB | 13.2 W | 3500 RPM | 2 Wire Leads | IP69K - Dust Tight, Water Resistant, Waterproof | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | 1.3 lbs (600.0 g) |
|
MSI1769H24B1+7-BBRFAN IMP MTRZD 175X69MM 24VDC |
1,849 | 98.39 |
|
Datasheet |
MSI1769 | Box | Active | 24VDC | Round - 175mm Dia | 69.00mm | 345.0 CFM (9.66m³/min) | 1.800 in H2O (448.4 Pa) | Ball | Motorized Impellers | Auto Restart, Speed Sensor (Tach) | 72.0dB(A) | - | 4000 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 2.9 lbs (1.3 kg) |
|
|
9WL0948P1F601FAN AXIAL 92X38MM 48VDC WIRE |
3,503 | 99.66 |
|
Datasheet |
San Ace 92W | Bulk | Active | 48VDC | Square - 92mm L x 92mm H | 38.00mm | 102.4 CFM (2.87m³/min) | 1.050 in H2O (261.5 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 55.0dB(A) | 11.52 W | 7000 RPM | 4 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 0.661 lb (299.82 g) |
|
ODB17567-12HB10AFAN IMP MTRZD 175X67MM 12VDC |
1,195 | 89.59 |
|
Datasheet |
- | Bulk | Active | 12VDC | Round - 175mm Dia | 67.00mm | 298.0 CFM (8.34m³/min) | 1.380 in H2O (343.7 Pa) | Ball | Motorized Impellers | PWM Control, Speed Sensor (Tach) | 64.0dB | 50.4 W | 3000 RPM | 4 Wire Leads | - | 14 ~ 149°F (-10 ~ 65°C) | CE, TUV | 1.9 lbs (900.0 g) |
|

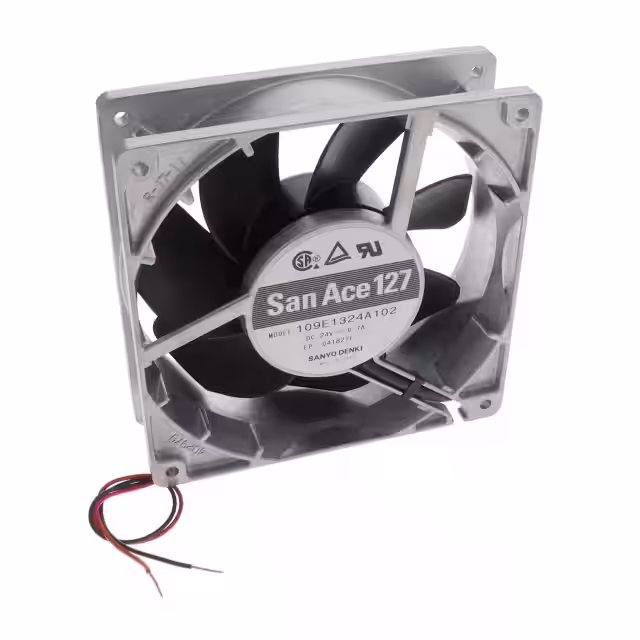

109E1324A102FAN AXIAL 127X38MM 24VDC WIRE |
3,936 | 84.69 |
|
Datasheet |
San Ace 127 | Box | Active | 24VDC | Square - 127mm L x 127mm H | 38.00mm | 170.0 CFM (4.76m³/min) | 0.622 in H2O (155.0 Pa) | Ball | Tubeaxial | - | 52.0dB(A) | 16.8 W | 3850 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.882 lb (400.07 g) |
|
ODB19069-48HB10AFAN IMP MTRZD 189.5X68.5MM 48VDC |
4,969 | 114.47 |
|
Datasheet |
- | Bulk | Active | 48VDC | Round - 189.5mm Dia | 68.50mm | 432.0 CFM (12.10m³/min) | 2.810 in H2O (700.0 Pa) | Ball | Motorized Impellers | PWM Control, Speed Sensor (Tach) | 77.0dB | 122 W | 3500 RPM | 4 Wire Leads | - | 14 ~ 149°F (-10 ~ 65°C) | CE, cURus, TUV, UR | 2.205 lb (1 kg) |
|
OD172SAP-48HBIP69KFAN AXIAL 172X51MM 48VDC WIRE |
3,668 | 99.58 |
|
Datasheet |
OD172SAP-IP69K | Box | Active | 48VDC | Rectangular/Rounded - 172mm L x 150mm H | 51.00mm | 235.0 CFM (6.58m³/min) | 0.790 in H2O (196.8 Pa) | Ball | Tubeaxial | Auto Restart | 52.0dB(A) | 23.5 W | 3300 RPM | 2 Wire Leads | IP69K - Dust Tight, Water Resistant, Waterproof | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | - |
|
RG125-19/14NFAN BLOWER CF 180X40MM 24VDC |
3,524 | 109.83 |
|
Datasheet |
RG125N | Bulk | Active | 24VDC | Square - 180mm L x 180mm H | 40.00mm | 51.5 CFM (1.44m³/min) | - | Ball | Blower, Centrifugal | - | 58.0dB(A) | 5 W | 2550 RPM | 2 Wire Leads | - | -22 ~ 167°F (-30 ~ 75°C) | - | 1.6 lbs (725.7 g) |
