DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
CFM-8025BG68-150-438-22DC AXIAL FAN, 80 MM SQUARE, 25 M |
1,150 | 0.00 |
|
Datasheet |
CFM-80BG68 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.40mm | 53.1 CFM (1.49m³/min) | 0.450 in H2O (112.1 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 43.8dB(A) | 3.6 W | 5000 RPM | 4 Wire Leads | IP68 - Dust Tight, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|

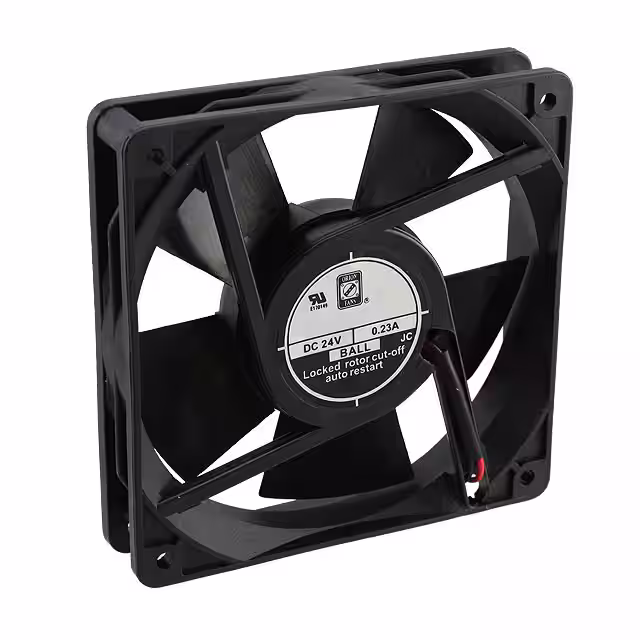

OD1225-24HTBFAN AXIAL 120X25MM 24VDC TERM |
3,451 | 15.78 |
|
Datasheet |
OD1225 | Box | Active | 24VDC | Square - 120mm L x 120mm H | 25.00mm | 120.0 CFM (3.36m³/min) | 0.240 in H2O (59.8 Pa) | Ball | Tubeaxial | - | 42.0dB(A) | 7.7 W | 3100 RPM | 2 Terminals | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | 0.341 lb (154.67 g) |
|
9GA0612J102FAN AXIAL 60X38MM 12VDC WIRE |
2,358 | 19.86 |
|
Datasheet |
San Ace 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 38.00mm | 62.0 CFM (1.74m³/min) | 3.300 in H2O (822.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 63.0dB(A) | 18 W | 17500 RPM | 2 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.287 lb (130.18 g) |
|
|
9GA0824J4002FAN AXIAL 80X25.2MM 24VDC WIRE |
3,051 | 19.86 |
|
Datasheet |
San Ace 80 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 25.20mm | 73.0 CFM (2.04m³/min) | 0.700 in H2O (174.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 48.0dB(A) | 6.72 W | 7400 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.243 lb (110.22 g) |
|
|
OD8038-48HBVXE10AThermal Products |
1,902 | 0.00 |
|
Datasheet |
OD8038 | Bulk | Active | 48VDC | Square - 80mm L x 80mm H | 38.00mm | 105.0 CFM (2.94m³/min) | 1.300 in H2O (323.6 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 62.3dB(A) | 27.8 W | 7400 RPM | 4 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | - |
|
|
OD8038-48MBVXE10AThermal Products |
4,715 | 0.00 |
|
Datasheet |
OD8038 | Bulk | Active | 48VDC | Square - 80mm L x 80mm H | 38.00mm | 90.0 CFM (2.52m³/min) | 1.000 in H2O (249.1 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 59.1dB(A) | 24.5 W | 6525 RPM | 4 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | - |
|
|
9G1224G4E011120X25MM 24V,HIGH PERF.,RBLS DC |
3,733 | 0.00 |
|
Datasheet |
San Ace 120 | Box | Active | 24VDC | Square - 119mm L x 119mm H | 25.00mm | - | - | Ball | Tubeaxial | Locked Rotor Sensor | 51.0dB(A) | - | 4100 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
OD1225-24HBXE01ADC FAN - 24V 120 X 120 X 25MM - |
4,198 | 0.00 |
|
Datasheet |
OD1225 | Box | Active | 24VDC | Square - 120mm L x 120mm H | 25.00mm | 133.8 CFM (3.79m³/min) | 0.750 in H2O (186.8 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 55.2dB(A) | 21 W | 4950 RPM | 3 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | - |
|
|
109BM24HC2-1FAN BLOWER 97.2X33MM 24VDC WIRE |
1,591 | 21.91 |
|
Datasheet |
San Ace B97 | Box | Active | 24VDC | Rectangular/Rounded - 97.2mm L x 94.4mm H | 33.00mm | 25.1 CFM (0.703m³/min) | 0.819 in H2O (204.0 Pa) | Ball | Blower | Locked Rotor Protection, Speed Sensor (Tach) | 48.5dB(A) | 6.24 W | 3300 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.386 lb (175.09 g) |
|
|
109BM24GD2-1FAN BLOWER 97.2X33MM 24VDC WIRE |
2,843 | 21.91 |
|
Datasheet |
San Ace B97 | Box | Active | 24VDC | Rectangular/Rounded - 97.2mm L x 94.5mm H | 33.00mm | 28.9 CFM (0.809m³/min) | 1.129 in H2O (281.0 Pa) | Ball | Blower | Locked Rotor Sensor | 51.5dB(A) | 7.44 W | 3800 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.386 lb (175.09 g) |
|
|
OD8038-48HHBVXE10AThermal Products |
2,607 | 0.00 |
|
Datasheet |
OD8038 | Bulk | Active | 48VDC | Square - 80mm L x 80mm H | 38.00mm | 130.0 CFM (3.64m³/min) | 2.000 in H2O (498.2 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 66.5dB(A) | 43.2 W | 8925 RPM | 4 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | - |
|
|
CFM-9225BG68-250-502-22DC AXIAL FAN, 92 MM SQUARE, 25 M |
3,373 | 0.00 |
|
Datasheet |
CFM-92BG68 | Box | Active | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 88.1 CFM (2.47m³/min) | 0.560 in H2O (139.5 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 50.2dB(A) | 7.92 W | 5000 RPM | 4 Wire Leads | IP68 - Dust Tight, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-8025BG68-270-524-22DC AXIAL FAN, 80 MM SQUARE, 25 M |
3,348 | 0.00 |
|
Datasheet |
CFM-80BG68 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 25.40mm | 73.6 CFM (2.06m³/min) | 0.830 in H2O (206.7 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 52.4dB(A) | 8.64 W | 7000 RPM | 4 Wire Leads | IP68 - Dust Tight, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-8025BG68-170-524-22DC AXIAL FAN, 80 MM SQUARE, 25 M |
3,465 | 0.00 |
|
Datasheet |
CFM-80BG68 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.40mm | 73.6 CFM (2.06m³/min) | 0.830 in H2O (206.7 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 52.4dB(A) | 8.64 W | 7000 RPM | 4 Wire Leads | IP68 - Dust Tight, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
9GA0612P1J031FAN AXIAL 60X38MM 12VDC WIRE |
3,636 | 15.92 |
|
Datasheet |
San Ace 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 38.00mm | 62.0 CFM (1.74m³/min) | 3.290 in H2O (820.0 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 63.0dB(A) | 18 W | 17500 RPM | 4 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.287 lb (130.18 g) |
|
|
CFM-9225BG68-257-533-20DC AXIAL FAN, 92 MM SQUARE, 25 M |
1,173 | 0.00 |
|
Datasheet |
CFM-92BG68 | Box | Active | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 101.2 CFM (2.83m³/min) | 0.720 in H2O (179.3 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 53.3dB(A) | 11.28 W | 5700 RPM | 3 Wire Leads | IP68 - Dust Tight, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-9225BG68-157-533-20DC AXIAL FAN, 92 MM SQUARE, 25 M |
3,951 | 0.00 |
|
Datasheet |
CFM-92BG68 | Box | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 101.2 CFM (2.83m³/min) | 0.720 in H2O (179.3 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 53.3dB(A) | 11.16 W | 5700 RPM | 3 Wire Leads | IP68 - Dust Tight, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
9WF0824S4D01FAN AXIAL 80X25MM 24VDC WIRE |
1,759 | 24.05 |
|
Datasheet |
San Ace 80WF | Box | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 42.4 CFM (1.19m³/min) | 0.230 in H2O (57.3 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 38.0dB(A) | 3.84 W | 4000 RPM | 3 Wire Leads | Oil Resistant | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.287 lb (130.18 g) |
|
|
PFB0824GHEP0AXIAL 80X38 24VPWM |
1,785 | 0.00 |
|
Datasheet |
PFB | Box | Active | 24VDC | Square - 80mm L x 80mm H | 38.00mm | 86.4 CFM (2.45m³/min) | 0.898 in H2O (223.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 55.5dB(A) | 10.8 W | 6100 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CE, cURus, VDE | - |
|
|
CFM-9238BF-265-535-20DC AXIAL FAN, 92 MM SQUARE, 38 M |
4,709 | 0.00 |
|
Datasheet |
CFM-92BF | Box | Active | 24VDC | Square - 92mm L x 92mm H | 38.00mm | 88.3 CFM (2.50m³/min) | 1.040 in H2O (258.0 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 53.5dB(A) | 4.2 W | 6500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
