DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
CFR3B12H-SFAN BLOWER CF 94.5X23.5MM 12VDC/ |
3,825 | 0.00 |
|
Datasheet |
CFR3B | Tape & Box (TB) | Active | 12VDC | Rectangular - 94.5mm L x 23mm H | 23.50mm | 8.0 CFM (0.224m³/min) | - | Ball | Blower, Cross Flow | - | 23.0dB | 1.1 A | 5500 RPM | - | - | -10°C ~ 70°C | CE, cUL, TUV, UL | - |
|
GE92254B1-000U-AC9FAN AXIAL 92X25MM 48VDC WIRE |
1,104 | 39.50 |
|
Datasheet |
GE | Bulk | Obsolete | 48VDC | Square - 92mm L x 92mm H | 25.00mm | 75.0 CFM (2.10m³/min) | 0.350 in H2O (87.2 Pa) | Ball | Tubeaxial | - | 47.0dB(A) | 6 W | 4500 RPM | 2 Wire Leads | IP56 - Dust Protected, Water Resistant | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.249 lb (112.94 g) |
|
EYW12038048BM-12FAN AXIAL 120X38MM 48VDC WIRE |
1,753 | 31.86 |
|
Datasheet |
EYW12038 | Box | Active | 48VDC | Square - 120mm L x 120mm H | 38.00mm | 194.0 CFM (5.43m³/min) | 1.150 in H2O (286.5 Pa) | Ball | Tubeaxial | - | 60.4dB(A) | 26.4 W | 5000 RPM | 2 Wire Leads | - | - | - | - |
|
|
EYW12038048BS-12FAN AXIAL 120X38MM 48VDC WIRE |
4,427 | 31.86 |
|
Datasheet |
EYW12038 | Box | Active | 48VDC | Square - 120mm L x 120mm H | 38.00mm | 275.6 CFM (7.72m³/min) | 2.400 in H2O (597.8 Pa) | Ball | Tubeaxial | - | 69.2dB(A) | 67.2 W | 7000 RPM | 2 Wire Leads | - | - | - | - |
|
EYW09238048BH-EAK-12FAN AXIAL 92X38MM 48VDC WIRE |
3,875 | 31.94 |
|
Datasheet |
EYW09238 | Box | Active | 48VDC | Square - 92mm L x 92mm H | 38.00mm | 113.6 CFM (3.18m³/min) | 1.900 in H2O (473.3 Pa) | Ball | Tubeaxial | - | 57.5dB(A) | 12.96 W | 8000 RPM | 2 Wire Leads | - | - | - | - |
|
|
EYW09238024BH-EAK-12FAN AXIAL 92X38MM 24VDC WIRE |
1,096 | 31.94 |
|
Datasheet |
EYW09238 | Box | Active | 24VDC | Square - 92mm L x 92mm H | 38.00mm | 113.6 CFM (3.18m³/min) | 1.900 in H2O (473.3 Pa) | Ball | Tubeaxial | - | 57.5dB(A) | 12.72 W | 8000 RPM | 2 Wire Leads | - | - | - | - |
|
EFH0961B1-C01U-G99DC BLOWER, 165.4X169.5X95.8MM, 2 |
3,938 | 42.12 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

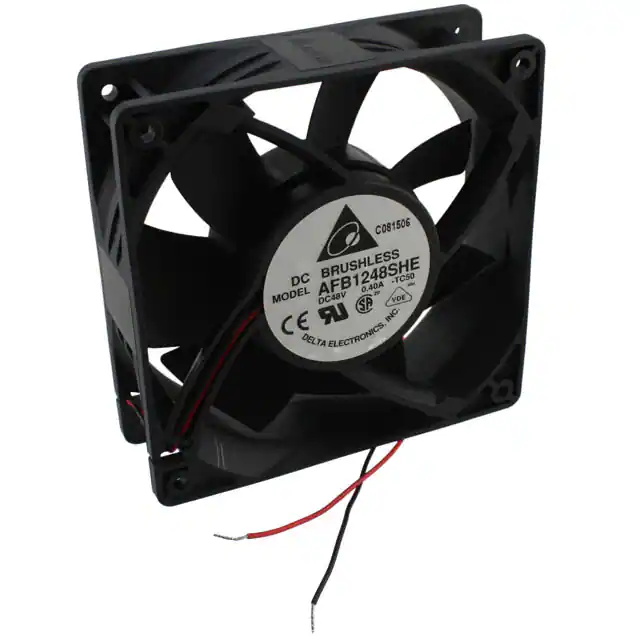

AFB1248SHE-TC50FAN AXIAL 120X38MM 48VDC WIRE |
3,514 | 40.36 |
|
Datasheet |
AFB | Bulk | Obsolete | 48VDC | Square - 120mm L x 120mm H | 38.00mm | 190.5 CFM (5.33m³/min) | 0.694 in H2O (173.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 55.5dB(A) | 14.88 W | 4100 RPM | 2 Wire Leads | IP55 - Dust Protected, Water Resistant | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.728 lb (330.22 g) |
|
4214NGMLFAN AXIAL 119X38MM 24VDC WIRE |
1,693 | 38.68 |
|
Datasheet |
4200N | Bulk | Obsolete | 24VDC | Square - 119mm L x 119mm H | 38.00mm | 74.7 CFM (2.09m³/min) | - | Sintec | Tubeaxial | - | 35.0dB(A) | 2.3 W | 2150 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | - | 0.507 lb (229.97 g) |
|
|
9WPA0612H4001160X25MM 12VDC IP68 HIGH PERF RBL |
1,145 | 0.00 |
|
Datasheet |
San Ace 60W | Box | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | - | - | - | 3 Wire Leads | IP68 - Dust Tight, Waterproof | - | cURus, TUV | - |
|
|
FD8025B12W11-3R21DC Fan 80x80x25mm 12VDC |
1,211 | 0.00 |
|
Datasheet |
96 | Tape & Box (TB) | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 59.0 CFM (1.65m³/min) | 0.335 in H2O (83.4 Pa) | Ball | Tubeaxial | - | 44.0dB(A) | 5.4 W | 4500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cUL, TUV, UL | 0.553 lb (250.84 g) |
|
|
OD1238-12HBVXE10AFAN 12VDC 120X38MM PWM/TACH |
1,537 | 0.00 |
|
Datasheet |
OD1238 | Box | Active | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 235.5 CFM (6.59m³/min) | 1.600 in H2O (398.6 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 60.6dB(A) | 46.3 W | 4925 RPM | 4 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | - |
|
|
OD1238-24HBVXE10AFAN 24VDC 120X38MM PWM/TACH |
2,771 | 0.00 |
|
Datasheet |
OD1238 | Box | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 235.5 CFM (6.59m³/min) | 1.600 in H2O (398.6 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 60.4dB(A) | 46.3 W | 4925 RPM | 4 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | - |
|
|
EYW09238012BE-12FAN AXIAL 92X38MM 12VDC WIRE |
4,855 | 34.28 |
|
Datasheet |
EYW09238 | Box | Active | 12VDC | Square - 92mm L x 92mm H | 38.00mm | 184.4 CFM (5.16m³/min) | 3.110 in H2O (774.7 Pa) | Ball | Tubeaxial | - | 67.5dB(A) | 52.8 W | 12500 RPM | 2 Wire Leads | - | - | - | - |
|
|
EYW09238024BE-12FAN AXIAL 92X38MM 24VDC WIRE |
3,986 | 34.28 |
|
Datasheet |
EYW09238 | Box | Active | 24VDC | Square - 92mm L x 92mm H | 38.00mm | 193.0 CFM (5.40m³/min) | 4.083 in H2O (1016.9 Pa) | Ball | Tubeaxial | - | 68.5dB(A) | 52.8 W | 13500 RPM | 2 Wire Leads | - | - | - | - |
|
|
EYW09238048BE-12FAN AXIAL 92X38MM 48VDC WIRE |
4,365 | 34.28 |
|
Datasheet |
EYW09238 | Box | Active | 48VDC | Square - 92mm L x 92mm H | 38.00mm | 192.9 CFM (5.4m³/min) | 4.083 in H2O (1016.9 Pa) | Ball | Tubeaxial | - | 68.5dB(A) | 52.8 W | 13500 RPM | 2 Wire Leads | - | - | - | - |
|
|
OD1238-48HBVXEFAN AXIAL 120X38MM 48VDC WIRE |
3,979 | 45.29 |
|
Datasheet |
OD1238 | Box | Active | 48VDC | Square - 120mm L x 120mm H | 38.00mm | 235.5 CFM (6.59m³/min) | 1.600 in H2O (398.6 Pa) | Ball | Tubeaxial | Auto Restart | 60.6dB(A) | 45.1 W | 4925 RPM | 2 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | - |
|
|
4412LLU-611FAN AXIAL 119X38MM 12VDC WIRE |
3,764 | 55.35 |
|
- |
4400L | Bulk | Obsolete | 12VDC | Square - 119mm L x 119mm H | 38.00mm | 70.0 CFM (1.96m³/min) | 0.173 in H2O (43.1 Pa) | Ball | Tubeaxial | Auto Restart | 31.0dB(A) | 1.6 W | 2150 RPM | 2 Wire Leads | - | 32 ~ 158°F (0 ~ 70°C) | CE, CSA, UL, VDE | - |
|
|
XYW17251024BL-6172X51MM 24V BALL 3000RPM W/AR, |
1,372 | 70.00 |
|
- |
* | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
4412/12MFAN AXIAL 119X38MM 12VDC WIRE |
3,081 | 56.58 |
|
Datasheet |
4400 | Bulk | Obsolete | 12VDC | Square - 119mm L x 119mm H | 38.00mm | 108.0 CFM (3.02m³/min) | - | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 42.0dB(A) | 4.1 W | 3300 RPM | 3 Wire Leads | - | -4 ~ 167°F (-20 ~ 75°C) | - | 0.553 lb (250.84 g) |
