DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

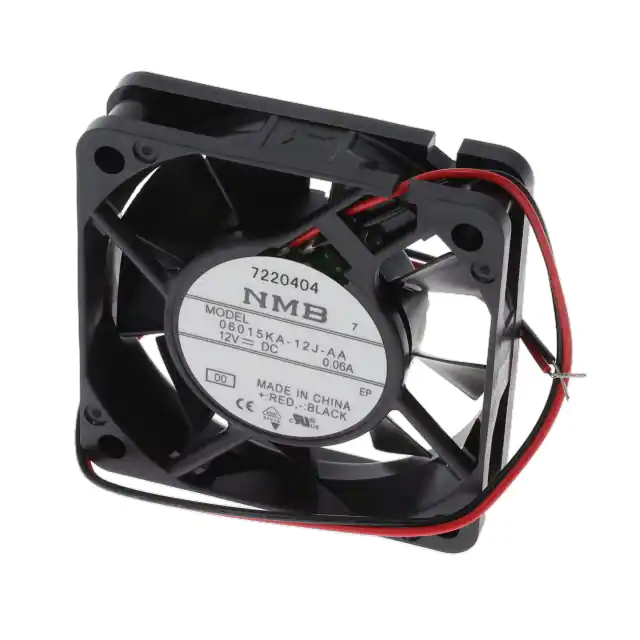

06015KA-12J-AA-00FAN AXIAL 60X15MM 12VDC WIRE |
4,829 | 11.23 |
|
Datasheet |
06015KA | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 15.00mm | 6.7 CFM (0.188m³/min) | 0.034 in H2O (8.5 Pa) | Ball | Tubeaxial | Auto Restart | 19.0dB | 480 mW | 1800 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | - | - |
|
BFB03505HHA-CR00FAN BLOWER 35X10MM 5VDC WIRE |
4,686 | 11.41 |
|
Datasheet |
BFB | Bulk | Active | 5VDC | Square - 35mm L x 35mm H | 10.00mm | 2.1 CFM (0.059m³/min) | 0.443 in H2O (110.3 Pa) | Ball | Blower | Locked Rotor Sensor | 31.0dB(A) | 1.15 W | 8500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.025 lb (11.34 g) |
|
|
BFB0305HA-CR00FAN BLOWER 30X10MM 5VDC WIRE |
3,945 | 11.41 |
|
Datasheet |
BFB | Bulk | Active | 5VDC | Square - 30mm L x 30mm H | 10.00mm | 1.5 CFM (0.042m³/min) | 0.285 in H2O (71.0 Pa) | Ball | Blower | Locked Rotor Sensor | 29.0dB(A) | 650 mW | 7500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.023 lb (10.43 g) |
|
|
BFB0305HHA-CR00FAN BLOWER 30X10MM 5VDC WIRE |
4,668 | 11.41 |
|
Datasheet |
BFB | Bulk | Active | 5VDC | Square - 30mm L x 30mm H | 10.00mm | 1.7 CFM (0.046m³/min) | 0.370 in H2O (92.2 Pa) | Ball | Blower | Locked Rotor Sensor | 29.0dB(A) | 1.15 W | 8500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.025 lb (11.34 g) |
|

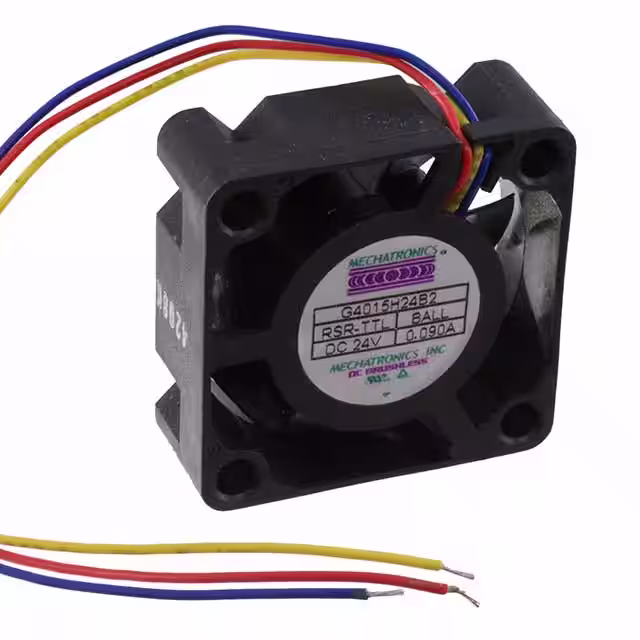

G4015H24B2-RSR-TTLFAN AXIAL 40X15MM 24VDC WIRE |
2,483 | 11.27 |
|
Datasheet |
G4015 | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 15.00mm | 8.0 CFM (0.224m³/min) | 0.290 in H2O (72.2 Pa) | Ball | Tubeaxial | Locked Rotor Sensor, Thermal Overload Protector (TOP) | 29.0dB(A) | - | 8000 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 0.051 lb (23.13 g) |
|

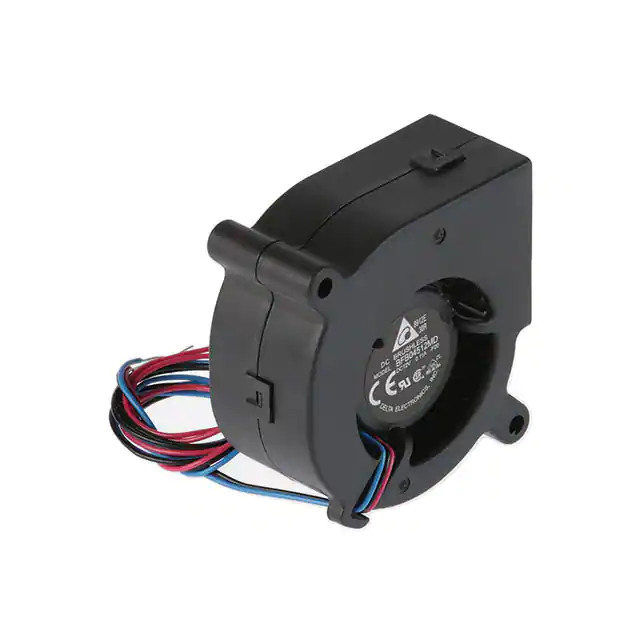

BFB04512MD-F00FAN BLOWER 45X20MM 12VDC WIRE |
2,505 | 15.43 |
|
Datasheet |
BFB | Box | Active | 12VDC | Square/Rounded - 45mm L x 45mm H | 20.00mm | 4.2 CFM (0.118m³/min) | 0.269 in H2O (67.0 Pa) | Ball | Blower | Locked Rotor Protection, Speed Sensor (Tach) | 21.0dB(A) | 840 mW | 3300 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.038 lb (17.24 g) |
|
109P0612M701FAN AXIAL 60X15MM 12VDC WIRE |
1,521 | 13.38 |
|
Datasheet |
San Ace 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 15.00mm | 10.6 CFM (0.297m³/min) | 0.091 in H2O (22.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.0dB(A) | 840 mW | 3100 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.133 lb (60.33 g) |
|
CFM-A225V-222-340-20FAN AXIAL 120X25MM 24VDC WIRE |
3,092 | 14.91 |
|
Datasheet |
CFM-120V | Tray | Active | 24VDC | Square - 120mm L x 120mm H | 25.00mm | 75.0 CFM (2.10m³/min) | 0.160 in H2O (40.0 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 34.0dB(A) | 2.32 W | 2200 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.357 lb (161.93 g) |
|
109P0412F302FAN AXIAL 40X28MM 12VDC WIRE |
1,898 | 13.71 |
|
Datasheet |
San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 28.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection | 30.0dB(A) | 1.26 W | 6700 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.115 lb (52.16 g) |
|
E9225H12B-FSR-CCFAN AXIAL 92X25MM 12VDC WIRE |
2,055 | 14.41 |
|
Datasheet |
E9225 | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 51.0 CFM (1.43m³/min) | 0.240 in H2O (59.8 Pa) | Ball | Tubeaxial | Conformal Coating, Thermal Overload Protector (TOP) | 36.0dB(A) | - | 3200 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.245 lb (111.13 g) |
|
109P0812H602FAN AXIAL 80X20MM 12VDC WIRE |
3,212 | 13.58 |
|
Datasheet |
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 20.00mm | 29.7 CFM (0.832m³/min) | 0.118 in H2O (29.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 31.0dB(A) | 2.52 W | 2900 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.222 lb (100.7 g) |
|
B6012M24D-BSRFAN BLOWER 60X12MM 24VDC WIRE |
1,367 | 14.23 |
|
Datasheet |
B6012 | Bulk | Active | 24VDC | Square/Rounded - 60mm L x 60mm H | 12.00mm | 5.0 CFM (0.140m³/min) | 0.300 in H2O (74.7 Pa) | Sleeve | Blower | Thermal Overload Protector (TOP) | 34.0dB(A) | - | 3600 RPM | 2 Wire Leads | - | - | - | 0.057 lb (25.85 g) |
|
109P0412M602FAN AXIAL 40X20MM 12VDC WIRE |
4,201 | 13.55 |
|
Datasheet |
San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 4.8 CFM (0.134m³/min) | 0.106 in H2O (26.4 Pa) | Ball | Tubeaxial | - | 24.0dB(A) | 720 mW | 5000 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.101 lb (45.81 g) |
|
109P0424H3D01FAN AXIAL 40X28MM 24VDC WIRE |
3,905 | 14.04 |
|
Datasheet |
San Ace 40 | Box | Active | 24VDC | Square - 40mm L x 40mm H | 28.00mm | 11.3 CFM (0.316m³/min) | - | Ball | Tubeaxial | Locked Rotor Sensor | 37.0dB(A) | 2.28 W | 8700 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.115 lb (52.16 g) |
|

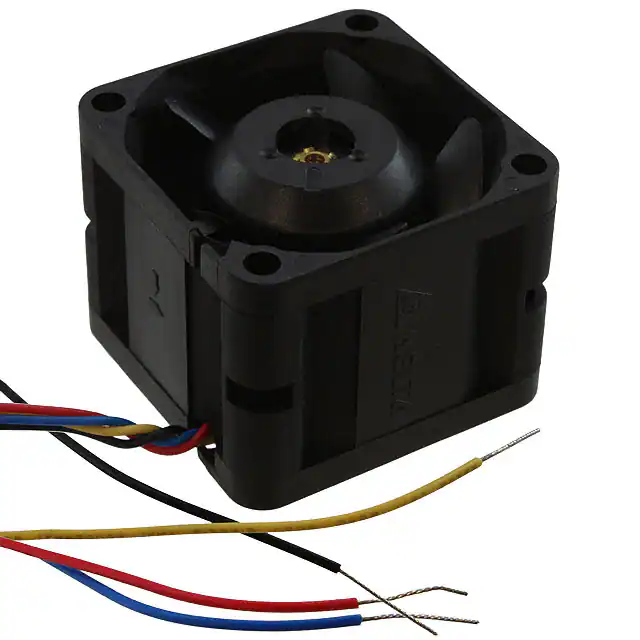

FFB03612EHN-BGAFAN AXIAL 36X28MM 12VDC WIRE |
1,921 | 15.38 |
|
Datasheet |
FFB | Box | Not For New Designs | 12VDC | Square - 36mm L x 36mm H | 28.00mm | 16.3 CFM (0.456m³/min) | 1.000 in H2O (249.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 50.0dB(A) | 3.96 W | 14500 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.071 lb (32.21 g) |
|

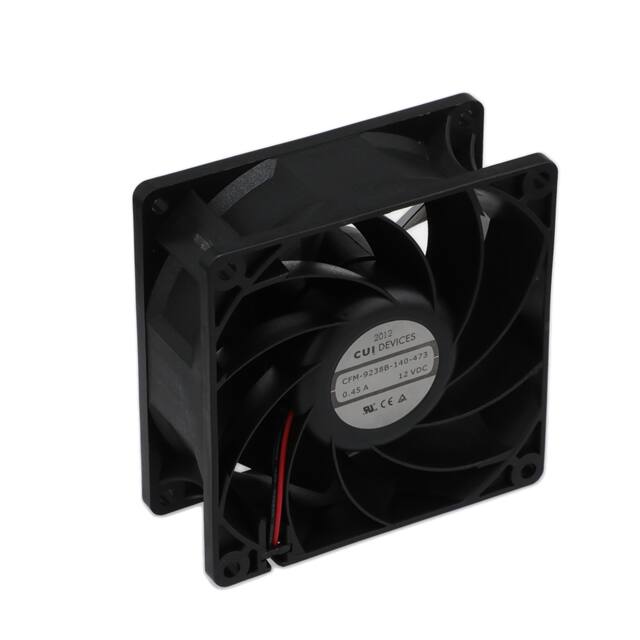

CFM-9238B-140-473FAN AXIAL 92X37.5MM 12VDC WIRE |
4,890 | 15.18 |
|
Datasheet |
CFM-92B | Box | Active | 12VDC | Square - 92mm L x 92mm H | 37.50mm | 76.9 CFM (2.15m³/min) | 0.440 in H2O (109.6 Pa) | Ball | Tubeaxial | Auto Restart | 47.3dB(A) | 6.48 W | 4000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
06020VA-24Q-CAS-0FAN AXIAL 60X20MM 24VDC WIRE |
1,689 | 15.62 |
|
Datasheet |
06020VA | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 20.00mm | 24.7 CFM (0.692m³/min) | 0.400 in H2O (99.6 Pa) | Ball | Tubeaxial | - | 42.0dB | 3.6 W | 6900 RPM | 2 Wire Leads | IP69K - Dust Tight, High Temp Water Jets, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | - | 0.176 lb (79.83 g) |
|
F6025M24B1+6-FSRFAN AXIAL 60X25MM 24VDC WIRE |
4,773 | 15.06 |
|
Datasheet |
F6025 | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 17.0 CFM (0.476m³/min) | 0.130 in H2O (32.4 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 27.0dB(A) | - | 3300 RPM | 4 Wire Leads | - | - | CE, cUL, TUV, UL | 0.139 lb (63.05 g) |
|
109R0605F402FAN AXIAL 60X25MM BALL 5VDC WIRE |
1,802 | 14.04 |
|
Datasheet |
San Ace 60 | Box | Active | 5VDC | Square - 60mm L x 60mm H | 25.00mm | 15.5 CFM (0.434m³/min) | 0.118 in H2O (29.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 24.0dB(A) | 1 W | 3200 RPM | 2 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.199 lb (90.26 g) |
|
F6025X12B-FHR-EMFAN AXIAL 60X25MM 12VDC WIRE |
4,409 | 15.06 |
|
Datasheet |
F6025-H | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 28.0 CFM (0.784m³/min) | 0.370 in H2O (92.2 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 42.0dB(A) | - | 5800 RPM | 2 Wire Leads | IP57 - Dust Protected, Waterproof | - | CE, cUL, TUV, UL | 0.139 lb (63.05 g) |
