DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
KD1205PHS3 HFAN AXIAL 52X15MM 12VDC WIRE |
3,724 | 0.00 |
|
Datasheet |
KD | - | Obsolete | 12VDC | Square - 52mm L x 52mm H | 15.00mm | 7.6 CFM (0.213m³/min) | - | Sleeve | Tubeaxial | - | - | 900 mW | - | 2 Wire Leads | - | - | CE, CUR, TUV, UL | - |
|

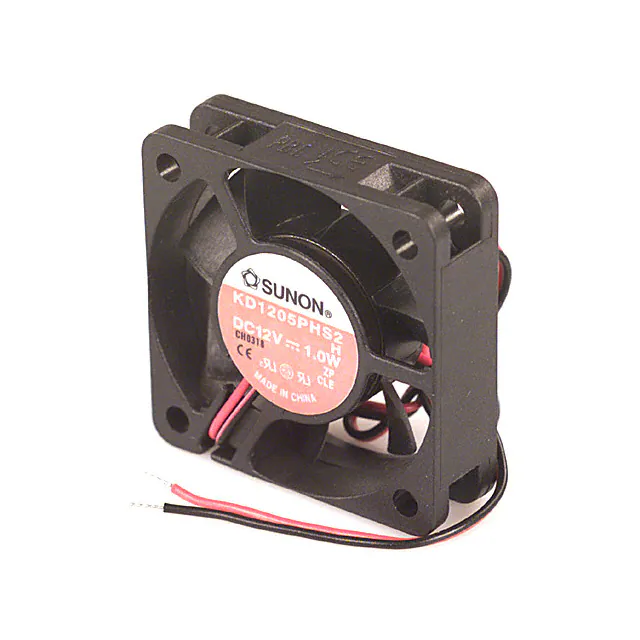

KD1205PHS2 HFAN AXIAL 50X15MM 12VDC WIRE |
2,832 | 0.00 |
|
Datasheet |
KD | - | Obsolete | 12VDC | Square - 50mm L x 50mm H | 15.00mm | 13.0 CFM (0.364m³/min) | 0.170 in H2O (42.3 Pa) | Sleeve | Tubeaxial | - | 29.0dB(A) | 1 W | 4700 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.081 lb (36.74 g) |
|

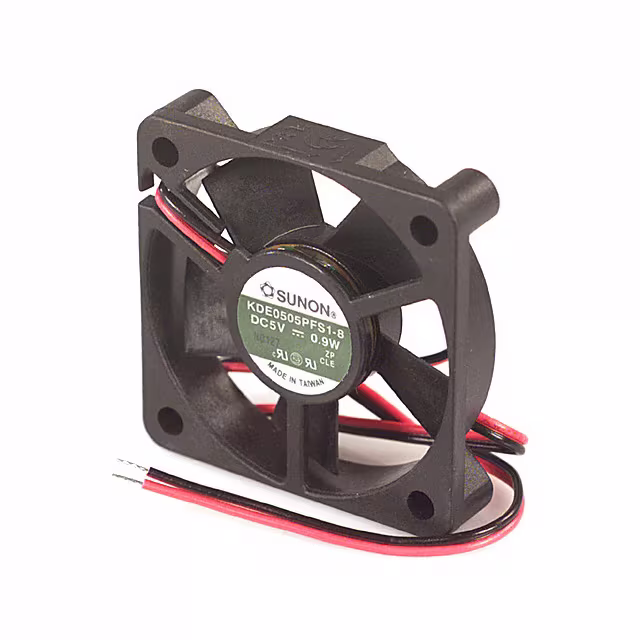

KDE0505PFS1-8FAN AXIAL 50X10.5MM 5VDC WIRE |
1,991 | 0.00 |
|
Datasheet |
KDE | - | Obsolete | 5VDC | Square - 50mm L x 50mm H | 10.50mm | 9.6 CFM (0.269m³/min) | 0.105 in H2O (26.1 Pa) | Sleeve | Tubeaxial | - | 30.5dB(A) | 900 mW | 5100 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cUR, UL | 0.053 lb (24.04 g) |
|

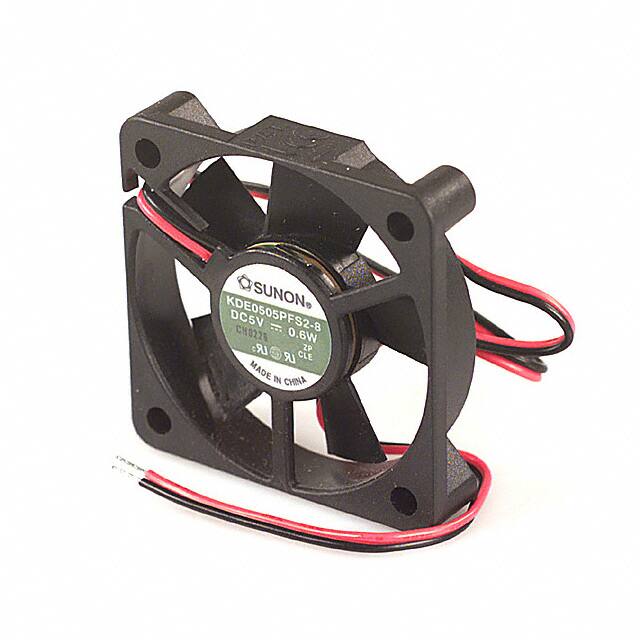

KDE0505PFS2-8FAN AXIAL 50X10MM 5VDC WIRE |
4,457 | 0.00 |
|
Datasheet |
KDE | - | Obsolete | 5VDC | Square - 50mm L x 50mm H | 10.00mm | 8.0 CFM (0.224m³/min) | 0.090 in H2O (22.4 Pa) | Sleeve | Tubeaxial | - | 29.0dB(A) | 600 mW | 4300 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cUR, UL | 0.053 lb (24.04 g) |
|

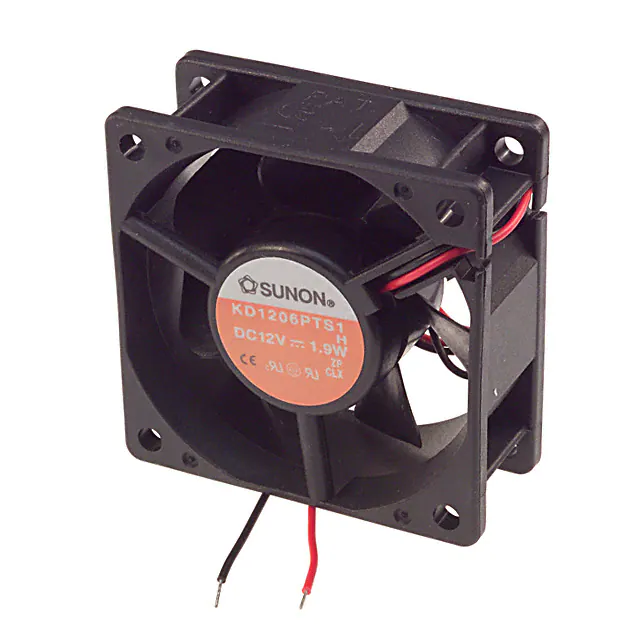

KD1206PTS1 HFAN AXIAL 60X25.5MM 12VDC WIRE |
3,313 | 0.00 |
|
Datasheet |
KD | - | Obsolete | 12VDC | Square - 60mm L x 60mm H | 25.50mm | 22.5 CFM (0.630m³/min) | 0.200 in H2O (49.8 Pa) | Sleeve | Tubeaxial | - | 33.5dB(A) | 1.9 W | 4300 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, TUV, UL | 0.13 lb (58.97 g) |
|
|
KD1206PTS2 HFAN AXIAL 60X25.5MM 12VDC WIRE |
2,196 | 0.00 |
|
Datasheet |
KD | - | Obsolete | 12VDC | Square - 60mm L x 60mm H | 25.50mm | 18.0 CFM (0.504m³/min) | 0.150 in H2O (37.4 Pa) | Sleeve | Tubeaxial | - | 29.0dB(A) | 1.3 W | 3700 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, TUV, UL | 0.13 lb (58.97 g) |
|
|
KD1206PTS3. HFAN AXIAL 60X25.5MM 12VDC WIRE |
4,040 | 0.00 |
|
Datasheet |
KD | - | Obsolete | 12VDC | Square - 60mm L x 60mm H | 25.50mm | 16.0 CFM (0.448m³/min) | 0.100 in H2O (24.9 Pa) | Sleeve | Tubeaxial | - | 25.0dB(A) | 800 mW | 3100 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, TUV, UL | 0.13 lb (58.97 g) |
|

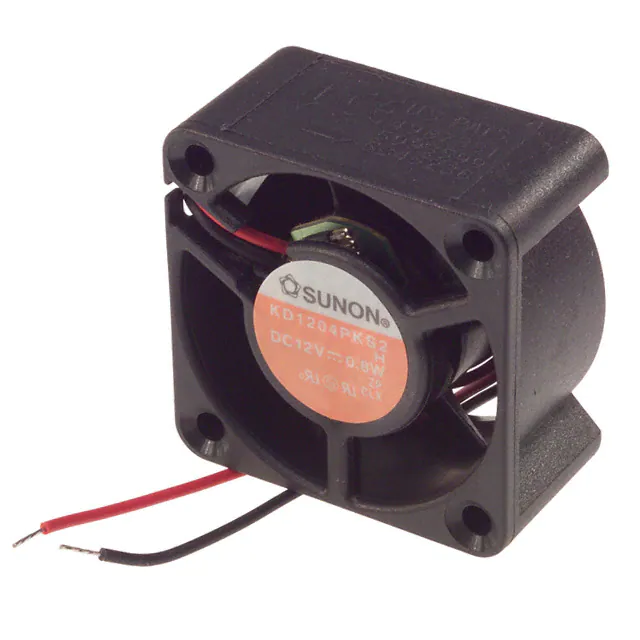

KD1204PKS2 HFAN AXIAL 40X20MM 12VDC WIRE |
4,614 | 0.00 |
|
Datasheet |
KD | - | Obsolete | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 7.7 CFM (0.216m³/min) | 0.160 in H2O (39.8 Pa) | Sleeve | Tubeaxial | - | 21.0dB(A) | 800 mW | 6200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.062 lb (28.12 g) |
|
|
KD1206PHS1 HFAN AXIAL 60X15MM 12VDC WIRE |
1,949 | 0.00 |
|
Datasheet |
KD | - | Obsolete | 12VDC | Square - 60mm L x 60mm H | 15.00mm | 21.0 CFM (0.588m³/min) | 0.180 in H2O (44.8 Pa) | Sleeve | Tubeaxial | - | 36.0dB(A) | 1.8 W | 4300 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, TUV, UL | 0.086 lb (39.01 g) |
|
|
KD1206PHS3-HFAN AXIAL 60X15MM 12VDC WIRE |
2,906 | 0.00 |
|
Datasheet |
KD | - | Obsolete | 12VDC | Square - 60mm L x 60mm H | 15.00mm | 15.0 CFM (0.420m³/min) | 0.120 in H2O (29.9 Pa) | Sleeve | Tubeaxial | - | 25.0dB(A) | 700 mW | 3000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, TUV, UL | 0.086 lb (39.01 g) |
|
|
KD1206PHS2 HFAN AXIAL 60X15MM 12VDC WIRE |
3,683 | 0.00 |
|
Datasheet |
KD | - | Obsolete | 12VDC | Square - 60mm L x 60mm H | 15.00mm | 18.0 CFM (0.504m³/min) | 0.140 in H2O (34.9 Pa) | Sleeve | Tubeaxial | - | 31.0dB(A) | 1.1 W | 3800 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, TUV, UL | 0.086 lb (39.01 g) |
|
|
KD0504PFS2.11.GNFAN AXIAL 40X10MM 5VDC WIRE |
4,696 | 0.00 |
|
Datasheet |
KD | Bulk | Obsolete | 5VDC | Square - 40mm L x 40mm H | 10.00mm | 7.0 CFM (0.196m³/min) | 0.130 in H2O (32.4 Pa) | Sleeve | Tubeaxial | - | 27.0dB(A) | 800 mW | 5800 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.037 lb (16.78 g) |
|
|
KD1208PTS1.13.GNFAN AXIAL 80X25MM 12VDC WIRE |
3,432 | 0.00 |
|
Datasheet |
KD | Bulk | Obsolete | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 40.0 CFM (1.12m³/min) | - | Sleeve | Tubeaxial | - | - | 2.6 W | - | 2 Wire Leads | - | - | CE, CUR, TUV, UL | - |
|
|
KDE2406PHS2FAN AXIAL 60X15.5MM 24VDC WIRE |
2,071 | 0.00 |
|
Datasheet |
KDE | - | Obsolete | 24VDC | Square - 60mm L x 60mm H | 15.50mm | 17.8 CFM (0.498m³/min) | 0.135 in H2O (33.6 Pa) | Sleeve | Tubeaxial | - | 31.0dB(A) | 1.9 W | 4000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, TUV, UL | 0.099 lb (44.91 g) |
|
FAD1-04020BSAW11FAN AXIAL 40X20MM 5VDC WIRE |
3,062 | 0.00 |
|
Datasheet |
FAD1-04020 | Bulk | Obsolete | 5VDC | Square - 40mm L x 40mm H | 20.00mm | 4.5 CFM (0.126m³/min) | 0.080 in H2O (19.9 Pa) | Sleeve | Tubeaxial | - | 17.5dB(A) | 450 mW | 4200 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, cURus, TUV | 0.062 lb (28.12 g) |
|
|
FAD1-04020BSLW11FAN AXIAL 40X20MM 5VDC WIRE |
4,097 | 0.00 |
|
Datasheet |
FAD1-04020 | Bulk | Obsolete | 5VDC | Square - 40mm L x 40mm H | 20.00mm | 7.0 CFM (0.196m³/min) | 0.165 in H2O (41.1 Pa) | Sleeve | Tubeaxial | - | 30.0dB(A) | 700 mW | 6200 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, cURus, TUV | 0.062 lb (28.12 g) |
|
|
FAD1-04020BSMW11FAN AXIAL 40X20MM 5VDC WIRE |
2,300 | 0.00 |
|
Datasheet |
FAD1-04020 | Bulk | Obsolete | 5VDC | Square - 40mm L x 40mm H | 20.00mm | 7.7 CFM (0.216m³/min) | 0.200 in H2O (49.8 Pa) | Sleeve | Tubeaxial | - | 33.0dB(A) | 800 mW | 6900 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, cURus, TUV | 0.062 lb (28.12 g) |
|
|
FAD1-04020BSHW11FAN AXIAL 40X20MM 5VDC WIRE |
2,209 | 0.00 |
|
Datasheet |
FAD1-04020 | Bulk | Obsolete | 5VDC | Square - 40mm L x 40mm H | 20.00mm | 8.8 CFM (0.246m³/min) | 0.280 in H2O (69.7 Pa) | Sleeve | Tubeaxial | - | 36.0dB(A) | 1.25 W | 7800 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, cURus, TUV | 0.062 lb (28.12 g) |
|
|
FAD1-04020CSLW11FAN AXIAL 40X20MM 12VDC WIRE |
3,147 | 0.00 |
|
Datasheet |
FAD1-04020 | Bulk | Obsolete | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 7.0 CFM (0.196m³/min) | 0.165 in H2O (41.1 Pa) | Sleeve | Tubeaxial | - | 30.0dB(A) | 840 mW | 6200 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, cURus, TUV | 0.062 lb (28.12 g) |
|
|
FAD1-04020CSMW11FAN AXIAL 40X20MM 12VDC WIRE |
4,107 | 0.00 |
|
Datasheet |
FAD1-04020 | Bulk | Obsolete | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 7.7 CFM (0.216m³/min) | 0.200 in H2O (49.8 Pa) | Sleeve | Tubeaxial | - | 33.0dB(A) | 960 mW | 6900 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, cURus, TUV | 0.062 lb (28.12 g) |
