DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ME50100V1-000U-A99FAN AXIAL 50X10MM VAPO 5VDC WIRE |
4,794 | 0.00 |
|
Datasheet |
MagLev® ME | Tray | Obsolete | 5VDC | Square - 50mm L x 50mm H | 10.00mm | 13.0 CFM (0.364m³/min) | 0.140 in H2O (34.9 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 30.0dB(A) | 1.3 W | 5200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.039 lb (17.69 g) |
|

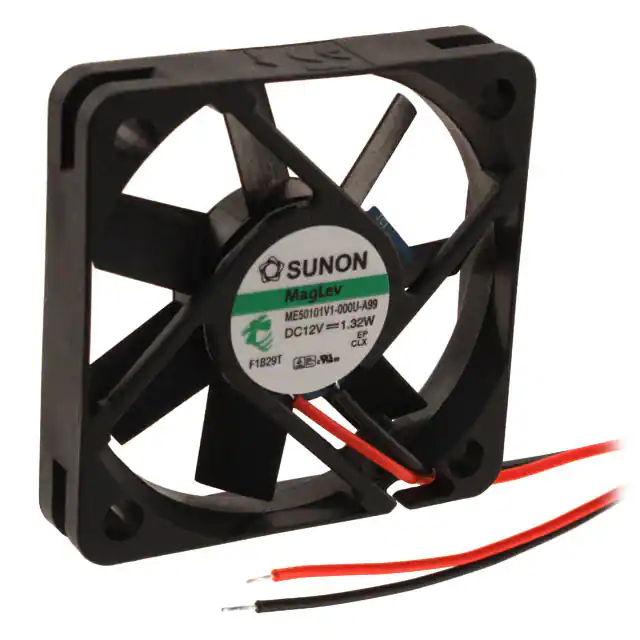

ME50101V1-000U-A99FAN AXIAL 50X10MM 12VDC WIRE |
4,378 | 0.00 |
|
Datasheet |
MagLev® ME | Tray | Obsolete | 12VDC | Square - 50mm L x 50mm H | 10.00mm | 13.8 CFM (0.386m³/min) | 0.150 in H2O (37.3 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 31.0dB(A) | 1.32 W | 5500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.039 lb (17.69 g) |
|
CFM-7015C-240-357-20DC AXIAL FAN, 70 MM SQUARE, 15 M |
2,508 | 0.00 |
|
Datasheet |
CFM-70C | Box | Active | 24VDC | Square - 70mm L x 70mm H | 15.50mm | 25.7 CFM (0.727m³/min) | 0.140 in H2O (34.9 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 35.7dB(A) | 2.88 W | 4000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
ASB0412HHA-AF00FAN AXIAL 40X10MM 12VDC WIRE |
2,407 | 0.00 |
|
Datasheet |
ASB | Box | Obsolete | 12VDC | Square - 40mm L x 40mm H | 10.00mm | 8.2 CFM (0.230m³/min) | 0.190 in H2O (47.3 Pa) | Sleeve | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 29.5dB(A) | 720 mW | 7000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.03 lb (13.61 g) |
|

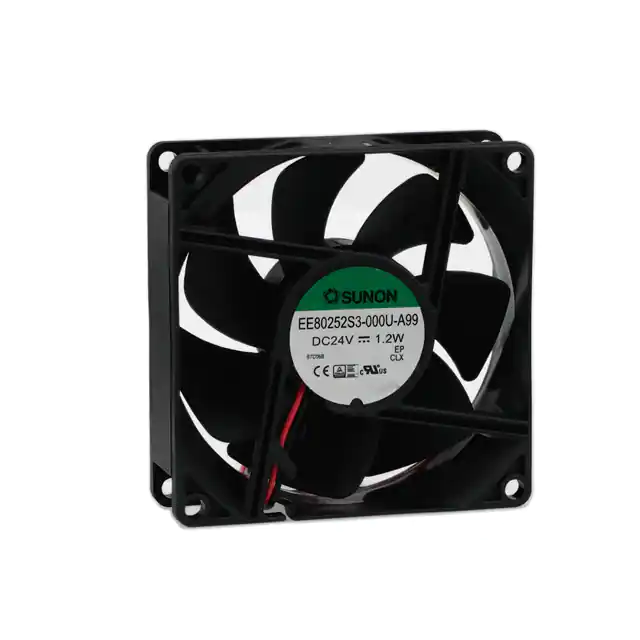

EE80252S3-000U-A99FAN AXIAL 80X25MM 24VDC WIRE |
3,510 | 0.00 |
|
- |
EE | Bulk | Obsolete | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 33.0 CFM (0.924m³/min) | 0.110 in H2O (27.4 Pa) | Sleeve | Tubeaxial | Auto Restart | 28.0dB(A) | 1.3 W | 2600 RPM | 2 Wire Leads | - | - | CE, cURus, TUV | 0.167 lb (75.75 g) |
|
CFM-9225V-127-320-11FAN AXIAL 92X25MM 12VDC WIRE |
1,331 | 4.76 |
|
Datasheet |
CFM-92V | Tray | Obsolete | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 45.0 CFM (1.26m³/min) | 0.130 in H2O (32.5 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart | 32.0dB(A) | 1.46 W | 2700 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.203 lb (92.08 g) |
|
|
CFM-9225V-130-340-11FAN AXIAL 92X25MM 12VDC WIRE |
3,125 | 4.76 |
|
Datasheet |
CFM-92V | Tray | Obsolete | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 51.5 CFM (1.44m³/min) | 0.150 in H2O (37.4 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart | 34.0dB(A) | 1.94 W | 3000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.203 lb (92.08 g) |
|
|
HA60251V4-1000U-G9912VDC FAN 60X25MM ALARM |
2,634 | 0.00 |
|
Datasheet |
HA | Box | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 13.8 CFM (0.386m³/min) | 0.060 in H2O (14.9 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 10.7dB(A) | 0.24 W | 2500 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
MF50100V1-1000U-F995VDC FAN 50X10MM TACH |
2,794 | 0.00 |
|
Datasheet |
MF | Box | Active | 5VDC | Square - 50mm L x 50mm H | 10.00mm | 13.8 CFM (0.386m³/min) | 0.150 in H2O (37.4 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Locked Rotor Sensor | 30.7dB(A) | 0.78 W | 5800 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
MF50100V2-1000U-F995VDC FAN 50X10MM TACH |
1,067 | 0.00 |
|
Datasheet |
MF | Box | Active | 5VDC | Square - 50mm L x 50mm H | 10.00mm | 11.0 CFM (0.308m³/min) | 0.110 in H2O (27.4 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Locked Rotor Sensor | 25.6dB(A) | 0.43 W | 4800 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
MF50101V2-1000U-F9912VDC FAN 50X10MM TACH |
3,957 | 0.00 |
|
Datasheet |
MF | Box | Active | 12VDC | Square - 50mm L x 50mm H | 10.00mm | 11.0 CFM (0.308m³/min) | 0.110 in H2O (27.4 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Locked Rotor Sensor | 25.6dB(A) | 0.6 W | 4800 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
MF50101V1-1000U-F9912VDC FAN 50X10MM TACH |
3,583 | 0.00 |
|
Datasheet |
MF | Box | Active | 12VDC | Square - 50mm L x 50mm H | 10.00mm | 13.8 CFM (0.386m³/min) | 0.150 in H2O (37.4 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Locked Rotor Sensor | 30.7dB(A) | 0.84 W | 5800 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
MF50101V3-1000U-F9912VDC FAN 50X10MM TACH |
1,044 | 0.00 |
|
Datasheet |
MF | Box | Active | 12VDC | Square - 50mm L x 50mm H | 10.00mm | 8.4 CFM (0.235m³/min) | 0.080 in H2O (19.9 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Locked Rotor Sensor | 22.4dB(A) | 0.45 W | 4300 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
MF50100V3-1000U-F995VDC FAN 50X10MM TACH |
1,471 | 0.00 |
|
Datasheet |
MF | Box | Active | 5VDC | Square - 50mm L x 50mm H | 10.00mm | 8.4 CFM (0.235m³/min) | 0.080 in H2O (19.9 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Locked Rotor Sensor | 22.4dB(A) | 0.38 W | 4300 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
MF45100V1-1000U-H995VDC FAN 45X10MM PWM |
3,225 | 0.00 |
|
Datasheet |
MF | Box | Active | 5VDC | Square - 45mm L x 45mm H | 10.00mm | 12.4 CFM (0.347m³/min) | 0.180 in H2O (44.8 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, PWM Control | 32.5dB(A) | 1.03 W | 6500 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
MF45100V1-1000U-F995VDC FAN 45X10MM TACH |
2,713 | 0.00 |
|
Datasheet |
MF | Box | Active | 5VDC | Square - 45mm L x 45mm H | 10.00mm | 12.4 CFM (0.347m³/min) | 0.180 in H2O (44.8 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Locked Rotor Sensor | 32.5dB(A) | 1.03 W | 6500 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
MF45101V2-1000U-F9912VDC FAN 45X10MM TACH |
2,891 | 0.00 |
|
Datasheet |
MF | Box | Active | 12VDC | Square - 45mm L x 45mm H | 10.00mm | 9.4 CFM (0.263m³/min) | 0.120 in H2O (29.9 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Locked Rotor Sensor | 26.1dB(A) | 0.57 W | 5000 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
MF45100V2-1000U-F995VDC FAN 45X10MM TACH |
1,316 | 0.00 |
|
Datasheet |
MF | Box | Active | 5VDC | Square - 45mm L x 45mm H | 10.00mm | 9.4 CFM (0.263m³/min) | 0.120 in H2O (29.9 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Locked Rotor Sensor | 26.1dB(A) | 0.51 W | 5000 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
MF45100V2-1000U-H995VDC FAN 45X10MM PWM |
4,905 | 0.00 |
|
Datasheet |
MF | Box | Active | 5VDC | Square - 45mm L x 45mm H | 10.00mm | 9.4 CFM (0.263m³/min) | 0.120 in H2O (29.9 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, PWM Control | 26.1dB(A) | 0.51 W | 5000 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
MF45101V1-1000U-H9912VDC FAN 45X10MM PWM |
3,580 | 0.00 |
|
Datasheet |
MF | Box | Active | 12VDC | Square - 45mm L x 45mm H | 10.00mm | 12.4 CFM (0.347m³/min) | 0.180 in H2O (44.8 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, PWM Control | 32.5dB(A) | 1.2 W | 6500 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
