DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
CBM-7530CF-140-454DC BLOWER, 75.7 X 75.7 X 30 MM, |
3,322 | 0.00 |
|
Datasheet |
CBM-75CF | Box | Active | 12VDC | Square/Rounded - 75.7mm L x 75.7mm H | 30.00mm | 13.6 CFM (0.381m³/min) | 0.640 in H2O (159.4 Pa) | omniCOOL™ Magnetic Sleeve | Blower | Auto Restart | 48.1dB(A) | 4.44 W | 4000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-5010C-170-361-22DC AXIAL FAN, 50 MM SQUARE, 10 M |
2,069 | 0.00 |
|
Datasheet |
CFM-50C | Box | Active | 12VDC | Square - 50mm L x 50mm H | 10.50mm | 14.0 CFM (0.392m³/min) | 0.180 in H2O (44.8 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 34.5dB(A) | 1.8 W | 6500 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|

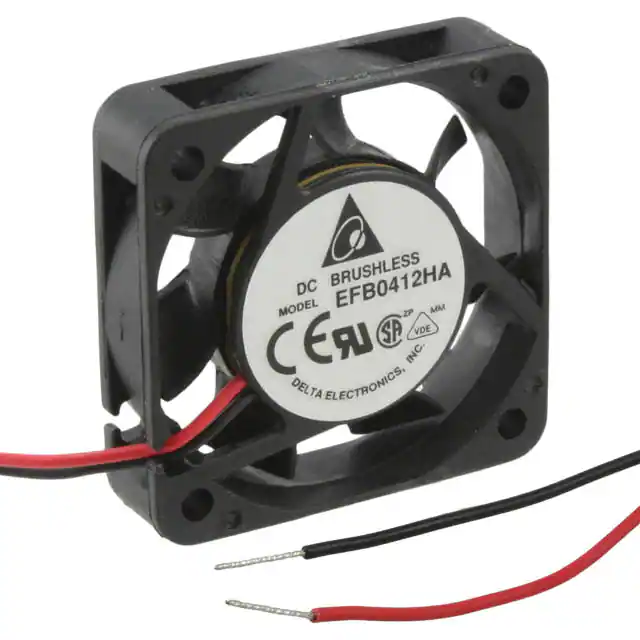

EFB0412HAFAN AXIAL 40X10MM 12VDC WIRE |
3,379 | 5.90 |
|
Datasheet |
EFB | Tray | Obsolete | 12VDC | Square - 40mm L x 40mm H | 10.00mm | 6.9 CFM (0.193m³/min) | 0.129 in H2O (32.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 28.5dB(A) | 960 mW | 6000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.032 lb (14.51 g) |
|

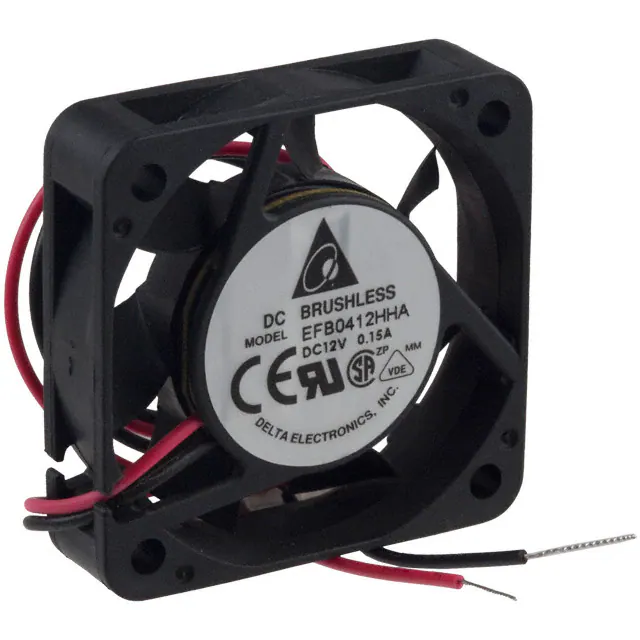

EFB0412HHAFAN AXIAL 40X10MM 12VDC WIRE |
1,689 | 5.90 |
|
Datasheet |
EFB | Box | Obsolete | 12VDC | Square - 40mm L x 40mm H | 10.00mm | 8.1 CFM (0.227m³/min) | 0.174 in H2O (43.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 33.0dB(A) | 1.2 W | 7000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.032 lb (14.51 g) |
|
EFB0405HAFAN AXIAL 40X10MM BALL 5VDC WIRE |
1,306 | 5.84 |
|
Datasheet |
EFB | Bulk | Obsolete | 5VDC | Square - 40mm L x 40mm H | 10.00mm | 6.9 CFM (0.193m³/min) | 0.129 in H2O (32.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 28.5dB(A) | 650 mW | 6000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.032 lb (14.51 g) |
|

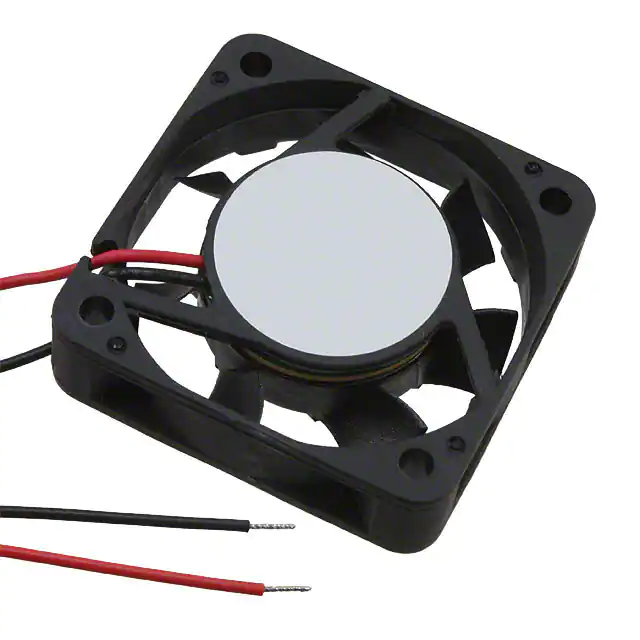

EFB0405LAFAN AXIAL 40X10MM BALL 5VDC WIRE |
4,466 | 5.84 |
|
Datasheet |
EFB | Bulk | Obsolete | 5VDC | Square - 40mm L x 40mm H | 10.00mm | 3.7 CFM (0.104m³/min) | 0.057 in H2O (14.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 20.5dB(A) | 350 mW | 4000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.032 lb (14.51 g) |
|
EFB0405MAFAN AXIAL 40X10MM BALL 5VDC WIRE |
1,410 | 5.84 |
|
Datasheet |
EFB | Box | Obsolete | 5VDC | Square - 40mm L x 40mm H | 10.00mm | 5.9 CFM (0.165m³/min) | 0.088 in H2O (21.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 24.5dB(A) | 500 mW | 5000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.032 lb (14.51 g) |
|
|
EFB0412LAFAN AXIAL 40X10MM 12VDC WIRE |
4,653 | 5.84 |
|
Datasheet |
EFB | Box | Obsolete | 12VDC | Square - 40mm L x 40mm H | 10.00mm | 3.7 CFM (0.104m³/min) | 0.057 in H2O (14.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 20.5dB(A) | 600 mW | 4000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.032 lb (14.51 g) |
|
EFB0412VHAFAN AXIAL 40X10MM 12VDC WIRE |
2,034 | 5.84 |
|
Datasheet |
EFB | Bulk | Obsolete | 12VDC | Square - 40mm L x 40mm H | 10.00mm | 9.5 CFM (0.266m³/min) | 0.228 in H2O (56.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 37.5dB(A) | 1.8 W | 8000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.032 lb (14.51 g) |
|
MF40201V3-1000U-A99FAN AXIAL 40X20MM 12VDC WIRE |
3,215 | 3.71 |
|
Datasheet |
MagLev® MF | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 6.3 CFM (0.176m³/min) | 0.110 in H2O (27.4 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 16.5dB(A) | 460 mW | 5000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | 0.064 lb (29.03 g) |
|
|
MF60151V1-1000U-G99FAN AXIAL 60X15MM 12VDC WIRE |
4,971 | 5.02 |
|
Datasheet |
MagLev® MF | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 15.00mm | 26.4 CFM (0.739m³/min) | 0.180 in H2O (44.8 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 34.2dB(A) | 1.53 W | 4700 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | - |
|
|
MF60151V3-1000U-G9912VDC FAN 60X15MM ALARM |
2,210 | 0.00 |
|
Datasheet |
MF | Box | Active | 12VDC | Square - 60mm L x 60mm H | 15.00mm | 17.6 CFM (0.493m³/min) | 0.120 in H2O (29.9 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 21.3dB(A) | 0.58 W | 3000 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
HA60151V4-1000U-G9912VDC FAN 60X15MM ALARM |
3,140 | 0.00 |
|
Datasheet |
HA | Box | Active | 12VDC | Square - 60mm L x 60mm H | 15.00mm | 12.7 CFM (0.356m³/min) | 0.040 in H2O (10.0 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 14.5dB(A) | 0.27 W | 2200 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
MF60151V2-1000U-G9912VDC FAN 60X15MM ALARM |
4,069 | 0.00 |
|
Datasheet |
MF | Box | Active | 12VDC | Square - 60mm L x 60mm H | 15.00mm | 22.8 CFM (0.638m³/min) | 0.140 in H2O (34.9 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 29.2dB(A) | 0.82 W | 3900 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
HA30101V3-1000U-F9912VDC FAN 30X10MM TACH |
1,927 | 0.00 |
|
Datasheet |
HA | Box | Active | 12VDC | Square - 30mm L x 30mm H | 10.00mm | 3.5 CFM (0.098m³/min) | 0.100 in H2O (24.9 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Locked Rotor Sensor | 15.1dB(A) | 0.3 W | 7000 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
CFM-8015V-127-320-20FAN AXIAL 80X15MM 12VDC WIRE |
4,430 | 8.41 |
|
Datasheet |
CFM-80V | Tray | Obsolete | 12VDC | Square - 80mm L x 80mm H | 15.00mm | 33.6 CFM (0.941m³/min) | 0.110 in H2O (27.4 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 32.0dB(A) | 1.79 W | 2700 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.15 lb (68.04 g) |
|

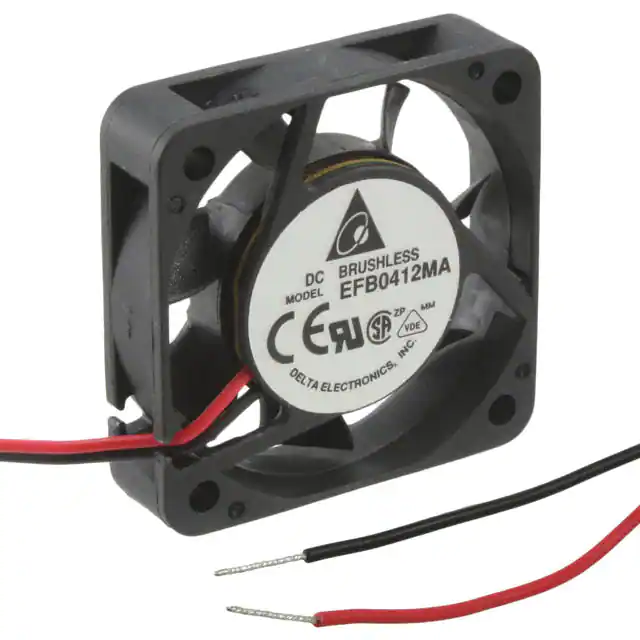

EFB0412MAFAN AXIAL 40X10MM 12VDC WIRE |
3,366 | 10.26 |
|
Datasheet |
EFB | Tray | Obsolete | 12VDC | Square - 40mm L x 40mm H | 10.00mm | 5.9 CFM (0.165m³/min) | 0.088 in H2O (21.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 24.5dB(A) | 720 mW | 5000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.032 lb (14.51 g) |
|
|
CFM-6010C-140-278-22DC AXIAL FAN, 60 MM SQUARE, 10 M |
2,541 | 0.00 |
|
Datasheet |
CFM-60C | Box | Active | 12VDC | Square - 60mm L x 60mm H | 10.50mm | 12.2 CFM (0.342m³/min) | 0.100 in H2O (24.9 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | PWM Control, Speed Sensor (Tach) | 30.5dB(A) | 1.44 W | 4000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-6010C-130-215-22DC AXIAL FAN, 60 MM SQUARE, 10 M |
1,609 | 0.00 |
|
Datasheet |
CFM-60C | Box | Active | 12VDC | Square - 60mm L x 60mm H | 10.50mm | 8.5 CFM (0.238m³/min) | 0.040 in H2O (10.0 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | PWM Control, Speed Sensor (Tach) | 25.5dB(A) | 720 mW | 3000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-8015V-124-308-20FAN AXIAL 80X15MM 12VDC WIRE |
3,423 | 8.41 |
|
Datasheet |
CFM-80V | Tray | Obsolete | 12VDC | Square - 80mm L x 80mm H | 15.00mm | 30.0 CFM (0.840m³/min) | 0.090 in H2O (22.4 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 30.8dB(A) | 1.25 W | 2400 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.15 lb (68.04 g) |
