DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CFM-2006CF-060-078DC AXIAL FAN, 20 MM SQUARE, 6 MM |
4,550 | 0.00 |
|
Datasheet |
CFM-20CF | Box | Active | 5VDC | Square - 19.9mm L x 19.9mm H | 6.50mm | 0.330 CFM (0.009m³/min) | 0.020 in H2O (4.9 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart | 7.9dB(A) | 300 mW | 6000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-2010CF-160-066-20DC AXIAL FAN, 20 MM SQUARE, 10 M |
3,064 | 0.00 |
|
Datasheet |
CFM-20CF | Box | Active | 12VDC | Square - 20mm L x 20mm H | 10.30mm | 0.600 CFM (0.017m³/min) | 0.030 in H2O (7.5 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 6.6dB(A) | 600 mW | 6000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
06020SS-12M-AL-00DC AXIAL FAN |
4,672 | 0.00 |
|
Datasheet |
06020SS | Box | Active | 12VDC | Square - 60mm L x 60mm H | 20.00mm | 18.4 CFM (0.515m³/min) | 0.171 in H2O (42.6 Pa) | Sleeve | Tubeaxial | Auto Restart, Locked Rotor Sensor | 28.5dB | 0.96 W | 4000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
06020SS-24L-AL-00DC AXIAL FAN |
1,165 | 0.00 |
|
Datasheet |
06020SS | Box | Active | 24VDC | Square - 60mm L x 60mm H | 20.00mm | 16.8 CFM (0.470m³/min) | 0.138 in H2O (34.4 Pa) | Sleeve | Tubeaxial | Auto Restart, Locked Rotor Sensor | 26.0dB | 1.2 W | 3600 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
06020SS-12M-AT-00DC AXIAL FAN |
2,809 | 0.00 |
|
Datasheet |
06020SS | Box | Active | 12VDC | Square - 60mm L x 60mm H | 20.00mm | 18.4 CFM (0.515m³/min) | 0.171 in H2O (42.6 Pa) | Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 28.5dB | 0.96 W | 4000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
06020SS-12N-AL-00DC AXIAL FAN |
1,553 | 0.00 |
|
Datasheet |
06020SS | Box | Active | 12VDC | Square - 60mm L x 60mm H | 20.00mm | 20.5 CFM (0.574m³/min) | 0.209 in H2O (52.1 Pa) | Sleeve | Tubeaxial | Auto Restart, Locked Rotor Sensor | 30.5dB | 1.08 W | 4400 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
06020SS-24M-AT-00DC AXIAL FAN |
2,339 | 0.00 |
|
Datasheet |
06020SS | Box | Active | 24VDC | Square - 60mm L x 60mm H | 20.00mm | 18.4 CFM (0.515m³/min) | 0.161 in H2O (40.2 Pa) | Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 28.5dB | 1.44 W | 4000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
06020SS-24L-AT-00DC AXIAL FAN |
2,038 | 0.00 |
|
Datasheet |
06020SS | Box | Active | 24VDC | Square - 60mm L x 60mm H | 20.00mm | 16.8 CFM (0.470m³/min) | 0.138 in H2O (34.4 Pa) | Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 26.0dB | 1.2 W | 3600 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
06020SS-24N-ET-00DC AXIAL FAN |
2,170 | 0.00 |
|
Datasheet |
06020SS | Box | Active | 24VDC | Square - 60mm L x 60mm H | 20.00mm | 20.5 CFM (0.574m³/min) | 0.197 in H2O (49.0 Pa) | Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 30.5dB | 1.68 W | 4400 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
06020SS-24N-AL-00DC AXIAL FAN |
3,737 | 0.00 |
|
Datasheet |
06020SS | Box | Active | 24VDC | Square - 60mm L x 60mm H | 20.00mm | 20.5 CFM (0.574m³/min) | 0.197 in H2O (49.0 Pa) | Sleeve | Tubeaxial | Auto Restart, Locked Rotor Sensor | 30.5dB | 1.68 W | 4400 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
06020SS-12N-ET-00DC AXIAL FAN |
3,177 | 0.00 |
|
Datasheet |
06020SS | Box | Active | 12VDC | Square - 60mm L x 60mm H | 20.00mm | 20.5 CFM (0.574m³/min) | 0.209 in H2O (52.1 Pa) | Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 30.5dB | 1.08 W | 4400 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
06020SS-12L-AL-00DC AXIAL FAN |
3,676 | 0.00 |
|
Datasheet |
06020SS | Box | Active | 12VDC | Square - 60mm L x 60mm H | 20.00mm | 16.8 CFM (0.470m³/min) | 0.139 in H2O (34.7 Pa) | Sleeve | Tubeaxial | Auto Restart, Locked Rotor Sensor | 26.0dB | 0.72 W | 3600 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
06020SS-24M-AL-00DC AXIAL FAN |
3,846 | 0.00 |
|
Datasheet |
06020SS | Box | Active | 24VDC | Square - 60mm L x 60mm H | 20.00mm | 18.4 CFM (0.515m³/min) | 0.161 in H2O (40.2 Pa) | Sleeve | Tubeaxial | Auto Restart, Locked Rotor Sensor | 28.5dB | 1.44 W | 4000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
06020SS-12L-AT-00DC AXIAL FAN |
3,205 | 0.00 |
|
Datasheet |
06020SS | Box | Active | 12VDC | Square - 60mm L x 60mm H | 20.00mm | 16.8 CFM (0.470m³/min) | 0.139 in H2O (34.7 Pa) | Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 26.0dB | 0.72 W | 3600 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
MF92251V3-1000U-F99FAN AXIAL 92X25MM 12VDC WIRE |
3,488 | 5.93 |
|
Datasheet |
MagLev® MF | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 39.5 CFM (1.11m³/min) | 0.100 in H2O (24.9 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Locked Rotor Sensor | 28.0dB(A) | 900 mW | 2400 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | 0.203 lb (92.08 g) |
|
|
EF92252S1-1000U-G9924VDC FAN 92X25MM ALARM |
2,824 | 0.00 |
|
Datasheet |
EF | Box | Active | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 51.3 CFM (1.44m³/min) | 0.150 in H2O (37.4 Pa) | Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 34.0dB(A) | 1.44 W | 3000 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
MF92251V1-1000U-F9912VDC FAN 92X25MM TACH |
2,655 | 0.00 |
|
Datasheet |
MF | Box | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 51.3 CFM (1.44m³/min) | 0.150 in H2O (37.4 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Locked Rotor Sensor | 34.0dB(A) | 1.68 W | 3000 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|

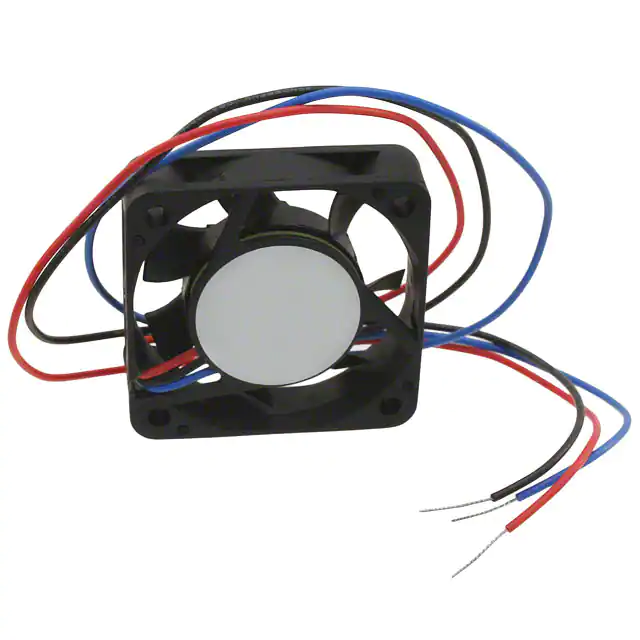

EFB0405HHA-F00FAN AXIAL 40X10MM BALL 5VDC WIRE |
3,804 | 6.19 |
|
Datasheet |
EFB | Bulk | Obsolete | 5VDC | Square - 40mm L x 40mm H | 10.00mm | 8.1 CFM (0.227m³/min) | 0.174 in H2O (43.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 33.0dB(A) | 950 mW | 7000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.032 lb (14.51 g) |
|
EFB0412HA-R00FAN AXIAL 40X10MM 12VDC WIRE |
2,056 | 6.19 |
|
Datasheet |
EFB | Box | Obsolete | 12VDC | Square - 40mm L x 40mm H | 10.00mm | 6.9 CFM (0.193m³/min) | 0.129 in H2O (32.1 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 28.5dB(A) | 960 mW | 6000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.032 lb (14.51 g) |
|
OD3010-12LSFAN AXIAL 30X10.2MM 12VDC WIRE |
1,868 | 6.25 |
|
Datasheet |
OD3010 | Bulk | Active | 12VDC | Square - 30mm L x 30mm H | 10.20mm | 3.5 CFM (0.098m³/min) | 0.110 in H2O (27.4 Pa) | Sleeve | Tubeaxial | - | 25.0dB | - | 7000 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | cURus, TUV | - |
