DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
(8020CF).jpg)
|

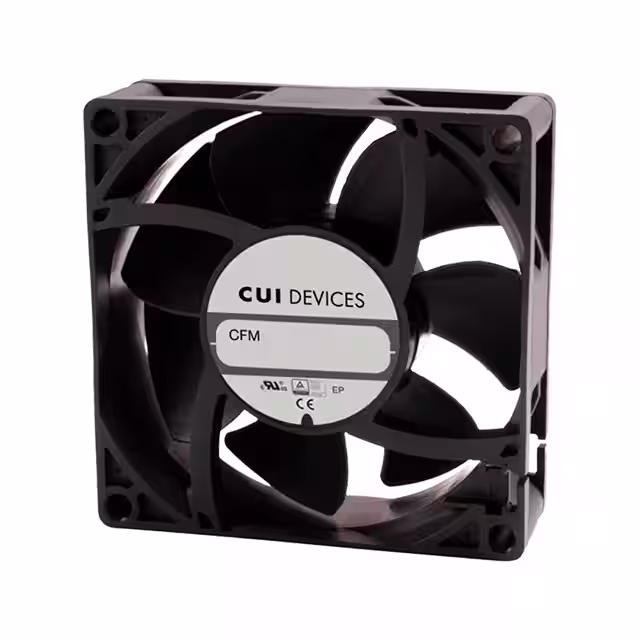

CFM-8015CF-220-213-22FAN AXIAL 80X15.4MM 24VDC WIRE |
1,006 | 7.32 |
|
Datasheet |
CFM-80CF | Box | Active | 24VDC | Square - 80mm L x 80mm H | 15.40mm | 23.2 CFM (0.650m³/min) | 0.040 in H2O (10.0 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 21.3dB(A) | 1.44 W | 2000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-8015CF-130-301-22FAN AXIAL 80X15.4MM 12VDC WIRE |
1,158 | 7.32 |
|
Datasheet |
CFM-80CF | Box | Active | 12VDC | Square - 80mm L x 80mm H | 15.40mm | 34.9 CFM (0.977m³/min) | 0.100 in H2O (24.9 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 30.1dB(A) | 3.12 W | 3000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-8015CF-120-213-22FAN AXIAL 80X15.4MM 12VDC WIRE |
1,772 | 7.32 |
|
Datasheet |
CFM-80CF | Box | Active | 12VDC | Square - 80mm L x 80mm H | 15.40mm | 23.2 CFM (0.650m³/min) | 0.040 in H2O (10.0 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 21.3dB(A) | 1.08 W | 2000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
CFM-A225SG-123-374DC AXIAL FAN, 120 MM SQUARE, 25 |
4,387 | 0.00 |
|
Datasheet |
CFM-A2SG | Box | Active | 12VDC | Square - 120mm L x 120mm H | 25.00mm | 80.2 CFM (2.25m³/min) | 0.170 in H2O (42.3 Pa) | Sleeve | Tubeaxial | Auto Restart | 38.6dB(A) | 5.04 W | 2300 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
ME50152V1-000U-A99FAN AXIAL 50X15MM 24VDC WIRE |
3,618 | 0.00 |
|
Datasheet |
MagLev® ME | Bulk | Obsolete | 24VDC | Square - 50mm L x 50mm H | 15.00mm | 18.6 CFM (0.521m³/min) | 0.260 in H2O (64.8 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 40.1dB(A) | 2.28 W | 7000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CUR, TUV, UL | 0.059 lb (26.76 g) |
|
B5020L24F-BSRFAN BLOWER 51X20MM 24VDC WIRE |
3,930 | 0.00 |
|
Datasheet |
B5020 | Bulk | Obsolete | 24VDC | Square/Rounded - 51mm L x 50mm H | 20.00mm | 6.0 CFM (0.168m³/min) | 0.200 in H2O (49.8 Pa) | Ball | Blower | Thermal Overload Protector (TOP) | 29.0dB(A) | - | 4000 RPM | 2 Wire Leads | - | - | - | 0.049 lb (22.23 g) |
6025CF).jpg)
|
CFM-6025CF-050-351-22FAN AXIAL 60X25.4MM 5VDC WIRE |
3,796 | 7.32 |
|
Datasheet |
CFM-60CF | Box | Active | 5VDC | Square - 60mm L x 60mm H | 25.40mm | 24.0 CFM (0.672m³/min) | 0.220 in H2O (54.8 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 35.2dB(A) | 2.55 W | 5000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-6025CF-035-274-22FAN AXIAL 60X25.4MM 5VDC WIRE |
2,193 | 7.32 |
|
Datasheet |
CFM-60CF | Box | Active | 5VDC | Square - 60mm L x 60mm H | 25.40mm | 16.8 CFM (0.470m³/min) | 0.110 in H2O (27.4 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 27.5dB(A) | 1.95 W | 3500 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-6025CF-135-274-22FAN AXIAL 60X25.4MM 12VDC WIRE |
2,575 | 7.32 |
|
Datasheet |
CFM-60CF | Box | Active | 12VDC | Square - 60mm L x 60mm H | 25.40mm | 16.8 CFM (0.470m³/min) | 0.110 in H2O (27.4 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 27.5dB(A) | 1.8 W | 3500 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-6025CF-150-351-22FAN AXIAL 60X25.4MM 12VDC WIRE |
1,298 | 7.32 |
|
Datasheet |
CFM-60CF | Box | Active | 12VDC | Square - 60mm L x 60mm H | 25.40mm | 24.0 CFM (0.672m³/min) | 0.220 in H2O (54.8 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 35.2dB(A) | 3.48 W | 5000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|

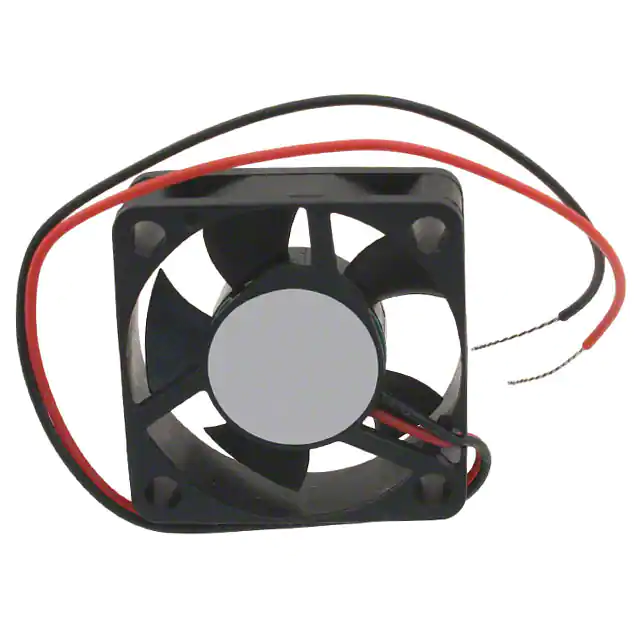

AFB0305HA-AFAN AXIAL 30X10MM BALL 5VDC WIRE |
1,765 | 7.22 |
|
Datasheet |
AFB | Bulk | Not For New Designs | 5VDC | Square - 30mm L x 30mm H | 10.00mm | 3.5 CFM (0.098m³/min) | 0.100 in H2O (24.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 25.0dB(A) | 800 mW | 9000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.024 lb (10.89 g) |
|
AFB0312HA-AFAN AXIAL 30X10MM 12VDC WIRE |
3,930 | 7.29 |
|
Datasheet |
AFB | Bulk | Not For New Designs | 12VDC | Square - 30mm L x 30mm H | 10.00mm | 3.5 CFM (0.098m³/min) | 0.100 in H2O (24.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 25.0dB(A) | 1.08 W | 9000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.024 lb (10.89 g) |
|
|
06025SA-12N-EL-D0FAN AXIAL 60X25MM 12VDC WIRE |
1,357 | 7.30 |
|
Datasheet |
06025SA | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 23.3 CFM (0.652m³/min) | 0.250 in H2O (62.3 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor | 32.0dB | 1.8 W | 4700 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
06025SA-12Q-EL-D0FAN AXIAL 60X25MM 12VDC WIRE |
1,995 | 7.30 |
|
Datasheet |
06025SA | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 26.8 CFM (0.750m³/min) | 0.320 in H2O (79.7 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor | 35.0dB | 3.4 W | 5300 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
06025SA-12M-EL-D0FAN AXIAL 60X25MM 12VDC WIRE |
4,905 | 7.30 |
|
Datasheet |
06025SA | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 19.8 CFM (0.554m³/min) | 0.180 in H2O (44.8 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor | 26.5dB | 1.2 W | 4000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
06025SA-12P-AL-D0FAN AXIAL 60X25MM 12VDC WIRE |
1,542 | 7.30 |
|
Datasheet |
06025SA | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 24.0 CFM (0.672m³/min) | 0.270 in H2O (67.3 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor | 33.0dB | 2.04 W | 4900 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
06025SA-24L-AL-D0FAN AXIAL 60X25MM 24VDC WIRE |
3,992 | 7.30 |
|
Datasheet |
06025SA | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 16.9 CFM (0.473m³/min) | 0.140 in H2O (34.9 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor | 22.5dB | 960 mW | 3500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
06025SA-24M-AL-D0FAN AXIAL 60X25MM 24VDC WIRE |
2,338 | 7.30 |
|
Datasheet |
06025SA | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 19.8 CFM (0.554m³/min) | 0.180 in H2O (44.8 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor | 26.5dB | 1.44 W | 4000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
06025SA-24K-AL-D0FAN AXIAL 60X25MM 24VDC WIRE |
2,714 | 7.30 |
|
Datasheet |
06025SA | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 14.5 CFM (0.406m³/min) | 0.100 in H2O (24.9 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor | 17.0dB | 700 mW | 3000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
06025SA-24P-EL-D0FAN AXIAL 60X25MM 24VDC WIRE |
1,555 | 7.30 |
|
Datasheet |
06025SA | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 24.0 CFM (0.672m³/min) | 0.270 in H2O (67.3 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor | 33.0dB | 1.7 W | 4900 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
