DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AFB0412MB-F00FAN AXIAL 40X15MM 12VDC WIRE |
1,542 | 8.35 |
|
Datasheet |
AFB | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 15.00mm | 8.1 CFM (0.227m³/min) | 0.202 in H2O (50.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 24.5dB(A) | 1.08 W | 6000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.057 lb (25.85 g) |
|
3110SB-04W-B40-E00FAN AXIAL 80X25MM 12VDC WIRE |
2,337 | 8.73 |
|
Datasheet |
08025SA | Box | Obsolete | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 36.0 CFM (1.01m³/min) | 0.116 in H2O (29.0 Pa) | Ball | Tubeaxial | - | 26.0dB(A) | 1.08 W | 2700 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.176 lb (79.83 g) |
|
G6015L24B-RGRFAN AXIAL 60X15MM 24VDC WIRE |
2,606 | 7.86 |
|
Datasheet |
G6015-G | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 15.00mm | 14.0 CFM (0.392m³/min) | 0.120 in H2O (29.9 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 25.0dB(A) | - | 3400 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.111 lb (50.35 g) |
|

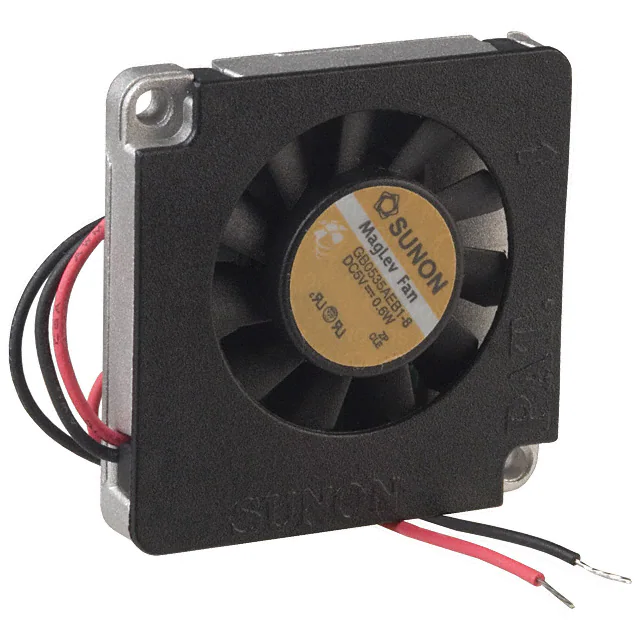

GB0535AEB1-8FAN BLOWER 34.8X7.3MM 5VDC WIRE |
3,405 | 0.00 |
|
Datasheet |
GB | - | Obsolete | 5VDC | Square - 34.8mm L x 34.8mm H | 7.30mm | 1.0 CFM (0.028m³/min) | 0.320 in H2O (79.7 Pa) | Ball | Blower | Locked Rotor Protection | 31.0dB(A) | 600 mW | 8500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.024 lb (10.89 g) |
|

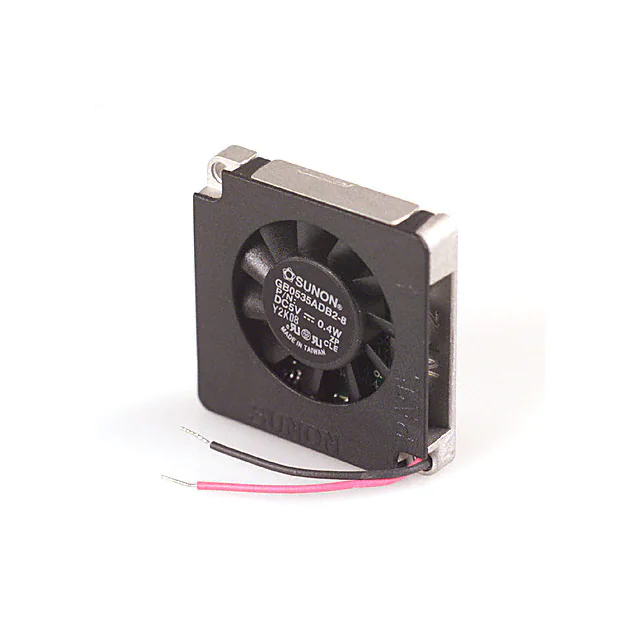

GB0535ADB2-8FAN BLOWER 34.8X7.3MM 5VDC WIRE |
4,206 | 0.00 |
|
Datasheet |
GB | - | Obsolete | 5VDC | Square - 34.8mm L x 34.8mm H | 7.30mm | 1.0 CFM (0.028m³/min) | 0.220 in H2O (54.8 Pa) | Ball | Blower | - | 25.0dB(A) | 400 mW | 6500 RPM | 2 Wire Leads | - | 14 ~ 194°F (-10 ~ 90°C) | CE, CUR, TUV, UL | 0.026 lb (11.79 g) |
|
|
GB0504AFB1-8FAN BLOWER 40X9.3MM 5VDC WIRE |
1,815 | 0.00 |
|
Datasheet |
GB | - | Obsolete | 5VDC | Square - 40mm L x 40mm H | 9.30mm | 1.8 CFM (0.050m³/min) | 0.300 in H2O (74.7 Pa) | Ball | Blower | - | 31.0dB(A) | 300 mW | 6500 RPM | 2 Wire Leads | - | - | CE, CUR, TUV, UL | 0.04 lb (18.14 g) |
|
|
GB0545ADB2-8FAN BLOWER 45X7.3MM 5VDC WIRE |
3,460 | 0.00 |
|
Datasheet |
GB | - | Obsolete | 5VDC | Square - 45mm L x 45mm H | 7.30mm | 1.8 CFM (0.050m³/min) | 0.270 in H2O (67.3 Pa) | Ball | Blower | - | 27.0dB(A) | 300 mW | 5000 RPM | 2 Wire Leads | - | 14 ~ 194°F (-10 ~ 90°C) | CE, CUR, TUV, UL | 0.033 lb (14.97 g) |
|
|
GB0545ADB1-8FAN BLOWER 45X7.3MM 5VDC WIRE |
2,855 | 0.00 |
|
Datasheet |
GB | - | Obsolete | 5VDC | Square - 45mm L x 45mm H | 7.30mm | 2.3 CFM (0.064m³/min) | 0.340 in H2O (84.7 Pa) | Ball | Blower | - | 34.0dB(A) | 500 mW | 6500 RPM | 2 Wire Leads | - | 14 ~ 194°F (-10 ~ 90°C) | CE, CUR, TUV, UL | 0.033 lb (14.97 g) |
|
|
GB0545AFB1-8FAN BLOWER 45X9.3MM 5VDC WIRE |
2,897 | 0.00 |
|
Datasheet |
GB | - | Obsolete | 5VDC | Square - 45mm L x 45mm H | 9.30mm | 2.2 CFM (0.061m³/min) | 0.260 in H2O (64.8 Pa) | Ball | Blower | - | 30.0dB(A) | 350 mW | 5500 RPM | 2 Wire Leads | - | 14 ~ 194°F (-10 ~ 90°C) | CE, CUR, TUV, UL | 0.048 lb (21.77 g) |
|
|
GB0504ADB2-8FAN BLOWER 40X7.3MM 5VDC WIRE |
4,920 | 0.00 |
|
Datasheet |
GB | - | Obsolete | 5VDC | Square - 40mm L x 40mm H | 7.30mm | 1.3 CFM (0.036m³/min) | 0.230 in H2O (57.3 Pa) | Ball | Blower | - | 26.0dB(A) | 250 mW | 6000 RPM | 2 Wire Leads | - | 14 ~ 194°F (-10 ~ 90°C) | CE, CUR, TUV, UL | 0.033 lb (14.97 g) |
|
|
GB0504ADB1-8FAN BLOWER 40X7.3MM 5VDC WIRE |
2,907 | 0.00 |
|
Datasheet |
GB | - | Obsolete | 5VDC | Square - 40mm L x 40mm H | 7.30mm | 1.5 CFM (0.042m³/min) | - | Ball | Blower | - | - | 450 mW | - | 2 Wire Leads | - | - | CE, CUR, TUV, UL | - |
|
|
DB0753012M2B-2T0FAN BLOWER 76X30MM 12VDC WIRE |
2,777 | 0.00 |
|
Datasheet |
DB | Box | Active | 12VDC | Rectangular/Rounded - 76mm L x 75mm H | 30.00mm | 17.0 CFM (0.476m³/min) | 0.480 in H2O (119.6 Pa) | Ball | Blower | Locked Rotor Protection | 48.0dB(A) | 4.56 W | 3600 RPM | 2 Wire Leads | IP55 - Dust Protected, Water Resistant | 14 ~ 158°F (-10 ~ 70°C) | CE | - |
|
|
DB0753012H2B-2T0FAN BLOWER 76X30MM 12VDC WIRE |
4,163 | 0.00 |
|
Datasheet |
DB | Box | Active | 12VDC | Rectangular/Rounded - 76mm L x 75mm H | 30.00mm | 21.4 CFM (0.599m³/min) | 0.620 in H2O (154.4 Pa) | Ball | Blower | Locked Rotor Protection | 51.0dB(A) | 5.4 W | 4000 RPM | 2 Wire Leads | IP55 - Dust Protected, Water Resistant | 14 ~ 158°F (-10 ~ 70°C) | CE | - |
|
|
DB0753012L2B-2T0FAN BLOWER 76X30MM 12VDC WIRE |
3,483 | 0.00 |
|
Datasheet |
DB | Box | Active | 12VDC | Rectangular/Rounded - 76mm L x 75mm H | 30.00mm | 12.7 CFM (0.356m³/min) | 0.360 in H2O (89.6 Pa) | Ball | Blower | Locked Rotor Protection | 41.0dB(A) | 3.6 W | 3000 RPM | 2 Wire Leads | IP55 - Dust Protected, Water Resistant | 14 ~ 158°F (-10 ~ 70°C) | CE | - |
|
|
DB0753012J2B-2T0FAN BLOWER 76X30MM 12VDC WIRE |
3,930 | 0.00 |
|
Datasheet |
DB | Box | Active | 12VDC | Rectangular/Rounded - 76mm L x 75mm H | 30.00mm | 10.9 CFM (0.305m³/min) | 0.310 in H2O (77.2 Pa) | Ball | Blower | Locked Rotor Protection | 32.0dB(A) | 2.88 W | 2600 RPM | 2 Wire Leads | IP55 - Dust Protected, Water Resistant | 14 ~ 158°F (-10 ~ 70°C) | CE | - |
|
|
DC0401005U2B-2T2FAN 40X10MM 5VDC MOLEX 22-01-102 |
4,199 | 0.00 |
|
Datasheet |
- | Bulk | Active | 5VDC | Square - 40mm L x 40mm H | 10.00mm | 9.3 CFM (0.260m³/min) | 0.200 in H2O (49.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 35.0dB(A) | 1 W | 8000 RPM | 2 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC0401005M2B-2T2FAN 40X10MM 5VDC MOLEX 22-01-102 |
4,205 | 0.00 |
|
Datasheet |
- | Bulk | Active | 5VDC | Square - 40mm L x 40mm H | 10.00mm | 4.8 CFM (0.134m³/min) | 0.060 in H2O (14.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 21.0dB(A) | 250 mW | 4000 RPM | 2 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC0401005H2B-2T2FAN 40X10MM 5VDC MOLEX 22-01-102 |
3,427 | 0.00 |
|
Datasheet |
- | Bulk | Active | 5VDC | Square - 40mm L x 40mm H | 10.00mm | 7.2 CFM (0.202m³/min) | 0.110 in H2O (27.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 26.0dB(A) | 550 mW | 6000 RPM | 2 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC0401024H2B-2T2FAN 40X10MM 24VDC MOLEX 22-01-10 |
3,524 | 0.00 |
|
Datasheet |
- | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 10.00mm | 7.2 CFM (0.202m³/min) | 0.110 in H2O (27.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 26.0dB(A) | 720 mW | 6000 RPM | 2 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC0401024U2B-2T2FAN 40X10MM 24VDC MOLEX 22-01-10 |
2,337 | 0.00 |
|
Datasheet |
- | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 10.00mm | 9.3 CFM (0.260m³/min) | 0.200 in H2O (49.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 35.0dB(A) | 1.44 W | 8000 RPM | 2 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
