DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DC0702512H2B-2T2FAN 70X25MM 12VDC MOLEX 22-01-10 |
1,684 | 0.00 |
|
Datasheet |
- | Bulk | Active | 12VDC | Square - 70mm L x 70mm H | 25.00mm | 39.9 CFM (1.13m³/min) | 0.270 in H2O (67.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 37.0dB(A) | 1.56 W | 4000 RPM | 2 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
DC0801524M2B-BT0FAN 80X15MM 24VDC PWM/TACH |
1,413 | 0.00 |
|
Datasheet |
- | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 15.00mm | 31.5 CFM (0.882m³/min) | 0.100 in H2O (24.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 32.0dB(A) | 2.88 W | 3100 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC0801524L2B-BT0FAN 80X15MM 24VDC PWM/TACH |
1,013 | 0.00 |
|
Datasheet |
- | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 15.00mm | 27.5 CFM (0.770m³/min) | 0.090 in H2O (22.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 30.0dB(A) | 2.4 W | 2700 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
DC0802012H2B-BT0FAN AXIAL 80X20MM 12VDC WIRE |
3,826 | 8.13 |
|
Datasheet |
- | Box | Active | 12VDC | Square - 80mm L x 80mm H | 20.00mm | 40.4 CFM (1.13m³/min) | 0.180 in H2O (44.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 36.0dB(A) | 2.88 W | 3400 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.171 lb (77.56 g) |
|
|
DC0802024H2B-3T0FAN 80X20MM 24VDC TACH |
3,093 | 0.00 |
|
Datasheet |
- | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 20.00mm | 40.2 CFM (1.13m³/min) | 0.180 in H2O (44.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 36.0dB(A) | 5.76 W | 3400 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|

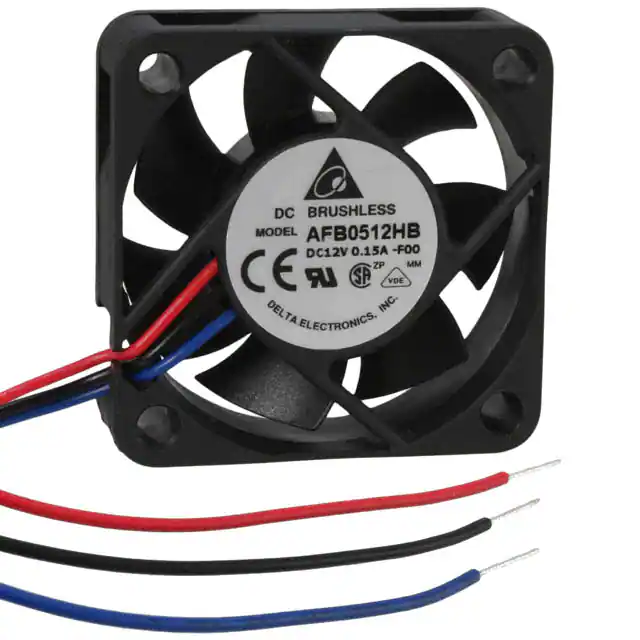

AFB0512HB-F00FAN AXIAL 50X15MM 12VDC WIRE |
2,986 | 8.63 |
|
Datasheet |
AFB | Bulk | Active | 12VDC | Square - 50mm L x 50mm H | 15.00mm | 14.1 CFM (0.395m³/min) | 0.240 in H2O (59.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 32.0dB(A) | 1.2 W | 5600 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.071 lb (32.21 g) |
|
AFB0512HHDFAN AXIAL 50X20MM 12VDC WIRE |
4,653 | 13.28 |
|
Datasheet |
AFB | Bulk | Active | 12VDC | Square - 50mm L x 50mm H | 20.00mm | 18.3 CFM (0.512m³/min) | 0.254 in H2O (63.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 37.0dB(A) | 1.68 W | 6400 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.085 lb (38.56 g) |
|

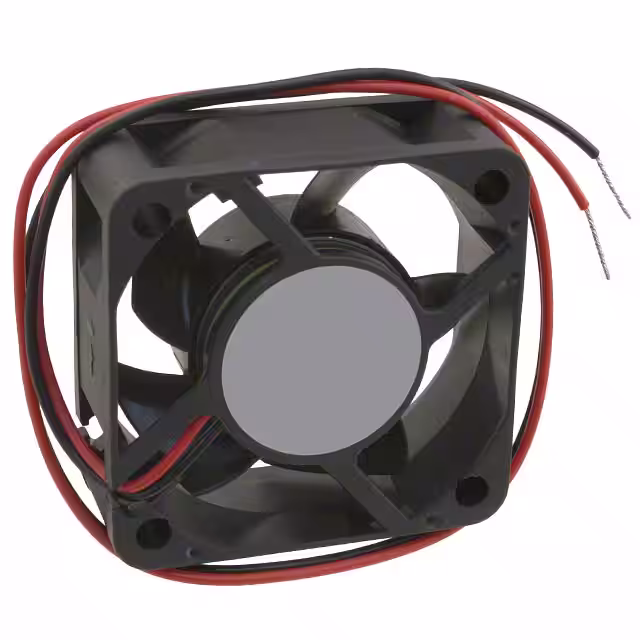

AFB0512LDFAN AXIAL 50X20MM 12VDC WIRE |
1,309 | 8.19 |
|
Datasheet |
AFB | Bulk | Active | 12VDC | Square - 50mm L x 50mm H | 20.00mm | 11.0 CFM (0.308m³/min) | 0.095 in H2O (23.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 25.0dB(A) | 720 mW | 4000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.085 lb (38.56 g) |
|
AFB0512HHD-R00FAN AXIAL 50X20MM 12VDC WIRE |
3,583 | 8.63 |
|
Datasheet |
AFB | Box | Active | 12VDC | Square - 50mm L x 50mm H | 20.00mm | 18.3 CFM (0.512m³/min) | 0.254 in H2O (63.3 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 37.0dB(A) | 1.68 W | 6400 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.085 lb (38.56 g) |
|
|
AFB0512LD-R00FAN AXIAL 50X20MM 12VDC WIRE |
4,992 | 8.63 |
|
Datasheet |
AFB | Box | Active | 12VDC | Square - 50mm L x 50mm H | 20.00mm | 11.0 CFM (0.308m³/min) | 0.095 in H2O (23.7 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 25.0dB(A) | 720 mW | 4000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.085 lb (38.56 g) |
|
|
DC0401012H2B-3T3FAN 40X10MM 12VDC TACH MOLEX 22- |
1,210 | 0.00 |
|
Datasheet |
- | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 10.00mm | 7.2 CFM (0.202m³/min) | 0.110 in H2O (27.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 26.0dB(A) | 720 mW | 6000 RPM | 3 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
DC0401012M2B-3T3FAN 40X10MM 12VDC TACH MOLEX 22- |
2,074 | 0.00 |
|
Datasheet |
- | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 10.00mm | 4.8 CFM (0.134m³/min) | 0.060 in H2O (14.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 21.0dB(A) | 360 mW | 4000 RPM | 3 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
DC0401012U2B-3T3FAN 40X10MM 12VDC TACH MOLEX 22- |
1,740 | 0.00 |
|
Datasheet |
- | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 10.00mm | 9.3 CFM (0.260m³/min) | 0.200 in H2O (49.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 35.0dB(A) | 1.08 W | 8000 RPM | 3 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
EF92252B1-1000U-G9924VDC FAN 92X25MM ALARM |
1,481 | 0.00 |
|
Datasheet |
EF | Box | Active | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 51.3 CFM (1.44m³/min) | 0.170 in H2O (42.3 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 34.0dB(A) | 1.52 W | 3000 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
EF92252B2-1000U-G9924VDC FAN 92X25MM ALARM |
1,184 | 0.00 |
|
Datasheet |
EF | Box | Active | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 44.9 CFM (1.26m³/min) | 0.150 in H2O (37.4 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 32.0dB(A) | 1.08 W | 2700 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
CBM-9330C-220-346-22DC BLOWER, 92.3 X 92.6 X 30 MM, |
4,479 | 0.00 |
|
Datasheet |
CBM-93C | Box | Active | 24VDC | Rectangular/Rounded - 92.5mm L x 92.3mm H | 29.50mm | 12.0 CFM (0.336m³/min) | 0.290 in H2O (72.2 Pa) | omniCOOL™ Magnetic Sleeve | Blower | Auto Restart, PWM Control, Speed Sensor (Tach) | 34.6dB(A) | 1.68 W | 2000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CBM-9330C-120-346-22DC BLOWER, 92.3 X 92.6 X 30 MM, |
1,844 | 0.00 |
|
Datasheet |
CBM-93C | Box | Active | 12VDC | Rectangular/Rounded - 92.5mm L x 92.3mm H | 29.50mm | 12.0 CFM (0.336m³/min) | 0.290 in H2O (72.2 Pa) | omniCOOL™ Magnetic Sleeve | Blower | Auto Restart, PWM Control, Speed Sensor (Tach) | 34.6dB(A) | 1.44 W | 2000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
04020VA-12Q-AA-00FAN AXIAL 40X20MM 12VDC WIRE |
2,782 | 0.00 |
|
- |
04020VA | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 12.4 CFM (0.347m³/min) | 0.570 in H2O (142.0 Pa) | Ball | Tubeaxial | Auto Restart | 42.0dB | 2.5 W | 11000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
F6025X12B1-RH-WSFAN AXIAL 60X25MM 12VDC WIRE |
3,380 | 9.71 |
|
Datasheet |
F6025 | Bulk | Obsolete | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 28.0 CFM (0.784m³/min) | 0.370 in H2O (92.2 Pa) | Ball | Tubeaxial | Alarm Sensor, Auto Restart, Speed Sensor (Tach) | 42.0dB(A) | - | 5800 RPM | 4 Wire Leads | - | - | CE, cUL, TUV, UL | 0.139 lb (63.05 g) |
|
F6025H05B2-FSFAN AXIAL 60X25MM BALL 5VDC WIRE |
3,554 | 9.71 |
|
Datasheet |
F6025 | Bulk | Obsolete | 5VDC | Square - 60mm L x 60mm H | 25.00mm | 20.0 CFM (0.560m³/min) | 0.160 in H2O (39.8 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor | 31.0dB(A) | - | 3800 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 0.156 lb (70.76 g) |
