DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2004KL-04W-B49-B50FAN AXIAL 50X10MM 12VDC WIRE |
3,548 | 9.53 |
|
Datasheet |
2004KL | Box | Active | 12VDC | Square - 50mm L x 50mm H | 10.00mm | 8.1 CFM (0.227m³/min) | 0.104 in H2O (26.0 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 28.5dB | 840 mW | 4500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.044 lb (19.96 g) |
|
|
2004KL-04W-B59-B50FAN AXIAL 50X10MM 12VDC WIRE |
4,754 | 9.53 |
|
Datasheet |
2004KL | Box | Active | 12VDC | Square - 50mm L x 50mm H | 10.00mm | 10.2 CFM (0.286m³/min) | 0.140 in H2O (34.9 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 34.0dB | 1.2 W | 5500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.044 lb (19.96 g) |
|
|
AFB0712HBFAN AXIAL 70X15MM 12VDC WIRE |
4,127 | 8.51 |
|
Datasheet |
AFB | Bulk | Active | 12VDC | Square - 70mm L x 70mm H | 15.00mm | 33.2 CFM (0.930m³/min) | 0.162 in H2O (40.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 34.5dB(A) | 2.16 W | 3800 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.104 lb (47.17 g) |
|
|
AFB0724HHBFAN AXIAL 70X15MM 24VDC WIRE |
1,375 | 8.51 |
|
Datasheet |
AFB | Bulk | Active | 24VDC | Square - 70mm L x 70mm H | 15.00mm | 37.5 CFM (1.05m³/min) | 0.210 in H2O (52.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 38.5dB(A) | 3.6 W | 4300 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.104 lb (47.17 g) |
|
|
AFB0824MBFAN AXIAL 80X15MM 24VDC WIRE |
1,494 | 8.51 |
|
Datasheet |
AFB | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 15.00mm | 28.3 CFM (0.792m³/min) | 0.107 in H2O (26.6 Pa) | Ball | Tubeaxial | - | 30.5dB(A) | 1.44 W | 2700 RPM | 2 Wire Leads | - | - | CE, CSA, UL, VDE | 0.128 lb (58.06 g) |
|
|
AFB0724HBFAN AXIAL 70X15MM 24VDC WIRE |
2,345 | 8.51 |
|
Datasheet |
AFB | Bulk | Active | 24VDC | Square - 70mm L x 70mm H | 15.00mm | 33.2 CFM (0.930m³/min) | 0.162 in H2O (40.3 Pa) | Ball | Tubeaxial | - | 34.5dB(A) | 2.88 W | 3800 RPM | 2 Wire Leads | - | - | CE, CSA, UL, VDE | 0.104 lb (47.17 g) |
|
|
EFB0824MBFAN AXIAL 80X15MM 24VDC WIRE |
2,243 | 8.51 |
|
Datasheet |
EFB | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 15.00mm | 36.0 CFM (1.01m³/min) | 0.099 in H2O (24.6 Pa) | Ball | Tubeaxial | - | 33.0dB(A) | 2.64 W | 2800 RPM | 2 Wire Leads | - | - | CE, CSA, UL, VDE | 0.148 lb (67.13 g) |
|
|
EFB0812MBFAN AXIAL 80X15MM 12VDC WIRE |
3,179 | 8.51 |
|
Datasheet |
EFB | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 15.00mm | 36.0 CFM (1.01m³/min) | 0.099 in H2O (24.6 Pa) | Ball | Tubeaxial | - | 33.0dB(A) | 1.56 W | 2800 RPM | 2 Wire Leads | - | - | CE, CSA, UL, VDE | 0.148 lb (67.13 g) |
|
|
EFB0824LBFAN AXIAL 80X15MM 24VDC WIRE |
4,169 | 8.51 |
|
Datasheet |
EFB | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 15.00mm | 29.6 CFM (0.829m³/min) | 0.067 in H2O (16.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 30.0dB(A) | 1.92 W | 2300 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.148 lb (67.13 g) |
|
|
AFB0824LFAN AXIAL 80X25.4MM 24VDC WIRE |
2,308 | 8.51 |
|
Datasheet |
AFB | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 25.40mm | 27.9 CFM (0.781m³/min) | 0.102 in H2O (25.5 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 25.0dB(A) | 1.2 W | 2400 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.176 lb (80.00 g) |
|
|
DC0401024M2B-3T3FAN 40X10MM 24VDC TACH MOLEX 22- |
2,032 | 0.00 |
|
Datasheet |
- | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 10.00mm | 4.8 CFM (0.134m³/min) | 0.060 in H2O (14.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 21.0dB(A) | 480 mW | 4000 RPM | 3 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC0401024U2B-3T3FAN 40X10MM 24VDC TACH MOLEX 22- |
2,239 | 0.00 |
|
Datasheet |
- | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 10.00mm | 9.3 CFM (0.260m³/min) | 0.200 in H2O (49.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 35.0dB(A) | 1.44 W | 8000 RPM | 3 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC0401024H2B-3T3FAN 40X10MM 24VDC TACH MOLEX 22- |
4,098 | 0.00 |
|
Datasheet |
- | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 10.00mm | 7.2 CFM (0.202m³/min) | 0.110 in H2O (27.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 26.0dB(A) | 720 mW | 6000 RPM | 3 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|

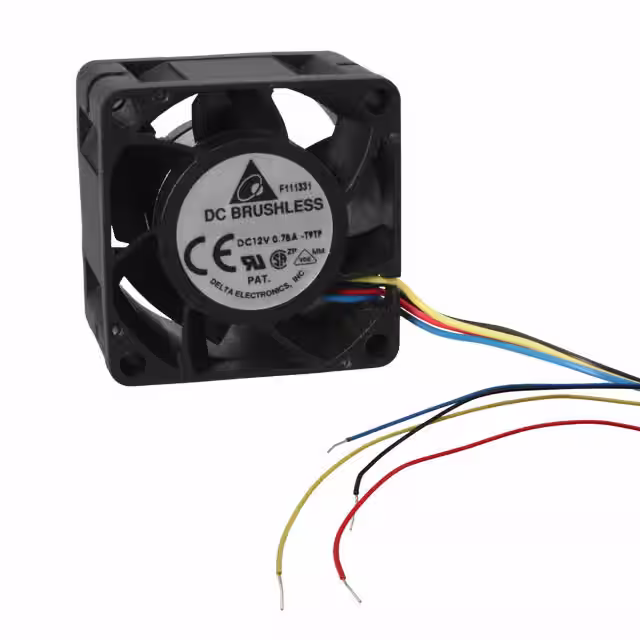

FFB03812VHN-T9TPFAN AXIAL 38X28MM 12VDC WIRE |
4,775 | 9.45 |
|
Datasheet |
FFB | Bulk | Obsolete | 12VDC | Square - 38mm L x 38mm H | 28.00mm | 20.2 CFM (0.566m³/min) | 1.463 in H2O (364.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 58.5dB(A) | 6.6 W | 16000 RPM | 4 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.102 lb (46.27 g) |
|
06020SA-12J-AL-00FAN AXIAL 60X20MM 12VDC WIRE |
2,581 | 9.54 |
|
Datasheet |
06020SA | Box | Active | 12VDC | Square - 60mm L x 60mm H | 20.00mm | 12.7 CFM (0.356m³/min) | 0.090 in H2O (22.4 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 21.5dB | 580 mW | 2800 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | 0.123 lb (55.79 g) |
|
|
06020SA-12J-AT-00FAN AXIAL 60X20MM 12VDC WIRE |
1,580 | 9.54 |
|
Datasheet |
06020SA | Box | Active | 12VDC | Square - 60mm L x 60mm H | 20.00mm | 12.7 CFM (0.356m³/min) | 0.090 in H2O (22.4 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 21.5dB | 580 mW | 2800 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | 0.123 lb (55.79 g) |
|
|
06020SA-12N-AT-00FAN AXIAL 60X20MM 12VDC WIRE |
3,160 | 9.54 |
|
Datasheet |
06020SA | Box | Active | 12VDC | Square - 60mm L x 60mm H | 20.00mm | 20.5 CFM (0.574m³/min) | 0.210 in H2O (52.3 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 30.5dB | 1.08 W | 4400 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | 0.123 lb (55.79 g) |
|
|
06020SA-24N-EL-00FAN AXIAL 60X20MM 24VDC WIRE |
2,058 | 9.54 |
|
- |
06020SA | Box | Active | 24VDC | Square - 60mm L x 60mm H | 20.00mm | 20.5 CFM (0.574m³/min) | 0.200 in H2O (49.8 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor | 30.5dB(A) | 1.68 W | 4400 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
06020SA-12N-ET-00FAN AXIAL 60X20MM 12VDC WIRE |
3,809 | 9.54 |
|
- |
06020SA | Box | Active | 12VDC | Square - 60mm L x 60mm H | 20.00mm | 20.5 CFM (0.574m³/min) | 0.210 in H2O (52.3 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 30.5dB(A) | 1.08 W | 4400 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
06020SA-12M-AT-00FAN AXIAL 60X20MM 12VDC WIRE |
3,874 | 9.54 |
|
- |
06020SA | Box | Active | 12VDC | Square - 60mm L x 60mm H | 20.00mm | 18.4 CFM (0.515m³/min) | 0.170 in H2O (42.3 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 28.5dB(A) | 960 mW | 4000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
