DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
OD1225-12HSFAN AXIAL 120X25MM 12VDC WIRE |
2,112 | 10.55 |
|
Datasheet |
OD1225 | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 25.00mm | 120.0 CFM (3.36m³/min) | 0.240 in H2O (59.8 Pa) | Sleeve | Tubeaxial | Auto Restart | 42.0dB(A) | 5.4 W | 3100 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | 0.341 lb (154.67 g) |
|
|
OD1225-12LSFAN AXIAL 120X25MM 12VDC WIRE |
2,447 | 10.55 |
|
Datasheet |
OD1225 | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 25.00mm | 70.0 CFM (1.96m³/min) | 0.150 in H2O (37.3 Pa) | Sleeve | Tubeaxial | Auto Restart | 25.0dB(A) | 2.5 W | 1900 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | 0.341 lb (154.67 g) |
|
|
OD1225-12MSFAN AXIAL 120X25MM 12VDC WIRE |
4,899 | 10.55 |
|
Datasheet |
OD1225 | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 25.00mm | 90.0 CFM (2.52m³/min) | 0.190 in H2O (47.3 Pa) | Sleeve | Tubeaxial | Auto Restart | 35.0dB(A) | 4 W | 2500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | 0.341 lb (154.67 g) |
|
|
OD1225-24HSFAN AXIAL 120X25MM 24VDC WIRE |
4,153 | 10.55 |
|
Datasheet |
OD1225 | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 25.00mm | 120.0 CFM (3.36m³/min) | 0.240 in H2O (59.8 Pa) | Sleeve | Tubeaxial | Auto Restart | 42.0dB(A) | 7.7 W | 3100 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | 0.341 lb (154.67 g) |
|
|
OD1225-24LSFAN AXIAL 120X25MM 24VDC WIRE |
1,072 | 10.55 |
|
Datasheet |
OD1225 | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 25.00mm | 70.0 CFM (1.96m³/min) | 0.150 in H2O (37.3 Pa) | Sleeve | Tubeaxial | Auto Restart | 25.0dB(A) | 2.4 W | 1900 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | 0.341 lb (154.67 g) |
|
|
OD1225-24MSFAN AXIAL 120X25MM 24VDC WIRE |
3,899 | 10.55 |
|
Datasheet |
OD1225 | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 25.00mm | 90.0 CFM (2.52m³/min) | 0.190 in H2O (47.3 Pa) | Sleeve | Tubeaxial | Auto Restart | 35.0dB(A) | 4.1 W | 2500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | 0.341 lb (154.67 g) |
|

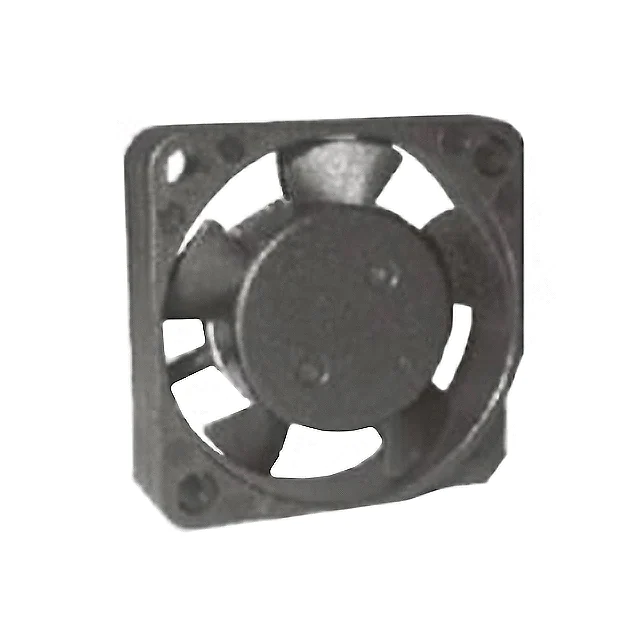

OD2506-05LLBFAN AXIAL 25X6MM BALL 5VDC WIRE |
3,282 | 0.00 |
|
Datasheet |
OD2506 | Bulk | Obsolete | 5VDC | Square - 25mm L x 25mm H | 6.00mm | 1.2 CFM (0.034m³/min) | 0.050 in H2O (12.4 Pa) | Ball | Tubeaxial | - | 13.0dB(A) | - | 7000 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus | - |
|
|
OD2506-05MSS01AFAN AXIAL 25X6MM 5VDC WIRE |
3,713 | 10.55 |
|
Datasheet |
OD2506 | Bulk | Active | 5VDC | Square - 25mm L x 25mm H | 6.00mm | 2.1 CFM (0.059m³/min) | 0.160 in H2O (39.8 Pa) | Sealed Sleeve | Tubeaxial | Speed Sensor (Tach) | 28.0dB | - | 12000 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus | - |
|
OD2510-05HSS01AFAN AXIAL 25X10MM 5VDC WIRE |
3,719 | 10.55 |
|
Datasheet |
OD2510 | Bulk | Active | 5VDC | Square - 25mm L x 25mm H | 10.00mm | - | - | Sealed Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 31.0dB | - | - | 3 Wire Leads | - | - | - | 0.022 lb (9.98 g) |
|
|
OD2510-05LSS01AFAN AXIAL 25X10MM 5VDC WIRE |
2,457 | 10.55 |
|
Datasheet |
OD2510 | Bulk | Active | 5VDC | Square - 25mm L x 25mm H | 10.00mm | - | - | Sealed Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | - | - | - | 3 Wire Leads | - | - | - | 0.022 lb (9.98 g) |
|
|
OD2510-05MSS01AFAN AXIAL 25X10MM 5VDC WIRE |
4,128 | 10.55 |
|
Datasheet |
OD2510 | Bulk | Active | 5VDC | Square - 25mm L x 25mm H | 10.00mm | - | - | Sealed Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 24.0dB | - | - | 3 Wire Leads | - | - | - | 0.022 lb (9.98 g) |
|
OD9220-12HB01AFAN AXIAL 92X20MM 12VDC WIRE |
4,269 | 10.55 |
|
Datasheet |
OD9220 | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 20.00mm | 32.0 CFM (0.896m³/min) | 0.130 in H2O (32.4 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 33.0dB | - | 2700 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | - |
|
|
OD9220-24HB01AFAN AXIAL 92X20MM 24VDC WIRE |
3,961 | 10.55 |
|
Datasheet |
OD9220 | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 20.00mm | 32.0 CFM (0.896m³/min) | 0.125 in H2O (31.1 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 33.0dB | - | 2700 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | - |
|
DC0402012L2B-2T0FAN AXIAL 40X20MM 12VDC WIRE |
2,000 | 8.68 |
|
Datasheet |
- | Box | Active | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 9.4 CFM (0.263m³/min) | 0.350 in H2O (87.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 33.0dB(A) | 960 mW | 8000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.045 lb (20.41 g) |
|
DC0382012H2B-2T0FAN AXIAL 38X20MM 12VDC WIRE |
1,118 | 8.68 |
|
Datasheet |
- | Box | Active | 12VDC | Square - 38mm L x 38mm H | 20.00mm | 8.6 CFM (0.241m³/min) | 0.390 in H2O (97.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 42.0dB(A) | 1.56 W | 8900 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.067 lb (30.39 g) |
|
|
DC0382012L2B-2T0FAN AXIAL 38X20MM 12VDC WIRE |
2,591 | 8.68 |
|
Datasheet |
- | Box | Active | 12VDC | Square - 38mm L x 38mm H | 20.00mm | 6.3 CFM (0.176m³/min) | 0.220 in H2O (54.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 36.0dB(A) | 1.2 W | 6700 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.067 lb (30.39 g) |
|
DC0802512H2B-2T0FAN AXIAL 80X25.4MM 12VDC WIRE |
4,600 | 9.85 |
|
Datasheet |
- | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.40mm | 74.3 CFM (2.08m³/min) | 0.270 in H2O (67.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 46.0dB(A) | 9.72 W | 5500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.188 lb (85.28 g) |
|
|
DC0402012U2B-2T0FAN AXIAL 40X20MM 12VDC WIRE |
2,227 | 11.78 |
|
Datasheet |
- | Box | Active | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 16.8 CFM (0.470m³/min) | 1.080 in H2O (269.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 49.0dB(A) | 3 W | 14000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.045 lb (20.41 g) |
|
|
DC0402012H2B-2T0FAN AXIAL 40X20MM 12VDC WIRE |
4,338 | 8.68 |
|
Datasheet |
- | Box | Active | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 14.3 CFM (0.400m³/min) | 0.790 in H2O (196.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 44.0dB(A) | 2.04 W | 12000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.045 lb (20.41 g) |
|
DC0251005H2B-3T0FAN 25X10MM 5VDC TACH |
2,008 | 0.00 |
|
Datasheet |
- | Bulk | Active | 5VDC | Square - 25mm L x 25mm H | 10.00mm | 2.4 CFM (0.067m³/min) | 0.290 in H2O (72.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 28.0dB(A) | 400 mW | 13000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
