DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
OD1238-48HSS01AFAN AXIAL 120X38.5MM 48VDC WIRE |
2,843 | 13.45 |
|
Datasheet |
OD1238 | Bulk | Active | 48VDC | Square - 120mm L x 120mm H | 38.50mm | 100.0 CFM (2.80m³/min) | 0.280 in H2O (69.7 Pa) | Sealed Sleeve | Tubeaxial | Speed Sensor (Tach) | 42.0dB | 4.8 W | 3000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | - |
|
|
OD1238-48HSS02AFAN AXIAL 120X38.5MM 48VDC WIRE |
4,645 | 13.45 |
|
Datasheet |
OD1238 | Bulk | Active | 48VDC | Square - 120mm L x 120mm H | 38.50mm | 100.0 CFM (2.80m³/min) | 0.280 in H2O (69.7 Pa) | Sealed Sleeve | Tubeaxial | Locked Rotor Sensor | 42.0dB | 4.8 W | 3000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | - |
|
|
OD1238-48LSS01AFAN AXIAL 120X38.5MM 48VDC WIRE |
1,694 | 13.45 |
|
Datasheet |
OD1238 | Bulk | Active | 48VDC | Square - 120mm L x 120mm H | 38.50mm | 65.0 CFM (1.82m³/min) | 0.130 in H2O (32.4 Pa) | Sealed Sleeve | Tubeaxial | Speed Sensor (Tach) | 26.0dB | 3.36 W | 2000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | - |
|
|
OD1238-48LSS02AFAN AXIAL 120X38.5MM 48VDC WIRE |
1,537 | 13.45 |
|
Datasheet |
OD1238 | Bulk | Active | 48VDC | Square - 120mm L x 120mm H | 38.50mm | 65.0 CFM (1.82m³/min) | 0.130 in H2O (32.4 Pa) | Sealed Sleeve | Tubeaxial | Locked Rotor Sensor | 26.0dB | 3.36 W | 2000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | - |
|
|
OD1238-48MSS01AFAN AXIAL 120X38.5MM 48VDC WIRE |
1,604 | 13.45 |
|
Datasheet |
OD1238 | Bulk | Active | 48VDC | Square - 120mm L x 120mm H | 38.50mm | 79.0 CFM (2.21m³/min) | 0.210 in H2O (52.3 Pa) | Sealed Sleeve | Tubeaxial | Speed Sensor (Tach) | 33.0dB | 3.8 W | 2550 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | - |
|
|
OD1238-48MSS02AFAN AXIAL 120X38.5MM 48VDC WIRE |
2,411 | 13.45 |
|
Datasheet |
OD1238 | Bulk | Active | 48VDC | Square - 120mm L x 120mm H | 38.50mm | 79.0 CFM (2.21m³/min) | 0.210 in H2O (52.3 Pa) | Sealed Sleeve | Tubeaxial | Locked Rotor Sensor | 33.0dB | 3.8 W | 2550 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | - |
|
DC0702512U2B-3T1FAN 70X25MM 12VDC TACH COMPUTER |
2,242 | 0.00 |
|
Datasheet |
- | Bulk | Active | 12VDC | Square - 70mm L x 70mm H | 25.00mm | 54.8 CFM (1.53m³/min) | 0.500 in H2O (124.5 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 45.0dB(A) | 1.92 W | 5500 RPM | 3 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
DC0803224M2B-2T2FAN 80X32MM 24VDC MOLEX 22-01-10 |
2,979 | 0.00 |
|
Datasheet |
- | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 32.00mm | 60.4 CFM (1.69m³/min) | 0.450 in H2O (112.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 45.0dB(A) | 8.4 W | 4800 RPM | 2 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC0803224H2B-2T2FAN 80X32MM 24VDC MOLEX 22-01-10 |
3,167 | 0.00 |
|
Datasheet |
- | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 32.00mm | 69.0 CFM (1.93m³/min) | 0.610 in H2O (151.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 48.0dB(A) | 12 W | 5500 RPM | 2 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC0702512H2B-3T1FAN 70X25MM 12VDC TACH COMPUTER |
1,900 | 0.00 |
|
Datasheet |
- | Bulk | Active | 12VDC | Square - 70mm L x 70mm H | 25.00mm | 39.9 CFM (1.13m³/min) | 0.270 in H2O (67.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 37.0dB(A) | 1.56 W | 4000 RPM | 3 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
DC0803224L2B-2T2FAN 80X32MM 24VDC MOLEX 22-01-10 |
2,997 | 0.00 |
|
Datasheet |
- | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 32.00mm | 49.5 CFM (1.39m³/min) | 0.350 in H2O (87.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 39.0dB(A) | 4.8 W | 4000 RPM | 2 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC0803224J2B-2T2FAN 80X32MM 24VDC MOLEX 22-01-10 |
4,287 | 0.00 |
|
Datasheet |
- | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 32.00mm | 38.1 CFM (1.07m³/min) | 0.200 in H2O (49.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 31.0dB(A) | 3.6 W | 3000 RPM | 2 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
G6015H12B1-RGR-EMFAN AXIAL 60X15MM 12VDC WIRE |
3,446 | 12.36 |
|
Datasheet |
G6015-G | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 15.00mm | 18.0 CFM (0.504m³/min) | 0.210 in H2O (52.3 Pa) | Ball | Tubeaxial | Speed Sensor (Tach), Thermal Overload Protector (TOP) | 33.0dB(A) | - | 4600 RPM | 3 Wire Leads | IP57 - Dust Protected, Waterproof | - | CE, cUL, TUV, UL | 0.111 lb (50.35 g) |
|
|
G6015H12B1-RHR-EMFAN AXIAL 60X15MM 12VDC WIRE |
3,369 | 12.36 |
|
Datasheet |
G6015-H | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 15.00mm | 18.0 CFM (0.504m³/min) | 0.210 in H2O (52.3 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 33.0dB(A) | - | 4600 RPM | 3 Wire Leads | IP57 - Dust Protected, Waterproof | - | CE, cUL, TUV, UL | 0.111 lb (50.35 g) |
|
|
ME6038U24B1-FSRFAN AXIAL 60X38MM 24VDC WIRE |
1,509 | 13.33 |
|
Datasheet |
ME6038 | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 38.00mm | 61.1 CFM (1.71m³/min) | 1.412 in H2O (351.7 Pa) | Ball | Tubeaxial | Speed Sensor (Tach), Thermal Overload Protector (TOP) | 65.0dB(A) | - | 10000 RPM | 3 Wire Leads | - | - | cUL, UL | 0.23 lb (104.33 g) |
|
CFM-8025BG-250-444-20FAN AXIAL 80X25.4MM 24VDC WIRE |
4,436 | 13.88 |
|
Datasheet |
CFM-80BG | Box | Active | 24VDC | Square - 80mm L x 80mm H | 25.40mm | 51.7 CFM (1.45m³/min) | 0.430 in H2O (107.1 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 44.5dB(A) | 4.8 W | 5000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-8025BG-240-396-20FAN AXIAL 80X25.4MM 24VDC WIRE |
4,655 | 13.88 |
|
Datasheet |
CFM-80BG | Box | Active | 24VDC | Square - 80mm L x 80mm H | 25.40mm | 41.3 CFM (1.16m³/min) | 0.270 in H2O (67.3 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 39.6dB(A) | 3.6 W | 4000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-6025BG68-270-434-20DC AXIAL FAN, 60 MM SQUARE, 25 M |
4,966 | 0.00 |
|
Datasheet |
CFM-60BG68 | Box | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 29.8 CFM (0.834m³/min) | 0.580 in H2O (144.5 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 43.4dB(A) | 6 W | 7000 RPM | 3 Wire Leads | IP68 - Dust Tight, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|

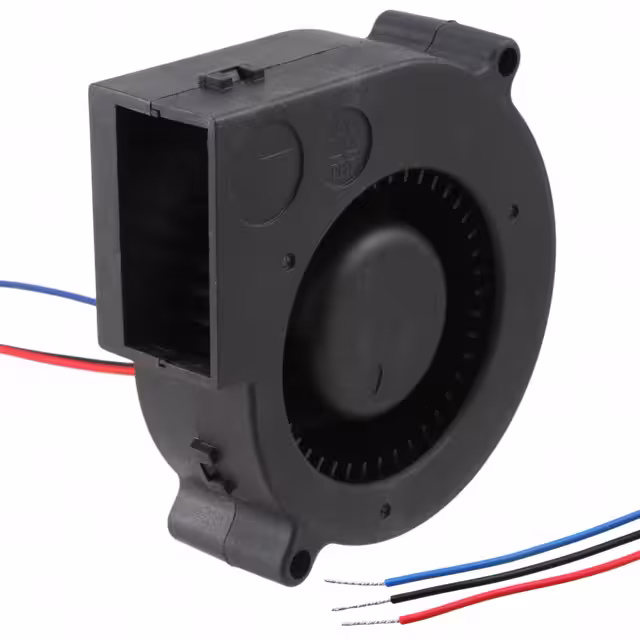

BFB0712L-AF00FAN BLOWER 75.7X25MM 12VDC WIRE |
1,864 | 12.70 |
|
Datasheet |
BFB | Box | Active | 12VDC | Square/Rounded - 75.7mm L x 75.7mm H | 25.00mm | 9.3 CFM (0.260m³/min) | 0.286 in H2O (71.2 Pa) | Ball | Blower | Locked Rotor Protection, Speed Sensor (Tach) | 39.0dB(A) | 1.2 W | 2800 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.199 lb (90.26 g) |
|
|
DC0801512U2B-3T1FAN 80X15MM 12VDC TACH COMPUTER |
1,425 | 0.00 |
|
Datasheet |
- | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 15.00mm | 45.2 CFM (1.27m³/min) | 0.210 in H2O (52.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 43.0dB(A) | 3.6 W | 4500 RPM | 3 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
