DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PF36281B1-000U-H9912VDC FAN 36X28MM PWM |
4,331 | 0.00 |
|
Datasheet |
PF | Box | Active | 12VDC | Square - 36mm L x 36mm H | 28.00mm | 18.1 CFM (0.507m³/min) | 1.620 in H2O (403.5 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control | 55.7dB(A) | 5.4 W | 18400 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
PF36281BX-000U-G9912VDC FAN 36X28MM ALARM |
1,751 | 0.00 |
|
Datasheet |
PF | Box | Active | 12VDC | Square - 36mm L x 36mm H | 28.00mm | 22.8 CFM (0.638m³/min) | 2.550 in H2O (635.2 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 61.9dB(A) | 9.6 W | 23000 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
PF36281B1-000U-G9912VDC FAN 36X28MM ALARM |
2,762 | 0.00 |
|
Datasheet |
PF | Box | Active | 12VDC | Square - 36mm L x 36mm H | 28.00mm | 18.1 CFM (0.507m³/min) | 1.620 in H2O (403.5 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 55.7dB(A) | 5.4 W | 18400 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
PF36281BX-000U-H9912VDC FAN 36X28MM PWM |
3,559 | 0.00 |
|
Datasheet |
PF | Box | Active | 12VDC | Square - 36mm L x 36mm H | 28.00mm | 22.8 CFM (0.638m³/min) | 2.550 in H2O (635.2 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control | 61.9dB(A) | 9.6 W | 23000 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|

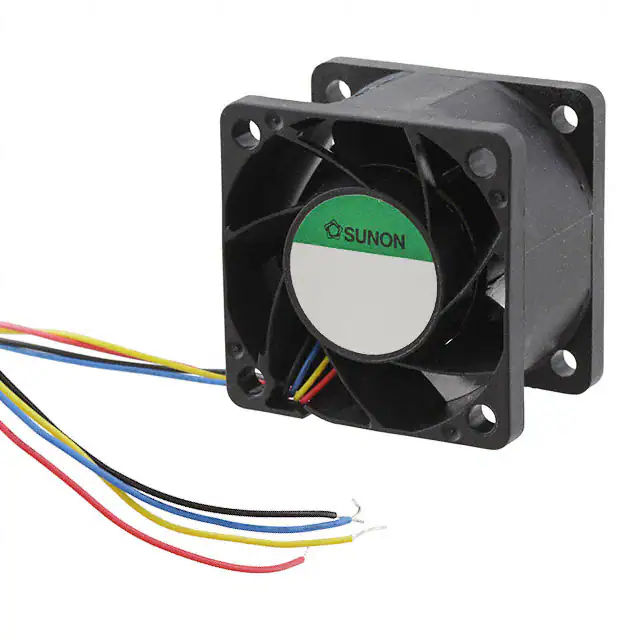

PF40281BX-000U-S99FAN AXIAL 40X28MM 12VDC WIRE |
4,507 | 17.20 |
|
Datasheet |
PF | Box | Obsolete | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 31.3 CFM (0.876m³/min) | 2.810 in H2O (700.0 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 62.0dB(A) | 10.8 W | 22000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.093 lb (42.18 g) |
|
|
9GA0524P7M001FAN AXIAL 52X15MM 24VDC WIRE |
2,859 | 14.02 |
|
Datasheet |
San Ace 52 | Box | Active | 24VDC | Square - 52mm L x 52mm H | 15.00mm | 7.6 CFM (0.213m³/min) | 0.068 in H2O (17.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 16.0dB(A) | 480 mW | 3400 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.089 lb (40.37 g) |
|
|
9GA0612G6002FAN AXIAL 60X20MM 12VDC WIRE |
3,777 | 13.11 |
|
Datasheet |
San Ace 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 20.00mm | 31.1 CFM (0.871m³/min) | 0.500 in H2O (124.5 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 43.0dB(A) | 3.12 W | 6850 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.156 lb (70.76 g) |
|
|
9GA0612S6002FAN AXIAL 60X20MM 12VDC WIRE |
1,306 | 13.11 |
|
Datasheet |
San Ace 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 20.00mm | 24.7 CFM (0.692m³/min) | 0.330 in H2O (82.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 36.0dB(A) | 1.8 W | 5500 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.156 lb (70.76 g) |
|
|
9GA0612S6002160X20MM 12V,HIGH PERF.,LOW POWER |
2,200 | 0.00 |
|
Datasheet |
San Ace 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 20.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection | - | - | - | 2 Wire Leads | - | - | cURus, TUV | - |
|
|
DC1202548M2B-BT0FAN 120X25MM 48VDC PWM/TACH |
2,081 | 0.00 |
|
Datasheet |
- | Bulk | Active | 48VDC | Square - 120mm L x 120mm H | 25.00mm | 86.9 CFM (2.43m³/min) | 0.280 in H2O (69.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 42.0dB(A) | 23.04 W | 2800 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC1202548U2B-BT0FAN 120X25MM 48VDC PWM/TACH |
2,808 | 0.00 |
|
Datasheet |
- | Bulk | Active | 48VDC | Square - 120mm L x 120mm H | 25.00mm | 114.7 CFM (3.21m³/min) | 0.460 in H2O (114.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 50.0dB(A) | 29.76 W | 3700 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC1202548H2B-BT0FAN 120X25MM 48VDC PWM/TACH |
2,795 | 0.00 |
|
Datasheet |
- | Bulk | Active | 48VDC | Square - 120mm L x 120mm H | 25.00mm | 103.9 CFM (2.91m³/min) | 0.400 in H2O (99.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 47.0dB(A) | 24 W | 3400 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC1202548J2B-BT0FAN 120X25MM 48VDC PWM/TACH |
4,551 | 0.00 |
|
Datasheet |
- | Bulk | Active | 48VDC | Square - 120mm L x 120mm H | 25.00mm | 67.8 CFM (1.90m³/min) | 0.170 in H2O (42.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 35.0dB(A) | 9.6 W | 2100 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC1202548L2B-BT0FAN 120X25MM 48VDC PWM/TACH |
1,371 | 0.00 |
|
Datasheet |
- | Bulk | Active | 48VDC | Square - 120mm L x 120mm H | 25.00mm | 77.0 CFM (2.16m³/min) | 0.230 in H2O (57.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 39.0dB(A) | 14.4 W | 2500 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
FAD1-12038DHJW32FAN AXIAL 120X38.5MM 24VDC WIRE |
4,204 | 19.17 |
|
Datasheet |
FAD1-12038 | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 38.50mm | 120.1 CFM (3.36m³/min) | 0.335 in H2O (83.4 Pa) | Hydrodynamic | Tubeaxial | - | 48.0dB(A) | 9.12 W | 3200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.656 lb (297.56 g) |
|
CFM-A238B-138-529-20FAN AXIAL 120X37.5MM 12VDC WIRE |
3,909 | 15.28 |
|
Datasheet |
CFM-120B | Box | Active | 12VDC | Square - 120mm L x 120mm H | 37.50mm | 146.9 CFM (4.11m³/min) | 0.480 in H2O (119.6 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 53.0dB(A) | 13.2 W | 3800 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-A238B-232-480-20FAN AXIAL 120X37.5MM 24VDC WIRE |
1,930 | 15.28 |
|
Datasheet |
CFM-120B | Box | Active | 24VDC | Square - 120mm L x 120mm H | 37.50mm | 123.6 CFM (3.46m³/min) | 0.340 in H2O (84.7 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 48.0dB(A) | 12.72 W | 3200 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
PMD1208PKB2-A.(2).GNFAN AXIAL 80X20MM 12VDC WIRE |
4,926 | 0.00 |
|
Datasheet |
PMD | Bulk | Obsolete | 12VDC | Square - 80mm L x 80mm H | 20.00mm | 49.0 CFM (1.37m³/min) | 0.310 in H2O (77.2 Pa) | Ball | Tubeaxial | Auto Restart | 46.0dB(A) | 3.7 W | 4200 RPM | 2 Wire Leads | - | - | - | - |
|
|
PMD1208PKB3-A.(2).GNFAN AXIAL 80X20MM 12VDC WIRE |
1,839 | 0.00 |
|
Datasheet |
PMD | Bulk | Obsolete | 12VDC | Square - 80mm L x 80mm H | 20.00mm | 45.0 CFM (1.26m³/min) | 0.260 in H2O (64.8 Pa) | Ball | Tubeaxial | Auto Restart | 44.0dB(A) | 3.1 W | 3900 RPM | 2 Wire Leads | - | - | - | - |
|
PMD2406PKB1-A.(2).GNFAN AXIAL 60X20MM 24VDC WIRE |
1,420 | 0.00 |
|
Datasheet |
PMD | Box | Obsolete | 24VDC | Square - 60mm L x 60mm H | 20.00mm | 27.5 CFM (0.770m³/min) | 0.280 in H2O (69.7 Pa) | Ball | Tubeaxial | - | 39.0dB(A) | 2.9 W | 5000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.121 lb (54.88 g) |
