DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CFM-8038BF-2130-631-20FAN AXIAL 80X38MM 24VDC WIRE |
233 | 28.43 |
|
Datasheet |
CFM-80BF | Box | Active | 24VDC | Square - 80mm L x 80mm H | 38.00mm | 98.6 CFM (2.76m³/min) | 2.700 in H2O (672.6 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 63.2dB(A) | 27.6 W | 13000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
11938KA-12L-EA-00FAN AXIAL 119X38.4MM 12VDC WIRE |
629 | 19.73 |
|
Datasheet |
11938KA | Bulk | Active | 12VDC | Square - 119mm L x 119mm H | 38.40mm | 108.4 CFM (3.03m³/min) | 0.270 in H2O (67.3 Pa) | Ball | Tubeaxial | Auto Restart | 42.5dB | 6.6 W | 2950 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
11938KA-12M-EA-00FAN AXIAL 119X38.4MM 12VDC WIRE |
454 | 19.73 |
|
Datasheet |
11938KA | Bulk | Active | 12VDC | Square - 119mm L x 119mm H | 38.40mm | 113.0 CFM (3.16m³/min) | 0.330 in H2O (82.2 Pa) | Ball | Tubeaxial | Auto Restart | 46.5dB | 8.4 W | 3200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
OD8038-48HHBVXEThermal Products |
278 | 0.00 |
|
Datasheet |
OD8038 | Bulk | Active | 48VDC | Square - 80mm L x 80mm H | 38.00mm | 130.0 CFM (3.64m³/min) | 2.000 in H2O (498.2 Pa) | Ball | Tubeaxial | Auto Restart | 66.5dB(A) | 43.2 W | 8925 RPM | 2 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | - |
|

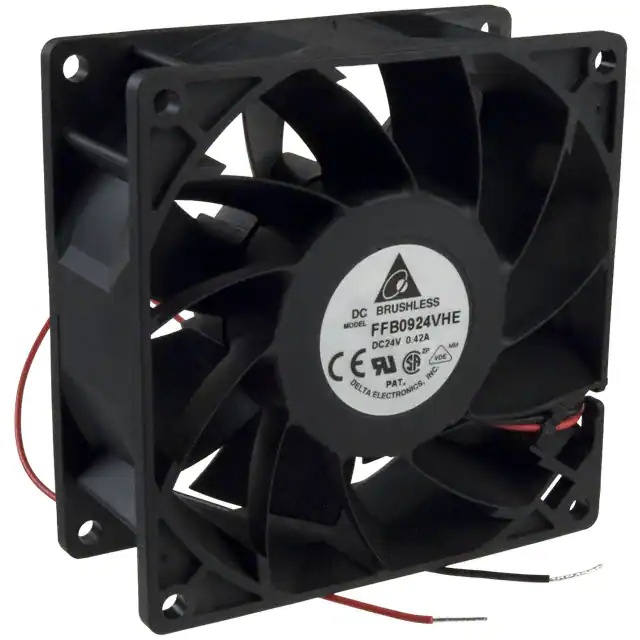

FFB0924VHEFAN AXIAL 92X38MM 24VDC WIRE |
1,451 | 18.92 |
|
Datasheet |
FFB | Tray | Active | 24VDC | Square - 92mm L x 92mm H | 38.00mm | 85.5 CFM (2.39m³/min) | 0.406 in H2O (101.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 47.5dB(A) | 6.72 W | 3800 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.437 lb (198.00 g) |
|
CFM-A225-13-22FAN AXIAL 120X25.4MM 12VDC WIRE |
101 | 20.91 |
|
Datasheet |
CFM-120 | Tray | Active | 12VDC | Square - 120mm L x 120mm H | 25.40mm | 126.9 CFM (3.55m³/min) | 0.490 in H2O (122.1 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 53.5dB(A) | 9.48 W | 4100 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.419 lb (190.06 g) |
|
MD9238E36B-FSR-CCFAN AXIAL 92X38MM 36VDC WIRE |
140 | 19.25 |
|
Datasheet |
MD9238 | Bulk | Active | 36VDC | Square - 92mm L x 92mm H | 38.00mm | 110.6 CFM (3.10m³/min) | 0.670 in H2O (166.9 Pa) | Ball | Tubeaxial | Conformal Coating, Thermal Overload Protector (TOP) | 55.0dB(A) | - | 4800 RPM | 2 Wire Leads | - | - | CE, TUV, UL | 0.397 lb (180.08 g) |
|
QFR0912VH-SP00FAN AXIAL 92X25.4MM 12VDC WIRE |
952 | 19.10 |
|
Datasheet |
QFR | Box | Active | 12VDC | Square - 92mm L x 92mm H | 25.40mm | 74.8 CFM (2.09m³/min) | 0.339 in H2O (84.5 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 45.0dB(A) | 4.8 W | 4200 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, VDE | 0.243 lb (110.22 g) |
|
9GA0524P7G001FAN AXIAL 52X15MM 24VDC WIRE |
1,445 | 17.63 |
|
Datasheet |
San Ace 52 | Box | Active | 24VDC | Square - 52mm L x 52mm H | 15.00mm | 17.7 CFM (0.496m³/min) | 0.367 in H2O (91.5 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 38.0dB(A) | 1.68 W | 7800 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.088 lb (39.92 g) |
|
|
9GA0524P7A001FAN AXIAL 52X15MM 24VDC WIRE |
142 | 17.63 |
|
Datasheet |
San Ace 52 | Box | Active | 24VDC | Square - 52mm L x 52mm H | 15.00mm | 14.1 CFM (0.395m³/min) | 0.237 in H2O (59.0 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 32.0dB(A) | 1.2 W | 6300 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.088 lb (39.92 g) |
|
|
9GA0624M6002FAN AXIAL 60X20MM 24VDC WIRE |
154 | 13.85 |
|
Datasheet |
San Ace 60 | Box | Active | 24VDC | Square - 60mm L x 60mm H | 20.00mm | 12.0 CFM (0.336m³/min) | 0.080 in H2O (19.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 18.0dB(A) | 720 mW | 2700 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.156 lb (70.76 g) |
|

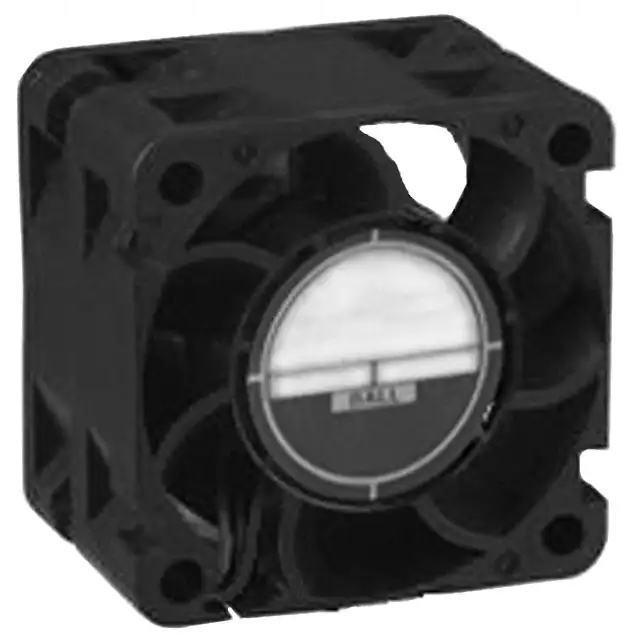

OD4028-12HBXC10AFAN AXIAL 40X28MM 12VDC WIRE |
319 | 20.82 |
|
Datasheet |
OD4028 XC | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 26.5 CFM (0.742m³/min) | 1.600 in H2O (398.6 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 57.0dB | - | 16000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | - |
|

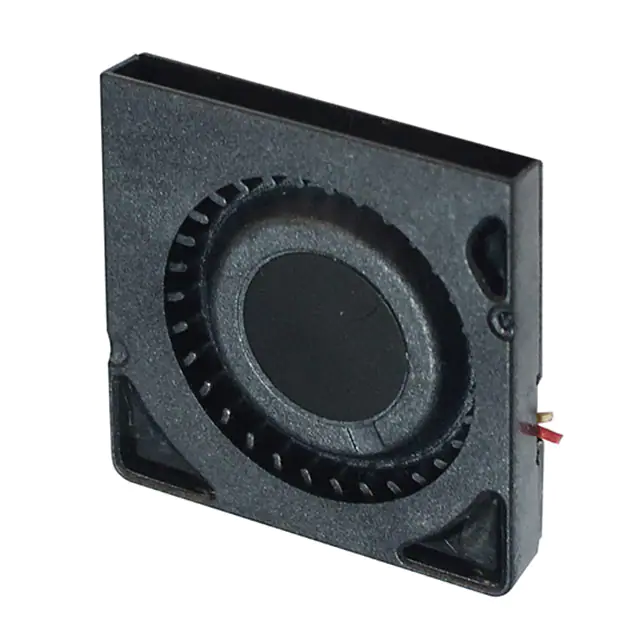

BSB01503HA3-00CGEFAN BLOWER 15X3.5MM 3VDC RECT |
3,042 | 20.05 |
|
Datasheet |
BSB - Miniature | Box | Active | 3VDC | Square - 15mm L x 15mm H | 3.50mm | 0.170 CFM (0.005m³/min) | 0.154 in H2O (38.4 Pa) | Sleeve | Blower | Locked Rotor Protection, Speed Sensor (Tach) | 30.0dB(A) | 150 mW | 13800 RPM | 3 Position Rectangular Connector | - | 14 ~ 140°F (-10 ~ 60°C) | - | 0.003 lb (1.36 g) |
|

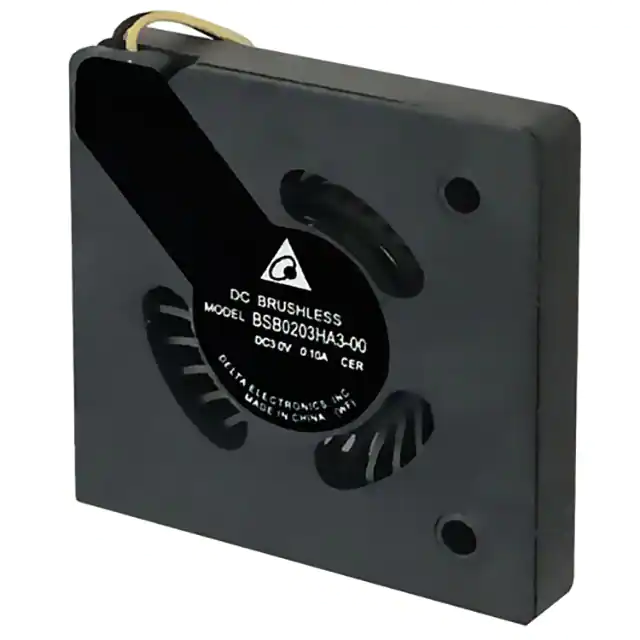

BSB0203HA3-00CERFAN BLOWER 20X3.28MM 3VDC RECT |
2,384 | 20.84 |
|
Datasheet |
BSB - Miniature | Box | Active | 3VDC | Square - 20mm L x 20mm H | 3.28mm | 0.280 CFM (0.008m³/min) | 0.252 in H2O (62.8 Pa) | Sleeve | Blower | Locked Rotor Protection, Speed Sensor (Tach) | 32.0dB(A) | 180 mW | 13000 RPM | 3 Position Rectangular Connector | - | 14 ~ 140°F (-10 ~ 60°C) | - | 0.003 lb (1.36 g) |
|
|
MXB9733H24B-BSRFAN BLOWER 97X33MM 24VDC WIRE |
131 | 19.53 |
|
Datasheet |
MXB9733 | Bulk | Active | 24VDC | Rectangular/Rounded - 97mm L x 94.4mm H | 33.00mm | 28.5 CFM (0.798m³/min) | 1.060 in H2O (264.0 Pa) | Ball | Blower | Thermal Overload Protector (TOP) | 55.0dB(A) | - | 3300 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.397 lb (180.08 g) |
|

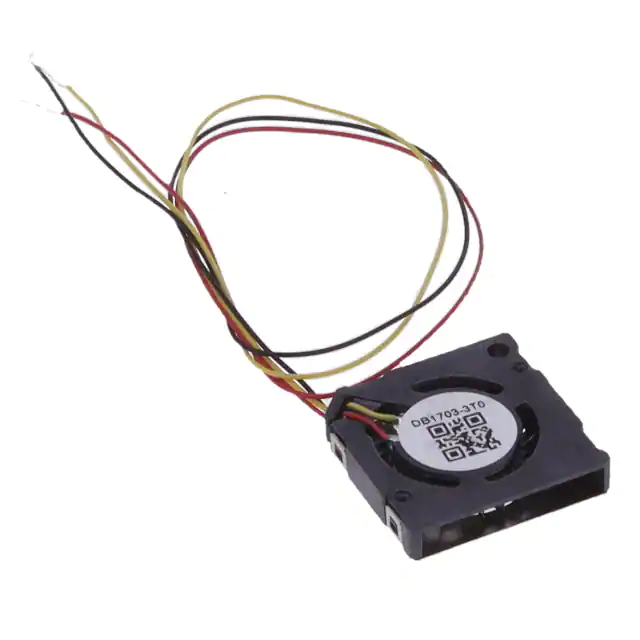

DB170303H1A-3T0FAN BLOWER 17X3.2MM 3VDC WIRE |
353 | 26.52 |
|
Datasheet |
Slim-Line | Bulk | Active | 3VDC | Square - 17mm L x 17mm H | 3.20mm | 0.205 CFM (0.006m³/min) | 0.149 in H2O (37.1 Pa) | Ball | Blower | Speed Sensor (Tach) | 26.6dB(A) | 120 mW | 12000 RPM | 3 Wire Leads | IP55 - Dust Protected, Water Resistant | 14 ~ 158°F (-10 ~ 70°C) | - | 0.004 lb (1.81 g) |
|

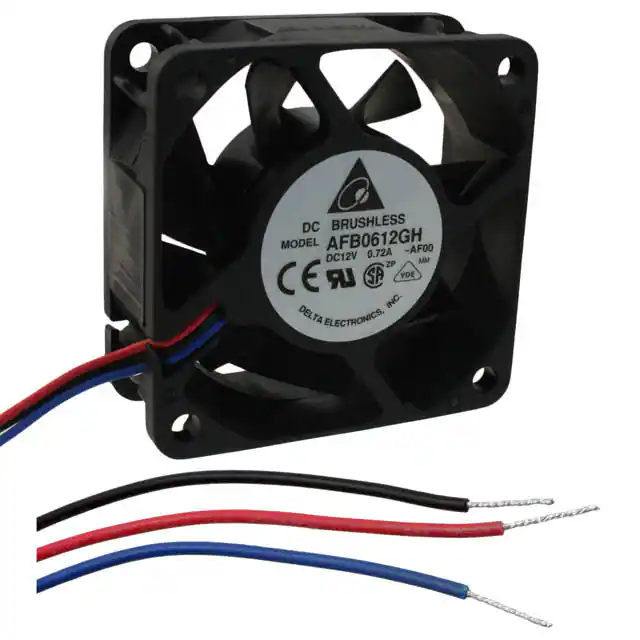

AFB0612GH-AF00FAN AXIAL 60X25.4MM 12VDC WIRE |
278 | 18.80 |
|
Datasheet |
AFB | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 25.40mm | 42.0 CFM (1.18m³/min) | 0.640 in H2O (159.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 50.5dB(A) | 6.6 W | 7500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.176 lb (80.00 g) |
|

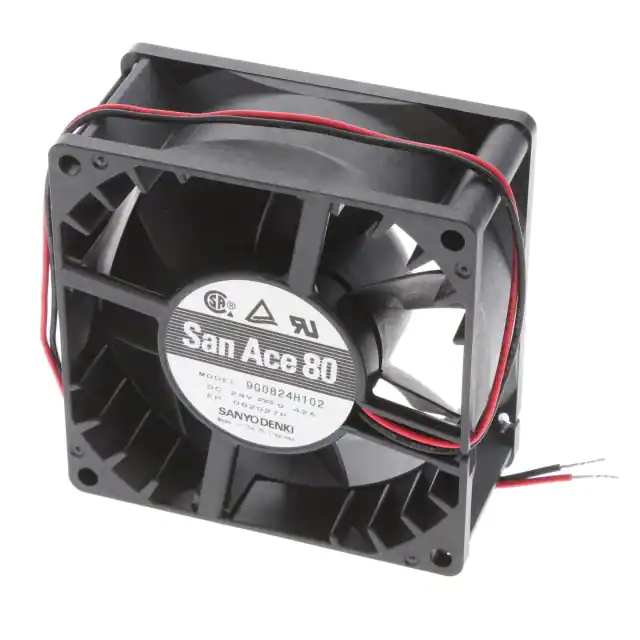

9G0824H102FAN AXIAL 80X38MM 24VDC WIRE |
131 | 19.75 |
|
Datasheet |
San Ace 80 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 38.00mm | 80.0 CFM (2.24m³/min) | 0.687 in H2O (171.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 49.0dB(A) | 10.1 W | 5700 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.375 lb (170.1 g) |
|
|
11938KA-24N-EL-00FAN AXIAL 119X38.4MM 24VDC WIRE |
438 | 20.29 |
|
Datasheet |
11938KA | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 38.40mm | 129.9 CFM (3.64m³/min) | 0.440 in H2O (109.6 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor | 50.0dB | 12 W | 3600 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
EF50151BX-1B00U-A99Thermal Products |
3,311 | 0.00 |
|
Datasheet |
EF | Bulk | Active | 12VDC | Rectangular/Rounded - 51.7mm L x 51.6mm H | 15.00mm | 5.4 CFM (0.151m³/min) | 0.970 in H2O (241.6 Pa) | Ball | Blower | Auto Restart | 45.8dB(A) | 1.8 W | 6200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | - |
