DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DC1202548J2B-BT4FAN 120X25MM 48VDC PWM/TACH MOLE |
1,005 | 0.00 |
|
Datasheet |
- | Bulk | Active | 48VDC | Square - 120mm L x 120mm H | 25.00mm | 67.8 CFM (1.90m³/min) | 0.170 in H2O (42.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 35.0dB(A) | 9.6 W | 2100 RPM | 4 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
PMB2475PNB2-AY (2).GN.IP55FAN BLOWER 75.7X30MM 24VDC WIRE |
2,491 | 16.26 |
|
Datasheet |
PMB | Bulk | Active | 24VDC | Square/Rounded - 75.7mm L x 75.7mm H | 30.00mm | 12.3 CFM (0.344m³/min) | 0.480 in H2O (119.6 Pa) | Ball | Blower | Auto Restart | 40.5dB(A) | 3.4 W | 3000 RPM | 2 Wire Leads | IP55 - Dust Protected, Water Resistant | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.191 lb (86.64 g) |
|
|
9G0912H2D011FAN AXIAL 92X32MM 12VDC WIRE |
4,442 | 14.73 |
|
Datasheet |
San Ace 92 | Box | Active | 12VDC | Square - 92mm L x 92mm H | 32.00mm | 56.2 CFM (1.57m³/min) | 0.205 in H2O (51.2 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 32.0dB(A) | 2.76 W | 2850 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.375 lb (170.1 g) |
|
|
9G0912M2D01FAN AXIAL 92X32MM 12VDC WIRE |
1,738 | 14.73 |
|
Datasheet |
San Ace 92 | Box | Active | 12VDC | Square - 92mm L x 92mm H | 32.00mm | 42.4 CFM (1.19m³/min) | 0.108 in H2O (27.0 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 25.0dB(A) | 1.56 W | 2100 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.375 lb (170.1 g) |
|
|
9G0912M2D011FAN AXIAL 92X32MM 12VDC WIRE |
2,365 | 14.73 |
|
Datasheet |
San Ace 92 | Box | Active | 12VDC | Square - 92mm L x 92mm H | 32.00mm | 42.4 CFM (1.19m³/min) | 0.108 in H2O (27.0 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 25.0dB(A) | 1.56 W | 2100 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.375 lb (170.1 g) |
|
|
9G0912H2D01FAN AXIAL 92X32MM 12VDC WIRE |
1,611 | 14.73 |
|
Datasheet |
San Ace 92 | Box | Active | 12VDC | Square - 92mm L x 92mm H | 32.00mm | 56.2 CFM (1.57m³/min) | 0.205 in H2O (51.2 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 32.0dB(A) | 2.76 W | 2850 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.375 lb (170.1 g) |
|
|
9G0924H2D01FAN AXIAL 92X32MM 24VDC WIRE |
3,962 | 15.27 |
|
Datasheet |
San Ace 92 | Box | Active | 24VDC | Square - 92mm L x 92mm H | 32.00mm | 56.2 CFM (1.57m³/min) | 0.205 in H2O (51.2 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 32.0dB(A) | 2.88 W | 2850 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.375 lb (170.1 g) |
|
|
9G0924H2D011FAN AXIAL 92X32MM 24VDC WIRE |
1,977 | 15.27 |
|
Datasheet |
San Ace 92 | Box | Active | 24VDC | Square - 92mm L x 92mm H | 32.00mm | 56.2 CFM (1.57m³/min) | 0.205 in H2O (51.2 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 32.0dB(A) | 2.88 W | 2850 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.375 lb (170.1 g) |
|
|
9G0924M2D011FAN AXIAL 92X32MM 24VDC WIRE |
4,998 | 15.27 |
|
Datasheet |
San Ace 92 | Box | Active | 24VDC | Square - 92mm L x 92mm H | 32.00mm | 42.4 CFM (1.19m³/min) | 0.108 in H2O (27.0 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 25.0dB(A) | 1.92 W | 2100 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.375 lb (170.1 g) |
|
|
9G0912M201FAN AXIAL 92X32MM 12VDC WIRE |
2,060 | 14.73 |
|
Datasheet |
San Ace 92 | Box | Active | 12VDC | Square - 92mm L x 92mm H | 32.00mm | 42.4 CFM (1.19m³/min) | 0.108 in H2O (27.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.0dB(A) | 1.56 W | 2100 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.375 lb (170.1 g) |
|
|
9G0912M2011FAN AXIAL 92X32MM 12VDC WIRE |
2,305 | 14.73 |
|
Datasheet |
San Ace 92 | Box | Active | 12VDC | Square - 92mm L x 92mm H | 32.00mm | 42.4 CFM (1.19m³/min) | 0.108 in H2O (27.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.0dB(A) | 1.56 W | 2100 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.375 lb (170.1 g) |
|
|
9G0924H201FAN AXIAL 92X32MM 24VDC WIRE |
4,346 | 15.27 |
|
Datasheet |
San Ace 92 | Box | Active | 24VDC | Square - 92mm L x 92mm H | 32.00mm | 56.2 CFM (1.57m³/min) | 0.205 in H2O (51.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 32.0dB(A) | 2.88 W | 2850 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.375 lb (170.1 g) |
|
|
9G0924H2011FAN AXIAL 92X32MM 24VDC WIRE |
1,817 | 15.27 |
|
Datasheet |
San Ace 92 | Box | Active | 24VDC | Square - 92mm L x 92mm H | 32.00mm | 56.2 CFM (1.57m³/min) | 0.205 in H2O (51.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 32.0dB(A) | 2.88 W | 2850 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.375 lb (170.1 g) |
|
|
9G0924M2011FAN AXIAL 92X32MM 24VDC WIRE |
3,046 | 15.27 |
|
Datasheet |
San Ace 92 | Box | Active | 24VDC | Square - 92mm L x 92mm H | 32.00mm | 42.4 CFM (1.19m³/min) | 0.108 in H2O (27.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.0dB(A) | 1.92 W | 2100 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.375 lb (170.1 g) |
|

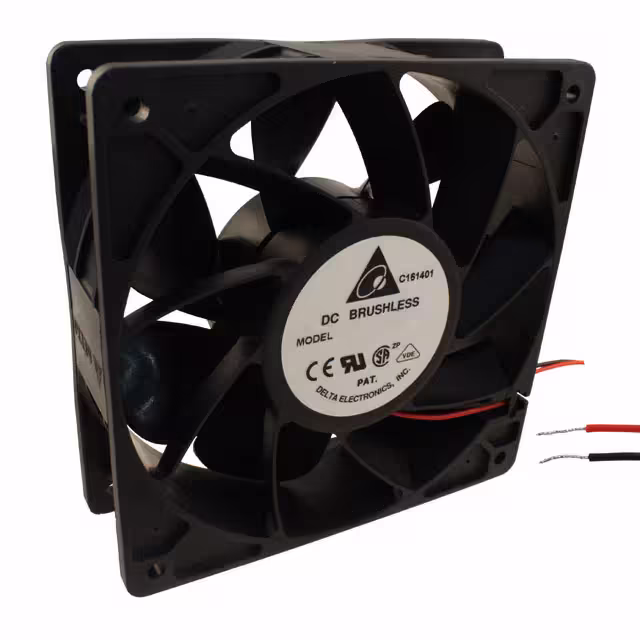

QFR0812UHEFAN AXIAL 80X38MM 12VDC WIRE |
4,779 | 0.00 |
|
Datasheet |
QFR | Box | Obsolete | 12VDC | Square - 80mm L x 80mm H | 38.00mm | 105.2 CFM (2.95m³/min) | 1.335 in H2O (332.5 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 60.0dB(A) | 13.8 W | 9000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.353 lb (160.12 g) |
|
|
PF80252B3-1000U-A99FAN AXIAL 80X25MM 24VDC WIRE |
1,756 | 8.44 |
|
Datasheet |
- | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 53.0 CFM (1.48m³/min) | 0.300 in H2O (74.7 Pa) | Ball | Tubeaxial | Auto Restart | 42.5dB(A) | 2.4 W | 4200 RPM | 2 Wire Leads | - | - | CCC, CE, cURus, TUV | - |
|
|
PF80252B1-1000U-A99FAN AXIAL 80X25MM 24VDC WIRE |
1,446 | 10.68 |
|
Datasheet |
- | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 60.0 CFM (1.68m³/min) | 0.410 in H2O (102.1 Pa) | Ball | Tubeaxial | Auto Restart | 45.5dB(A) | 3.72 W | 4800 RPM | 2 Wire Leads | - | - | CCC, CE, cURus, TUV | - |
|
|
PF80252B2-1000U-A99FAN AXIAL 80X25MM 24VDC WIRE |
4,963 | 8.44 |
|
Datasheet |
- | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 57.0 CFM (1.60m³/min) | 0.350 in H2O (87.2 Pa) | Ball | Tubeaxial | Auto Restart | 44.0dB(A) | 3.24 W | 4500 RPM | 2 Wire Leads | - | - | CCC, CE, cURus, TUV | - |
|
|
109R0648J4D01FAN AXIAL 60X25MM 48VDC WIRE |
3,477 | 14.94 |
|
Datasheet |
San Ace 60 | Box | Active | 48VDC | Square - 60mm L x 60mm H | 25.00mm | 37.1 CFM (1.04m³/min) | 0.622 in H2O (155.0 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 44.0dB(A) | 5.76 W | 7600 RPM | 3 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.199 lb (90.26 g) |
|
|
MD9238M24B-FSRFAN AXIAL 92X38MM 24VDC WIRE |
1,497 | 18.08 |
|
Datasheet |
MD9238 | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 38.00mm | 86.9 CFM (2.43m³/min) | 0.400 in H2O (99.6 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 50.0dB(A) | - | 3800 RPM | 2 Wire Leads | - | - | CE, TUV, UL | 0.397 lb (180.08 g) |
