DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B1232L12B1-BSRFAN BLOWER 120X32MM 12VDC WIRE |
3,421 | 16.56 |
|
Datasheet |
B1232 | Bulk | Active | 12VDC | Square/Rounded - 120mm L x 120mm H | 32.00mm | 21.0 CFM (0.588m³/min) | 0.330 in H2O (82.2 Pa) | Ball | Blower | Speed Sensor (Tach), Thermal Overload Protector (TOP) | 42.0dB(A) | - | 2100 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 0.705 lb (319.78 g) |
|
G1225E12B1+6-FSRFAN AXIAL 120X25MM 12VDC WIRE |
3,744 | 16.56 |
|
Datasheet |
G1225 | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 25.00mm | 99.0 CFM (2.77m³/min) | 0.220 in H2O (54.8 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach), Thermal Overload Protector (TOP) | 42.0dB(A) | - | 2700 RPM | 4 Wire Leads | - | - | CE, cUL, TUV, UL | 0.434 lb (196.86 g) |
|
|
G1225H12B-FSR-EMFAN AXIAL 120X25MM 12VDC WIRE |
3,458 | 16.18 |
|
Datasheet |
G1225 | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 25.00mm | 87.0 CFM (2.44m³/min) | 0.180 in H2O (44.8 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 38.0dB(A) | - | 2400 RPM | 2 Wire Leads | IP57 - Dust Protected, Waterproof | - | CE, cUL, TUV, UL | 0.434 lb (196.86 g) |
|
|
G1225M12B1+6-FSRFAN AXIAL 120X25MM 12VDC WIRE |
1,058 | 16.56 |
|
Datasheet |
G1225 | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 25.00mm | 78.0 CFM (2.18m³/min) | 0.150 in H2O (37.3 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach), Thermal Overload Protector (TOP) | 33.0dB(A) | - | 2100 RPM | 4 Wire Leads | - | - | CE, cUL, TUV, UL | 0.434 lb (196.86 g) |
|
|
G1225M12B-FSR-EMFAN AXIAL 120X25MM 12VDC WIRE |
1,916 | 16.56 |
|
Datasheet |
G1225 | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 25.00mm | 78.0 CFM (2.18m³/min) | 0.150 in H2O (37.3 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 33.0dB(A) | - | 2100 RPM | 2 Wire Leads | IP57 - Dust Protected, Waterproof | - | CE, cUL, TUV, UL | 0.434 lb (196.86 g) |
|
|
G1225M24B-FSR-EMFAN AXIAL 120X25MM 24VDC WIRE |
1,406 | 16.18 |
|
Datasheet |
G1225 | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 25.00mm | 78.0 CFM (2.18m³/min) | 0.150 in H2O (37.3 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 33.0dB(A) | - | 2100 RPM | 2 Wire Leads | IP57 - Dust Protected, Waterproof | - | CE, cUL, TUV, UL | 0.434 lb (196.86 g) |
|
|
G1225S12B-FSR-EMFAN AXIAL 120X25MM 12VDC WIRE |
4,281 | 16.18 |
|
Datasheet |
G1225 | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 25.00mm | 54.0 CFM (1.51m³/min) | 0.070 in H2O (17.4 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 26.0dB(A) | - | 1500 RPM | 2 Wire Leads | IP57 - Dust Protected, Waterproof | - | CE, cUL, TUV, UL | 0.434 lb (196.86 g) |
|
|
B1232L24B2-BSRFAN BLOWER 120X32MM 24VDC WIRE |
4,191 | 0.00 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
E1225H24B1+3-FSRFAN AXIAL 120X25MM 24VDC WIRE |
3,110 | 0.00 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

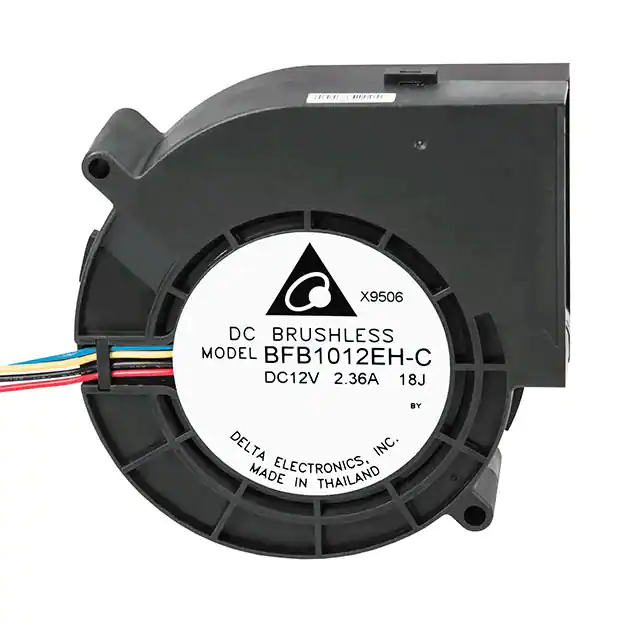

BFB1012EH-C18JFAN BLOWER 96.6X32.9MM 12VDC |
1,980 | 26.36 |
|
Datasheet |
BFB - High-Performance | Box | Obsolete | 12VDC | Rectangular/Rounded - 96.6mm L x 94.3mm H | 32.90mm | 45.5 CFM (1.27m³/min) | 3.694 in H2O (920.1 Pa) | Ball | Blower | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 62.0dB(A) | 23.64 W | 5800 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | 0.397 lb (180.08 g) |
|
|
09238RA-24N-EL-00FAN AXIAL 92X38MM 24VDC WIRE |
3,571 | 16.74 |
|
Datasheet |
09238RA | Bulk | Obsolete | 24VDC | Square - 92mm L x 92mm H | 38.00mm | 130.0 CFM (3.64m³/min) | 0.890 in H2O (221.7 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor | 59.0dB | 17.04 W | 6200 RPM | 3 Wire Leads | IP69K - Dust Tight, High Temp Water Jets, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
09238RA-12L-ET-00FAN AXIAL 92X38MM 12VDC WIRE |
2,914 | 16.74 |
|
Datasheet |
09238RA | Bulk | Obsolete | 12VDC | Square - 92mm L x 92mm H | 38.00mm | 103.8 CFM (2.91m³/min) | 0.570 in H2O (142.0 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 52.5dB | 9.6 W | 5000 RPM | 3 Wire Leads | IP69K - Dust Tight, High Temp Water Jets, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
DC0382812U2B-3T1FAN 38X28MM 12VDC TACH COMPUTER |
2,858 | 0.00 |
|
Datasheet |
- | Bulk | Active | 12VDC | Square - 38mm L x 38mm H | 28.00mm | 19.2 CFM (0.538m³/min) | 1.370 in H2O (341.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 55.0dB(A) | 5.76 W | 15000 RPM | 3 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
9S1224M4D01FAN AXIAL 120X25MM 24VDC WIRE |
4,550 | 16.53 |
|
Datasheet |
San Ace 120 | Box | Active | 24VDC | Square - 120mm L x 120mm H | 25.00mm | 58.6 CFM (1.64m³/min) | 0.090 in H2O (22.4 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 24.0dB(A) | 1.44 W | 1850 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, TUV, UL | 0.309 lb (140.16 g) |
|
|
9S1224M4D011FAN AXIAL 120X25MM 24VDC WIRE |
1,175 | 16.53 |
|
Datasheet |
San Ace 120 | Box | Active | 24VDC | Square - 120mm L x 120mm H | 25.00mm | 58.6 CFM (1.64m³/min) | 0.090 in H2O (22.4 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 24.0dB(A) | 1.44 W | 1850 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, TUV, UL | 0.309 lb (140.16 g) |
|
OD1238-12MTBFAN AXIAL 120X38MM 12VDC TERM |
3,224 | 16.76 |
|
Datasheet |
OD1238 | Box | Active | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 95.0 CFM (2.66m³/min) | 0.230 in H2O (57.3 Pa) | Ball | Tubeaxial | - | 41.0dB | - | 2540 RPM | 2 Terminals | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | 0.72 lb (326.59 g) |
|
G1238L12B-FSR-CCFAN AXIAL 119X38MM 12VDC WIRE |
3,597 | 16.64 |
|
Datasheet |
G1238 | Bulk | Active | 12VDC | Square - 119mm L x 119mm H | 38.00mm | 107.0 CFM (3.00m³/min) | 0.240 in H2O (59.8 Pa) | Ball | Tubeaxial | Conformal Coating, Thermal Overload Protector (TOP) | 38.0dB(A) | - | 2400 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.74 lb (335.66 g) |
|
|
PSD1204PQBX-A(2).Z.F.PWM.GNFAN AXIAL 40X28MM 12VDC WIRE |
3,313 | 0.00 |
|
Datasheet |
MagLev® PSD | Bulk | Obsolete | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 23.4 CFM (0.655m³/min) | 2.010 in H2O (500.7 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control | 59.9dB(A) | 9 W | 19000 RPM | 3 Wire Leads | - | - | - | - |
|
|
9G0912P2H01FAN AXIAL 92X32MM 12VDC WIRE |
4,773 | 15.30 |
|
Datasheet |
San Ace 92 | Box | Active | 12VDC | Square - 92mm L x 92mm H | 32.00mm | 56.2 CFM (1.57m³/min) | 0.205 in H2O (51.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 32.0dB(A) | 2.76 W | 2850 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.375 lb (170.1 g) |
|
|
CFM-8025BG68-170-524DC AXIAL FAN, 80 MM SQUARE, 25 M |
4,927 | 0.00 |
|
Datasheet |
CFM-80BG68 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.40mm | 73.6 CFM (2.06m³/min) | 0.830 in H2O (206.7 Pa) | Ball | Tubeaxial | Auto Restart | 52.4dB(A) | 8.64 W | 7000 RPM | 2 Wire Leads | IP68 - Dust Tight, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
