DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
06038RA-24Q-ET-00DC AXIAL FAN |
3,565 | 0.00 |
|
Datasheet |
06038RA | Box | Active | 24VDC | Square - 60mm L x 60mm H | 38.00mm | 53.9 CFM (1.51m³/min) | - | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 56.0dB | 10.32 W | 10000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
06038RA-12S-EL-00DC AXIAL FAN |
3,195 | 0.00 |
|
Datasheet |
06038RA | Box | Active | 12VDC | Square - 60mm L x 60mm H | 38.00mm | 68.9 CFM (1.93m³/min) | 1.927 in H2O (480.0 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor | 61.0dB | 17.4 W | 12500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
06038RA-24Q-EL-00DC AXIAL FAN |
4,279 | 0.00 |
|
Datasheet |
06038RA | Box | Active | 24VDC | Square - 60mm L x 60mm H | 38.00mm | 53.9 CFM (1.51m³/min) | - | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor | 56.0dB | 10.32 W | 10000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
EEC0384B2-000U-G9948VDC FAN 120X38MM ALARM |
2,812 | 0.00 |
|
Datasheet |
EE | Box | Active | 48VDC | Square - 120mm L x 120mm H | 38.00mm | 116.0 CFM (3.25m³/min) | 0.260 in H2O (64.8 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 44.0dB(A) | 5.8 W | 2600 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
EEC0384B3-000U-G9948VDC FAN 120X38MM ALARM |
4,221 | 0.00 |
|
Datasheet |
EE | Box | Active | 48VDC | Square - 120mm L x 120mm H | 38.00mm | 93.0 CFM (2.60m³/min) | 0.180 in H2O (44.8 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 37.0dB(A) | 3.3 W | 2100 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
EEC0384B1-000U-G9948VDC FAN 120X38MM ALARM |
3,671 | 0.00 |
|
Datasheet |
EE | Box | Active | 48VDC | Square - 120mm L x 120mm H | 38.00mm | 137.7 CFM (3.86m³/min) | 0.360 in H2O (89.6 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 48.0dB(A) | 9.7 W | 3100 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
9WP0612H4D01FAN AXIAL 60X25MM 12VDC WIRE |
4,693 | 19.01 |
|
Datasheet |
San Ace 60W | Box | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 18.7 CFM (0.524m³/min) | 0.161 in H2O (40.2 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 28.0dB(A) | 1.32 W | 3800 RPM | 3 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.243 lb (110.22 g) |
|

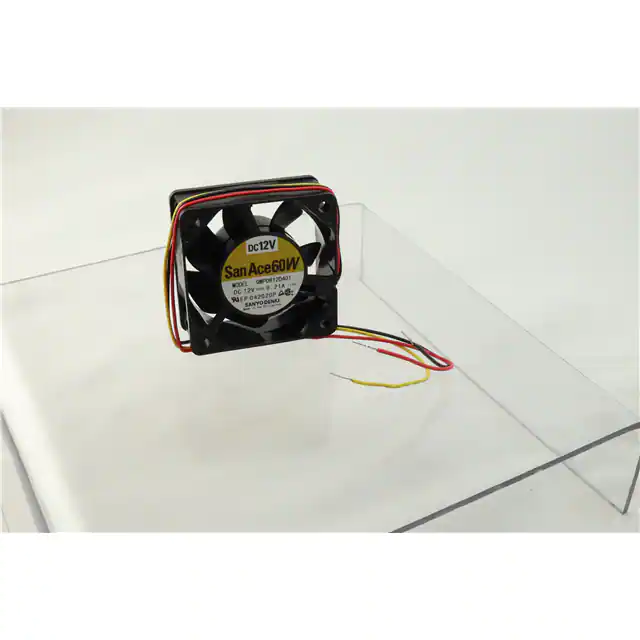

9WP0612D401FAN AXIAL 60X25MM 12VDC WIRE |
3,450 | 0.00 |
|
Datasheet |
San Ace 60W | Box | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 25.0 CFM (0.700m³/min) | 0.300 in H2O (74.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 37.0dB(A) | 2.52 W | 5150 RPM | 3 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.243 lb (110.22 g) |
|
|
9WP0624G4011FAN AXIAL 60X25MM 24VDC WIRE |
2,175 | 19.01 |
|
Datasheet |
San Ace 60W | Box | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 27.5 CFM (0.770m³/min) | 0.351 in H2O (87.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 39.0dB(A) | 3.12 W | 5600 RPM | 3 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.243 lb (110.22 g) |
|
|
DC0803224H2B-3T1FAN 80X32MM 24VDC TACH COMPUTER |
3,523 | 0.00 |
|
Datasheet |
- | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 32.00mm | 69.0 CFM (1.93m³/min) | 0.610 in H2O (151.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 48.0dB(A) | 12 W | 5500 RPM | 3 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC0803224M2B-3T1FAN 80X32MM 24VDC TACH COMPUTER |
2,091 | 0.00 |
|
Datasheet |
- | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 32.00mm | 60.4 CFM (1.69m³/min) | 0.450 in H2O (112.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 45.0dB(A) | 8.4 W | 4800 RPM | 3 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC0803224L2B-3T1FAN 80X32MM 24VDC TACH COMPUTER |
2,885 | 0.00 |
|
Datasheet |
- | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 32.00mm | 49.5 CFM (1.39m³/min) | 0.350 in H2O (87.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 39.0dB(A) | 4.8 W | 4000 RPM | 3 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC0803224J2B-3T1FAN 80X32MM 24VDC TACH COMPUTER |
3,155 | 0.00 |
|
Datasheet |
- | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 32.00mm | 38.1 CFM (1.07m³/min) | 0.200 in H2O (49.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 31.0dB(A) | 3.6 W | 3000 RPM | 3 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
3615KL-04W-B40-P00FAN AXIAL 92X38.4MM 12VDC WIRE |
2,050 | 17.58 |
|
Datasheet |
3615KL | Bulk | Obsolete | 12VDC | Square - 92mm L x 92mm H | 38.40mm | 68.5 CFM (1.92m³/min) | 0.289 in H2O (72.0 Pa) | Ball | Tubeaxial | - | 44.0dB | 4.08 W | 3600 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.463 lb (210.01 g) |
|
|
DC0602548V2B-BT0FAN 60X25MM 48VDC PWM/TACH |
2,121 | 0.00 |
|
Datasheet |
- | Bulk | Active | 48VDC | Square - 60mm L x 60mm H | 25.00mm | 47.8 CFM (1.34m³/min) | 0.790 in H2O (196.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 63.0dB(A) | 23.04 W | 7500 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC0602548U2B-BT0FAN 60X25MM 48VDC PWM/TACH |
4,138 | 0.00 |
|
Datasheet |
- | Bulk | Active | 48VDC | Square - 60mm L x 60mm H | 25.00mm | 43.8 CFM (1.23m³/min) | 0.560 in H2O (139.5 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 56.0dB(A) | 21.6 W | 6800 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
OD6038-12LBVXCFAN AXIAL 60X38MM 12VDC WIRE |
1,330 | 16.42 |
|
Datasheet |
OD6038 VA | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 38.00mm | 38.0 CFM (1.06m³/min) | 0.580 in H2O (144.5 Pa) | Ball | Tubeaxial | Auto Restart | 50.0dB | 3 W | 6000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | - |
|
|
OD6038-12MBVXCFAN AXIAL 60X38MM 12VDC WIRE |
1,237 | 16.42 |
|
Datasheet |
OD6038 VA | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 38.00mm | 48.0 CFM (1.34m³/min) | 0.970 in H2O (241.6 Pa) | Ball | Tubeaxial | Auto Restart | 58.0dB | 8 W | 8000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | - |
|
|
OD6038-24HBVXCFAN AXIAL 60X38MM 24VDC WIRE |
1,194 | 16.29 |
|
Datasheet |
OD6038 VA | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 38.00mm | 61.0 CFM (1.71m³/min) | 1.590 in H2O (396.1 Pa) | Ball | Tubeaxial | Auto Restart | 64.0dB | 21 W | 10000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | - |
|
OD1225-12MBIP5501AFAN AXIAL 120X25MM 12VDC WIRE |
1,259 | 18.23 |
|
Datasheet |
OD1225 | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 25.00mm | 90.0 CFM (2.52m³/min) | 0.190 in H2O (47.3 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 35.0dB(A) | 4 W | 2500 RPM | 3 Wire Leads | IP55 - Dust Protected, Water Resistant | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | 0.341 lb (154.67 g) |
