DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RL48-19/12FAN BLOWER 75X27MM 12VDC WIRE |
591 | 48.05 |
|
Datasheet |
RL48 | Bulk | Active | 12VDC | Square/Rounded - 75mm L x 75mm H | 27.00mm | 16.5 CFM (0.462m³/min) | - | Ball | Blower | - | 51.0dB(A) | 5 W | 4400 RPM | 2 Wire Leads | - | - | - | 0.165 lb (74.84 g) |
|

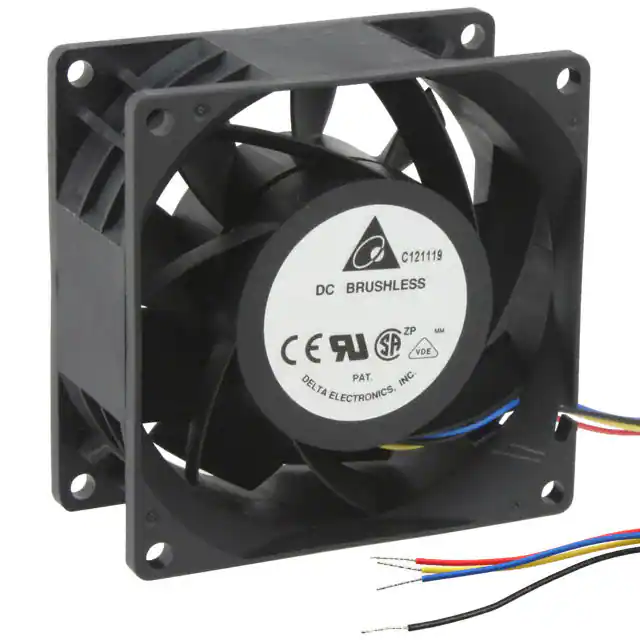

PFC0812DE-SP04FAN AXIAL 80X38MM 12VDC WIRE |
795 | 40.14 |
|
Datasheet |
PFC | Box | Active | 12VDC | Square - 80mm L x 80mm H | 38.00mm | 132.6 CFM (3.71m³/min) | 2.030 in H2O (505.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 65.0dB(A) | 33 W | 9000 RPM | 4 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.452 lb (205.02 g) |
|
OD1225-48HBIP69KFAN AXIAL 120X25MM 48VDC WIRE |
102 | 39.75 |
|
Datasheet |
OD1225-IP69K | Box | Active | 48VDC | Square - 120mm L x 120mm H | 25.00mm | 120.0 CFM (3.36m³/min) | 0.240 in H2O (59.8 Pa) | Ball | Tubeaxial | Auto Restart | 42.0dB(A) | 4.5 W | 3100 RPM | 2 Wire Leads | IP69K - Dust Tight, Water Resistant, Waterproof | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | 0.341 lb (154.67 g) |
|
9BMB24P2G01FAN BLOWER 97.1X33MM 24VDC WIRE |
537 | 29.05 |
|
Datasheet |
San Ace B97 | Box | Active | 24VDC | Rectangular/Rounded - 97.1mm L x 95mm H | 33.00mm | 47.3 CFM (1.32m³/min) | 3.052 in H2O (760.0 Pa) | Ball | Blower | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 61.0dB(A) | 19.92 W | 5750 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 0.419 lb (190.06 g) |
|
PFM0812HE-01BFYFAN AXIAL 80X38MM 12VDC WIRE |
3,273 | 39.71 |
|
Datasheet |
PFM - Three-Phase | Box | Active | 12VDC | Square - 80mm L x 80mm H | 38.00mm | 129.4 CFM (3.62m³/min) | 4.969 in H2O (1237.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 77.0dB(A) | 51.6 W | 16300 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.441 lb (200.03 g) |
|

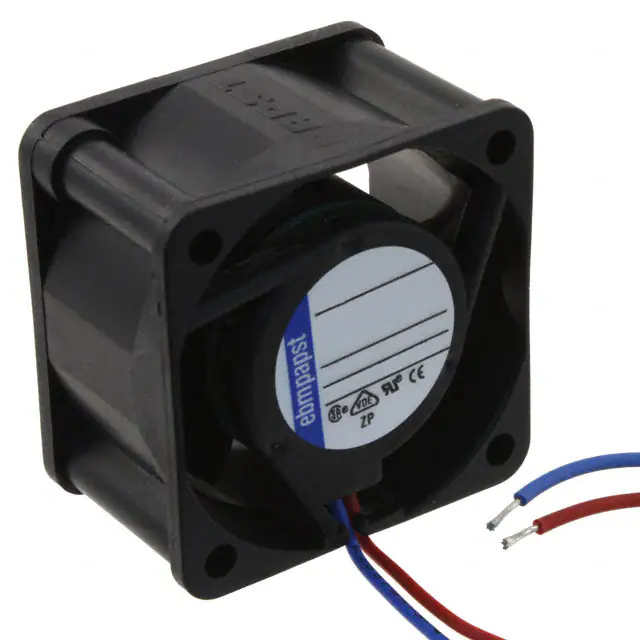

412JHHFAN AXIAL 40X25.4MM 12VDC WIRE |
498 | 47.32 |
|
Datasheet |
400J | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 25.40mm | 14.1 CFM (0.395m³/min) | - | Ball | Tubeaxial | - | 46.0dB(A) | 3.3 W | 13000 RPM | 2 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, UL, VDE | 0.111 lb (50.35 g) |
|

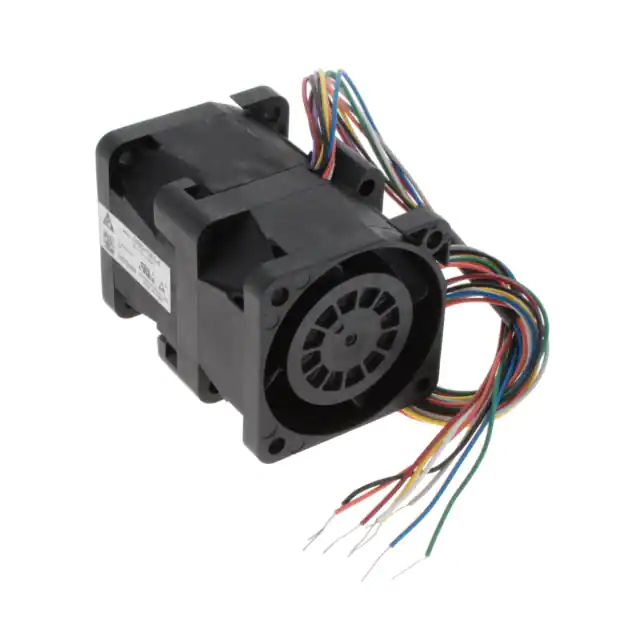

GFB0412ES-EFAN AXIAL DUAL 40X56MM 12VDC |
311 | 38.69 |
|
Datasheet |
GFB | Box | Active | 12VDC | Square - 40mm L x 40mm H | 56.00mm | 33.9 CFM (0.949m³/min) | 6.440 in H2O (1604.1 Pa) | Ball | Tubeaxial (Dual) | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 73.0dB(A) | 39 W | 29500 Front, 26500 Rear | 4 Wire Leads per Fan | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | - |
|
19028868AFAN AXIAL 119.1X39.1MM MD12B2 |
130 | 56.59 |
|
Datasheet |
Muffin XL | Bulk | Active | 12VDC | Square - 119.13mm L x 119.13mm H | 39.12mm | 110.0 CFM (3.08m³/min) | 0.278 in H2O (69.2 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection | 50.0dB(A) | 6 W | 3330 RPM | 2 Terminals | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UL | 1.4 lbs (635.0 g) |
|
OD1238-48H3BVXEFAN AXIAL 120X38MM 48VDC WIRE |
233 | 45.29 |
|
Datasheet |
OD1238 | Box | Active | 48VDC | Square - 120mm L x 120mm H | 38.00mm | 285.2 CFM (7.99m³/min) | 2.300 in H2O (572.9 Pa) | Ball | Tubeaxial | Auto Restart | 64.6dB(A) | 77.7 W | 5980 RPM | 2 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | - |
|
OD127AP-24HBFAN AXIAL 127X38.5MM 24VDC WIRE |
528 | 45.32 |
|
Datasheet |
OD127AP | Box | Active | 24VDC | Square - 127mm L x 127mm H | 38.50mm | 140.0 CFM (3.92m³/min) | 0.410 in H2O (102.1 Pa) | Ball | Tubeaxial | - | 46.0dB | - | 3000 RPM | 2 Wire Leads | - | -4 ~ 167°F (-20 ~ 75°C) | cURus, TUV | - |
|

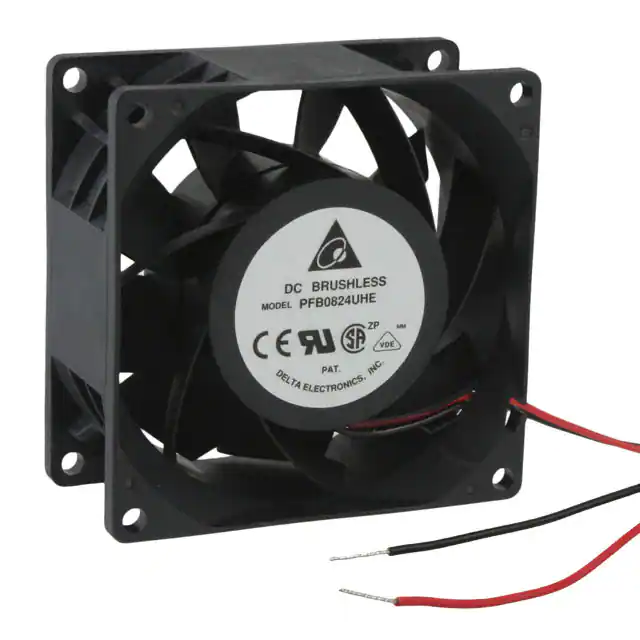

PFB0824UHE-T500FAN AXIAL 80X38MM 24VDC WIRE |
388 | 42.71 |
|
Datasheet |
PFB | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 38.00mm | 107.3 CFM (3.00m³/min) | 1.368 in H2O (340.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 61.0dB(A) | 18.48 W | 7500 RPM | 2 Wire Leads | IP55 - Dust Protected, Water Resistant | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.441 lb (200.03 g) |
|
9GA0824P1S61FAN AXIAL 80X38MM 24VDC WIRE |
107 | 26.52 |
|
Datasheet |
San Ace 80 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 38.00mm | 91.8 CFM (2.57m³/min) | 1.930 in H2O (480.8 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 59.0dB(A) | 11.28 W | 9550 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.353 lb (160.12 g) |
|

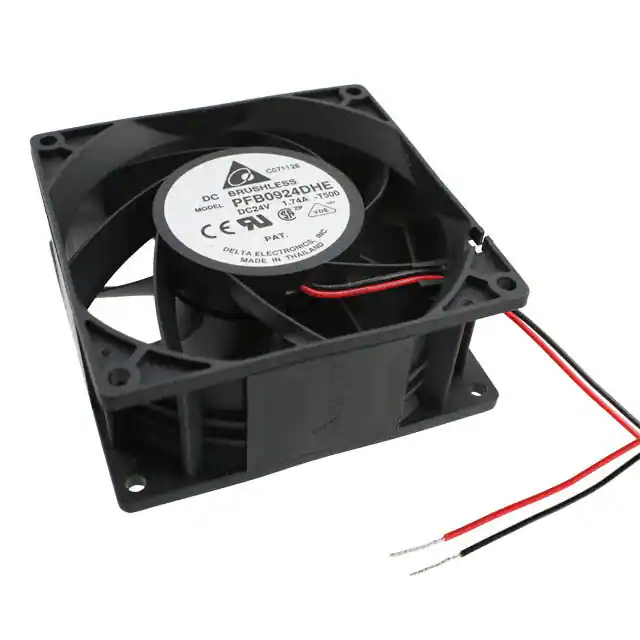

PFB0924DHE-T500FAN AXIAL 92X38MM 24VDC WIRE |
2,055 | 43.86 |
|
Datasheet |
PFB | Box | Active | 24VDC | Square - 92mm L x 92mm H | 38.00mm | 175.0 CFM (4.90m³/min) | 1.819 in H2O (453.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 66.5dB(A) | 34.8 W | 8000 RPM | 2 Wire Leads | IP55 - Dust Protected, Water Resistant | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.553 lb (250.84 g) |
|
|
MS1751H24B1+6-FHRFAN AXIAL 171X51.5MM 24VDC WIRE |
101 | 58.04 |
|
Datasheet |
MS1751-H | Bulk | Active | 24VDC | Rectangular/Rounded - 171mm L x 153mm H | 51.50mm | 418.0 CFM (11.70m³/min) | 1.640 in H2O (408.5 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 71.0dB(A) | - | 5500 RPM | 4 Wire Leads | - | - | - | 1.5 lbs (670.0 g) |
|
4412F/2FAN AXIAL 119X25.4MM 12VDC WIRE |
267 | 47.59 |
|
Datasheet |
4400F | Bulk | Active | 12VDC | Square - 119mm L x 119mm H | 25.40mm | 100.0 CFM (2.80m³/min) | - | Ball | Tubeaxial | Speed Sensor (Tach) | 43.0dB(A) | 5.3 W | 2900 RPM | 3 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | - | 0.386 lb (175.09 g) |
|

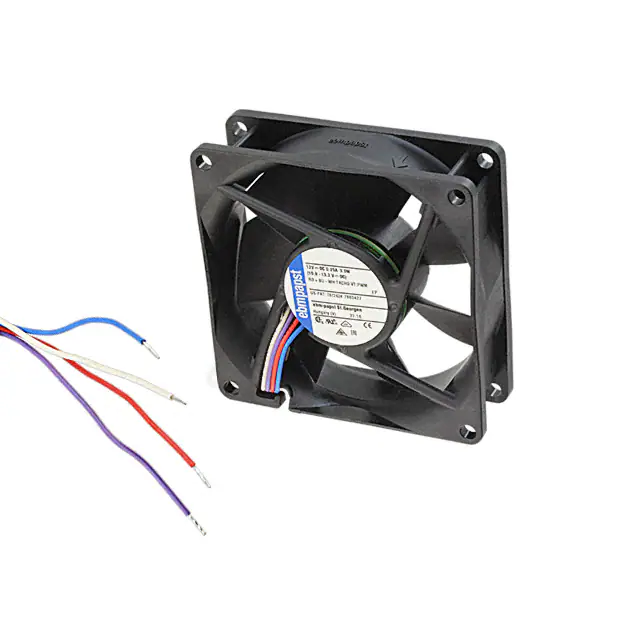

8412N/2GHPFAN AXIAL 80X25MM 12VDC WIRE |
101 | 49.72 |
|
Datasheet |
8400N | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 37.7 CFM (1.06m³/min) | 0.160 in H2O (40.0 Pa) | Sintec | Tubeaxial | Auto Restart, Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 35.0dB(A) | 3 W | 3600 RPM | 4 Wire Leads | IP20 | 32 ~ 158°F (0 ~ 70°C) | - | - |
|
4412MFAN AXIAL 119X38MM 12VDC WIRE |
252 | 52.32 |
|
Datasheet |
4400 | Bulk | Active | 12VDC | Square - 119mm L x 119mm H | 38.00mm | 108.0 CFM (3.02m³/min) | - | Ball | Tubeaxial | Locked Rotor Protection | 42.0dB(A) | 3.8 W | 3300 RPM | 2 Wire Leads | - | -4 ~ 167°F (-20 ~ 75°C) | - | 0.553 lb (250.84 g) |
|

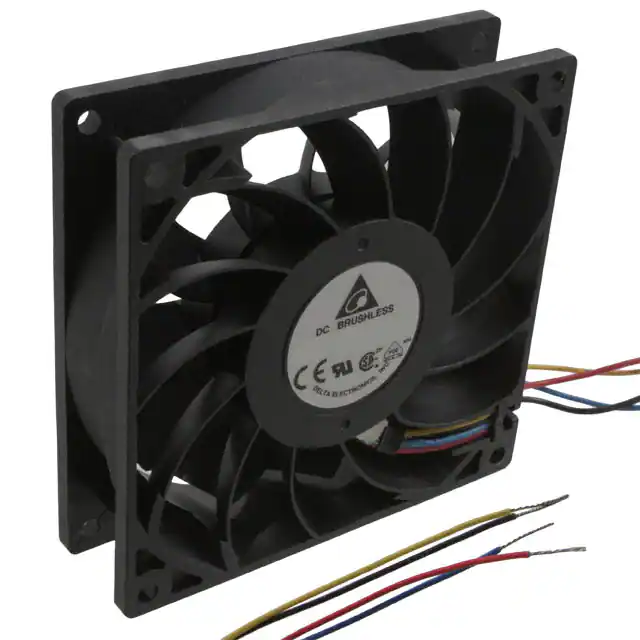

FFC0948BY7TFAN AXIAL 92X25.4MM 48VDC WIRE |
2,815 | 42.60 |
|
Datasheet |
FFC | Box | Active | 48VDC | Square - 92mm L x 92mm H | 25.40mm | 86.4 CFM (2.42m³/min) | 0.355 in H2O (88.4 Pa) | Ball | Tubeaxial | GR-487 (Salt Fog Protection), PWM Control, Speed Sensor (Tach) | 49.5dB(A) | 8.16 W | 3900 RPM | 4 Wire Leads | IP56 - Dust Protected, Water Resistant | -13 ~ 158°F (-25 ~ 70°C) | CE, CSA, UL, VDE | 0.331 lb (150.14 g) |
|
9LG0912P4J001FAN AXIAL 92X25MM 12VDC WIRE |
413 | 67.93 |
|
Datasheet |
San Ace 92L | Box | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 77.7 CFM (2.18m³/min) | 0.420 in H2O (104.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 44.0dB(A) | 5.04 W | 5000 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.331 lb (150.14 g) |
|
618NNFAN AXIAL 60X25.4MM 48VDC WIRE |
146 | 56.71 |
|
Datasheet |
600N | Bulk | Active | 48VDC | Square - 60mm L x 60mm H | 25.40mm | 24.7 CFM (0.692m³/min) | - | Ball | Tubeaxial | - | 35.0dB(A) | 2.1 W | 5100 RPM | 2 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | CE, CSA, UL, VDE | 0.145 lb (65.77 g) |
