DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
4712KL-05W-B39-P00FAN AXIAL 119X32MM 24VDC WIRE |
2,617 | 20.66 |
|
Datasheet |
4712KL | Box | Active | 24VDC | Square - 119mm L x 119mm H | 32.00mm | 99.9 CFM (2.80m³/min) | 0.241 in H2O (60.0 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 44.0dB | 6.72 W | 2800 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.529 lb (239.95 g) |
|
|
4712KL-05W-B39-P50FAN AXIAL 119X32MM 24VDC WIRE |
3,400 | 20.66 |
|
Datasheet |
4712KL | Box | Active | 24VDC | Square - 119mm L x 119mm H | 32.00mm | 99.9 CFM (2.80m³/min) | 0.241 in H2O (60.0 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 44.0dB | 6.72 W | 2800 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.529 lb (239.95 g) |
|
|
4712KL-05W-B49-P50FAN AXIAL 119X32MM 24VDC WIRE |
4,153 | 20.66 |
|
Datasheet |
4712KL | Box | Active | 24VDC | Square - 119mm L x 119mm H | 32.00mm | 112.0 CFM (3.14m³/min) | 0.329 in H2O (82.0 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 47.0dB | 8.16 W | 3100 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.529 lb (239.95 g) |
|
|
4712KL-07W-B19-P00FAN AXIAL 119X32MM 48VDC WIRE |
1,564 | 20.66 |
|
Datasheet |
4712KL | Box | Active | 48VDC | Square - 119mm L x 119mm H | 32.00mm | 56.1 CFM (1.57m³/min) | 0.088 in H2O (21.9 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 29.0dB | 3.36 W | 1600 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.529 lb (239.95 g) |
|
|
4712KL-07W-B19-P50FAN AXIAL 119X32MM 48VDC WIRE |
2,360 | 20.66 |
|
Datasheet |
4712KL | Box | Active | 48VDC | Square - 119mm L x 119mm H | 32.00mm | 56.1 CFM (1.57m³/min) | 0.088 in H2O (21.9 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 29.0dB | 3.36 W | 1600 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.529 lb (239.95 g) |
|
|
4712KL-07W-B29-P00FAN AXIAL 119X32MM 48VDC WIRE |
2,109 | 20.66 |
|
Datasheet |
4712KL | Box | Active | 48VDC | Square - 119mm L x 119mm H | 32.00mm | 82.2 CFM (2.30m³/min) | 0.168 in H2O (41.8 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 39.0dB | 5.28 W | 2300 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.529 lb (239.95 g) |
|
|
4712KL-07W-B29-P50FAN AXIAL 119X32MM 48VDC WIRE |
2,466 | 20.66 |
|
Datasheet |
4712KL | Box | Active | 48VDC | Square - 119mm L x 119mm H | 32.00mm | 82.2 CFM (2.30m³/min) | 0.168 in H2O (41.8 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 39.0dB | 5.28 W | 2300 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.529 lb (239.95 g) |
|
|
4712KL-07W-B39-P00FAN AXIAL 119X32MM 48VDC WIRE |
1,004 | 20.66 |
|
Datasheet |
4712KL | Box | Active | 48VDC | Square - 119mm L x 119mm H | 32.00mm | 99.9 CFM (2.80m³/min) | 0.241 in H2O (60.0 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 44.0dB | 7.68 W | 2800 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.529 lb (239.95 g) |
|
|
4712KL-07W-B39-P50FAN AXIAL 119X32MM 48VDC WIRE |
4,623 | 20.66 |
|
Datasheet |
4712KL | Box | Active | 48VDC | Square - 119mm L x 119mm H | 32.00mm | 99.9 CFM (2.80m³/min) | 0.241 in H2O (60.0 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 44.0dB | 7.68 W | 2800 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.529 lb (239.95 g) |
|
|
4712KL-07W-B49-P50FAN AXIAL 119X32MM 48VDC WIRE |
3,103 | 20.66 |
|
Datasheet |
4712KL | Box | Active | 48VDC | Square - 119mm L x 119mm H | 32.00mm | 112.0 CFM (3.14m³/min) | 0.329 in H2O (82.0 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 47.0dB | 10.1 W | 3100 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.529 lb (239.95 g) |
|
|
4712KL-04W-B59-P50FAN AXIAL 119X32MM 12VDC WIRE |
4,647 | 20.66 |
|
Datasheet |
4712KL | Box | Active | 12VDC | Square - 119mm L x 119mm H | 32.00mm | 120.0 CFM (3.36m³/min) | 0.373 in H2O (93.0 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 50.5dB | 10.2 W | 3300 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.529 lb (239.95 g) |
|
|
4712KL-05W-B59-P00FAN AXIAL 119X32MM 24VDC WIRE |
4,926 | 20.66 |
|
Datasheet |
4712KL | Box | Active | 24VDC | Square - 119mm L x 119mm H | 32.00mm | 116.5 CFM (3.26m³/min) | 0.390 in H2O (97.1 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 50.5dB | 9.8 W | 3300 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.529 lb (239.95 g) |
|
|
DC0923824L2B-BT4FAN 92X38MM 24VDC PWM/TACH MOLEX |
1,689 | 0.00 |
|
Datasheet |
- | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 38.00mm | 97.1 CFM (2.72m³/min) | 0.700 in H2O (174.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 52.0dB(A) | 12 W | 4300 RPM | 4 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
19031169AFAN AXIAL 92X25.4MM 24VDC FN24B3 |
4,667 | 0.00 |
|
Datasheet |
Flight II 90 | - | Obsolete | 24VDC | Square - 92mm L x 92mm H | 25.40mm | 45.0 CFM (1.26m³/min) | 0.182 in H2O (45.3 Pa) | Ball | Tubeaxial | - | 38.1dB(A) | 2.4 W | 2860 RPM | 2 Wire Leads | - | - | - | 0.441 lb (200.03 g) |
|
19031392AFAN AXIAL 92X25.4MM 48VDC FN48B3 |
1,270 | 0.00 |
|
Datasheet |
Flight II 90 | - | Obsolete | 48VDC | Square - 92mm L x 92mm H | 25.40mm | 45.0 CFM (1.26m³/min) | 0.182 in H2O (45.3 Pa) | Ball | Tubeaxial | - | 38.1dB(A) | 2.9 W | 2850 RPM | 2 Wire Leads | - | - | - | 0.441 lb (200.03 g) |
|
|
9GV0612G102FAN AXIAL 60X38MM 12VDC WIRE |
3,349 | 19.00 |
|
Datasheet |
San Ace 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 38.00mm | 84.0 CFM (2.35m³/min) | 3.020 in H2O (752.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 66.0dB(A) | 33.6 W | 16000 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.287 lb (130.18 g) |
|
|
9GV0612G1021FAN AXIAL 60X38MM 12VDC WIRE |
3,934 | 19.00 |
|
Datasheet |
San Ace 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 38.00mm | 84.0 CFM (2.35m³/min) | 3.020 in H2O (752.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 66.0dB(A) | 33.6 W | 16000 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.287 lb (130.18 g) |
|

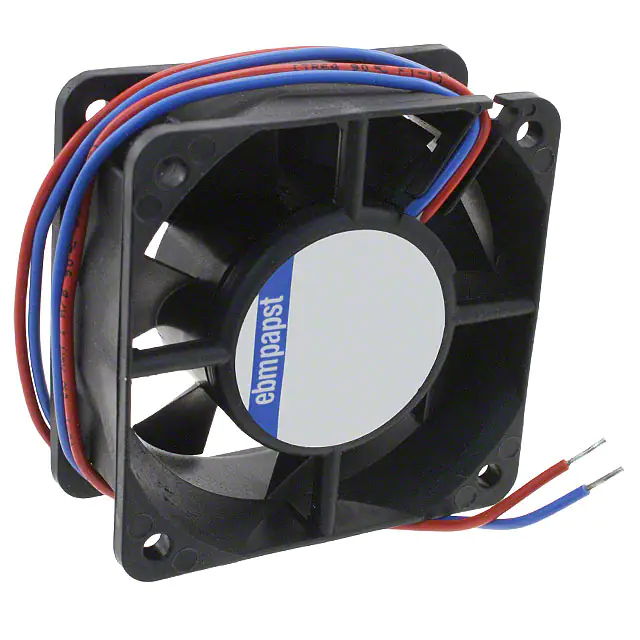

612FAN AXIAL 60X25.4MM 12VDC WIRE |
4,626 | 0.00 |
|
Datasheet |
600 | - | Obsolete | 12VDC | Square - 60mm L x 60mm H | 25.40mm | 24.0 CFM (0.672m³/min) | - | Ball | Tubeaxial | - | 40.0dB(A) | 2.5 W | - | 2 Wire Leads | - | - | - | 0.19 lb (86.18 g) |
|

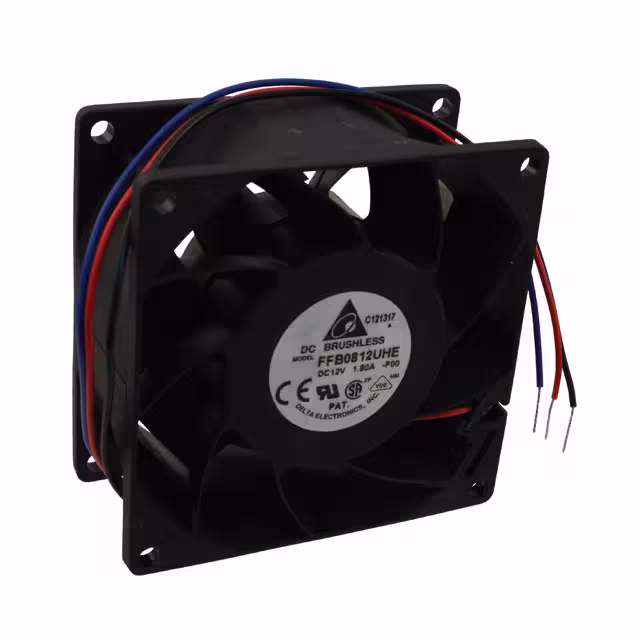

FFB0812UHE-F00FAN AXIAL 80X38MM 12VDC WIRE |
2,327 | 21.68 |
|
Datasheet |
FFB | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 38.00mm | 102.0 CFM (2.86m³/min) | 1.233 in H2O (307.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 62.2dB(A) | 18 W | 7500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.375 lb (170.1 g) |
|
DC1203812H2B-BT0FAN AXIAL 120X38MM 12VDC WIRE |
4,756 | 16.22 |
|
Datasheet |
- | Box | Active | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 136.0 CFM (3.81m³/min) | 0.540 in H2O (134.5 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 48.0dB(A) | 9.6 W | 3200 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.508 lb (230.42 g) |
