DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DC1203848J2B-2T0FAN 120X38MM 48VDC |
1,933 | 0.00 |
|
Datasheet |
- | Bulk | Active | 48VDC | Square - 120mm L x 120mm H | 38.00mm | 190.5 CFM (5.33m³/min) | 0.690 in H2O (171.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 56.0dB(A) | 72 W | 4100 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC1203824H2B-BT4FAN 120X38MM 24VDC PWM/TACH MOLE |
2,101 | 0.00 |
|
Datasheet |
- | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 114.7 CFM (3.21m³/min) | 0.410 in H2O (102.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 41.0dB(A) | 9.6 W | 2600 RPM | 4 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC1203824M2B-BT4FAN 120X38MM 24VDC PWM/TACH MOLE |
3,709 | 0.00 |
|
Datasheet |
- | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 101.4 CFM (2.84m³/min) | 0.300 in H2O (74.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 38.0dB(A) | 6.72 W | 2300 RPM | 4 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
9RA0648G4002160X25MM 48V, LOW NOISE, RBLS DC |
3,241 | 0.00 |
|
Datasheet |
San Ace 60 | Box | Active | 48VDC | Square - 60mm L x 60mm H | 25.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection | - | - | - | 2 Wire Leads | - | - | cURus, TUV | - |
|
|
9RA0648J400260X25MM 48V, LOW NOISE DC 0 |
4,078 | 0.00 |
|
Datasheet |
San Ace 60 | Box | Active | 48VDC | Square - 60mm L x 60mm H | 25.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection | - | - | - | 2 Wire Leads | - | - | cURus, TUV | - |
|
|
9RA0648J4002160X25MM 48V, LOW NOISE, RBLS DC |
1,666 | 0.00 |
|
Datasheet |
San Ace 60 | Box | Active | 48VDC | Square - 60mm L x 60mm H | 25.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection | - | - | - | 2 Wire Leads | - | - | cURus, TUV | - |
|
|
9RA0648G400260X25MM 48V, LOW NOISE DC 0 |
3,098 | 0.00 |
|
Datasheet |
San Ace 60 | Box | Active | 48VDC | Square - 60mm L x 60mm H | 25.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection | - | - | - | 2 Wire Leads | - | - | cURus, TUV | - |
|
|
PF60381BX-1000U-G9H12VDC FAN 60X38MM ALARM |
1,491 | 0.00 |
|
Datasheet |
PF | Box | Active | 12VDC | Square - 60mm L x 60mm H | 38.00mm | 75.2 CFM (2.11m³/min) | 3.570 in H2O (889.2 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 67.0dB(A) | 30 W | 16500 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
PF60381B1-1000U-G9H12VDC FAN 60X38MM ALARM |
1,161 | 0.00 |
|
Datasheet |
PF | Box | Active | 12VDC | Square - 60mm L x 60mm H | 38.00mm | 60.8 CFM (1.70m³/min) | 2.300 in H2O (572.9 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 61.2dB(A) | 14.4 W | 13200 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
PF60381BX-1000U-H9H12VDC FAN 60X38MM PWM |
4,334 | 0.00 |
|
Datasheet |
PF | Box | Active | 12VDC | Square - 60mm L x 60mm H | 38.00mm | 75.2 CFM (2.11m³/min) | 3.570 in H2O (889.2 Pa) | Ball | Tubeaxial | PWM Control | 67.0dB(A) | 30 W | 16500 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
PF60381B1-1000U-H9H12VDC FAN 60X38MM PWM |
1,185 | 0.00 |
|
Datasheet |
PF | Box | Active | 12VDC | Square - 60mm L x 60mm H | 38.00mm | 60.8 CFM (1.70m³/min) | 2.300 in H2O (572.9 Pa) | Ball | Tubeaxial | PWM Control | 61.2dB(A) | 14.4 W | 13200 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
9GA0924L4D0192X25MM 24V,HIGH PERF., LOW POWE |
3,927 | 0.00 |
|
Datasheet |
San Ace 92 | Box | Active | 24VDC | Square - 92mm L x 92mm H | 25.00mm | - | - | Ball | Tubeaxial | Locked Rotor Sensor | - | - | - | 3 Wire Leads | - | - | cURus, TUV | - |
|
OD127-24HBXCFAN AXIAL 127X38.5MM 24VDC WIRE |
3,079 | 21.98 |
|
Datasheet |
OD127 | Bulk | Active | 24VDC | Square - 127mm L x 127mm H | 38.50mm | 161.0 CFM (4.51m³/min) | 0.460 in H2O (114.6 Pa) | Ball | Tubeaxial | Auto Restart | 56.0dB | - | 3500 RPM | 2 Wire Leads | - | -4 ~ 167°F (-20 ~ 75°C) | cURus, TUV | - |
|
OD8038-12HHBIP68FAN AXIAL 80X38MM 12VDC WIRE |
2,616 | 19.15 |
|
Datasheet |
OD8038 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 38.00mm | 80.2 CFM (2.25m³/min) | 0.780 in H2O (194.3 Pa) | Ball | Tubeaxial | Auto Restart | 52.0dB | 10.8 W | 5800 RPM | 2 Wire Leads | IP68 - Dust Tight, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | 0.461 lb (209.11 g) |
|
4715RL-05W-B60-E00FAN AXIAL 120X38MM 24VDC WIRE |
2,841 | 0.00 |
|
Datasheet |
4715RL | Box | Obsolete | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 188.2 CFM (5.27m³/min) | 0.943 in H2O (234.9 Pa) | Ball | Tubeaxial | - | 62.0dB(A) | 24 W | 5000 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, UL, VDE | 0.816 lb (370.13 g) |
|
|
4715RL-05W-B80-E00FAN AXIAL 120X38MM 24VDC WIRE |
1,358 | 0.00 |
|
Datasheet |
4715RL | Box | Obsolete | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 224.6 CFM (6.29m³/min) | 1.368 in H2O (340.8 Pa) | Ball | Tubeaxial | - | 66.5dB(A) | 43.2 W | 6000 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, UL, VDE | 0.816 lb (370.13 g) |
|
|
OD127-48LBFAN AXIAL 127X38.5MM 48VDC WIRE |
1,266 | 21.99 |
|
Datasheet |
OD127 | Bulk | Active | 48VDC | Square - 127mm L x 127mm H | 38.50mm | 133.0 CFM (3.72m³/min) | 0.230 in H2O (57.3 Pa) | Ball | Tubeaxial | - | 30.0dB | - | 2500 RPM | 2 Wire Leads | - | -4 ~ 167°F (-20 ~ 75°C) | cURus, TUV | - |
|
|
DC1203812J2B-2T2FAN 120X38MM 12VDC MOLEX 22-01-1 |
1,259 | 0.00 |
|
Datasheet |
- | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 101.4 CFM (2.84m³/min) | 0.300 in H2O (74.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 38.0dB(A) | 2.16 W | 2300 RPM | 2 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
FD4020B12W7-87-2RDC Axial Fan 40x40x20mm 12VDC |
4,492 | 0.00 |
|
Datasheet |
87 | Tape & Box (TB) | Active | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 9.6 CFM (0.269m³/min) | 0.319 in H2O (79.5 Pa) | Ball | Tubeaxial | Auto Restart | 24.5dB(A) | 1.44 W | 6500 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CE, cUL, TUV, UL | 0.06 lb (27.22 g) |
|

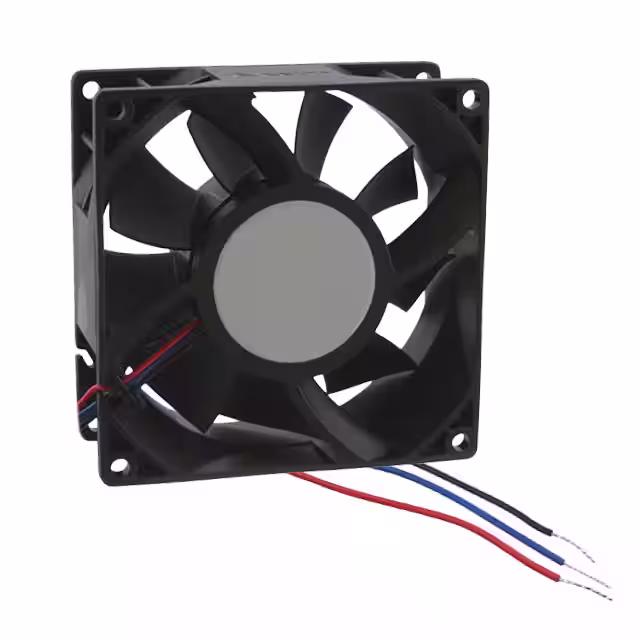

AFB0912EHE-AF00FAN AXIAL 92X38MM 12VDC WIRE |
1,497 | 21.82 |
|
Datasheet |
AFB | Bulk | Obsolete | 12VDC | Square - 92mm L x 92mm H | 38.00mm | 127.3 CFM (3.56m³/min) | 0.635 in H2O (158.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 56.0dB(A) | 16.8 W | 4800 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.551 lb (249.93 g) |
