DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PMD1209PMB3-A.(2).GNFAN AXIAL 92X38MM 12VDC WIRE |
1,686 | 12.04 |
|
Datasheet |
PMD | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 38.00mm | 91.8 CFM (2.57m³/min) | 0.430 in H2O (107.1 Pa) | Ball | Tubeaxial | Auto Restart | 50.3dB(A) | 5.6 W | 3800 RPM | 2 Wire Leads | - | - | - | - |
|
|
PMD1209PMB4-A.(2).GNThermal Products |
3,005 | 0.00 |
|
- |
PM | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 38.00mm | 75.1 CFM (2.10m³/min) | 0.300 in H2O (74.7 Pa) | Ball | Tubeaxial | Auto Restart | 45.6dB(A) | 3.5 W | 3200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | - |
|
|
PMD1208PMB4-A.(2).GNThermal Products |
4,969 | 0.00 |
|
- |
PM | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 38.00mm | 49.3 CFM (1.38m³/min) | 0.300 in H2O (74.7 Pa) | Ball | Tubeaxial | Auto Restart | 42.2dB(A) | 2.8 W | 3400 RPM | 2 Wire Leads | - | - | - | - |
|
|
PMD1208PMB3-A.(2).GNThermal Products |
2,828 | 0.00 |
|
Datasheet |
PM | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 38.00mm | 59.5 CFM (1.67m³/min) | 0.430 in H2O (107.0 Pa) | Ball | Tubeaxial | Auto Restart | 47.3dB(A) | 4.4 W | 4200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | - |
|
|
08038RA-12N-EL-00FAN AXIAL 80X38MM 12VDC WIRE |
2,237 | 22.71 |
|
- |
08038RA | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 38.00mm | 61.8 CFM (1.73m³/min) | 0.460 in H2O (114.6 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor | 46.0dB | 4.9 W | 4500 RPM | 3 Wire Leads | - | - | - | - |
|
|
08038RA-12Q-ET-00FAN AXIAL 80X38MM 12VDC WIRE |
1,698 | 22.71 |
|
- |
08038RA | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 38.00mm | 91.8 CFM (2.57m³/min) | 1.040 in H2O (258.0 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 56.0dB | 13.8 W | 6500 RPM | 3 Wire Leads | - | - | - | - |
|
|
9WP0824S402FAN AXIAL 80X25MM 24VDC WIRE |
4,781 | 25.50 |
|
Datasheet |
San Ace 80W | Box | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 42.4 CFM (1.19m³/min) | 0.193 in H2O (48.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 34.0dB(A) | 2.4 W | 3400 RPM | 2 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.287 lb (130.18 g) |
|
|
9WP0824S402180X25MM 24V,SPLASH PROOF,RBLS DC |
1,813 | 0.00 |
|
Datasheet |
San Ace 80W | Box | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection | - | - | - | 2 Wire Leads | IP68 - Dust Tight, Waterproof | - | CSA, TUV, UR | - |
|
OD1238-48HBIP55FAN AXIAL 120X38MM 48VDC WIRE |
1,719 | 22.75 |
|
Datasheet |
OD1238 | Bulk | Active | 48VDC | Square - 120mm L x 120mm H | 38.00mm | 123.9 CFM (3.47m³/min) | 0.469 in H2O (116.8 Pa) | Ball | Tubeaxial | Auto Restart | 44.1dB(A) | 14 W | 2895 RPM | 2 Wire Leads | IP55 - Dust Protected, Water Resistant | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | 0.572 lb (259.45 g) |
|
|
OD1238-48LBIP55FAN AXIAL 120X38.5MM 48VDC WIRE |
2,159 | 22.75 |
|
Datasheet |
OD1238 | Bulk | Active | 48VDC | Square - 120mm L x 120mm H | 38.50mm | 65.0 CFM (1.82m³/min) | 0.130 in H2O (32.4 Pa) | Ball | Tubeaxial | - | 26.0dB | 5 W | 2000 RPM | 2 Wire Leads | IP55 - Dust Protected, Water Resistant | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | - |
|
|
OD1238-48MBIP55FAN AXIAL 120X38.5MM 48VDC WIRE |
4,639 | 22.75 |
|
Datasheet |
OD1238 | Bulk | Active | 48VDC | Square - 120mm L x 120mm H | 38.50mm | 79.0 CFM (2.21m³/min) | 0.210 in H2O (52.3 Pa) | Ball | Tubeaxial | - | 33.0dB | 3.8 W | 2550 RPM | 2 Wire Leads | IP55 - Dust Protected, Water Resistant | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | - |
|
|
DC1203824L2B-3T3FAN 120X38MM 24VDC TACH MOLEX 22 |
3,717 | 0.00 |
|
Datasheet |
- | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 212.6 CFM (5.95m³/min) | 0.840 in H2O (209.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 59.0dB(A) | 51.84 W | 4600 RPM | 3 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
9GL1248H102FAN AXIAL 119X38MM 48VDC WIRE |
3,671 | 25.59 |
|
Datasheet |
San Ace 120L | Box | Active | 48VDC | Square - 119mm L x 119mm H | 38.00mm | 99.0 CFM (2.77m³/min) | 0.283 in H2O (70.5 Pa) | Ball | Tubeaxial | - | 39.0dB(A) | 5.28 W | 2600 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.816 lb (370.13 g) |
|
|
9GL1248M102FAN AXIAL 119X38MM 48VDC WIRE |
2,203 | 25.59 |
|
Datasheet |
San Ace 120L | Box | Active | 48VDC | Square - 119mm L x 119mm H | 38.00mm | 74.0 CFM (2.07m³/min) | 0.159 in H2O (39.6 Pa) | Ball | Tubeaxial | - | 32.0dB(A) | 3.36 W | 1950 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.816 lb (370.13 g) |
|
|
9GL1248F102FAN AXIAL 119X38MM 48VDC WIRE |
3,001 | 25.59 |
|
Datasheet |
San Ace 120L | Box | Active | 48VDC | Square - 119mm L x 119mm H | 38.00mm | 87.0 CFM (2.44m³/min) | 0.218 in H2O (54.3 Pa) | Ball | Tubeaxial | - | 36.0dB(A) | 4.32 W | 2280 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CSA, TUV, UL | 0.816 lb (370.13 g) |
|
|
DC1203848J2B-2T2FAN 120X38MM 48VDC MOLEX 22-01-1 |
3,399 | 0.00 |
|
Datasheet |
- | Bulk | Active | 48VDC | Square - 120mm L x 120mm H | 38.00mm | 190.5 CFM (5.33m³/min) | 0.690 in H2O (171.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 56.0dB(A) | 72 W | 4100 RPM | 2 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC0923812H2B-3T1FAN 92X38MM 12VDC TACH COMPUTER |
2,992 | 0.00 |
|
Datasheet |
- | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 38.00mm | 123.6 CFM (3.46m³/min) | 1.120 in H2O (279.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 64.0dB(A) | 14.4 W | 6000 RPM | 3 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
DC0923812U2B-3T1FAN 92X38MM 12VDC TACH COMPUTER |
3,761 | 0.00 |
|
Datasheet |
- | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 38.00mm | 145.6 CFM (4.08m³/min) | 1.460 in H2O (363.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 67.0dB(A) | 30 W | 7000 RPM | 3 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
DC0603824I2B-3T1FAN 60X38MM 24VDC TACH COMPUTER |
4,832 | 0.00 |
|
Datasheet |
- | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 38.00mm | 43.1 CFM (1.21m³/min) | 0.900 in H2O (224.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 51.0dB(A) | 12.48 W | 8000 RPM | 3 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|

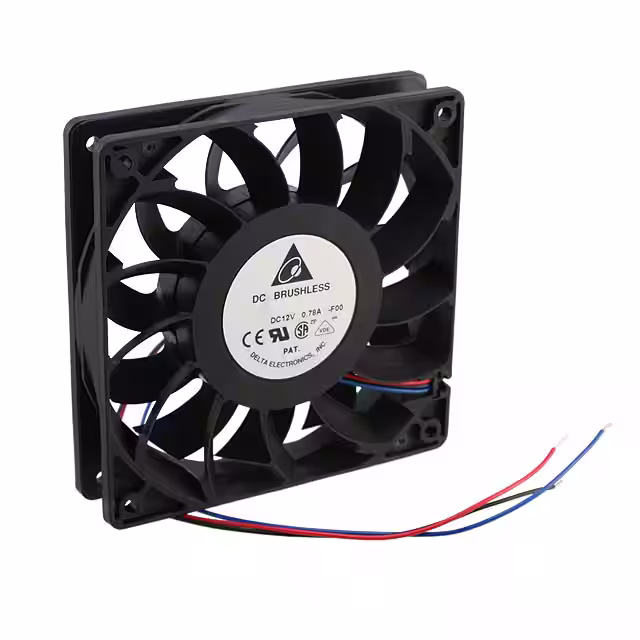

FFB1212HH-F00FAN AXIAL 120X25.4MM 12VDC WIRE |
3,879 | 22.65 |
|
Datasheet |
FFB | Bulk | Obsolete | 12VDC | Square - 120mm L x 120mm H | 25.40mm | 114.7 CFM (3.21m³/min) | 0.288 in H2O (71.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 49.7dB(A) | 7.8 W | 3100 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.452 lb (205.02 g) |
