DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
OD1238-60HB02AFAN AXIAL 120X38MM 60VDC WIRE |
1,225 | 24.87 |
|
Datasheet |
OD1238 | Bulk | Active | 60VDC | Square - 120mm L x 120mm H | 38.00mm | 115.0 CFM (3.22m³/min) | 0.300 in H2O (74.7 Pa) | Ball | Tubeaxial | Alarm Sensor | 41.0dB | 14.4 W | 2600 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|

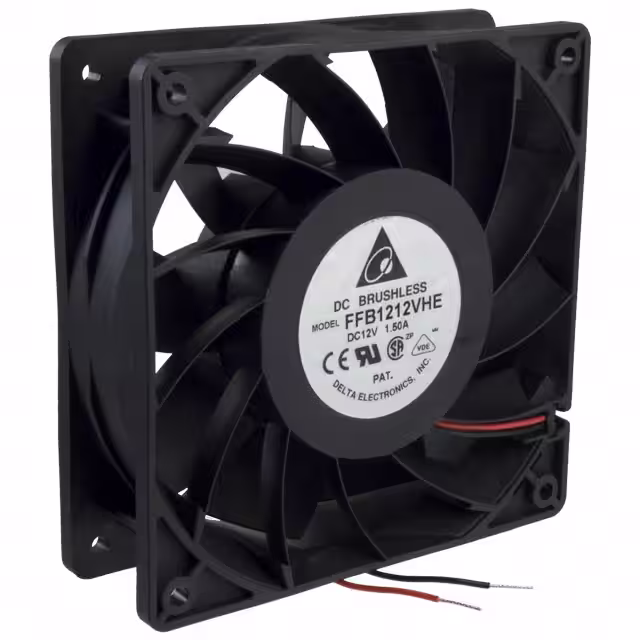

FFB1212VHEFAN AXIAL 120X38MM 12VDC WIRE |
4,276 | 24.62 |
|
Datasheet |
FFB | Tray | Obsolete | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 151.9 CFM (4.25m³/min) | 0.445 in H2O (110.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 53.0dB(A) | 12 W | 3200 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.816 lb (370.13 g) |
|
FFB1212SHEFAN AXIAL 120X38MM 12VDC WIRE |
4,709 | 24.62 |
|
Datasheet |
FFB | Box | Obsolete | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 170.9 CFM (4.79m³/min) | 0.563 in H2O (140.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 56.5dB(A) | 18 W | 3600 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.816 lb (370.13 g) |
|
PF97331BX-B00U-A99FAN BLOWER 97X33MM 12VDC WIRE |
1,715 | 16.09 |
|
Datasheet |
PF | Box | Active | 12VDC | Rectangular/Rounded - 97mm L x 95mm H | 33.00mm | 54.7 CFM (1.53m³/min) | 5.220 in H2O (1300.3 Pa) | Ball | Blower | Auto Restart | 63.2dB(A) | 42 W | 6800 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.406 lb (184.16 g) |
|
|
PF60382B3-1000U-Q9H24VDC FAN 60X38MM ALARM/PWM |
1,450 | 0.00 |
|
Datasheet |
PF | Box | Active | 24VDC | Square - 60mm L x 60mm H | 38.00mm | 41.3 CFM (1.16m³/min) | 0.690 in H2O (171.8 Pa) | Ball | Tubeaxial | PWM Control | 47.0dB(A) | 3.24 W | 7400 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
PF60382B1-1000U-Q9H24VDC FAN 60X38MM ALARM/PWM |
1,105 | 0.00 |
|
Datasheet |
PF | Box | Active | 24VDC | Square - 60mm L x 60mm H | 38.00mm | 60.8 CFM (1.70m³/min) | 2.300 in H2O (572.9 Pa) | Ball | Tubeaxial | PWM Control | 61.2dB(A) | 13.2 W | 13200 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
PF60382BX-1000U-Q9H24VDC FAN 60X38MM ALARM/PWM |
4,173 | 0.00 |
|
Datasheet |
PF | Box | Active | 24VDC | Square - 60mm L x 60mm H | 38.00mm | 75.2 CFM (2.11m³/min) | 3.570 in H2O (889.2 Pa) | Ball | Tubeaxial | PWM Control | 67.0dB(A) | 27.12 W | 16500 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
PF60382B2-1000U-Q9H24VDC FAN 60X38MM ALARM/PWM |
4,554 | 0.00 |
|
Datasheet |
PF | Box | Active | 24VDC | Square - 60mm L x 60mm H | 38.00mm | 55.7 CFM (1.58m³/min) | 1.280 in H2O (318.0 Pa) | Ball | Tubeaxial | PWM Control | 56.0dB(A) | 6.96 W | 10300 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
9G1212E1021FAN AXIAL 119X38MM 12VDC WIRE |
1,250 | 20.46 |
|
Datasheet |
San Ace 120 | Box | Active | 12VDC | Square - 119mm L x 119mm H | 38.00mm | 118.0 CFM (3.30m³/min) | 0.401 in H2O (100.0 Pa) | Ball | Tubeaxial | - | 46.0dB(A) | 7.32 W | 3100 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.728 lb (330.22 g) |
|
|
9G1212H1021FAN AXIAL 119X38MM 12VDC WIRE |
3,587 | 19.79 |
|
Datasheet |
San Ace 120 | Box | Active | 12VDC | Square - 119mm L x 119mm H | 38.00mm | 99.0 CFM (2.77m³/min) | 0.283 in H2O (70.5 Pa) | Ball | Tubeaxial | - | 39.0dB(A) | 4.56 W | 2600 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.728 lb (330.22 g) |
|
|
9G1212G1021FAN AXIAL 120X38MM 12VDC WIRE |
1,185 | 20.46 |
|
Datasheet |
San Ace 120 | Box | Active | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 137.0 CFM (3.84m³/min) | 0.542 in H2O (135.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 49.0dB(A) | 11.76 W | 3600 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.728 lb (330.22 g) |
|
|
PF92381B1-1000U-Q9H12VDC FAN 92X38MM ALARM/PWM |
2,167 | 0.00 |
|
Datasheet |
PF | Box | Active | 12VDC | Square - 92mm L x 92mm H | 38.00mm | 136.8 CFM (3.87m³/min) | 1.950 in H2O (485.7 Pa) | Ball | Tubeaxial | PWM Control | 62.9dB(A) | 22.2 W | 9300 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
PF92381BX-1000U-Q9H12VDC FAN 92X38MM ALARM/PWM |
2,278 | 0.00 |
|
Datasheet |
PF | Box | Active | 12VDC | Square - 92mm L x 92mm H | 38.00mm | 180.5 CFM (5.11m³/min) | 2.940 in H2O (732.3 Pa) | Ball | Tubeaxial | PWM Control | 70.2dB(A) | 50.4 W | 12000 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
DC1203812H2B-3T1FAN 120X38MM 12VDC TACH COMPUTER |
3,893 | 0.00 |
|
Datasheet |
- | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 135.7 CFM (3.80m³/min) | 0.540 in H2O (134.5 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 48.0dB(A) | 9.6 W | 3200 RPM | 3 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
DC1203812M2B-3T1FAN 120X38MM 12VDC TACH COMPUTER |
3,628 | 0.00 |
|
Datasheet |
- | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 123.3 CFM (3.45m³/min) | 0.450 in H2O (112.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 44.0dB(A) | 9 W | 2900 RPM | 3 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
DC0923848V2B-3T1FAN 92X38MM 48VDC TACH COMPUTER |
1,463 | 0.00 |
|
Datasheet |
- | Bulk | Active | 48VDC | Square - 92mm L x 92mm H | 38.00mm | 166.4 CFM (4.66m³/min) | 1.910 in H2O (475.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 72.0dB(A) | 141.6 W | 8000 RPM | 3 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC0603848M2B-3T1FAN 60X38MM 48VDC TACH COMPUTER |
3,430 | 0.00 |
|
Datasheet |
- | Bulk | Active | 48VDC | Square - 60mm L x 60mm H | 38.00mm | 67.0 CFM (1.88m³/min) | 2.070 in H2O (515.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 62.0dB(A) | 66.24 W | 12000 RPM | 3 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
9GV0624P1M031FAN AXIAL 60X38MM 24VDC WIRE |
3,762 | 19.50 |
|
Datasheet |
San Ace 60 | Box | Active | 24VDC | Square - 60mm L x 60mm H | 38.00mm | 68.0 CFM (1.90m³/min) | 1.990 in H2O (495.7 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 60.0dB(A) | 17.52 W | 13000 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.287 lb (130.18 g) |
|
|
9CR0412S50240X56MM 12V,COUNTER ROTATING DC |
3,521 | 0.00 |
|
Datasheet |
San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 56.00mm | - | - | Ball | Tubeaxial (Dual) | Locked Rotor Protection | 57.5dB(A) | - | 15800 Front, 10600 Rear | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | - | - |
|
|
OD1238-48HBIP5501AFAN AXIAL 120X38MM 48VDC WIRE |
1,321 | 25.08 |
|
Datasheet |
OD1238 | Bulk | Active | 48VDC | Square - 120mm L x 120mm H | 38.00mm | 123.9 CFM (3.47m³/min) | 0.469 in H2O (116.8 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 44.1dB(A) | 14 W | 2895 RPM | 3 Wire Leads | IP55 - Dust Protected, Water Resistant | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | 0.572 lb (259.45 g) |
