DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9WG1224G102-EFAN AXIAL 120X38MM 24VDC WIRE |
4,088 | 33.79 |
|
Datasheet |
San Ace 120W | Box | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 137.0 CFM (3.84m³/min) | 0.542 in H2O (135.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 49.0dB(A) | 12 W | 3600 RPM | 2 Wire Leads | IP55 - Dust Protected, Water Resistant | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.904 lb (410.05 g) |
|

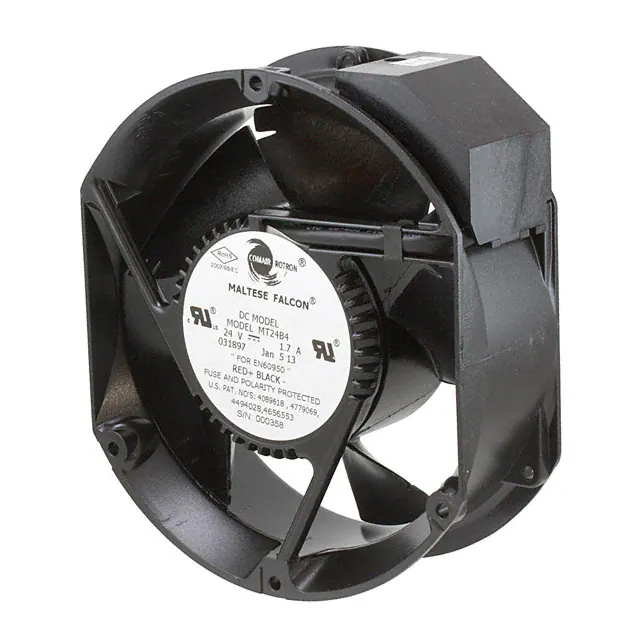

19031897AFAN AXIAL 171.5X55MM 24V MT24B4 |
680 | 70.46 |
|
Datasheet |
Maltese | Bulk | Active | 24VDC | Rectangular/Rounded - 171.5mm L x 150.4mm H | 55.00mm | 300.0 CFM (8.40m³/min) | 0.810 in H2O (201.8 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection | 57.1dB(A) | 35.5 W | 3450 RPM | 2 Terminals | - | 14 ~ 158°F (-10 ~ 70°C) | cUL, UL | 1.8 lbs (816.5 g) |
|
|
4118NHHFAN AXIAL 119X38MM 48VDC WIRE |
2,931 | 83.95 |
|
Datasheet |
4100N | Bulk | Active | 48VDC | Square - 119mm L x 119mm H | 38.00mm | 153.0 CFM (4.28m³/min) | - | Ball | Tubeaxial | Locked Rotor Protection | 49.0dB(A) | 12 W | 5000 RPM | 2 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | CE | - |
|
|
9LG0424P3S00140X28MM 24VDC TACH PWM |
2,023 | 0.00 |
|
Datasheet |
San Ace 40L | Box | Active | 24VDC | Square - 40mm L x 40mm H | 28.00mm | 27.2 CFM (0.762m³/min) | 5.180 in H2O (1290.0 Pa) | Ball | Tubeaxial | Locked Rotor Sensor, PWM Control, Speed Sensor (Tach) | 65.0dB(A) | 14.6 W | 28000 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|
3218J/2H4PFAN AXIAL 92X38MM 48VDC WIRE |
173 | 91.49 |
|
Datasheet |
3200J | Bulk | Active | 48VDC | Square - 92mm L x 92mm H | 38.00mm | 165.0 CFM (4.62m³/min) | - | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 73.0dB(A) | 50 W | 11000 RPM | 4 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CSA, UL, VDE | 0.62 lb (281.23 g) |
|
5114N/2FAN AXIAL 135X38MM 24VDC WIRE |
4,539 | 115.13 |
|
Datasheet |
5100N | Bulk | Active | 24VDC | Square - 135mm L x 135mm H | 38.00mm | 153.0 CFM (4.28m³/min) | - | Ball | Tubeaxial | Speed Sensor (Tach) | 48.0dB(A) | 9.5 W | 2900 RPM | 3 Wire Leads | IP54 - Dust Protected, Water Resistant | -13 ~ 162°F (-25 ~ 72°C) | - | 1.4 lbs (650.0 g) |
|

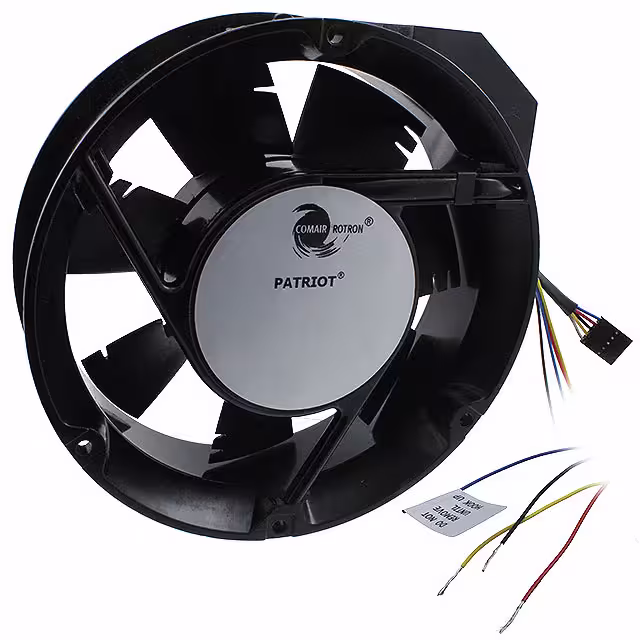

19039695AFAN AXIAL 171.4X50.8MM PQD24Z3A2 |
4,286 | 90.25 |
|
Datasheet |
Patriot | Bulk | Active | 24VDC | Round - 171.4mm Dia | 50.80mm | 300.0 CFM (8.40m³/min) | 1.300 in H2O (323.6 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 60.2dB(A) | 35 W | 4450 RPM | 5 Position Rectangular Connector | - | -40 ~ 185°F (-40 ~ 85°C) | CE, UL | - |
|
4114N/2H4FAN AXIAL 119X38MM 24VDC WIRE |
1,974 | 88.67 |
|
Datasheet |
4100N | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 38.00mm | 209.0 CFM (5.85m³/min) | - | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 73.0dB(A) | 30 W | 6800 RPM | 3 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | - | - |
|
9WF1224H1D01FAN AXIAL 119X38MM 24VDC WIRE |
3,965 | 50.55 |
|
Datasheet |
San Ace 120WF | Box | Active | 24VDC | Square - 119mm L x 119mm H | 38.00mm | 118.0 CFM (3.30m³/min) | 0.400 in H2O (99.6 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 46.0dB(A) | 7.68 W | 3100 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.784 lb (355.62 g) |
|
17001179AFAN AXIAL 24VDC GLD24U3E2X-E3 |
116 | 92.43 |
|
Datasheet |
- | Bulk | Active | 24VDC | Square - 127mm L x 127mm H | 38.10mm | 240.0 CFM (6.72m³/min) | - | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 65.0dB(A) | 39.1 W | 5200 RPM | 4 Wire Leads | IP68 - Dust Tight, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | CE, cUL, UL | - |
|
QG030-148/14RFAN BLOWER CF 201X47.5MM 24VDC |
146 | 123.18 |
|
Datasheet |
QG030 | Box | Active | 24VDC | Rectangular - 201mm L x 50mm H | 47.50mm | 44.0 CFM (1.23m³/min) | - | Ball | Blower, Cross Flow | - | 49.0dB(A) | 6.2 W | - | 2 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CE, CSA, UL, VDE | 0.56 lb (254.01 g) |
|

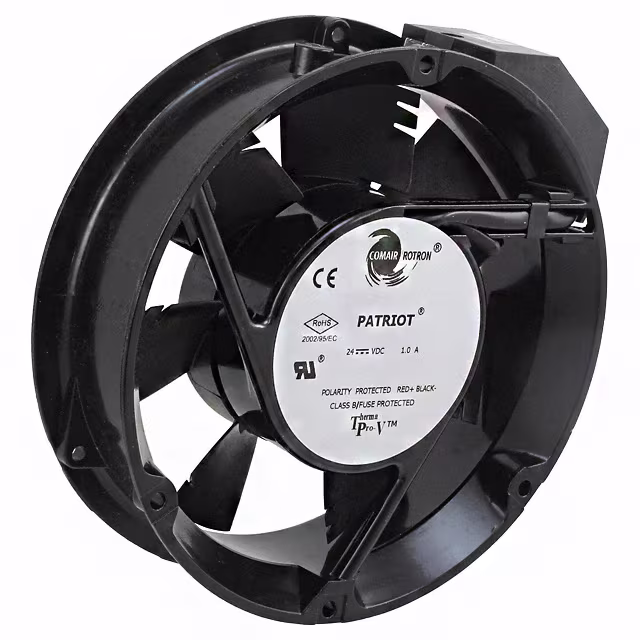

19039299AFAN AXIAL 172.7X50.8MM PQ24S4HX |
250 | 117.87 |
|
Datasheet |
Patriot | Bulk | Active | 24VDC | Round - 172.7mm Dia | 50.80mm | 235.0 CFM (6.58m³/min) | 0.769 in H2O (191.5 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection, Temperature Dependent Speed Control | 51.2dB(A) | 20.3 W | 3500 RPM | 2 Terminals | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UL | 1.9 lbs (861.8 g) |
|
9LG1424P1A001FAN AXIAL 140X38MM 24VDC WIRE |
223 | 109.06 |
|
Datasheet |
San Ace 140L | Bulk | Active | 24VDC | Square - 140mm L x 140mm H | 38.00mm | 282.0 CFM (7.90m³/min) | 2.070 in H2O (515.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 68.0dB(A) | 44.64 W | 6900 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 1.4 lbs (650.0 g) |
|

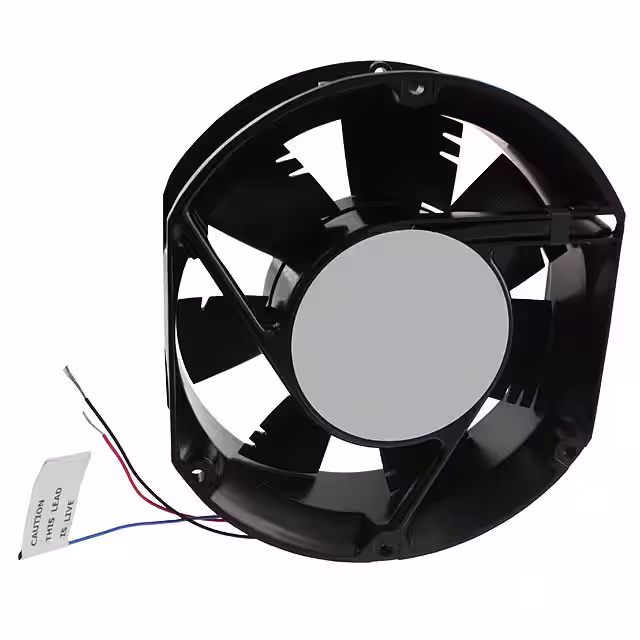

19031328AFAN AXIAL 171.5X50.8MM JQ48B7 |
128 | 97.75 |
|
Datasheet |
Major | Bulk | Active | 48VDC | Rectangular/Rounded - 171.5mm L x 150.4mm H | 50.80mm | 235.0 CFM (6.58m³/min) | 0.812 in H2O (202.3 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection, Speed Sensor (Tach) | 54.3dB(A) | 20.1 W | 3500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cUL, UL | 1.9 lbs (861.8 g) |
|
9LG1224P1S001FAN AXIAL 119X38MM 24VDC WIRE |
3,084 | 76.96 |
|
Datasheet |
San Ace 120L | Box | Active | 24VDC | Square - 119mm L x 119mm H | 38.00mm | 211.8 CFM (5.93m³/min) | 1.080 in H2O (269.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 58.0dB(A) | 26.4 W | 5600 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.926 lb (420.03 g) |
|
8218JH4FAN AXIAL 80X38MM 48VDC WIRE |
4,614 | 99.95 |
|
Datasheet |
8200J, S-Force | Bulk | Active | 48VDC | Square - 80mm L x 80mm H | 38.00mm | 131.0 CFM (3.67m³/min) | - | Ball | Tubeaxial | Locked Rotor Protection | 71.0dB(A) | 36 W | 14000 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | - | - |
|
9CRA0848P8G001FAN AXIAL DUAL 80X80MM 48VDC |
271 | 91.44 |
|
Datasheet |
San Ace 80 | Box | Active | 48VDC | Square - 80mm L x 80mm H | 80.00mm | 158.9 CFM (4.45m³/min) | 4.620 in H2O (1150.8 Pa) | Ball | Tubeaxial (Dual) | Counter-Rotating, Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 76.0dB(A) | 63.4 W | 12000 Front, 11300 Rear | 4 Wire Leads per Fan | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 0.993 lb (450.42 g) |
|
OD172SAP-48HBXCFAN AXIAL 172X50.8MM 48VDC WIRE |
3,860 | 83.61 |
|
Datasheet |
OD172S XC | Box | Active | 48VDC | Rectangular/Rounded - 172mm L x 150mm H | 50.80mm | 307.0 CFM (8.60m³/min) | 1.600 in H2O (398.6 Pa) | Ball | Tubeaxial | Auto Restart | 67.0dB | - | 4600 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | - |
|
|
9LG1248P1S001FAN AXIAL 119X38MM 48VDC WIRE |
102 | 79.47 |
|
Datasheet |
San Ace 120L | Box | Active | 48VDC | Square - 119mm L x 119mm H | 38.00mm | 211.8 CFM (5.93m³/min) | 1.080 in H2O (269.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 58.0dB(A) | 26.4 W | 5600 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.926 lb (420.03 g) |
|

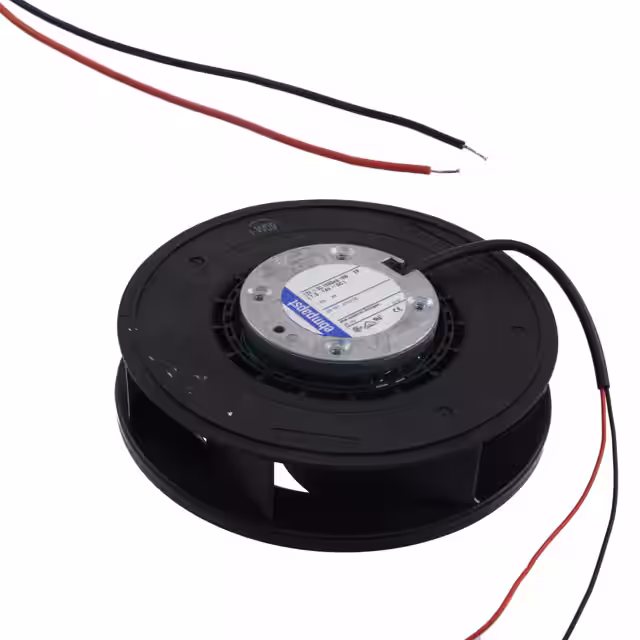

RER160-28/12NFAN IMP MTRZD 176X54MM 12VDC |
2,254 | 123.35 |
|
Datasheet |
RER160N | Box | Active | 12VDC | Round - 176mm Dia | 54.00mm | 132.4 CFM (3.71m³/min) | - | Ball | Motorized Impellers | - | 58.0dB(A) | 19 W | 3000 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | - | 1.3 lbs (589.7 g) |
