DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
OD127-48HHBFAN AXIAL 127X38.5MM 48VDC WIRE |
2,614 | 21.99 |
|
Datasheet |
OD127 | Bulk | Active | 48VDC | Square - 127mm L x 127mm H | 38.50mm | 193.0 CFM (5.40m³/min) | 0.550 in H2O (137.0 Pa) | Ball | Tubeaxial | - | 62.0dB | - | 4100 RPM | 2 Wire Leads | - | -4 ~ 167°F (-20 ~ 75°C) | cURus, TUV | - |
|
|
OD127-48MBFAN AXIAL 127X38.5MM 48VDC WIRE |
1,207 | 20.94 |
|
Datasheet |
OD127 | Bulk | Active | 48VDC | Square - 127mm L x 127mm H | 38.50mm | 161.0 CFM (4.51m³/min) | 0.350 in H2O (87.2 Pa) | Ball | Tubeaxial | - | 53.0dB | - | 2950 RPM | 2 Wire Leads | - | -4 ~ 167°F (-20 ~ 75°C) | cURus, TUV | - |
|
OD1238-48MBFAN AXIAL 120X38.5MM 48VDC WIRE |
1,194 | 23.90 |
|
Datasheet |
OD1238 | Bulk | Active | 48VDC | Square - 120mm L x 120mm H | 38.50mm | 79.0 CFM (2.21m³/min) | 0.210 in H2O (52.3 Pa) | Ball | Tubeaxial | - | 33.0dB | 3.8 W | 2550 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | - |
|
9GV0848G101FAN AXIAL 80X38MM 48VDC WIRE |
1,349 | 26.73 |
|
Datasheet |
San Ace 80 | Box | Active | 48VDC | Square - 80mm L x 80mm H | 38.00mm | 138.0 CFM (3.86m³/min) | 1.970 in H2O (490.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 65.0dB(A) | 40.32 W | 10200 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.485 lb (220.00 g) |
|
|
9GV0848G1011FAN AXIAL 80X38MM 48VDC WIRE |
2,162 | 26.73 |
|
Datasheet |
San Ace 80 | Box | Active | 48VDC | Square - 80mm L x 80mm H | 38.00mm | 138.0 CFM (3.86m³/min) | 1.970 in H2O (490.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 65.0dB(A) | 40.32 W | 10200 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.485 lb (220.00 g) |
|
9GV0948H101FAN AXIAL 92X38MM 48VDC WIRE |
1,766 | 23.36 |
|
Datasheet |
San Ace 92 | Box | Active | 48VDC | Square - 92mm L x 92mm H | 38.00mm | - | - | Ball | Tubeaxial | Speed Sensor (Tach) | - | 39.4 W | - | 3 Wire Leads | - | - | CSA, TUV, UL | 0.553 lb (250.84 g) |
|
|
ODB600-24MBFAN BLOWER 120.5X32MM 24VDC WIRE |
1,344 | 0.00 |
|
Datasheet |
ODB600PT | Box | Active | 24VDC | Square/Rounded - 120.5mm L x 120.5mm H | 32.00mm | 25.0 CFM (0.700m³/min) | 0.470 in H2O (117.1 Pa) | Ball | Blower | - | 42.0dB | - | 2500 RPM | 2 Wire Leads | - | -4 ~ 176°F (-20 ~ 80°C) | cURus | - |
|
|
ODB600-48HBFAN BLOWER 120.5X32MM 48VDC WIRE |
4,421 | 0.00 |
|
Datasheet |
ODB600PT | Box | Active | 48VDC | Square/Rounded - 120.5mm L x 120.5mm H | 32.00mm | 35.0 CFM (0.980m³/min) | 0.590 in H2O (147.0 Pa) | Ball | Blower | - | 49.0dB | - | 3000 RPM | 2 Wire Leads | - | -4 ~ 176°F (-20 ~ 80°C) | cURus | - |
|
PFB0912EHEFAN AXIAL 92X38MM 12VDC WIRE |
1,076 | 28.03 |
|
Datasheet |
PFB | Box | Obsolete | 12VDC | Square - 92mm L x 92mm H | 38.00mm | 103.7 CFM (2.90m³/min) | 0.691 in H2O (172.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 54.0dB(A) | 8.16 W | 4800 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.553 lb (250.84 g) |
|

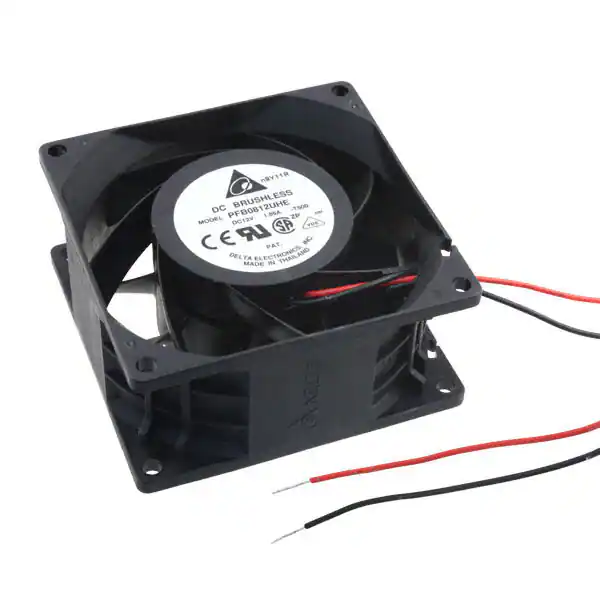

PFB0812UHE-T500FAN AXIAL 80X38MM 12VDC WIRE |
3,116 | 28.10 |
|
Datasheet |
PFB | Box | Obsolete | 12VDC | Square - 80mm L x 80mm H | 38.00mm | 107.3 CFM (3.00m³/min) | 1.368 in H2O (340.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 61.0dB(A) | 18.6 W | 7500 RPM | 2 Wire Leads | IP55 - Dust Protected, Water Resistant | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.441 lb (200.03 g) |
|
|
9GV0848P1G031FAN AXIAL 80X38MM 48VDC WIRE |
3,353 | 27.14 |
|
Datasheet |
San Ace 80 | Box | Active | 48VDC | Square - 80mm L x 80mm H | 38.00mm | 138.0 CFM (3.86m³/min) | 1.970 in H2O (490.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 65.0dB(A) | 40.32 W | 10200 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.485 lb (220.00 g) |
|
|
VF60384BX-1000U-G9H48VDC FAN 60X38MM ALARM |
2,416 | 0.00 |
|
Datasheet |
VF | Box | Active | 48VDC | Square - 60mm L x 60mm H | 38.00mm | 67.8 CFM (1.90m³/min) | 4.840 in H2O (1205.6 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 64.1dB(A) | 22.08 W | 22800 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
VF60384B1-1000U-G9H48VDC FAN 60X38MM ALARM |
1,022 | 0.00 |
|
Datasheet |
VF | Box | Active | 48VDC | Square - 60mm L x 60mm H | 38.00mm | 53.9 CFM (1.51m³/min) | 4.230 in H2O (1053.6 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 60.9dB(A) | 12.72 W | 18300 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
AFB1248EHE-CF00FAN AXIAL 120X38MM 48VDC WIRE |
4,862 | 35.42 |
|
Datasheet |
AFB | Bulk | Obsolete | 48VDC | Square - 120mm L x 120mm H | 38.00mm | 212.6 CFM (5.95m³/min) | 0.844 in H2O (210.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 58.5dB(A) | 23 W | 4600 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.728 lb (330.22 g) |
|
|
9GV0948P1F03FAN AXIAL 92X38MM 48VDC WIRE |
4,244 | 30.79 |
|
Datasheet |
San Ace 92 | Box | Active | 48VDC | Square - 92mm L x 92mm H | 38.00mm | 146.6 CFM (4.10m³/min) | 1.050 in H2O (261.5 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 59.0dB(A) | 23.04 W | 7000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, TUV, UL | 0.553 lb (250.84 g) |
|
|
9GV0948P1F031FAN AXIAL 92X38MM 48VDC WIRE |
1,637 | 30.79 |
|
Datasheet |
San Ace 92 | Box | Active | 48VDC | Square - 92mm L x 92mm H | 38.00mm | 146.6 CFM (4.10m³/min) | 1.050 in H2O (261.5 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 59.0dB(A) | 23.04 W | 7000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, TUV, UL | 0.553 lb (250.84 g) |
|
OD127AP-12MTBFAN AXIAL 127X38.5MM 12VDC TERM |
2,453 | 28.55 |
|
Datasheet |
OD127AP | Bulk | Active | 12VDC | Square - 127mm L x 127mm H | 38.50mm | 108.0 CFM (3.02m³/min) | 0.330 in H2O (82.2 Pa) | Ball | Tubeaxial | - | 38.0dB | - | 2600 RPM | 2 Terminals | - | -4 ~ 167°F (-20 ~ 75°C) | cURus, TUV | - |
|
|
VF60384BX-1000U-F9H48VDC FAN 60X38MM TACH |
2,355 | 0.00 |
|
Datasheet |
VF | Box | Active | 48VDC | Square - 60mm L x 60mm H | 38.00mm | 67.8 CFM (1.90m³/min) | 4.840 in H2O (1205.6 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 64.1dB(A) | 22.08 W | 22800 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
VF60384B1-1000U-F9H48VDC FAN 60X38MM TACH |
3,418 | 0.00 |
|
Datasheet |
VF | Box | Active | 48VDC | Square - 60mm L x 60mm H | 38.00mm | 53.9 CFM (1.51m³/min) | 4.230 in H2O (1053.6 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 60.9dB(A) | 12.72 W | 18300 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
PFB0848UHEFAN AXIAL 80X38MM 48VDC WIRE |
1,022 | 37.24 |
|
Datasheet |
PFB | Box | Obsolete | 48VDC | Square - 80mm L x 80mm H | 38.00mm | 107.3 CFM (3.00m³/min) | 1.368 in H2O (340.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 61.0dB(A) | 20.16 W | 7500 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.452 lb (205.02 g) |
