Feed Through Capacitors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | Current | DC Resistance (DCR) (Max) | Operating Temperature | Insertion Loss | Temperature Coefficient | Ratings | Mounting Type | Size / Dimension | Height (Max) | Thread Size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ZSC100DFILTER, SOLDER IN, BAR END GLS |
500 | 16.55 |
|
- |
ZS "C" circuit | Axial, Bushing | Bag | Active | 10 pF | 0%, +100% | 200V | 10 A | - | -55°C ~ 125°C | - | X7R | - | Through Hole | 0.156" Dia x 0.110" L (3.96mm x 2.79mm) | - | - |
|
B4C103BFILTER, 4-40, 10,000PF, 100VDC |
500 | 16.89 |
|
Datasheet |
B4 "C" circuit | Axial, Bushing | Bag | Active | 10000 pF | 0%, +100% | 100V | - | - | -55°C ~ 125°C | - | X7R | - | Through Hole | 0.156" Dia x 0.340" L (3.96mm x 8.64mm) | - | - |
|
|
ZSC152BFILTER, SOLDER IN, GLS SL @ FL |
500 | 17.16 |
|
- |
ZS "C" circuit | Axial, Bushing | Bag | Active | 1500 pF | 0%, +100% | 100V | 10 A | - | -55°C ~ 125°C | 23dB @ 100MHz | X7R | - | Through Hole | 0.156" Dia x 0.110" L (3.96mm x 2.79mm) | - | - |
|
|
ZSC502DFILTER, SOLDER IN, BAR END GLS |
500 | 17.96 |
|
Datasheet |
ZS "C" circuit | Axial, Bushing | Bag | Active | 5000 pF | 0%, +100% | 200V | 10 A | - | -55°C ~ 125°C | 30dB @ 100MHz | - | - | Through Hole | 0.156" Dia x 0.250" L (3.96mm x 6.35mm) | 0.020" (0.50mm) | - |
|
XSC102DFILTER, XS SOLDER IN |
500 | 18.75 |
|
Datasheet |
XS "C" circuit | Axial, Bushing | Bag | Active | 1000 pF | 0%, +100% | 200V | 5 A | - | -55°C ~ 125°C | 20dB @ 100MHz | X7R | - | Through Hole | 0.125" Dia x 0.100" L (3.18mm x 2.54mm) | - | - |
|
|
XSC103AFILTER, XS SOLDER IN |
500 | 20.15 |
|
- |
XS "C" circuit | Axial, Bushing | Bag | Active | 10000 pF | 0%, +100% | 50V | 5 A | - | -55°C ~ 125°C | 35dB @ 100MHz | X7R | - | Through Hole | 0.125" Dia x 0.100" L (3.18mm x 2.54mm) | - | - |
|
PZC333AFILTER, PRESS-IN TALON GRIP |
500 | 21.37 |
|
- |
B2 "C" circuit | Axial, Bushing | Bag | Active | 0.033 µF | 0%, +100% | 50V | 10 A | - | -55°C ~ 125°C | 44dB @ 100MHz | X7R | - | Through Hole | 0.156" Dia x 0.110" L (3.96mm x 2.79mm) | - | - |
|
NFM15PC224R1A3DCAP FEEDTHRU 0.22UF 10V 0402 |
322 | 0.10 |
|
Datasheet |
EMIFIL®, NFM15 | 0402 (1005 Metric), 3 PC Pad | Tape & Reel (TR) | Active | 0.22 µF | ±20% | 10V | 2 A | 30mOhm | -55°C ~ 85°C | - | - | - | Surface Mount | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.020" (0.50mm) | - |
|
NFM31HK223R1H3LCAP FEEDTHRU 0.022UF 50V 1206 |
302 | 1.51 |
|
Datasheet |
EMIFIL®, NFM31 | 1206 (3216 Metric), 3 PC Pad | Tape & Reel (TR) | Active | 0.022 µF | ±20% | 50V | 6 A | 1.5mOhm | -55°C ~ 125°C | - | - | AEC-Q200 | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.059" (1.50mm) | - |
|
SBSMC2000104MXTSURFACE MOUNT C AND PI FILTER |
2,608 | 8.65 |
|
Datasheet |
SBSM | 2220 (5750 Metric), 3 PC Pad | Tape & Reel (TR) | Active | 0.1 µF | ±20% | 200V | 20 A | - | -55°C ~ 125°C | 43dB @ 100MHz | X7R | - | Surface Mount | 0.224" L x 0.197" W (5.70mm x 5.00mm) | 0.133" (3.38mm) | - |
|

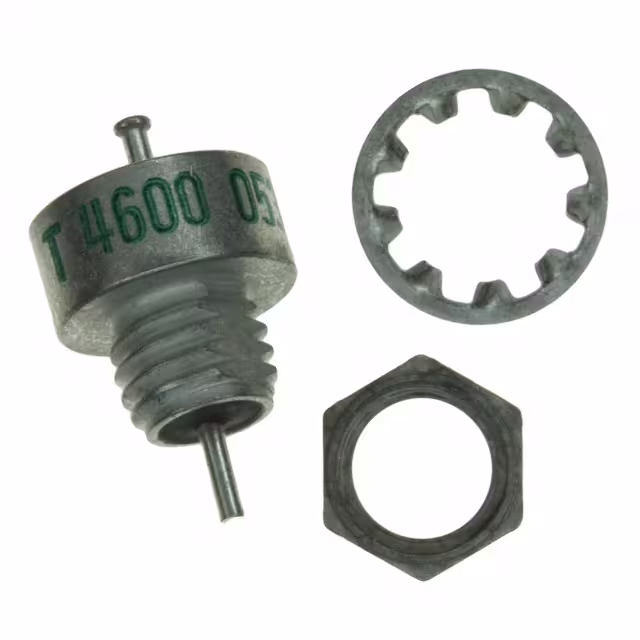

4600-053LFCAP FEEDTHRU 1.4UF 50V AXIAL |
4,708 | 34.68 |
|
Datasheet |
4600 | Axial, Bushing, 1 Turret Lead | Tray | Active | 1.4 µF | - | 50V | 15 A | - | -55°C ~ 125°C | 70dB @ 1GHz | X7R | - | Chassis Mount | 0.385" Dia x 0.362" L (9.78mm x 9.20mm) | - | 1/4"-28 |
|

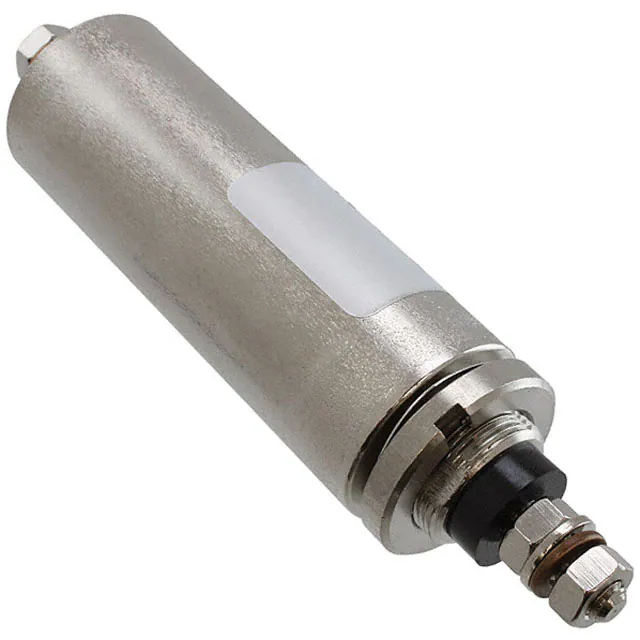

B85321A2205A250FILTER 1UF TH |
4,859 | 134.77 |
|
Datasheet |
B85321 | Axial - Threaded Terminals | Tray | Active | - | - | 500V | 25 A | - | -40°C ~ 85°C | - | - | - | Through Hole | - | - | - |
|
|
B85321A2945A201CAP FEEDTHRU |
4,524 | 176.90 |
|
Datasheet |
B85321 | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
W2F15C2228AT1ACAP FEEDTHRU 2200PF 50V 0805 |
369 | 0.12 |
|
Datasheet |
W2F | 0805 (2012 Metric), 4 PC Pad | Tape & Reel (TR) | Active | 2200 pF | -20%, +50% | 50V | 300 mA | 600mOhm | -55°C ~ 125°C | - | X7R | - | Surface Mount | 0.079" L x 0.049" W (2.01mm x 1.25mm) | 0.045" (1.14mm) | - |
|
W2H15C2238AT1ACAP FEEDTHRU .022UF 50V 0805 |
3,165 | 0.60 |
|
Datasheet |
W2H | 0805 (2012 Metric), 4 PC Pad | Tape & Reel (TR) | Active | 0.022 µF | -20%, +50% | 50V | 1 A | 150mOhm | -55°C ~ 125°C | - | X7R | - | Surface Mount | 0.079" L x 0.049" W (2.01mm x 1.25mm) | 0.045" (1.14mm) | - |
,-3-PC-Pad.jpg)
|
SBSGC1000104MXTSURFACE MOUNT C AND PI FILTER |
2,459 | 4.98 |
|
Datasheet |
SBSG | 1812 (4532 Metric), 3 PC Pad | Tape & Reel (TR) | Active | 0.1 µF | ±20% | 100V | 10 A | - | -55°C ~ 125°C | 39dB @ 100MHz | X7R | - | Surface Mount | 0.179" L x 0.126" W (4.55mm x 3.20mm) | 0.104" (2.65mm) | - |
|
4304-000LFCAP FEEDTHRU 10PF 200V AXIAL |
3,077 | 29.09 |
|
Datasheet |
4304 | Axial, Press Fit | Bulk | Active | 10 pF | 0%, +100% | 200V | 5 A | - | -55°C ~ 125°C | 5dB @ 1GHz | - | - | - | 0.156" Dia x 0.110" L (3.96mm x 2.79mm) | - | - |
|

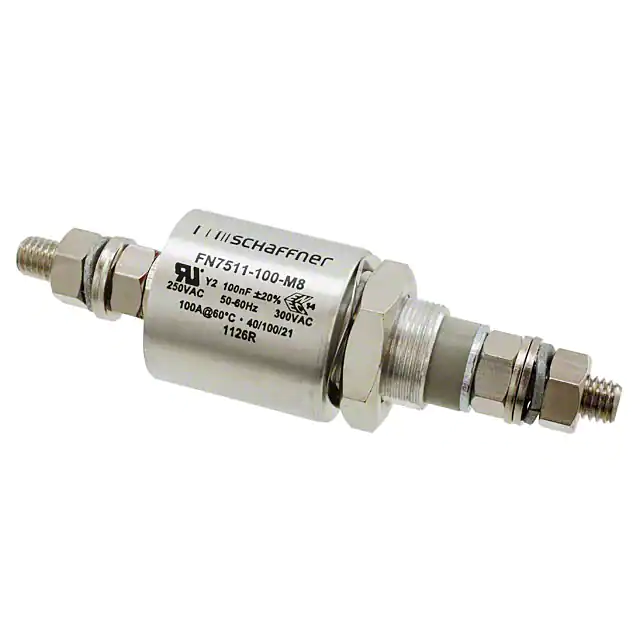

FN7511-100-M8CAP FEEDTHRU 0.1UF 20% 1KV AXIAL |
1,828 | 96.85 |
|
Datasheet |
FN 751X | Axial - Threaded Terminals | Tray | Active | 0.1 µF | ±20% | 1000V (1kV) | 100 A | 0.23mOhm (Typ) | -40°C ~ 100°C | - | - | Y2 | - | 1.260" Dia x 4.449" L (32.00mm x 113.00mm) | - | M20x1 |
|
|
B85321A2205A750CAP FEEDTHRU |
3,221 | 153.35 |
|
Datasheet |
B85321 | Axial - Threaded Terminals | Bulk | Active | - | - | - | - | - | - | - | - | - | Bolt Mount | - | - | M6 |
|

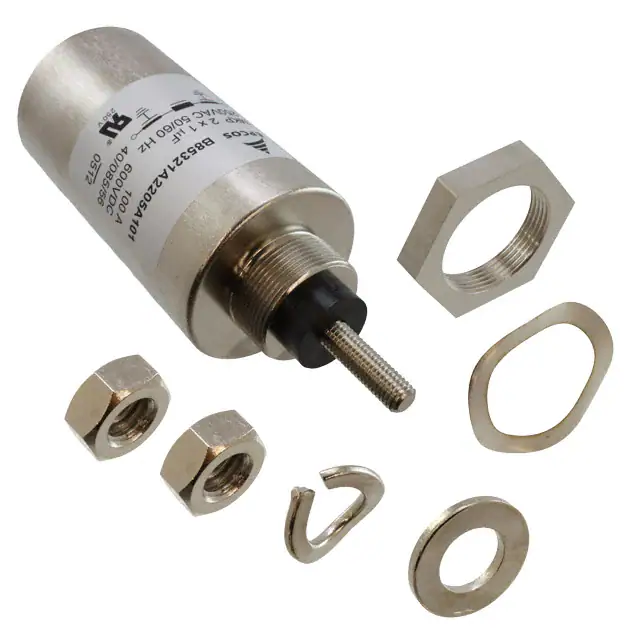

B85321A2205A101FILTER 1UF TH |
1,305 | 168.85 |
|
Datasheet |
B85321 | Axial - Threaded Terminals | Tray | Active | - | - | 600V | 100 A | - | -40°C ~ 85°C | - | - | - | Through Hole | - | - | - |
