Ferrite Beads and Chips
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Ratings | Operating Temperature | Mounting Type | Height (Max) | Size / Dimension | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BLM18AG471WH1DFERRITE BEAD 470 OHM 0603 1LN |
9,661 | 0.28 |
|
Datasheet |
EMIFIL®, BLM18 | 0603 (1608 Metric) | Tape & Reel (TR) | Last Time Buy | - | 1 | 470 Ohms @ 100 MHz | 200mA | 200mOhm | AEC-Q200 | -55°C ~ 150°C | Surface Mount, Epoxy | 0.037" (0.95mm) | 0.063" L x 0.032" W (1.60mm x 0.80mm) | - |
.JPG)
|
FBTH1608HE470-TFERRITE BEAD 47 OHM 0603 1LN |
9,034 | 0.29 |
|
Datasheet |
FB | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Power Line | 1 | 47 Ohms @ 100 MHz | 2.5A | 20mOhm | AEC-Q200 | -40°C ~ 150°C | Surface Mount | 0.037" (0.95mm) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - |
|
|
BLM18AG102WH1DFERRITE BEAD 1K OHM 0603 1LN |
5,151 | 0.28 |
|
Datasheet |
EMIFIL®, BLM18 | 0603 (1608 Metric) | Tape & Reel (TR) | Last Time Buy | - | 1 | 1 kOhms @ 100 MHz | 200mA | 700mOhm | AEC-Q200 | -55°C ~ 150°C | Surface Mount, Epoxy | 0.037" (0.95mm) | 0.063" L x 0.032" W (1.60mm x 0.80mm) | - |
|
VFS5045VA031FERRITE BEAD 61 OHM 2020 1LN |
4,472 | 0.44 |
|
Datasheet |
VFS | 2020 (5050 Metric) | Tape & Reel (TR) | Active | Power Line | 1 | 61 Ohms @ 10 MHz | 5.1A | 19.5mOhm | - | -40°C ~ 105°C | Surface Mount | 0.177" (4.50mm) | 0.197" L x 0.197" W (5.00mm x 5.00mm) | - |
|
LAMGL160808T601RDFERRITE BEAD 600 OHM 0603 1LN |
3,123 | 0.10 |
|
Datasheet |
LAMG | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Power Line | 1 | 600 Ohms @ 100 MHz | 600mA | 170mOhm | AEC-Q200 | -40°C ~ 150°C | Surface Mount | 0.037" (0.95mm) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | Automotive |
|

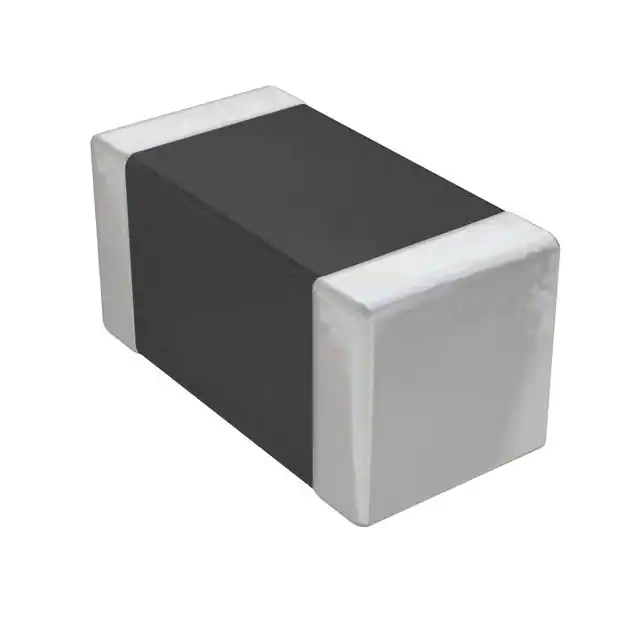

MMZ0603AFY560VT000FERRITE BEAD 56 OHM 0201 1LN |
26,296 | 0.19 |
|
Datasheet |
MMZ-V | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Signal Line | 1 | 56 Ohms @ 100 MHz | 125mA | 2.2Ohm | - | -55°C ~ 125°C | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - |
|
MMZ0603A471ET000FERRITE BEAD 470 OHM 0201 1LN |
15,000 | 0.00 |
|
Datasheet |
MMZ-E | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Signal Line | 1 | 470 Ohms @ 100 MHz | 185mA | 1.3Ohm | - | -55°C ~ 125°C | Surface Mount | 0.013" (0.33mm) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - |
|
MMZ0603D121ET000FERRITE BEAD 120 OHM 0201 1LN |
10,066 | 0.19 |
|
Datasheet |
MMZ-E | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Signal Line | 1 | 120 Ohms @ 100 MHz | 125mA | 2.4Ohm | - | -55°C ~ 125°C | Surface Mount | 0.013" (0.33mm) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - |
.jpg)
|
BLM18DN601SH1DFERRITE BEAD 600 OHM 0603 1LN |
7,135 | 0.22 |
|
Datasheet |
EMIFIL®, BLM18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | - | 1 | 600 Ohms @ 100 MHz | 700mA | - | AEC-Q200 | -55°C ~ 125°C | Surface Mount | 0.037" (0.95mm) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - |
|
|
MMZ0603S121ET000FERRITE BEAD 120 OHM 0201 1LN |
5,643 | 0.30 |
|
Datasheet |
MMZ-E | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Signal Line | 1 | 120 Ohms @ 100 MHz | 250mA | 370mOhm | - | -55°C ~ 125°C | Surface Mount | 0.013" (0.33mm) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - |
|
|
BLM18DN381SH1DFERRITE BEAD 380 OHM 0603 1LN |
5,615 | 0.22 |
|
Datasheet |
EMIFIL®, BLM18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | - | 1 | 380 Ohms @ 100 MHz | 850mA | - | AEC-Q200 | -55°C ~ 125°C | Surface Mount | 0.037" (0.95mm) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - |
|
|
FBTH1608HE601-TFERRITE BEAD 600 OHM 0603 1LN |
8,078 | 0.32 |
|
Datasheet |
FB | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Power Line | 1 | 600 Ohms @ 100 MHz | 640mA | 170mOhm | AEC-Q200 | -40°C ~ 150°C | Surface Mount | 0.037" (0.95mm) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - |
|
MDF2016BSS420CTD25FERRITE BEAD 42 OHM 0806 1LN |
5,841 | 0.41 |
|
Datasheet |
MDF | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Power Line | 1 | 42 Ohms @ 2 MHz | 850mA | 300mOhm | AEC-Q200 | -40°C ~ 125°C | Surface Mount | 0.039" (1.00mm) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | - |
.jpg)
|
BLM21SP471SH1DFERRITE BEAD 470 OHM 0805 1LN |
5,477 | 0.31 |
|
Datasheet |
EMIFIL®, BLM21 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Power Line | 1 | 470 Ohms @ 100 MHz | 2.5A | - | AEC-Q200 | -55°C ~ 125°C | Surface Mount | 0.041" (1.05mm) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - |
|
|
FBTH1608HL471-TFERRITE BEAD 470 OHM 0603 1LN |
4,904 | 0.32 |
|
Datasheet |
FB | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Power Line | 1 | 470 Ohms @ 100 MHz | 500mA | 350mOhm | AEC-Q200 | -40°C ~ 150°C | Surface Mount | 0.037" (0.95mm) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - |
|
|
MDF2016BSS120CTD25FERRITE BEAD 12 OHM 0806 1LN |
3,599 | 0.41 |
|
Datasheet |
MDF | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Power Line | 1 | 12 Ohms @ 2 MHz | 1.2A | 160mOhm | AEC-Q200 | -40°C ~ 125°C | Surface Mount | 0.039" (1.00mm) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | - |
|
782963201FERRITE BEAD 1K OHM 1806 1LN |
3,094 | 0.37 |
|
Datasheet |
WE-CBA | 1806 (4516 Metric) | Tape & Reel (TR) | Active | Power Line | 1 | 1 kOhms @ 100 MHz | 1.5A | 90mOhm | AEC-Q200 | -55°C ~ 125°C | Surface Mount | 0.071" (1.80mm) | 0.177" L x 0.063" W (4.50mm x 1.60mm) | - |
|
|
MDF2016BSS270CTD25FERRITE BEAD 27 OHM 0806 1LN |
2,588 | 0.41 |
|
Datasheet |
MDF | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Power Line | 1 | 27 Ohms @ 2 MHz | 1A | 220mOhm | AEC-Q200 | -40°C ~ 125°C | Surface Mount | 0.039" (1.00mm) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | - |
|
|
FBTH1608HL300-TFERRITE BEAD 30 OHM 0603 1LN |
2,539 | 0.32 |
|
Datasheet |
FB | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Power Line | 1 | 30 Ohms @ 100 MHz | 2A | 28mOhm | AEC-Q200 | -40°C ~ 150°C | Surface Mount | 0.037" (0.95mm) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - |
|

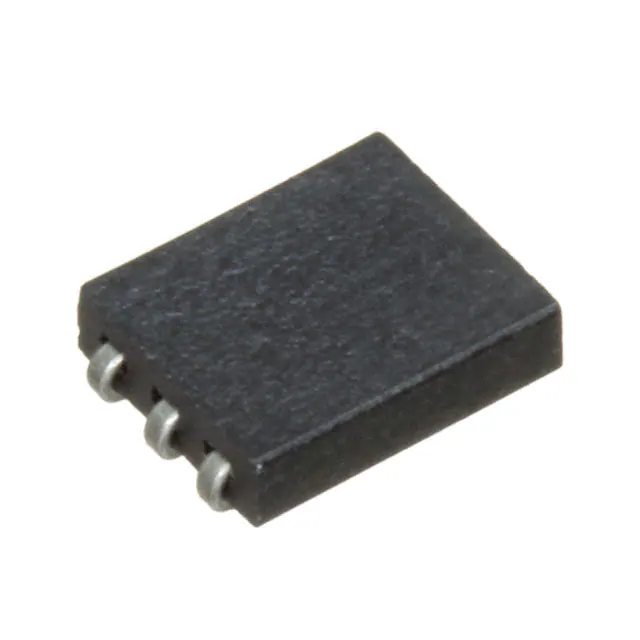

2744040447FERRITE BEAD 63 OHM 6SMD 3LN |
26,797 | 0.62 |
|
Datasheet |
- | 6-SMD, J-Lead | Tape & Reel (TR) | Active | - | 3 | 63 Ohms @ 100 MHz | - | 1.6mOhm | - | -55°C ~ 125°C | Surface Mount | 0.077" (1.95mm) | 0.252" L x 0.177" W (6.40mm x 4.50mm) | - |
