Ferrite Cores
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Core Type | Supplier Device Package | Material | Diameter | Inductance Factor (Al) | Tolerance | Gap | Effective Permeability (µe) | Initial Permeability (µi) | Core Factor (ΣI/A) mm⁻¹ | Effective Length (le) mm | Effective Area (Ae) mm² | Minimum Core Cross Section (Amin) mm² | Effective Magnetic Volume (Ve) mm³ | Finish | Height | Length | Width |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B64290P0037X037FERRITE CORE TOROID T37 |
2,162 | 0.34 |
|
Datasheet |
TC6.3/3.8/2.5 | Box | Active | Toroid | - | T37 | - | - | - | Gapped | - | 6500 | - | - | - | - | - | Parylene | - | - | - |
|
|
B62110A4025X022FERRITE CORE |
4,181 | 0.34 |
|
- |
TUB4.98/1.9/6.2 | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
6298110121FERRITE CORE RM SET |
1,421 | 0.34 |
|
Datasheet |
- | Bulk | Active | RM | - | - | - | - | ±25% | Ungapped | - | 2400 | 176.0 | 23.8 | 13.4 | 11.3 | 319.0 | Uncoated | - | - | 0.177" (4.50mm) |
|
|
9595150602FERRITE CORE E 95 SET |
1,563 | 0.40 |
|
Datasheet |
- | Bulk | Active | E | - | 95 | - | - | ±25% | Ungapped | - | 3000 | 108.0 | 19.0 | 17.6 | 17.0 | 333.0 | Uncoated | 0.116" (2.95mm) | 0.571" (14.50mm) | - |
|
|
E25/13/7-3C90Ferrite Misc |
2,552 | 0.00 |
|
Datasheet |
- | Bulk | Active | E | E 25 x 13 x 7 | 3C90 | - | 1.9 µH | ±25% | Ungapped | 1700.0 | - | 1.11 | 58.0 | 52.0 | - | 2990.0 | Uncoated | 0.504" (12.80mm) | 0.984" (25.00mm) | 0.295" (7.50mm) |
|
|
B64290A0037X038FERRITE CORE TOROID |
3,070 | 0.34 |
|
Datasheet |
T6.3/3.8/2.5 | Tape & Reel (TR) | Active | Toroid | - | - | - | - | - | - | - | - | - | - | - | - | - | Uncoated | - | - | - |
|
B66311G0150X127FERRITE CORE E N27 |
2,696 | 0.34 |
|
Datasheet |
E20/10/6 | Box | Active | E | E 20 x 10 x 6 | N27 | - | - | - | Gapped | - | 2000 | 1.44 | 46.3 | 32.1 | 31.9 | 1490.0 | Uncoated | 0.398" (10.10mm) | 0.803" (20.40mm) | 0.232" (5.90mm) |
|
|
B66311G0600X127FERRITE CORE E N27 |
3,272 | 0.34 |
|
Datasheet |
E20/10/6 | Box | Active | E | E 20 x 10 x 6 | N27 | - | - | - | Gapped | - | 2000 | 1.44 | 46.3 | 32.1 | 31.9 | 1490.0 | Uncoated | 0.398" (10.10mm) | 0.803" (20.40mm) | 0.232" (5.90mm) |
|
|
EFD20/10/7-3C90FERRITE CORE EFD 3C90 |
3,271 | 0.32 |
|
- |
- | Bulk | Active | EFD | EFD 20 x 10 x 7 | 3C90 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 0.394" (10.00mm) | 0.262" (6.65mm) | 0.262" (6.65mm) |
|
|
EFD20/10/7-3C94Ferrite Misc |
1,540 | 0.00 |
|
Datasheet |
- | Bulk | Active | EFD | EFD 20 x 10 x 7 | 3C94 | - | 1.3 µH | ±25% | Ungapped | - | - | 1.52 | 47.0 | 31.0 | 29.0 | 1460.0 | Uncoated | 0.394" (10.00mm) | 0.787" (20.00mm) | 0.262" (6.65mm) |
|
|
B66417A0160K087FERRITE CORE |
4,888 | 0.34 |
|
- |
EFD20/10/7 | Box | Active | - | - | - | - | - | - | Gapped | - | - | - | - | - | - | - | - | - | - | - |
|
|
B66417U0160J187FERRITE CORE EFD N87 |
2,822 | 0.34 |
|
Datasheet |
EFD20/10/7 | Box | Active | EFD | EFD 20 x 10 x 7 | N87 | - | - | - | Gapped | - | 2200 | 1.52 | 47.0 | 31.0 | 31.0 | 1460.0 | Uncoated | 0.394" (10.00mm) | 0.787" (20.00mm) | 0.262" (6.65mm) |
|

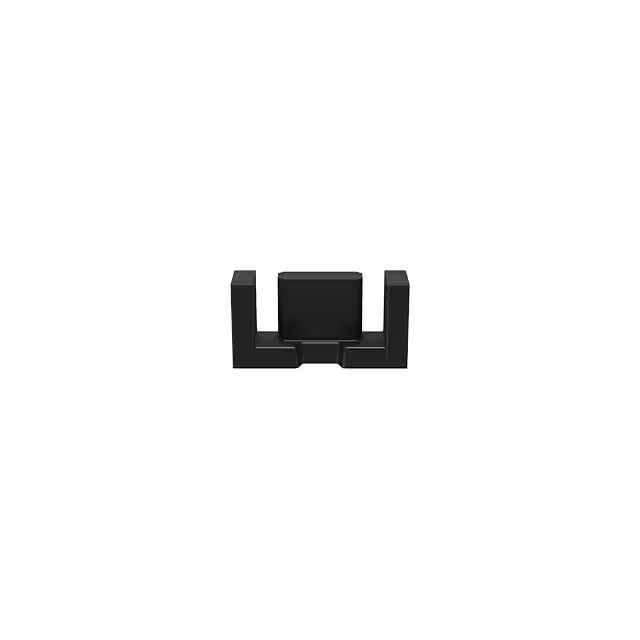

B66417U0400H187FERRITE CORE EFD N87 |
2,444 | 0.34 |
|
Datasheet |
EFD20/10/7 | Box | Active | EFD | EFD 20 x 10 x 7 | N87 | - | - | ±12% | Gapped | 483.0 | 2200 | 1.52 | 47.0 | 31.0 | 31.0 | 1460.0 | Uncoated | 0.394" (10.00mm) | 0.787" (20.00mm) | 0.262" (6.65mm) |
|
|
B66417U0630M187FERRITE CORE EFD N87 |
2,755 | 0.34 |
|
Datasheet |
EFD20/10/7 | Box | Active | EFD | EFD 20 x 10 x 7 | N87 | - | - | - | Gapped | - | 2200 | 1.52 | 47.0 | 31.0 | 31.0 | 1460.0 | Uncoated | 0.394" (10.00mm) | 0.787" (20.00mm) | 0.262" (6.65mm) |
|
|
B66417U0063J187FERRITE CORE EFD N87 |
1,442 | 0.34 |
|
Datasheet |
EFD20/10/7 | Box | Active | EFD | EFD 20 x 10 x 7 | N87 | - | - | - | Gapped | - | 2200 | 1.52 | 47.0 | 31.0 | 31.0 | 1460.0 | Uncoated | 0.394" (10.00mm) | 0.787" (20.00mm) | 0.262" (6.65mm) |
|
|
B64290P0037X048FERRITE CORE TOROID N48 |
1,945 | 0.34 |
|
Datasheet |
TC6.3/3.8/2.5 | Box | Active | Toroid | - | N48 | - | - | - | Gapped | - | 2300 | - | - | - | - | - | Parylene | - | - | - |
|
TX16/9.1/4.7-3E10-MFERRITE CORE TOROID |
4,399 | 0.35 |
|
Datasheet |
- | Bulk | Active | Toroid | TX 16 x 9.1 x 4.7 | - | 0.635" (16.13mm) | - | - | Ungapped | - | - | 2.53 | 37.2 | 14.7 | - | 548.0 | Epoxy | 0.195" (4.95mm) | - | - |
|
|
ZF41003TCTOROID GREY COATED |
3,162 | 0.00 |
|
Datasheet |
- | Bulk | Active | Toroid | - | F | 0.400" (10.15mm) | 1.314 µH | ±20% | Ungapped | - | 3000 | - | 20.7 | 7.3 | - | 151.0 | Epoxy | 0.147" (3.73mm) | - | - |
|
|
B66307G0280X187E16/8/5 N87 GAP 0.28+ |
1,614 | 0.00 |
|
Datasheet |
- | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
B66307G0800X187E16/8/5 N87 GAP 0.8+- |
1,586 | 0.00 |
|
Datasheet |
- | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
