Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LQW18ANR22G80DFIXED IND 220NH 280MA 2.08OHM SM |
3,708 | 0.21 |
|
Datasheet |
LQW18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 220 nH | ±2% | 280 mA | - | Unshielded | 2.08Ohm Max | 25 @ 100MHz | 1.33GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.065" L x 0.039" W (1.65mm x 0.99mm) | 0.039" (1.00mm) |
|
LQG18HN22NJ00DFIXED IND 22NH 500MA 0.5OHM SMD |
3,574 | 0.19 |
|
Datasheet |
LQG18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Air | 22 nH | ±5% | 500 mA | - | Unshielded | 500mOhm Max | 12 @ 100MHz | 2.3GHz | - | -40°C ~ 85°C | 100 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
|
LQW18AN68NG80DFIXED IND 68NH 630MA 0.38OHM SMD |
3,031 | 0.21 |
|
Datasheet |
LQW18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 68 nH | ±2% | 630 mA | - | Unshielded | 380mOhm Max | 37 @ 200MHz | 2.38GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.065" L x 0.039" W (1.65mm x 0.99mm) | 0.039" (1.00mm) |
|
|
LQW18AN13NG80DFIXED IND 13NH 1.5A 0.064OHM SMD |
3,024 | 0.21 |
|
Datasheet |
LQW18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 13 nH | ±2% | 1.5 A | - | Unshielded | 64mOhm Max | 37 @ 250MHz | 5GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.065" L x 0.039" W (1.65mm x 0.99mm) | 0.039" (1.00mm) |
|
|
LQW18AN5N6C80DFIXED IND 5.6NH 1.9A 0.04OHM SMD |
2,908 | 0.08 |
|
Datasheet |
LQW18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 5.6 nH | ±0.2nH | 1.9 A | - | Unshielded | 40mOhm Max | 38 @ 250MHz | 6.65GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.065" L x 0.039" W (1.65mm x 0.99mm) | 0.039" (1.00mm) |
|
LQW18AN8N7G80DFIXED IND 8.7NH 1.6A 0.052OHM SM |
2,573 | 0.08 |
|
Datasheet |
LQW18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 8.7 nH | ±2% | 1.6 A | - | Unshielded | 52mOhm Max | 38 @ 250MHz | 4.75GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.065" L x 0.039" W (1.65mm x 0.99mm) | 0.039" (1.00mm) |
|
NLV32T-1R2J-EFFIXED IND 1.2UH 390MA 750MOHM SM |
2,380 | 0.25 |
|
Datasheet |
NLV-EF | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.2 µH | ±5% | 390 mA | - | Unshielded | 750mOhm Max | 30 @ 7.96MHz | 100MHz | - | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
|
LQG18HN3N3S00DFIXED IND 3.3NH 1A 0.12OHM SMD |
2,147 | 0.19 |
|
Datasheet |
LQG18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Air | 3.3 nH | ±0.3nH | 1 A | - | Unshielded | 120mOhm Max | 12 @ 100MHz | 6GHz | - | -40°C ~ 85°C | 100 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
|
LQW18AN16NG80DFIXED IND 16NH 1.4A 0.075OHM SMD |
1,713 | 0.21 |
|
Datasheet |
LQW18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 16 nH | ±2% | 1.4 A | - | Unshielded | 75mOhm Max | 40 @ 250MHz | 4.6GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.065" L x 0.039" W (1.65mm x 0.99mm) | 0.039" (1.00mm) |
|
|
LQW18AN9N1G80DFIXED IND 9.1NH 1.6A 0.052OHM SM |
1,630 | 0.21 |
|
Datasheet |
LQW18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 9.1 nH | ±2% | 1.6 A | - | Unshielded | 52mOhm Max | 38 @ 250MHz | 4.75GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.065" L x 0.039" W (1.65mm x 0.99mm) | 0.039" (1.00mm) |
|
KLZ1608MHR220WTD25FIXED IND 22UH 150MA 3.12OHM SMD |
1,380 | 0.24 |
|
Datasheet |
KLZ-HR | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 22 µH | ±20% | 150 mA | 55mA | Shielded | 3.12Ohm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 2 MHz | Soft Termination | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
|
LQW18AN28NG80DFIXED IND 28NH 1.2A 0.098OHM SMD |
1,125 | 0.08 |
|
Datasheet |
LQW18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 28 nH | ±2% | 1.2 A | - | Unshielded | 98mOhm Max | 40 @ 250MHz | 3.6GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.065" L x 0.039" W (1.65mm x 0.99mm) | 0.039" (1.00mm) |
-Height-1.00mm.jpg)
|
DFE252010P-R47M=P2FIXED IND 470NH 3.5A 0.035OHM SM |
184,622 | 0.31 |
|
Datasheet |
DFE252010P | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 470 nH | ±20% | 3.5 A | 5A | Shielded | 35mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | Flat Wire | Surface Mount | 2520 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|

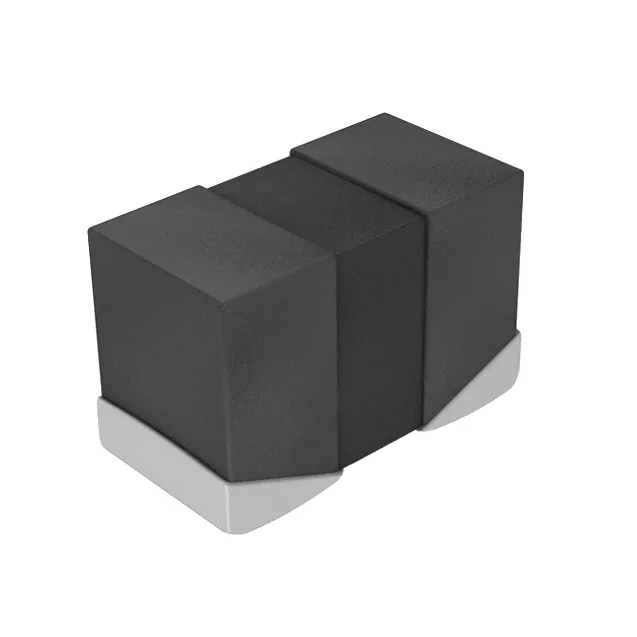

MBKK1608T4R7MFIXED IND 4.7UH 500MA 730MOHM SM |
164,678 | 0.23 |
|
Datasheet |
MCOIL™, MB | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 4.7 µH | ±20% | 500 mA | 370mA | Shielded | 730mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
MAKK2016T1R0MFIXED IND 1UH 2.2A 75 MOHM SMD |
96,056 | 0.23 |
|
Datasheet |
MCOIL™, MA | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 1 µH | ±20% | 2.2 A | 2.2A | Shielded | 75mOhm Max | - | - | - | -40°C ~ 105°C | 2 MHz | - | Surface Mount | 0806 (2016 Metric) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
|
MBKK1608T2R2MFIXED IND 2.2UH 750MA 345MOHM SM |
82,454 | 0.23 |
|
Datasheet |
MCOIL™, MB | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 2.2 µH | ±20% | 750 mA | 520mA | Shielded | 345mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
|
MBKK2012T2R2MFIXED IND 2.2UH 850MA 290MOHM SM |
79,655 | 0.23 |
|
Datasheet |
MCOIL™, MB | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 2.2 µH | ±20% | 850 mA | 900mA | Shielded | 290mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.039" (1.00mm) |
|
LQW15AN18NJ8ZDFIXED IND 18NH 1.05A 0.13OHM SMD |
72,740 | 0.23 |
|
Datasheet |
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 18 nH | ±5% | 1.05 A | - | Unshielded | 130mOhm Max | 30 @ 250MHz | 5.2GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
|
|
LQW15AN3N3C80DFIXED IND 3.3NH 2A 0.03OHM SMD |
70,838 | 0.23 |
|
Datasheet |
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 3.3 nH | ±0.2nH | 2 A | - | Unshielded | 30mOhm Max | 30 @ 250MHz | 14GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
|
|
MBKK1608T1R5MFIXED IND 1.5UH 1A 200 MOHM SMD |
69,368 | 0.23 |
|
Datasheet |
MCOIL™, MB | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 1.5 µH | ±20% | 1 A | 650mA | Shielded | 200mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
